Saracen Ariel 60 Pro

Name: Saracen Ariel 60 Pro
Brand: Saracen
SKU: VARRN2361
Price: 3499.99 GBP
Availability: InStock

In stock

£3,499.99

Qty:

Home Delivery
Click and Collect

Or

Apply Discount Code

Saracen Ariel 60 Pro

Skip to the end of the images gallery

New

Skip to the beginning of the images gallery

Product Details

Go full enduro.

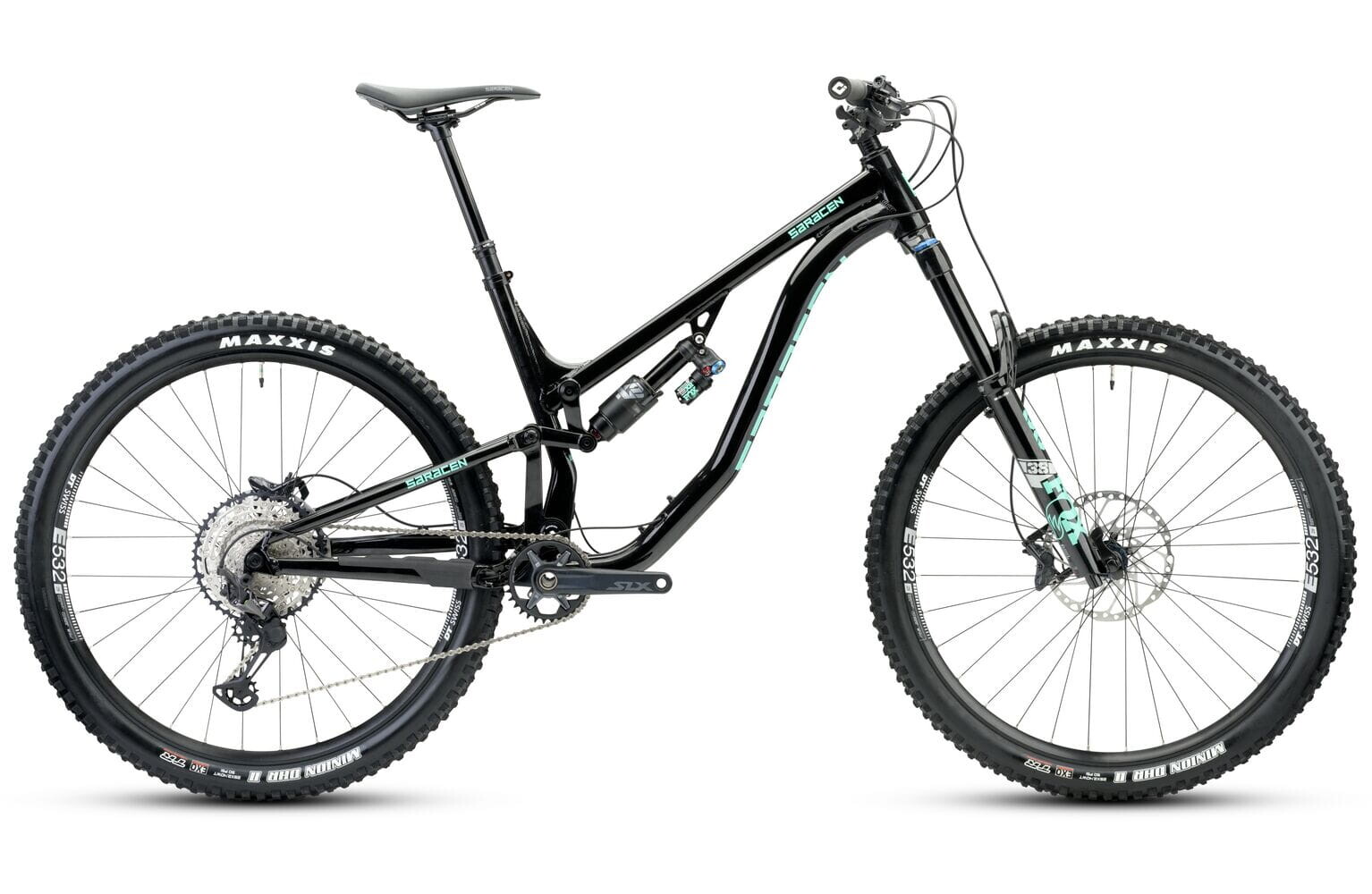

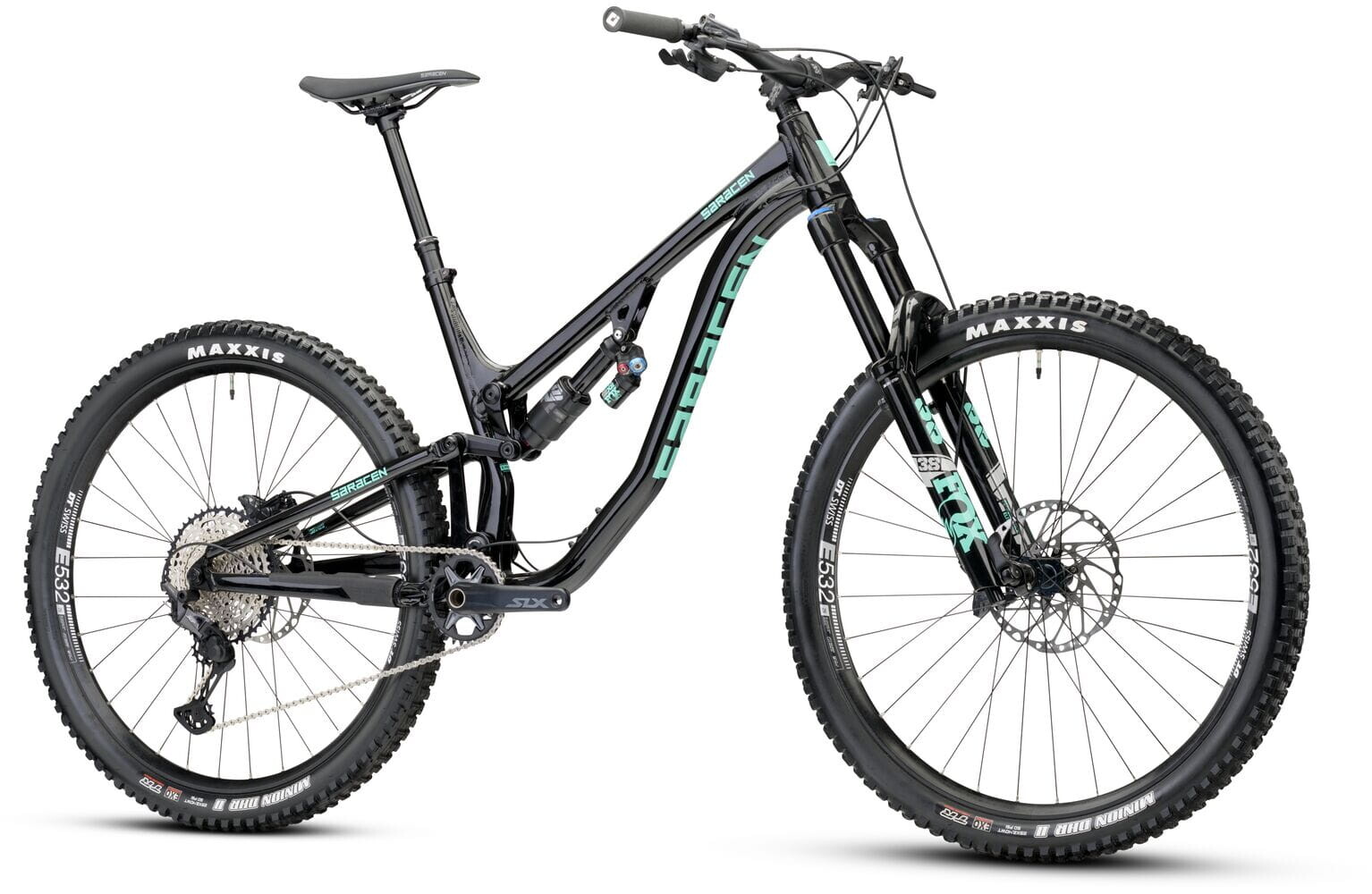

Our flagship enduro bike, the Saracen Ariel 60 has been built to take on the wildest wilderness epics, bikepark laps and can of course get competitive between the tapes.

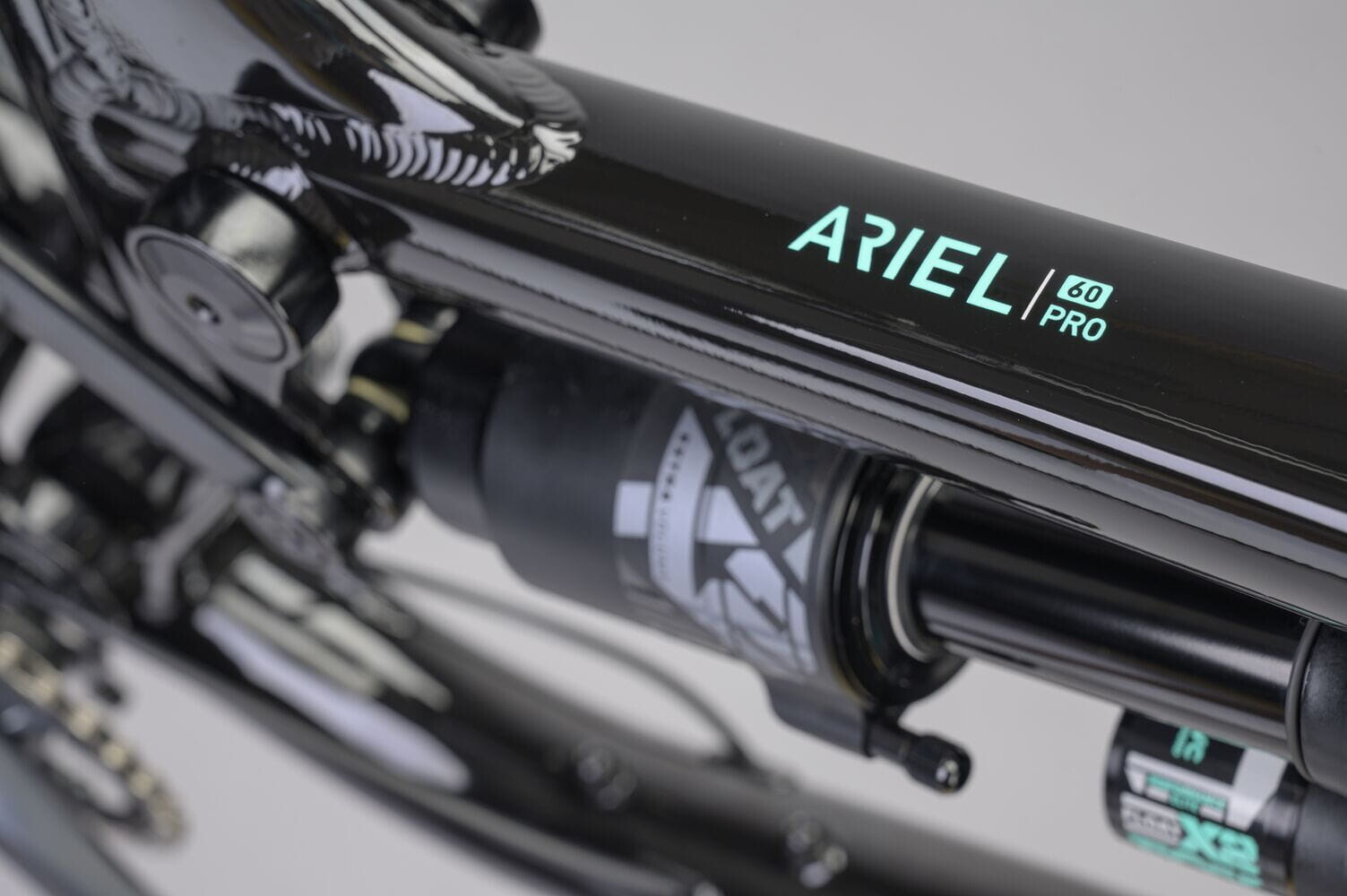

At the heart of the brand new 160mm suspension platform is our series 3 custom-butted and hydroformed 6013 aluminium frame.

It's enduro-ready and while we might not have an EWS race team, we do have Matt Walker from the Madison Saracen Factory Racing Team.

Matt is a man who knows how to ride a bike way past the capabilities of mere mortals. The first time he rode the Ariel 60, we saw the bike shiver a little as he approached because it knew things were about to get serious.

The testing instructions were simple: we wanted him to ride this bike as hard as he goes on his Myst but with one difference he'd be pedalling back up the hills too.

Now it's Matt's favourite bike to jump on, with a steep seattube and efficient suspension design helping on the way up. On the way back down, it's a riot.

It's also easy to get the right fit on an Ariel 60. That's because it features size specific wheels, with small and medium bikes in the 29/27.5 mullet setup, and the large and extra-large sizes 29er models.

But what if you change your mind faster than the bike industry about which wheelsize is best?

We thought of that already. Whichever Ariel 60 you choose, we've included additional push links, that you can swap out and see if the grass really is greener. All you'll need is the right size rear wheel.

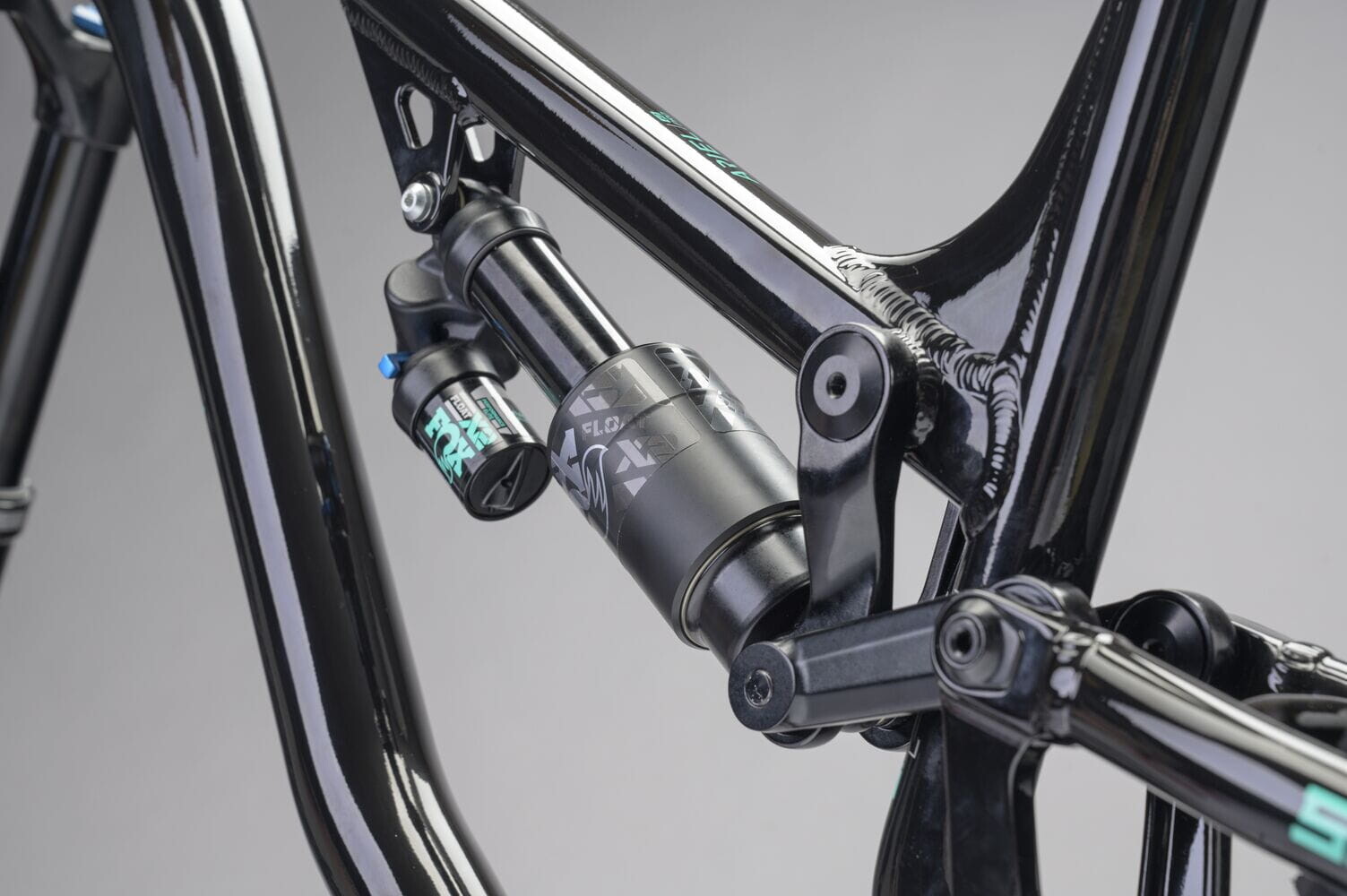

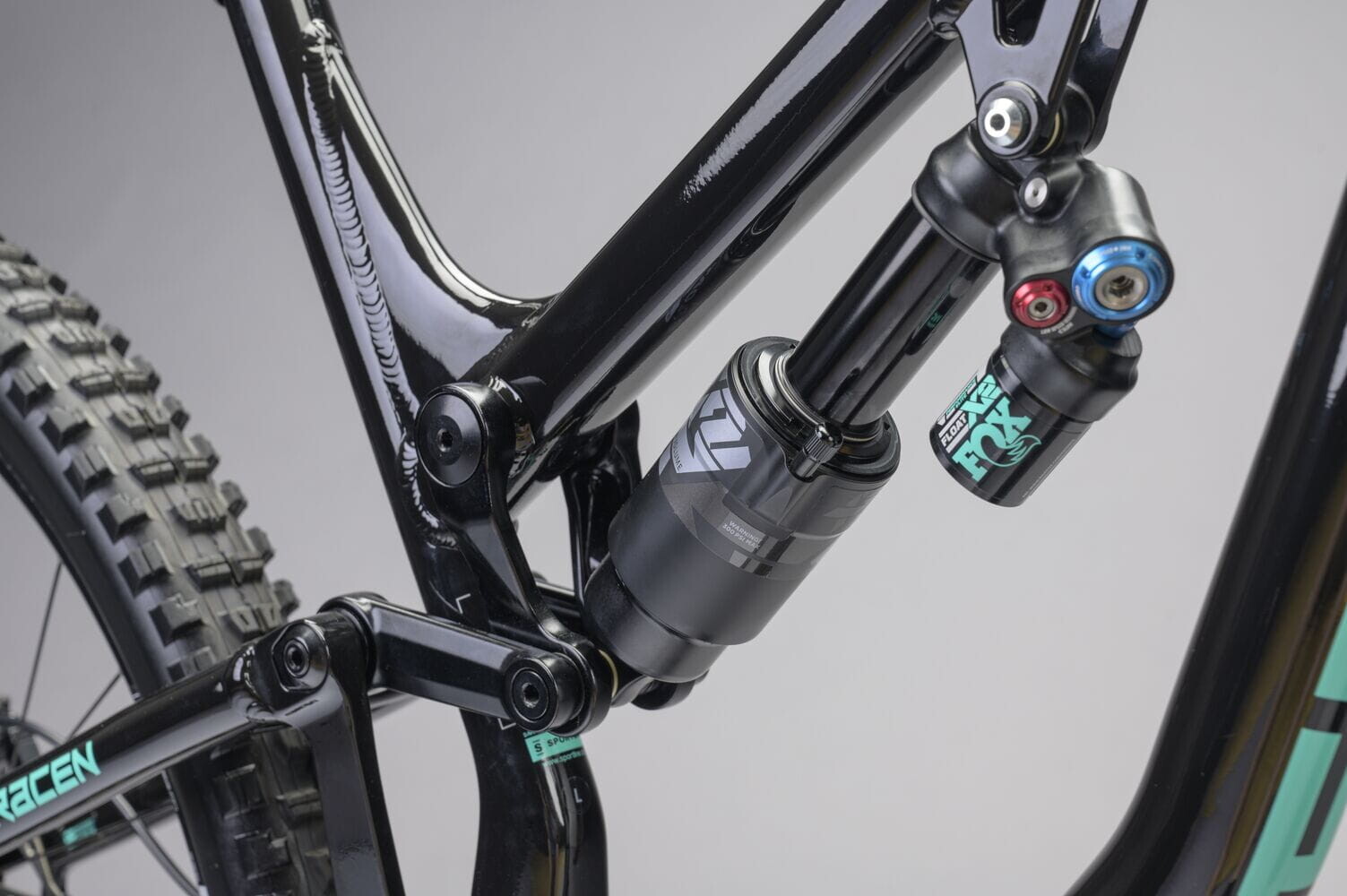

Our Pro model delivers its 160mm of race-spec travel through a Fox Float X2 Performance air shock and Fox 38 Performance Elite fork, featuring the GRIP2 damper.

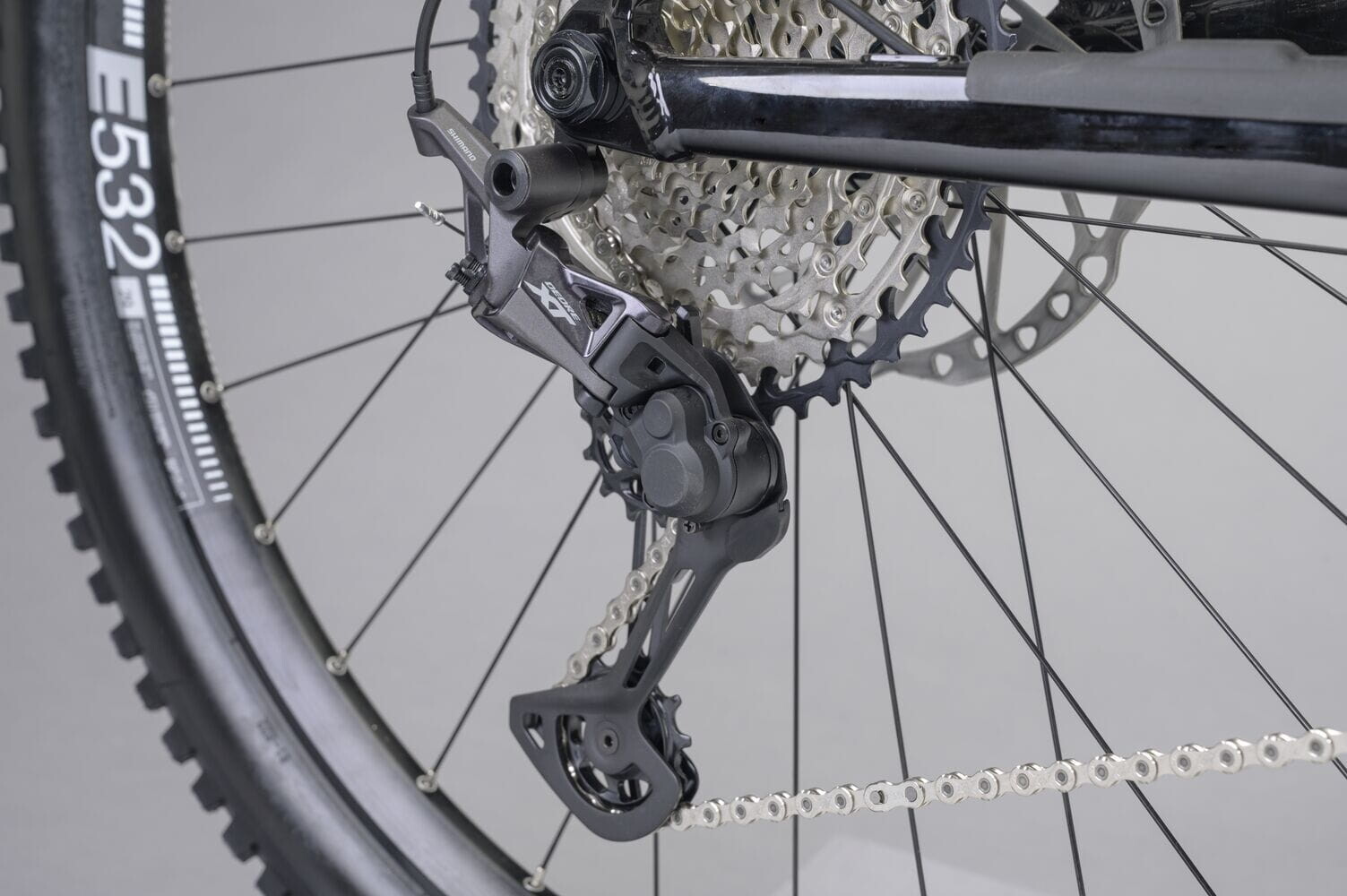

The latest Shimano SLX groupset continues to set new standards in shift performance and aided by an XT rear mech, each one of the 12 selections on the 11-51 cassette is crisp and fast.

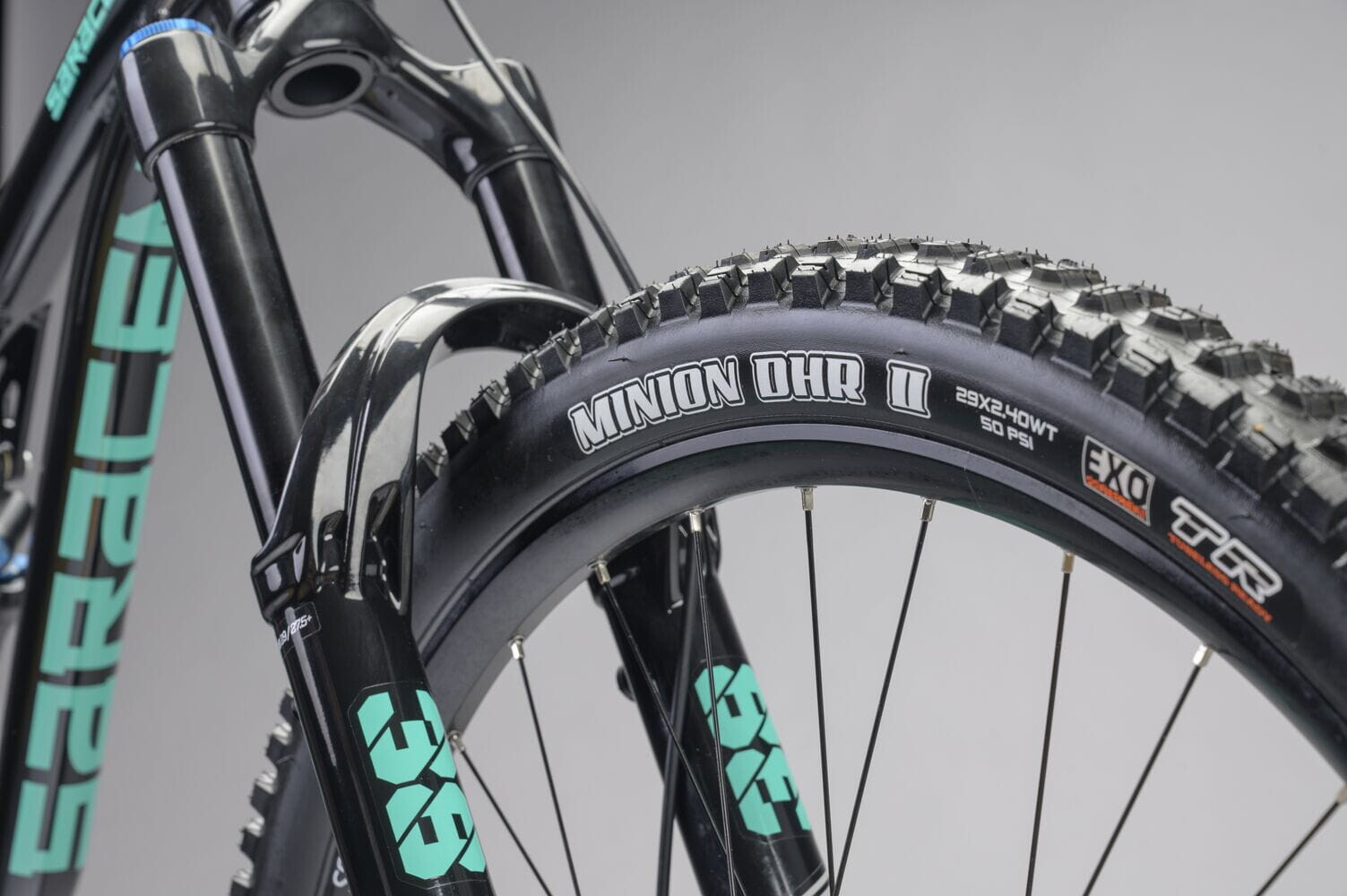

A 30mm rim is a must for enduro and the DT Swiss E532 is resilient and gives a great ride feel. Maxxis Minion DHRII tyres are the standard choice, and will easily setup tubeless. You'll just need to add tape, valves and sealant.

RaceFace provide the bar and stem which has a healthy 35mm diameter and the KS Rage is our dropper of choice.

When it comes to the details, there is internal routing for everything including a dropper post - room for a 550ml bottle, superboost spacing for additional clearance and big bearings which last longer and are commonly available should you need to refresh them

Unleash Your Inner Enduro Champion:

Dive headfirst into the world of enduro with the Saracen Ariel 60, our flagship bike meticulously engineered to conquer the most demanding wilderness epics, bike park laps, and competitive race courses. Crafted around a brand-new 160mm suspension platform housed within our series 3 custom-butted and hydroformed 6013 aluminium frame, this bike is ready to push the boundaries of what's possible on the trail. With input from Matt Walker of the Madison Saracen Factory Racing Team, the Ariel 60 is designed to excel beyond the capabilities of mere mortals. Whether you're attacking steep climbs or shredding technical descents, this bike delivers unparalleled performance that inspires confidence and pushes your limits to new heights.

Customizable Wheel Options for Optimal Performance:

The Ariel 60 offers riders the flexibility to tailor their ride experience to their preferences, thanks to its size-specific wheel options and included push links. Whether you prefer the agility of a 27.5-inch rear wheel paired with a 29-inch front wheel or the stability of a 29er setup, this bike adapts effortlessly to your chosen terrain and riding style. Say goodbye to compromise and hello to a ride experience that's perfectly tuned to your preferences.

Pro-Level Components for Podium Performance:

Elevate your riding to the next level with the Ariel 60 Pro model, equipped with a lineup of race-spec components that set the standard for enduro performance. Featuring a Fox Float X2 Performance air shock and Fox 38 Performance Elite fork with the GRIP2 damper, this bike delivers 160mm of plush, race-ready travel to tackle the most challenging trails with ease. The latest Shimano SLX groupset ensures crisp and precise shifting, while the XT rear mech provides reliable performance across the 11-51 cassette. Paired with DT Swiss E532 rims, Maxxis Minion DHRII tires, RaceFace handlebar and stem, and a KS Rage dropper post, the Ariel 60 Pro is ready to chase podiums and conquer every trail with confidence.

Saracen Ariel 60 Pro

SKU

VARRN2361

You’re suporting a local bike shop with every purchase

Find out more

Specification

Brake Type :

Hydraulic Disc

Frame Material :

Alloy

Bottom Bracket :

Shimano BB-MT800 / 73mm

Brake Levers :

Shimano M7100

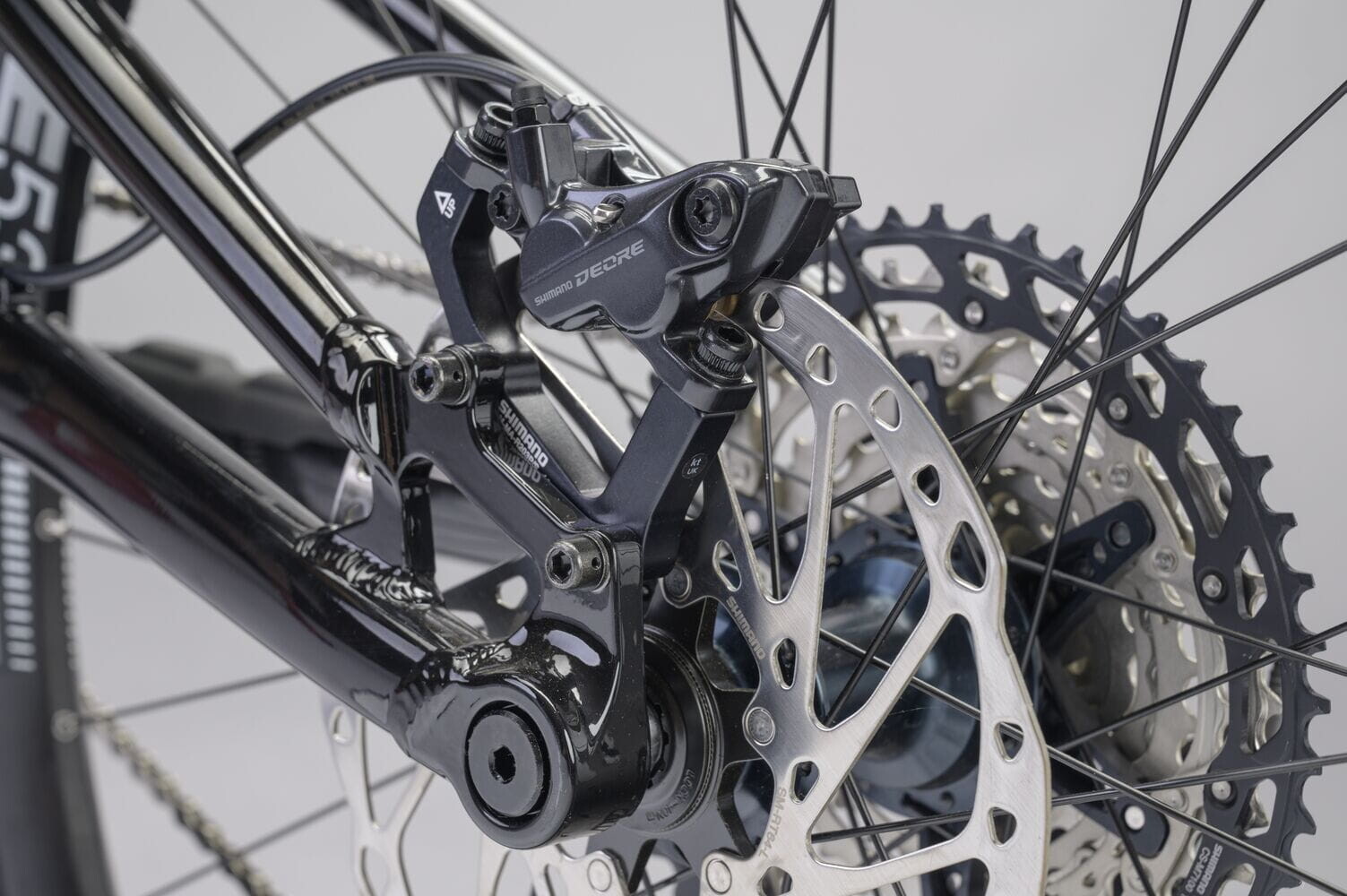

Brakes :

Shimano M7120 203/203mm

Cassette Freewheel :

Shimano M7100 / 12 speed / 10-51T

Chain :

KMC X12

Chain Set :

Shimano SLX FC-M7130 / 32T / 170mm / 56.5mm CL

Fork :

Fox 38 Performance Elite / 160mm travel / tapered steerer / HSC LSC HSR LSR Adjust / Grip 2 Damper / 15x110 Boost / 44mm Rake

Handlebars :

Raceface Atlas 35 / 820mm Wide / 35mm Rise / 35mm Clamp Diameter

Headset :

Prestine PT-F13

Hubs :

Shimano HB-M7110 32h 15 x 110 Front / Shimano FH-M7130 32h 12 x 157 Rear / Centre-Lock rotor fixing

Rear Derailleur :

Shimano XT M8100 / 12 Speed

Rear Shock :

Fox Float X2 Performance / HSC / LSC / HSR / LSR / 2 position adjust / 230 x 65

Rear Suspension Travel :

160 mm

Rims :

DT Swiss E532 / 32H / 29 Front / 29" Rear (Sizes LG / XL) 29" Front / 27.5" Rear (Sizes SM / MD)"

Saddle :

Saracen Custom CrMo MTB

Seat Post :

KS Rage I / 150mm travel (125mm on S size) / internal cable routing / 30.9mm / Westy Remote

Shifters :

Shimano SLX M7100 / 1 x 12 Speed

Spokes :

Double-butted stainless steel

Stem :

Raceface Chester 35 / 40mm / A Head / 0 Degree Rise / 35mm Clamp

Tyres :

Maxxis Minion DHRII / EXO / TR / 29 x 2.4 Front & Rear (Sizes LG / XL) / 29 x 2.4 Front / 27.5 x 2.4 Rear (Sizes SM / MD)

Wheel Size :

27.5 inch, 29 inch

Sizing & Geometry

150

152

154

156

158

160

162

164

166

168

170

172

174

176

178

180

182

184

186

188

190

192

194

196

198

200

Please be advised that this bicycle size chart is only a rough guide to help you select the correct frame size. We would always recommend visiting your local dealer to get measured and sized correctly, as although height is used, there are other factors which help determine the best frame size for you.

Geometry

Size:	Units:
Frame Seat Tube	460
Frame Top Tube	652
Frame Reach	505
Frame Stack	636
Frame Head Tube	125
Frame Head Angle	64.6
Frame Seat Angle	76.5
Frame Chainstay	440
Frame BB Drop	27
Frame Wheel Base	1278
Standover	736
Frame Seat Tube	410
Frame Top Tube	624
Frame Reach	480
Frame Stack	623
Frame Head Tube	110
Frame Head Angle	64.6
Frame Seat Angle	76.5
Frame Chainstay	440
Frame BB Drop	27
Frame Wheel Base	1247
Standover	735
Frame Seat Tube	360
Frame Top Tube	603
Frame Reach	455
Frame Stack	618
Frame Head Tube	105
Frame Head Angle	64.6
Frame Seat Angle	76.5
Frame Chainstay	440
Frame BB Drop	27
Frame Wheel Base	1220
Standover	735
Frame Seat Tube	510
Frame Top Tube	680
Frame Reach	530
Frame Stack	650
Frame Head Tube	140
Frame Head Angle	64.6
Frame Seat Angle	76.5
Frame Chainstay	440
Frame BB Drop	27
Frame Wheel Base	1310
Standover	736

Delivery & Returns

CLICK & COLLECT: Free
Have your new bicycle or frame ready to collect in-store for free. Please wait until you have heard from your selected store prior to travelling as an experienced and certified mechanic will build and complete a pre-delivery inspection in-store.

BIKE BUILD & DELIVERY: £50
Get your new bicycle or frame delivered straight to your door. Includes professional bike build, safety checks and pre delivery inspection, packing and shipment. We aim to get bikes despatched within 7 working days however this may vary during very busy periods. We use a premium two man delivery service to deliver all of our bikes and frames to ensure they arrive in the best possible condition. The courier will message you directly with updates on your order. Please note, a signature is required to confirm proof of delivery. Please note that free delivery on promotional items may be available. To confirm eligibility, please check the basket during the checkout process or call us on 0208 385 3400

RETURNS: We hope you’re happy with your purchase. If you’re not perfectly satisfied and the order was placed in the last 30 days, you can contact us to arrange a returns collection. We can only accept bikes or frames that have not been used or ridden. The original box and packaging should be used. Please read our full returns policy here.

Reviews
