Go full enduro.

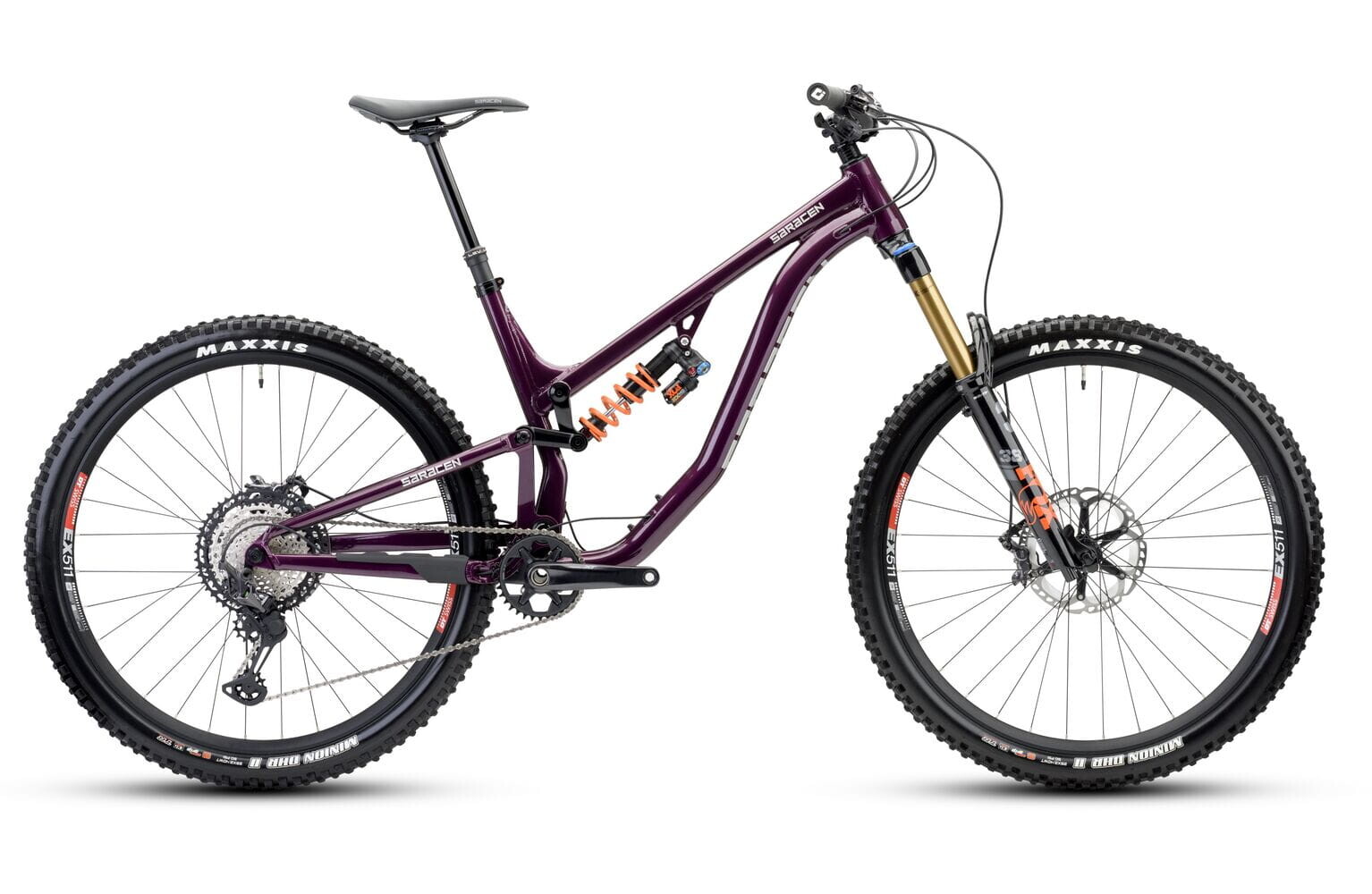

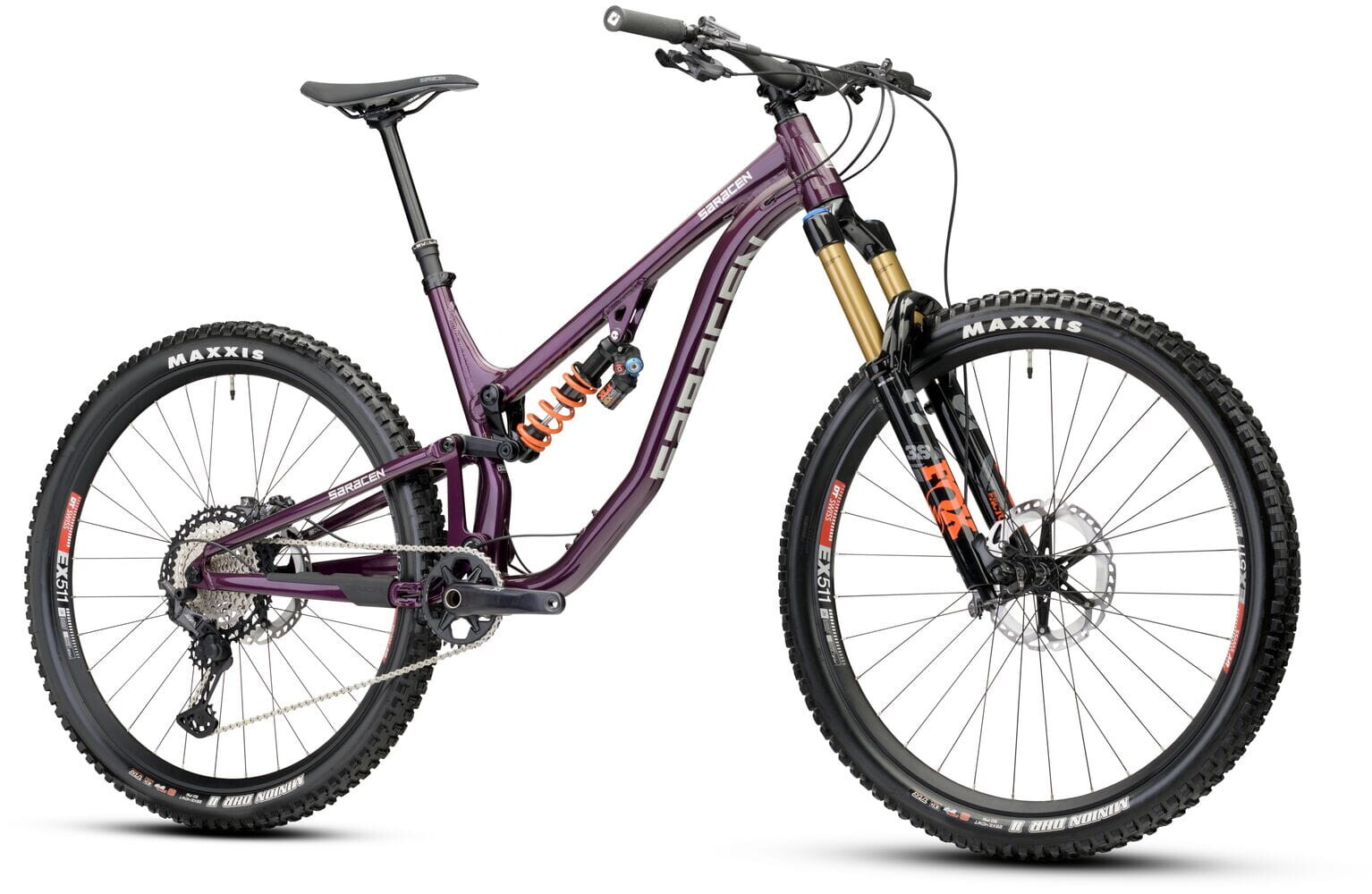

Our flagship enduro bike, the Saracen Ariel 60 has been built to take on the wildest wilderness epics, bikepark laps and can of course get competitive between the tapes.
At the heart of the all-new 160mm suspension platform is our series 3 custom-butted and hydroformed 6013 aluminium frame.
It's enduro-ready and while we might not have an EWS race team, we do have Matt Walker from the Madison Saracen Factory Racing Team.
Matt is a man who knows how to ride a bike way past the capabilities of mere mortals. The first time he rode the Ariel 60, we saw the bike shiver a little as he approached because it knew things were about to get serious.
The testing instructions were simple: we wanted him to ride this bike as hard as he goes on his Myst but with one difference he'd be pedalling back up the hills too.
Now it's Matt's favourite bike to jump on, with a steep seattube and efficient suspension design helping on the way up. On the way back down, it's a riot.
It's also easy to get the right fit on an Ariel 60. That's because it features size specific wheels, with small and medium bikes in the 29/27.5 mullet setup, and the large and extra-large sizes 29er models.
But what if you change your mind faster than the bike industry about which wheelsize is best?
We thought of that already. Whichever Ariel 60 you choose, we've included additional push links, that you can swap out and see if the grass really is greener. All you'll need is the right size rear wheel.
The good news continues when you take a look at the spec sheet for our Elite model, which comes with a wish-list of components.

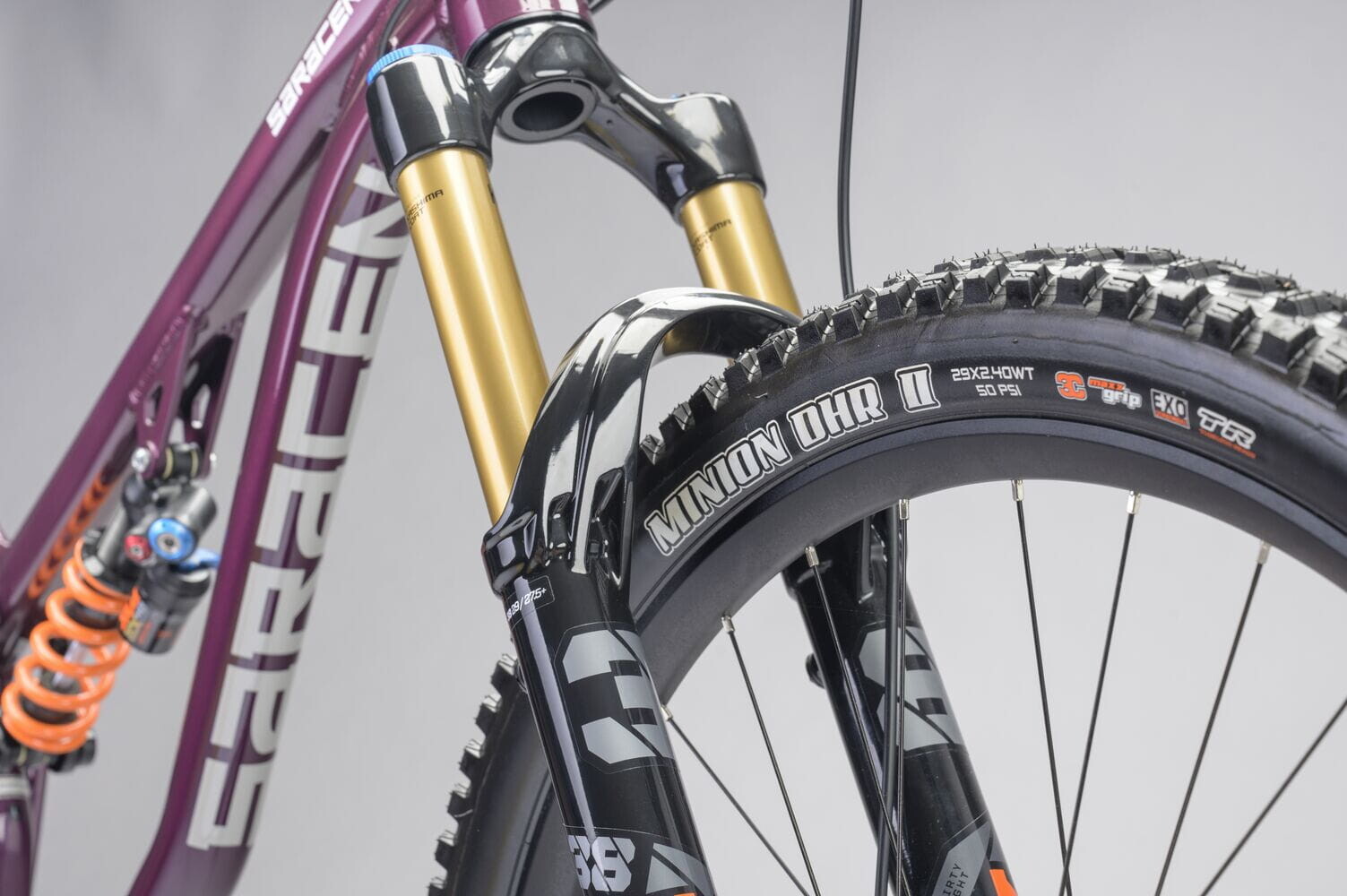

That starts with the suspension, with a Fox Factory 38 with Kashima Coat, and a DHX2 Factory shock. There's every adjustment you'll ever need to get your setup dialled.

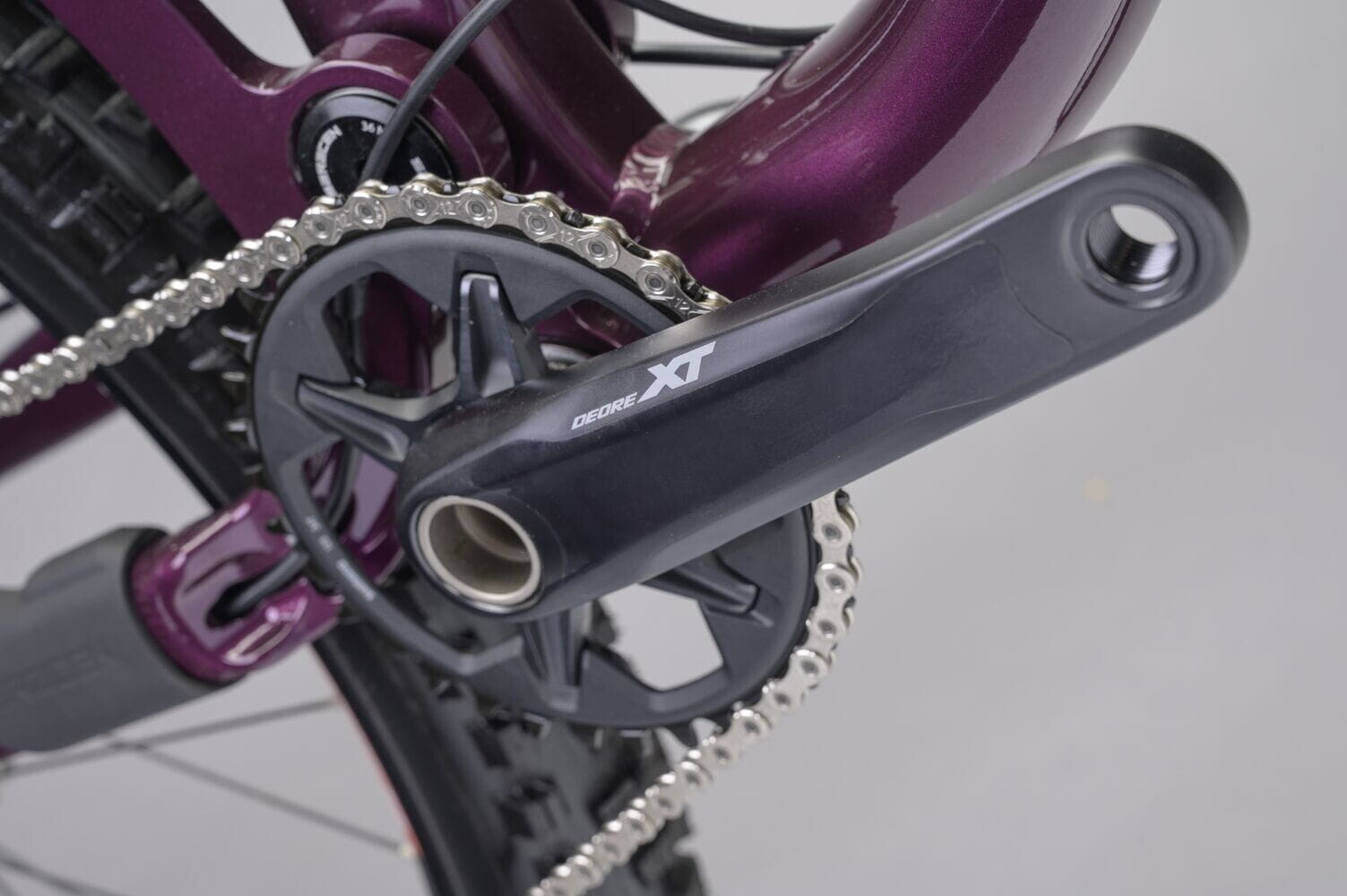

Shimano XT has long been the benchmark for performance and durability on the trail, and we've got the complete groupset here including the brilliant four-piston brakes, which allow for one finger control on almost any descent.
The gold standard of enduro rims, the 30mm wide DT Swiss EX511 gives the Maxxis Minion DHRII tyres the perfect profile and both are tubeless ready. You'll just need to add tape, valves and sealant.
Completing the package is a carbon RaceFace Next R handlebar and matching aluminium stem, both in 35mm diameter. The KS Lev Integra dropper post makes this bike ready for business and party at a throw of the southpaw lever.
When it comes to the details, there is internal routing for everything including a dropper post - room for a 550ml bottle, superboost spacing for additional clearance and big bearings which last longer and are commonly available should you need to refresh them
Embrace the spirit of enduro with the Saracen Ariel 60, our flagship bike designed to tackle the most rugged wilderness epics, bike park laps, and competitive race courses. At the core of its performance is our meticulously crafted 160mm suspension platform, housed within our series 3 custom-butted and hydroformed 6013 aluminium frame. Designed with input from Matt Walker of the Madison Saracen Factory Racing Team, this bike is engineered to push the boundaries of what's possible on the trail. With a steep seattube angle and efficient suspension design, the Ariel 60 excels on the climbs, while its aggressive geometry and plush suspension make every descent an adrenaline-fueled riot.
The Ariel 60 offers riders the versatility to tailor their ride experience to their preferences, thanks to its size-specific wheel options and included push links. Whether you opt for the agility of a 27.5-inch rear wheel paired with a 29-inch front wheel or prefer the stability of a 29er setup, this bike adapts effortlessly to your chosen terrain and riding style. Say goodbye to compromise and hello to a ride experience that's perfectly tuned to your preferences.
Elevate your riding experience with the Ariel 60 Elite model, equipped with a wish-list of components that set the standard for enduro performance. Featuring a Fox Factory 38 fork with Kashima Coat and a DHX2 Factory shock, this bike offers unparalleled adjustability to dial in your setup for maximum performance. Shimano XT components, including the renowned four-piston brakes, deliver unmatched reliability and stopping power on even the most technical descents. Paired with DT Swiss EX511 rims, Maxxis Minion DHRII tires, a carbon RaceFace handlebar, and a KS Lev Integra dropper post, the Ariel 60 Elite is ready to tackle any trail with confidence and style.
150
152
154
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
194
196
198
200
Please be advised that this bicycle size chart is only a rough guide to help you select the correct frame size. We would always recommend visiting your local dealer to get measured and sized correctly, as although height is used, there are other factors which help determine the best frame size for you.
| Frame Seat Tube | 460 |
|---|---|
| Frame Top Tube | 652 |
| Frame Reach | 505 |
| Frame Stack | 636 |
| Frame Head Tube | 125 |
| Frame Head Angle | 64.6 |
| Frame Seat Angle | 76.5 |
| Frame Chainstay | 440 |
| Frame BB Drop | 27 |
| Frame Wheel Base | 1278 |
| Standover | 736 |
| Frame Seat Tube | 410 |
| Frame Top Tube | 624 |
| Frame Reach | 480 |
| Frame Stack | 623 |
| Frame Head Tube | 110 |
| Frame Head Angle | 64.6 |
| Frame Seat Angle | 76.5 |
| Frame Chainstay | 440 |
| Frame BB Drop | 27 |
| Frame Wheel Base | 1247 |
| Standover | 735 |
| Frame Seat Tube | 360 |
| Frame Top Tube | 603 |
| Frame Reach | 455 |
| Frame Stack | 618 |
| Frame Head Tube | 105 |
| Frame Head Angle | 64.6 |
| Frame Seat Angle | 76.5 |
| Frame BB Drop | 27 |
| Frame Wheel Base | 1220 |
| Standover | 735 |
| Frame Seat Tube | 510 |
| Frame Top Tube | 680 |
| Frame Reach | 530 |
| Frame Stack | 650 |
| Frame Head Tube | 140 |
| Frame Head Angle | 64.6 |
| Frame Seat Angle | 76.5 |
| Frame Chainstay | 440 |
| Frame BB Drop | 27 |
| Frame Wheel Base | 1310 |
| Standover | 736 |
