Saracen Ariel 80 Pro Small
£3,499.99
More from
Saracen Ariel 80 Pro Small
The New Ariel 80 Pro - Colour TBC
The Saracen Ariel 80 Pro returns with a fresh new look, Created in collaboration with one of the UK's most recognizable faces Jono Jones.
Known for riding hard, pushing limits and making every lap count, Jono embodies everything the Ariel 80 Pro was built for. So when it came to creating a new limited-edition colourway, there was no better rider to put their stamp on one of Saracen's most capable gravity-focused mountain bikes
Fun first and 27.5 for life, our take on a park bike is designed to thrive at every UK centre and even the Alps.
This thing loves to pop off lips, swing sideward and flick through trees. The bigger the grin on your face, the harder the Ariel 80 is going to work to keep it there.
Our all-new, custom-butted and hydroformed 6013 aluminium frame has been put to the test by bottom-out king Matt Walker and survived to make it into production.
Every millimetre of the 180mm of travel is designed to work hard, whether that's taking out rock chatter and braking bumps, sending the jump line, or holding on for traction in loose turns.
The 80 Pro gets the perfect spec sheet for hard charging out on the trails. A Fox DHX2 Performance shock is matched to the Fox 38 Performance Elite fork, providing every adjustment you need and more.

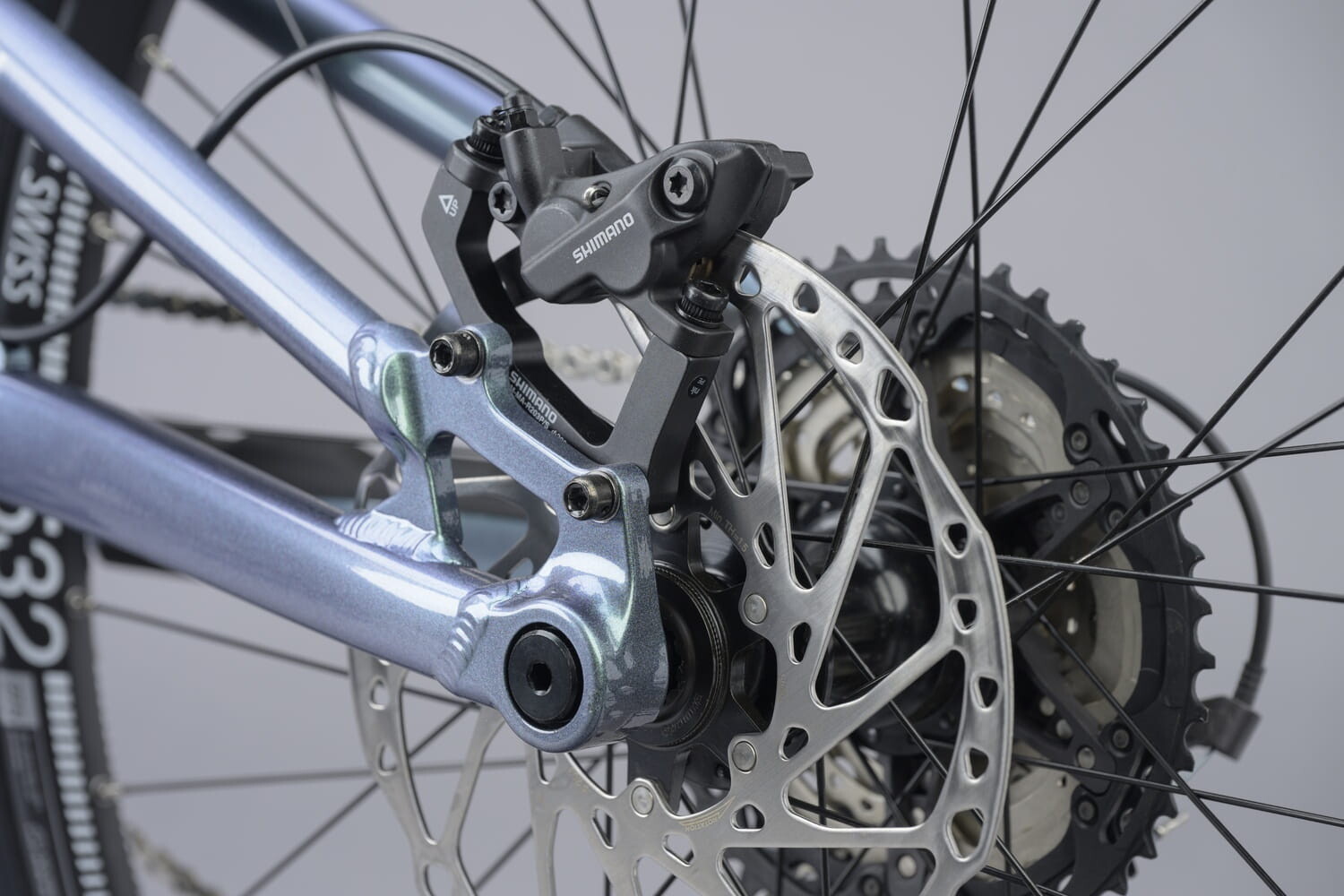

Shimano SLX provides shifting, with an XT rear mech covering the 11?45t wide-range cassette. Four-pot Deore brakes bring extra stopping power to the party.
The DT Swiss E532 rims are enduro-ready, with a 30mm internal width providing plenty for the 2.4 Maxxis Minion DHRII tyres to fill out onto. Both are tubeless-ready ? just add tape, valves, and sealant.
A RaceFace 35mm finishing kit and dropper post from KS complete a spec sheet that has no weakness ? and that's without mentioning the small details.
There's internal routing for everything ? including a dropper post, superboost spacing for additional clearance, and big bearings which last longer and are commonly available should you need to refresh them.
Just don't try and stick a 29er fork up front. You?ll set off our inbuilt safety device that?ll alert everyone on PinkBike to the crimes you?re committing.
Please note ? the Saracen Ariel does not come supplied with pedals. Add some from our gear store!
Frame
Series 3 custom butted 6013 aluminium
Frame Travel
180mm
Fork Travel
180mm
Wheel Size
27.5
Fork
Fox 38 Performance Elite
Shock
Fox Float DHX2 Performance
Drivetrain
1 x 12 Shimano SLX/XT
Jono Jones x Ariel 80 Pro
Model :
Ariel
Bottom Bracket :
Shimano BB-MT800 / 73mm
Brake Levers :
Shimano SLX M7100
Brakes :
Shimano SLX M7120 203/203mm
Cassette Freewheel :
Shimano M7100 / 12 speed / 10-51T
Chain :
KMC X12
Chain Set :
Shimano SLX FC-M7130 / 32T / 170mm / 56.5mm CL
Handlebars :
Raceface Atlas 35 / 820mm Wide / 35mm Rise / 35mm Clamp Diameter
Headset :
Prestine PT-F13
Hubs :
Shimano HB-M7110 32h 15 x 110 Front / Shimano FH-M7130 32h 12 x 157 Rear / Centre-Lock rotor fixing
Rear Derailleur :
Shimano XT M8100 / 12 Speed
Rear Shock :
Fox Float DHX2 Performance / 2 position adjust / 250 x 70
Rear Suspension Travel :
180 mm
Rims :
DT Swiss E532 / 32H / 27.5
Saddle :
Saracen Custom CrMo MTB
Seat Post :
KS Rage I / 170mm travel (150mm on S size) / internal cable routing / 30.9mm / Westy Remote
Shifters :
Shimano SLX M7100 / 1 x 12 Speed
Spokes :
Double-butted stainless steel
Stem :
Raceface Chester 35 / 40mm / A Head / 0 Degree Rise / 35mm Clamp
Tyres :
Maxxis Minion DHRII / EXO / TR / 27.5 x 2.4
Wheel Size :
27.5 inch
Fork :
Fox 38 Performance Elite / 180mm travel / tapered steerer / HSC LSC HSR LSR Adjust / Grip 2 Damper / 15x110 Boost / 44mm Rake
Frame Material :
Alloy
Brake Type :
Hydraulic Disc
| Frame Size | SMALL |
|---|---|
| Stem Length plus Reach | |
| Frame Seat Tube | 360 cm |
| Frame Top Tube | 580 cm |
| Frame Reach | 435 cm |
| Frame Stack | 602 cm |
| Frame Head Tube | 100 cm |
| Frame Head Angle | 63.5° |
| Frame Seat Angle | 76.5° |
| Frame Chainstay | 438 cm |
| Frame BB Drop | 14 cm |
| Frame Wheel Base | 1207 cm |
| Fork Offset | |
| Fork Travel | |
| Standover | 735 cm |
| Stem Length | |
| Handle Bar Width |
| Frame Size | SMALL |
|---|---|
| Stem Length plus Reach | |
| Frame Seat Tube | 360 |
| Frame Top Tube | 580 |
| Frame Reach | 435 |
| Frame Stack | 602 |
| Frame Head Tube | 100 |
| Frame Head Angle | 63.5° |
| Frame Seat Angle | 76.5° |
| Frame Chainstay | 438 |
| Frame BB Drop | 14 |
| Frame Wheel Base | 1207 |
| Fork Offset | |
| Fork Travel | |
| Standover | 735 |
| Stem Length | |
| Handle Bar Width |
