Built for the Trails
Intended as an all-round trail bike, but with attitude.
Saracen Ariel 30
In stock
£2,499.99
Saracen Ariel 30
If double-downcountry was a thing, this would be the bike.
Well it is a thing, so embrace it, you're going to love it. The Ariel 30 rallies up, down and everywhere in between.
From the local loam, to trail centres and natural stuff that a bike with this little travel should have no right being interested in, this is the one that can do it all.

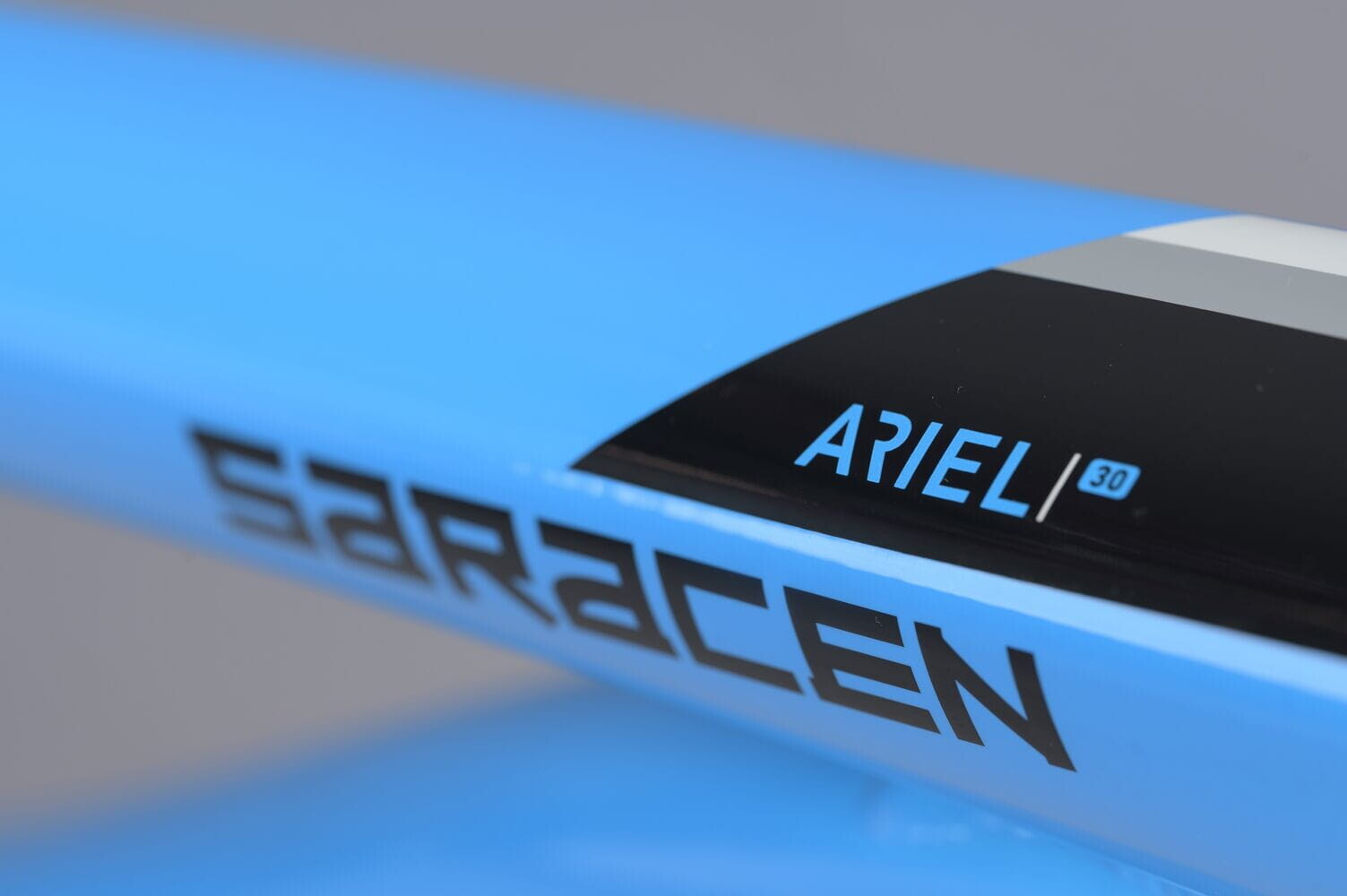

At the heart of it is our all-new, custom-butted and hydroformed 6013 aluminium frame.
Designed and developed with the help of Matt Walker from our Madison Saracen Factory Racing Team, you know it's been put through the wringer and is built to last and go fast.
Every Ariel 30 features size specific wheels, with small and medium bikes in the 29/27.5 mullet setup, and the large and extra-large sizes 29er models.
But what if you change your mind faster than the bike industry about which wheel size is best?
We thought of that already. Whichever Ariel 30 you choose, we've included additional push links, that you can swap out and see if the grass really is greener. All you'll need is the right size rear wheel.
Our benchmark model features everything expected of a modern trail bike and will leave you wondering if you need anything more capable to have a great time.

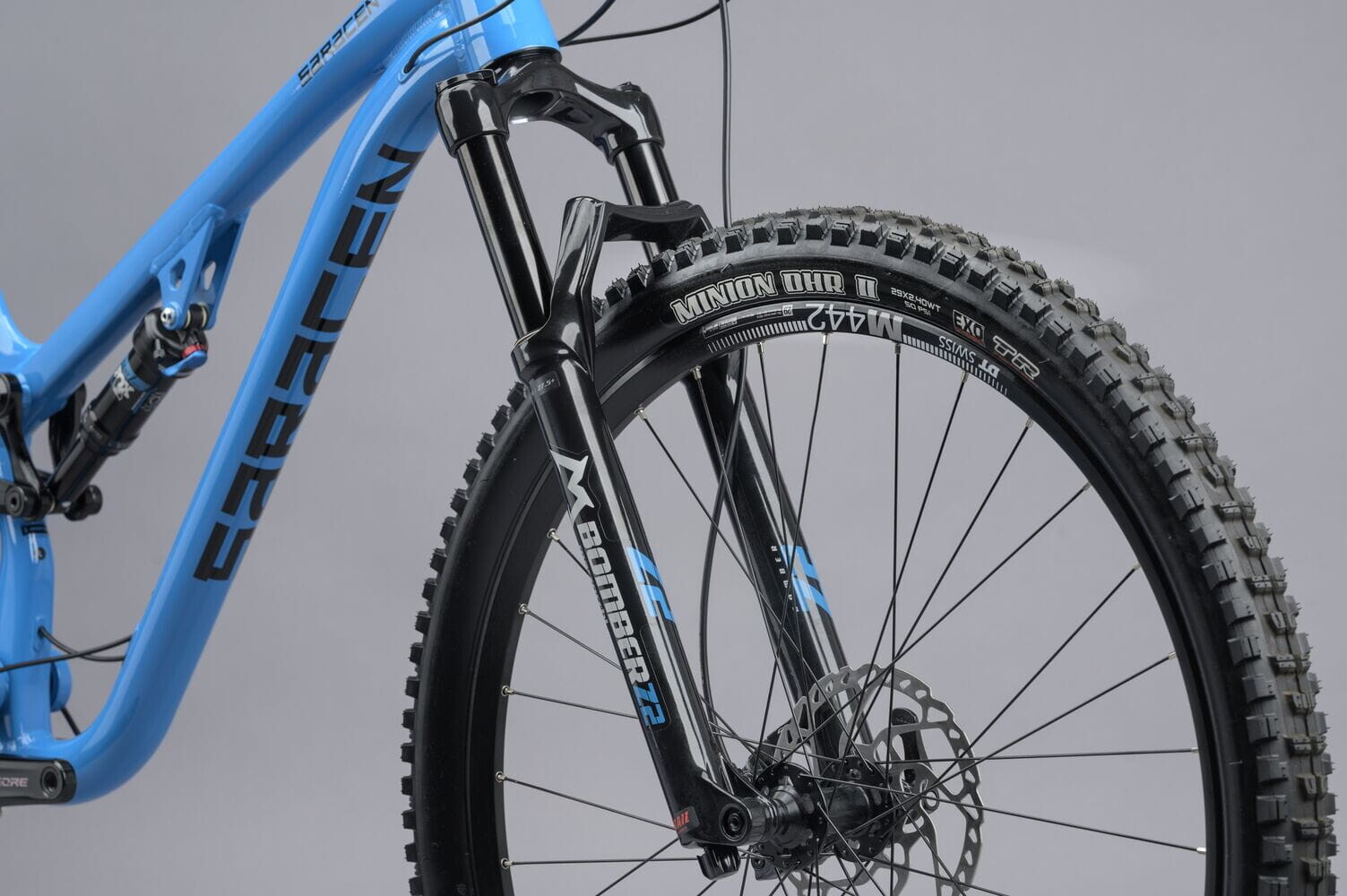

The 130mm of travel is provided by a Fox DPS Performance air shock featuring three position settings, with Marzocchi's Bomber Z2 fork up front owning every black run you dare take.
Shimano's fresh Deore groupset has already earned acclaim for its brilliant shifting, with the SLX rear mech covering every ratio of the super-wide 10-51 cassette. Stopping is handled by the ever reliable two piston Deore callipers.
DT Swiss M442 rims are built to last and feature a 22.5mm internal, approved for up to 2.5-inch tyres. We've chosen unflappable Maxxis Minion DHRII rubber which, along with the rims are tubeless ready - just add tape, valves and sealant.
Finishing kit is taken care of by RaceFace, with an up to date 35mm diameter bar and stem, and the KS Rage dropper completes the package.
When it comes to the details, there is internal routing for everything - including a dropper post - room for a 550ml bottle, superboost spacing for additional clearance and big bearings which last longer and are commonly available should you need to refresh them.
130mm Travel
Provided by a Fox DPS Performance air shock featuring three position settings, with Marzocchi's Bomber Z2 fork up front owning every black run you dare take.
Size Specific Wheels
The small and medium bikes feature a 29/27.5 mullet setup and the large and extra-large sizes feature 29er models. Adjustable links are included.
Press Review
★★★★
The Saracen Ariel 30 might be one of the cheaper entries into the brand’s range of bicycles, but it feels anything but budget. This is a trail bike that’ll be a great upgrade for newbies into the scene but definitely has enough capability to keep the most hardened of riders pushing for more. - TheGearSphere
Press Review
★★★★
The Saracen Ariel 30 might be one of the cheaper entries into the brand’s range of bicycles, but it feels anything but budget. This is a trail bike that’ll be a great upgrade for newbies into the scene but definitely has enough capability to keep the most hardened of riders pushing for more. - TheGearSphere
Brake Type :
Hydraulic Disc
Frame Material :
Alloy
Bottom Bracket :
Shimano BB52 / 73mm
Brake Levers :
Shimano M6100
Brakes :
Shimano M6100 180/180mm
Cassette Freewheel :
Shimano M6100 / 12 speed / 10-51T
Chain :
KMC X12
Chain Set :
Shimano Deore FC-M6130 / 32T / 170mm / 56.5mm CL
Fork :
Marzocchi Bomber Z2 / 130mm travel / tapered steerer / rebound adjust / Sweep adjust rail damper / QR 15x110 Boost / 44mm Rake
Handlebars :
Raceface Chester 35 / 780mm Wide / 20mm Rise / 35mm Clamp
Headset :
Prestine PT-F13
Hubs :
KT DHF122 sealed bearing 32h 15 x 110 Front / KT DHR2S5 sealed bearing 32h 12 x 157 Rear / 6-bolt rotor fixing
Rear Derailleur :
Shimano SLX M7100 / 12 Speed
Rear Shock :
Fox Float DPS Performance / EVOL / 3 position adjust / 210 x 50
Rear Suspension Travel :
130 mm
Rims :
DT Swiss M442 / 32H / 29" Front / 29" Rear (Sizes LG / XL) 29" Front / 27.5" Rear (Sizes SM / MD)
Saddle :
Saracen Custom CrMo MTB
Seat Post :
KS Rage I / 150mm travel (125mm on S size) / internal cable routing / 30.9mm / Westy Remote
Shifters :
Shimano Deore M6100 / 1 x 12 Speed
Spokes :
Double-butted stainless steel
Stem :
Raceface Chester 35 / 50mm / A Head / 6 Degree Rise / 35mm Clamp
Tyres :
Maxxis Minion DHRII / EXO / TR / 29 x 2.4 Front & Rear (Sizes LG / XL) / 29 x 2.4 Front / 27.5 x 2.4 Rear (Sizes SM / MD)
Wheel Size :
27.5 inch, 29 inch
150
152
154
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
194
196
198
200
Please be advised that this bicycle size chart is only a rough guide to help you select the correct frame size. We would always recommend visiting your local dealer to get measured and sized correctly, as although height is used, there are other factors which help determine the best frame size for you.
Geometry
| Frame Seat Tube | 460 |
|---|---|
| Frame Top Tube | 653 |
| Frame Reach | 505 |
| Frame Stack | 618 |
| Frame Head Tube | 125 |
| Frame Head Angle | 65 |
| Frame Seat Angle | 76.5 |
| Frame Chainstay | 440 |
| Frame BB Drop | 30 |
| Frame Wheel Base | 1270 |
| Fork Offset | 44 |
| Fork Travel | 130 |
| Standover | 731 |
| Frame Seat Tube | 410 |
| Frame Top Tube | 625 |
| Frame Reach | 480 |
| Frame Stack | 604 |
| Frame Head Tube | 110 |
| Frame Head Angle | 65 |
| Frame Seat Angle | 76.5 |
| Frame Chainstay | 440 |
| Frame BB Drop | 30 |
| Frame Wheel Base | 1239 |
| Fork Offset | 44 |
| Fork Travel | 130 |
| Standover | 732 |
| Frame Seat Tube | 360 |
| Frame Top Tube | 598 |
| Frame Reach | 455 |
| Frame Stack | 595 |
| Frame Head Tube | 100 |
| Frame Head Angle | 65 |
| Frame Seat Angle | 76.5 |
| Frame Chainstay | 440 |
| Frame BB Drop | 30 |
| Frame Wheel Base | 1210 |
| Fork Offset | 44 |
| Fork Travel | 130 |
| Standover | 732 |
| Frame Seat Tube | 510 |
| Frame Top Tube | 682 |
| Frame Reach | 530 |
| Frame Stack | 632 |
| Frame Head Tube | 140 |
| Frame Head Angle | 65 |
| Frame Seat Angle | 76.5 |
| Frame Chainstay | 440 |
| Frame BB Drop | 30 |
| Frame Wheel Base | 1302 |
| Fork Offset | 44 |
| Fork Travel | 130 |
| Standover | 731 |
