Ridgeback Advance 3
In stock
£3,799.99
Ridgeback Advance 3
- Advance by name advanced by nature.
- With advanced geometry and a 12mm bolt thru rear axle our Ridgeback Advance 3 has everything you need to explore your local roads, trails, towpaths or wherever your curiosity takes you.

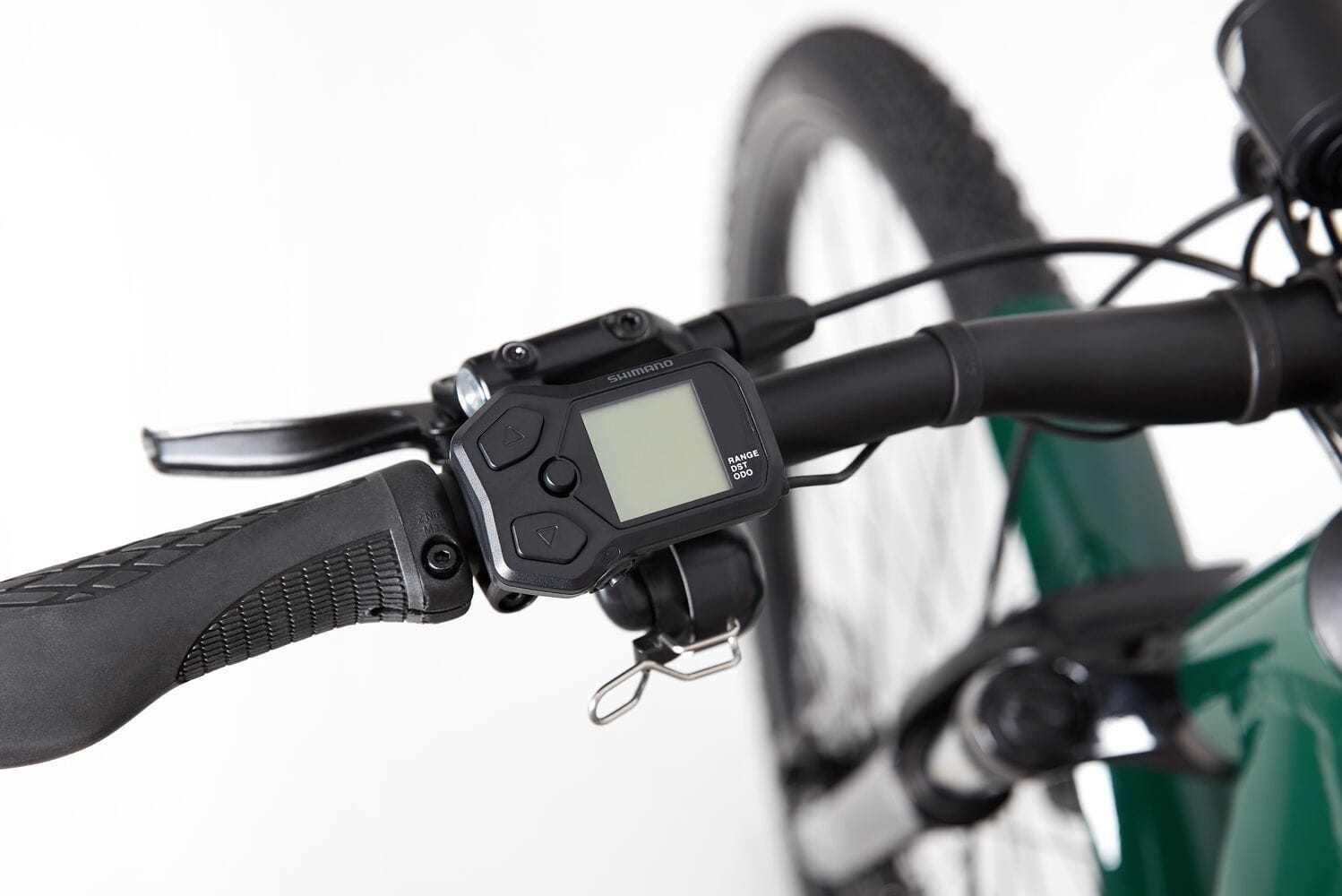

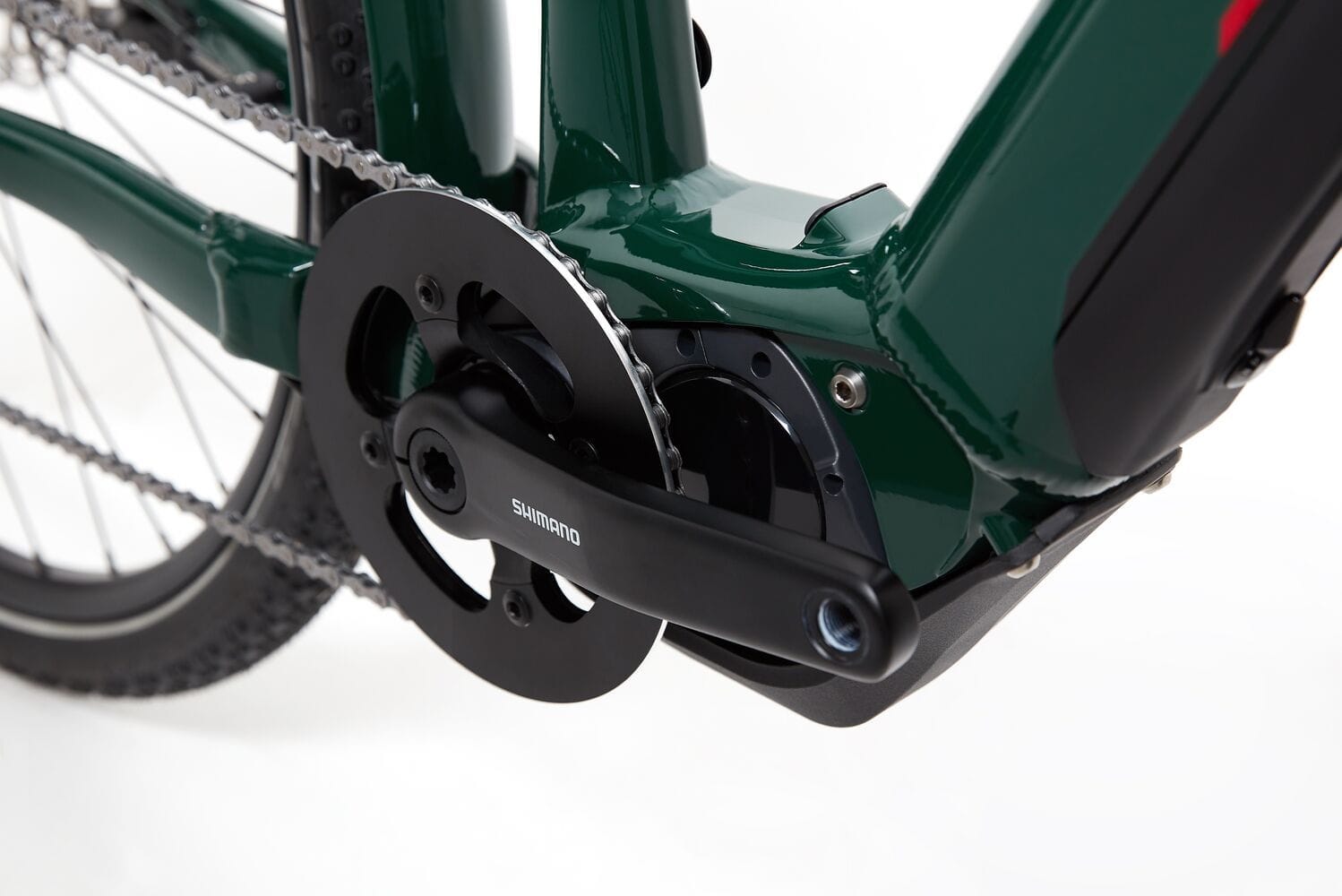

- Taking advantage of the powerful Shimano STEPS E6100 pedal assist drive unit to power over the most daunting of climbs, matched with the easy-to-use STEPS E5000 combined display and switch for simple and elegant control.

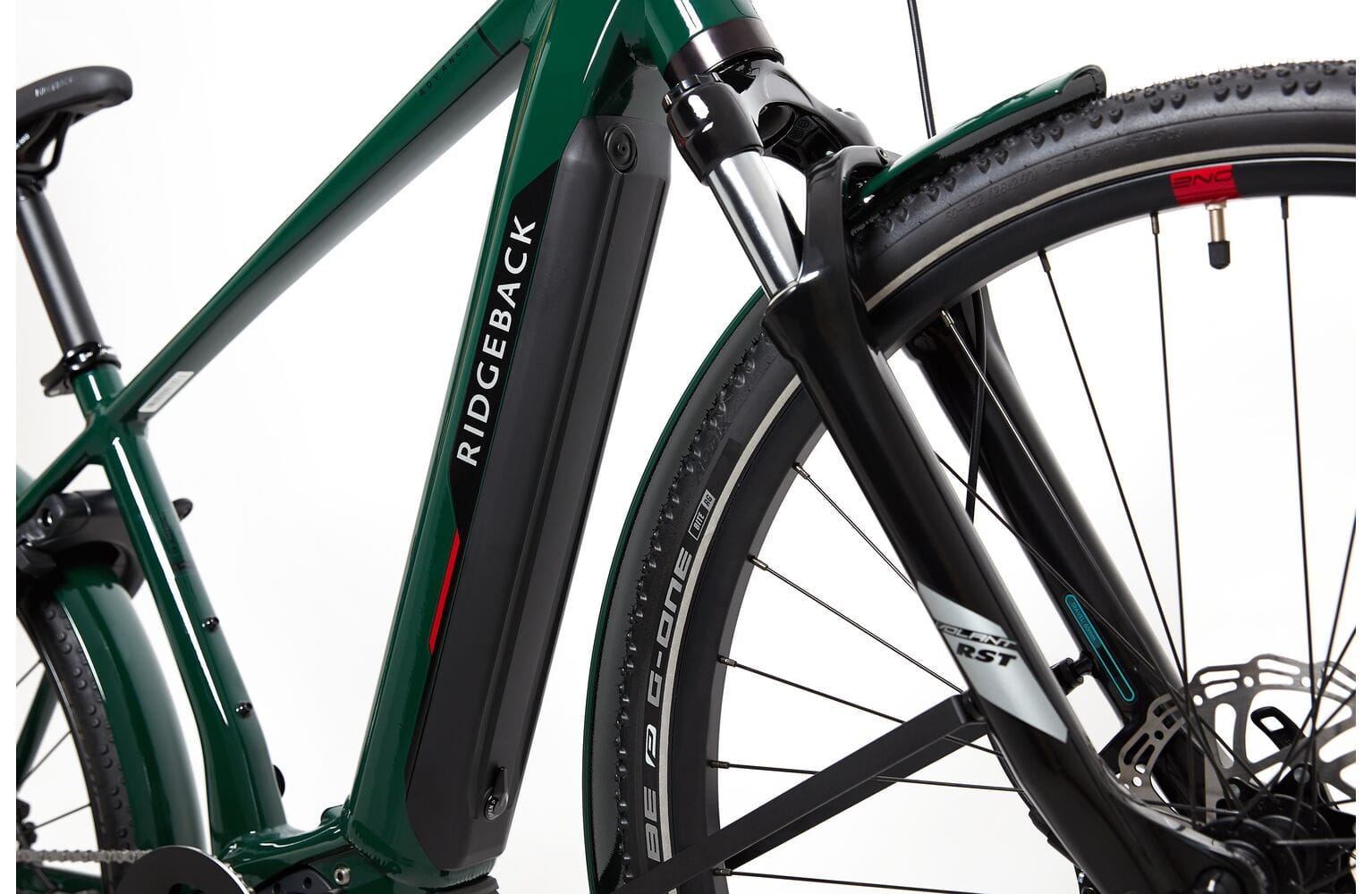

- A beautifully hidden yet powerful 504Wh battery will keep you going for up to 75 miles giving you the chance to really head out on your adventure.

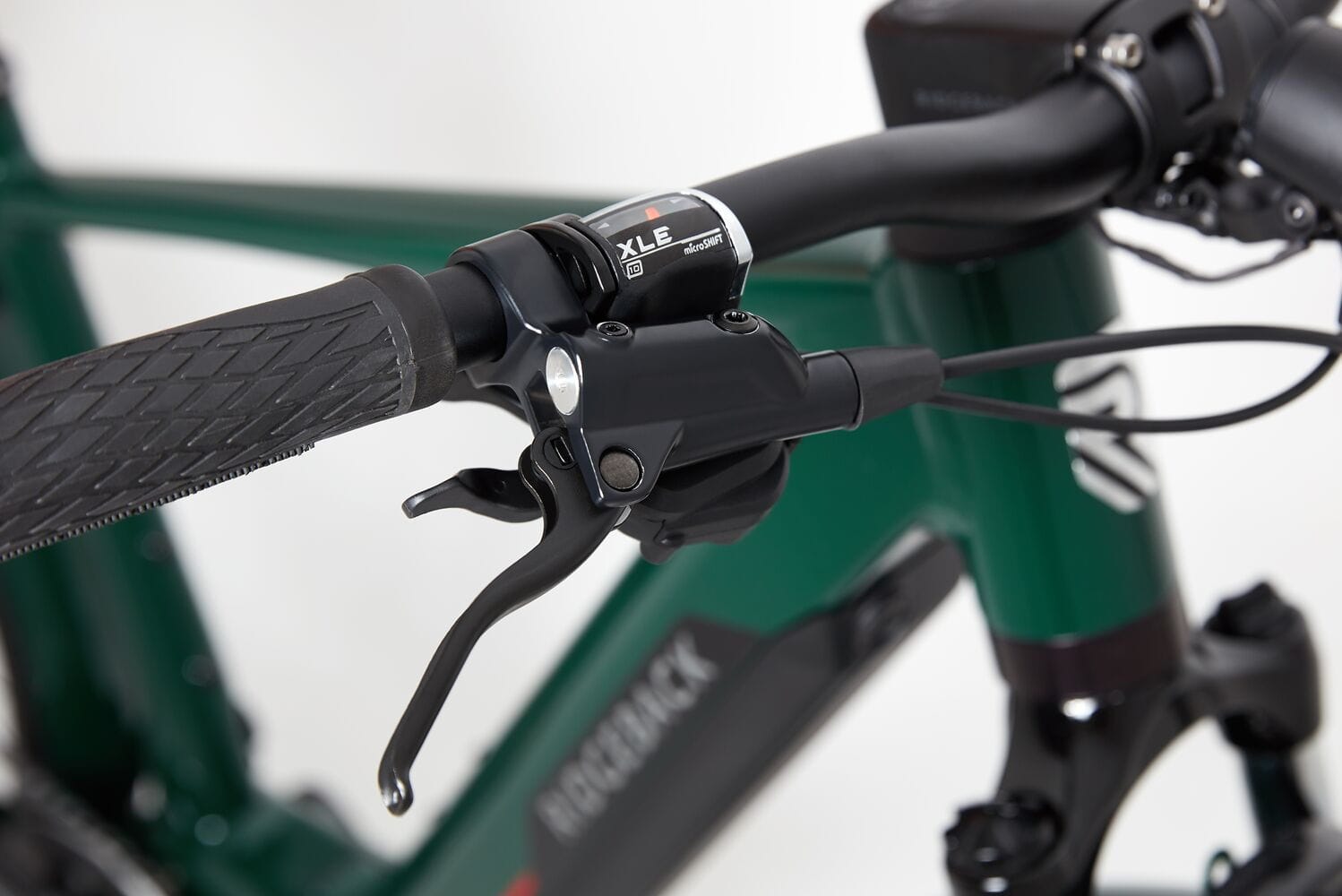

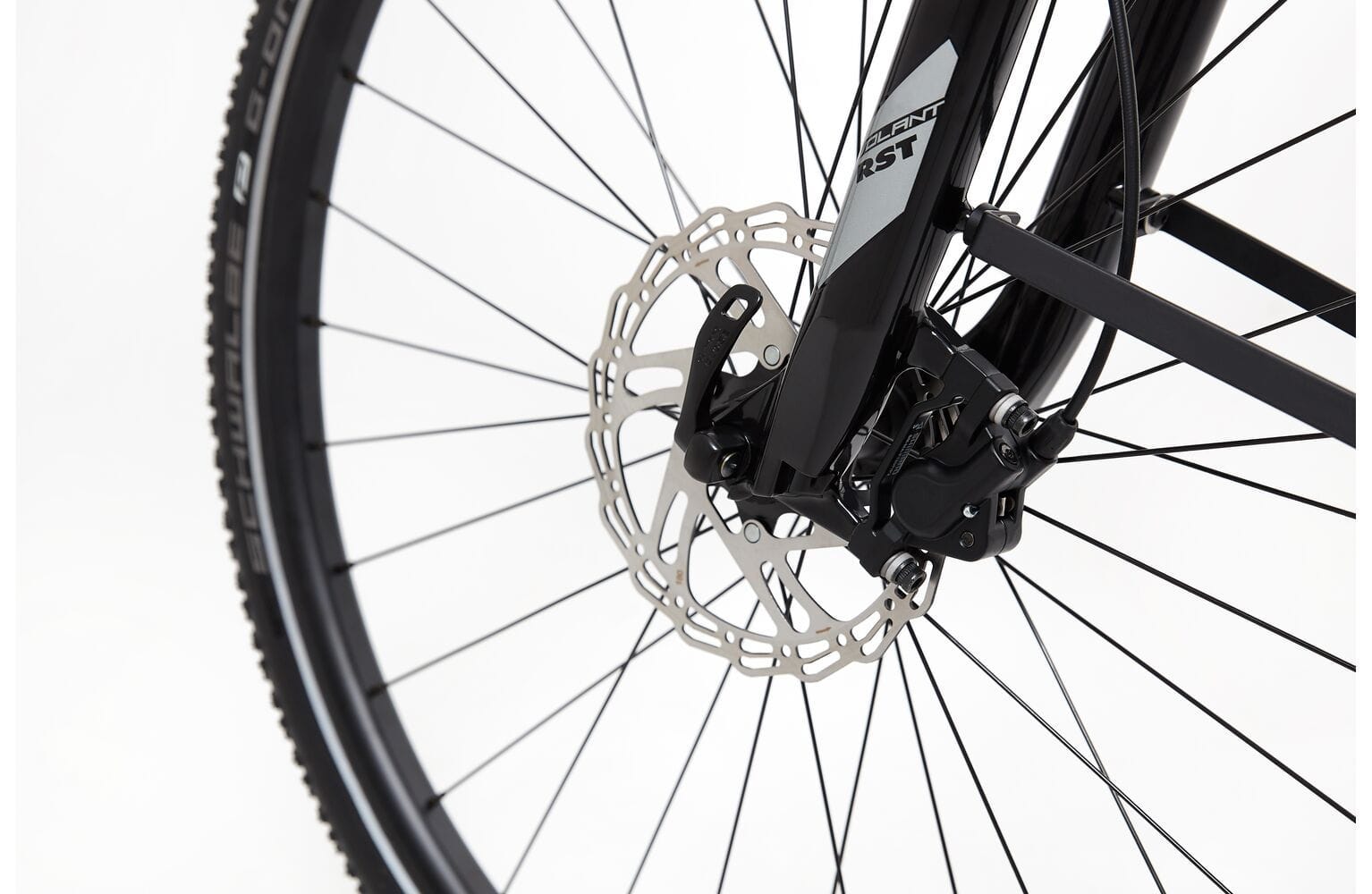

- microSHIFT 10 speed gearing provides the right gear for any situation, and powerful hydraulic disc brakes produce plenty of stopping power.
- Comfort is handled by the RST Volant suspension fork combined with 50mm wide Schwalbe G-One tyres, soaking up those bumps and providing extra grip when things get slippery.
- The Advance 3 is ready for your adventure with fully integrated lights powered by the STEPS system, bespoke full metal mudguards and a pannier rack featuring the brilliant AtranVelo rack system.
Brake Type :
Hydraulic Disc
Fork Material :
Alloy
Frame Material :
Alloy
Battery Type :
DARFON INTERNAL 504wh
Brake Levers :
Alhonga AHJ-OD5
Intended Use :
E-Bike
Brakes :
Alhonga AHJ-OD5
Cassette Freewheel :
microSHIFT CS-H100 11-36 10-Speed
Chain :
KMC X10EPT
Chain Set :
Shimano FC-E6100 38T 170mm
Charger :
DARFON 2AH Smartcharger
Fork :
RST Volant PLS-TNL 60mm
Grip Tape :
Ridgeback
Handlebars :
Alloy 680 x 20mm 15 degree Backsweep
Headset :
ACROS AZX-585 ZS56/ZS56
Hubs :
KT TC7 32h
Motor :
Shimano STEPS DU-E6100 250w 60Nm
Mudguard :
Fitted
Pedals :
Resin Metro
Rear Derailleur :
microSHIFT XLE10 RD-M62L 10-Speed
Rims :
STARS J26S 32h
Seat Post :
Alloy 30.9x350mm
Shifters :
microSHIFT XLE10 SL-M760 10-Speed
Spokes :
Steel 14 g
Stem :
Integrated Adjustable Ahead
Tyres :
Schwalbe G-One Bite 700x50c
Frame Shape :
Crossbar
Gender :
Mens
Battery Integration :
Internal
Specification Disclaimer :
Ridgeback reserves the right to change product specifications without notice. Ridgeback will always ensure that these changes do not detract from the ride experience of the bike.
Geometry
| Frame Seat Tube | 482 |
|---|---|
| Frame Top Tube | 610 |
| Frame Reach | 431 |
| Frame Stack | 604 |
| Frame Head Tube | 120 |
| Frame Head Angle | 68 |
| Frame Seat Angle | 73.5 |
| Frame Chainstay | 450 |
| Frame BB Drop | 60 |
| Frame Wheel Base | 1146 |
| Fork Offset | 44 |
| Stem Length | 65 |
| Handle Bar Width | 680 |
| Frame Seat Tube | 533 |
| Frame Top Tube | 630 |
| Frame Reach | 451 |
| Frame Stack | 604 |
| Frame Head Tube | 120 |
| Frame Head Angle | 68 |
| Frame Seat Angle | 73.5 |
| Frame Chainstay | 450 |
| Frame BB Drop | 60 |
| Frame Wheel Base | 1166 |
| Fork Offset | 44 |
| Stem Length | 65 |
| Handle Bar Width | 680 |
| Frame Seat Tube | 431 |
| Frame Top Tube | 590 |
| Frame Reach | 411 |
| Frame Stack | 604 |
| Frame Head Tube | 120 |
| Frame Head Angle | 68 |
| Frame Seat Angle | 73.5 |
| Frame Chainstay | 450 |
| Frame BB Drop | 60 |
| Frame Wheel Base | 1126 |
| Fork Offset | 44 |
| Stem Length | 65 |
| Handle Bar Width | 680 |
