Ridgeback Advance 1
In stock
£2,999.99

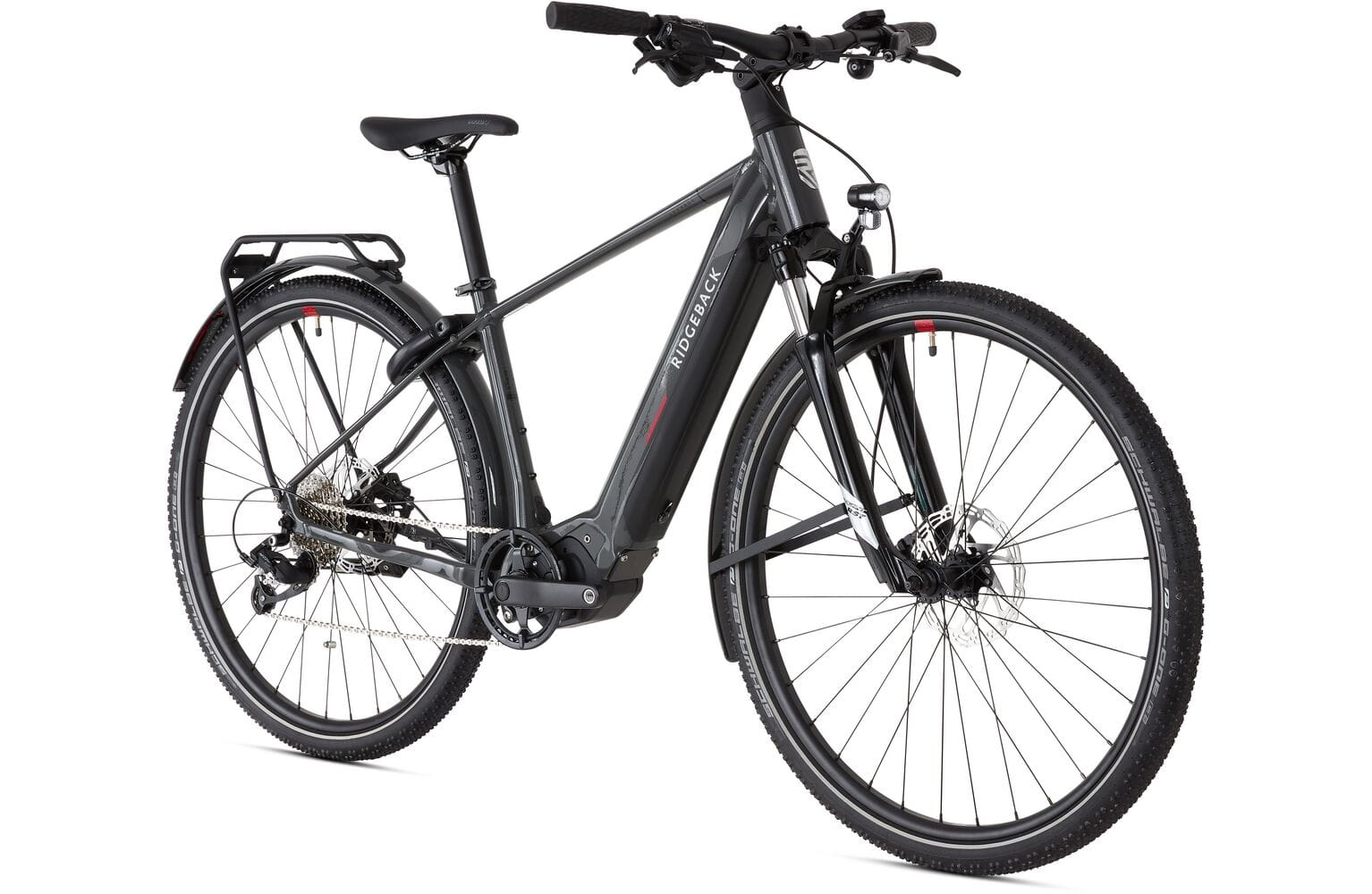

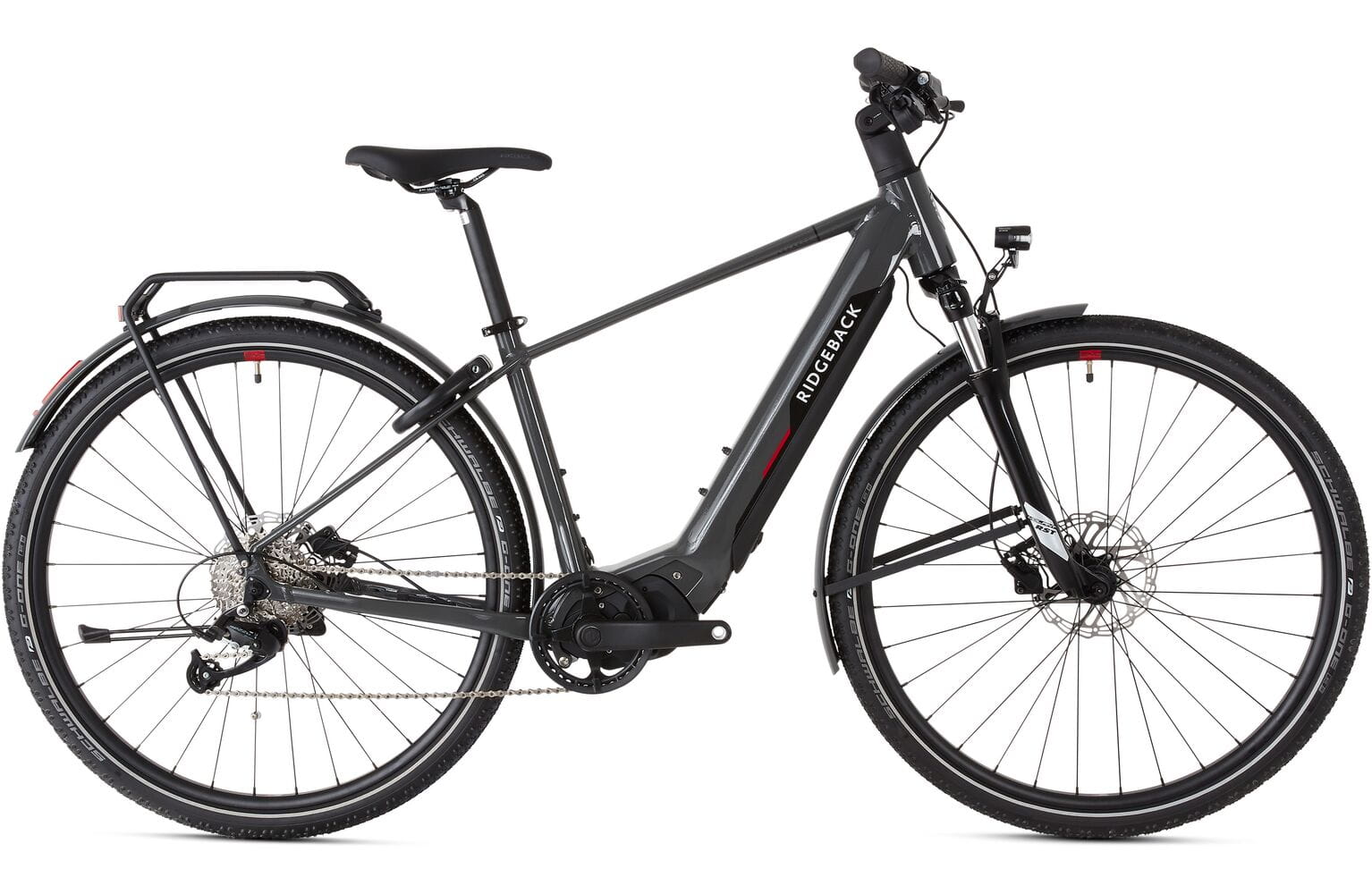

Ridgeback Advance 1
- Advance by name advanced by nature.
- Our new Ridgeback Advance 1 has everything you need to explore your local roads, trails, towpaths or wherever your curiosity takes you.

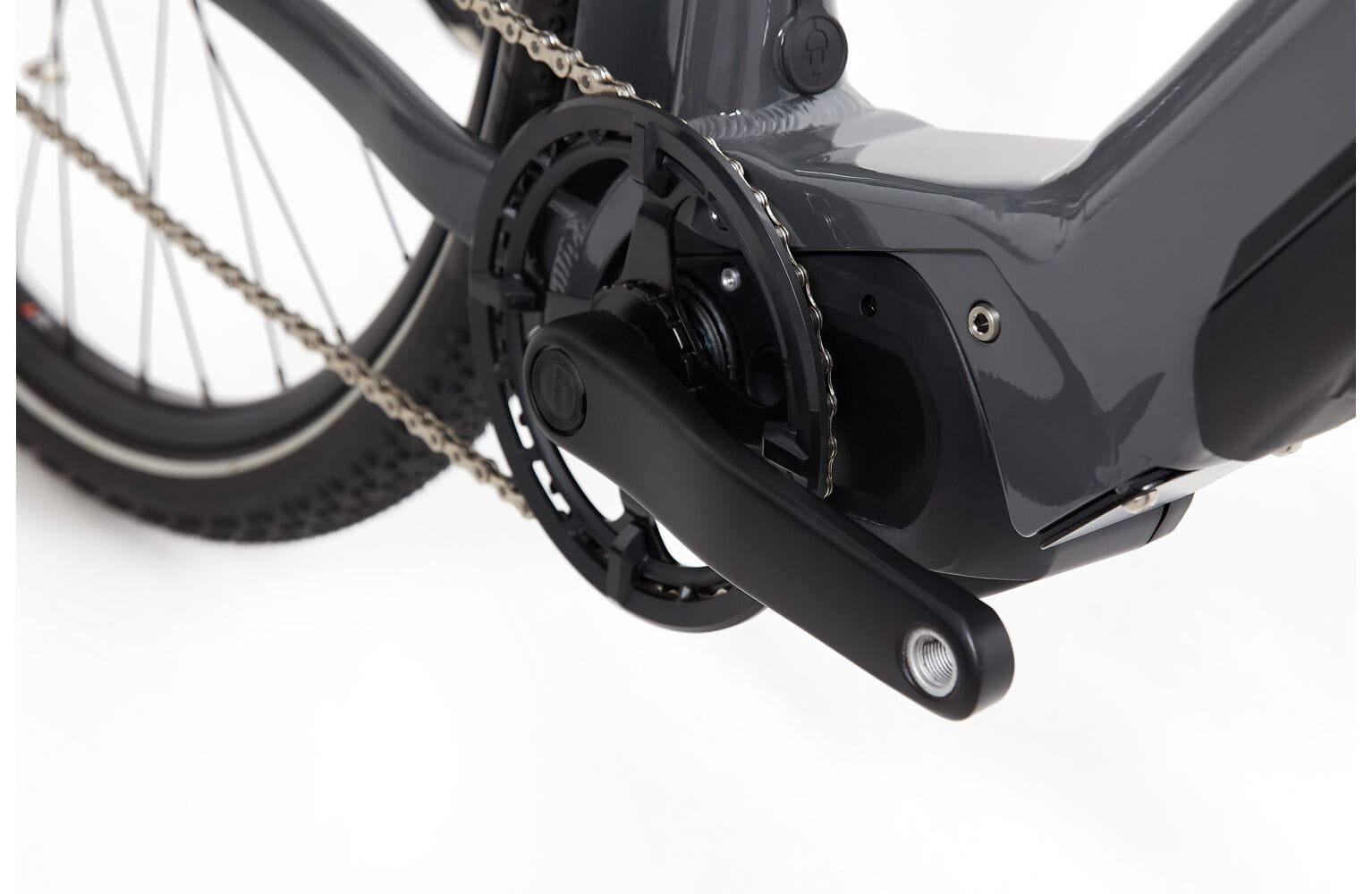

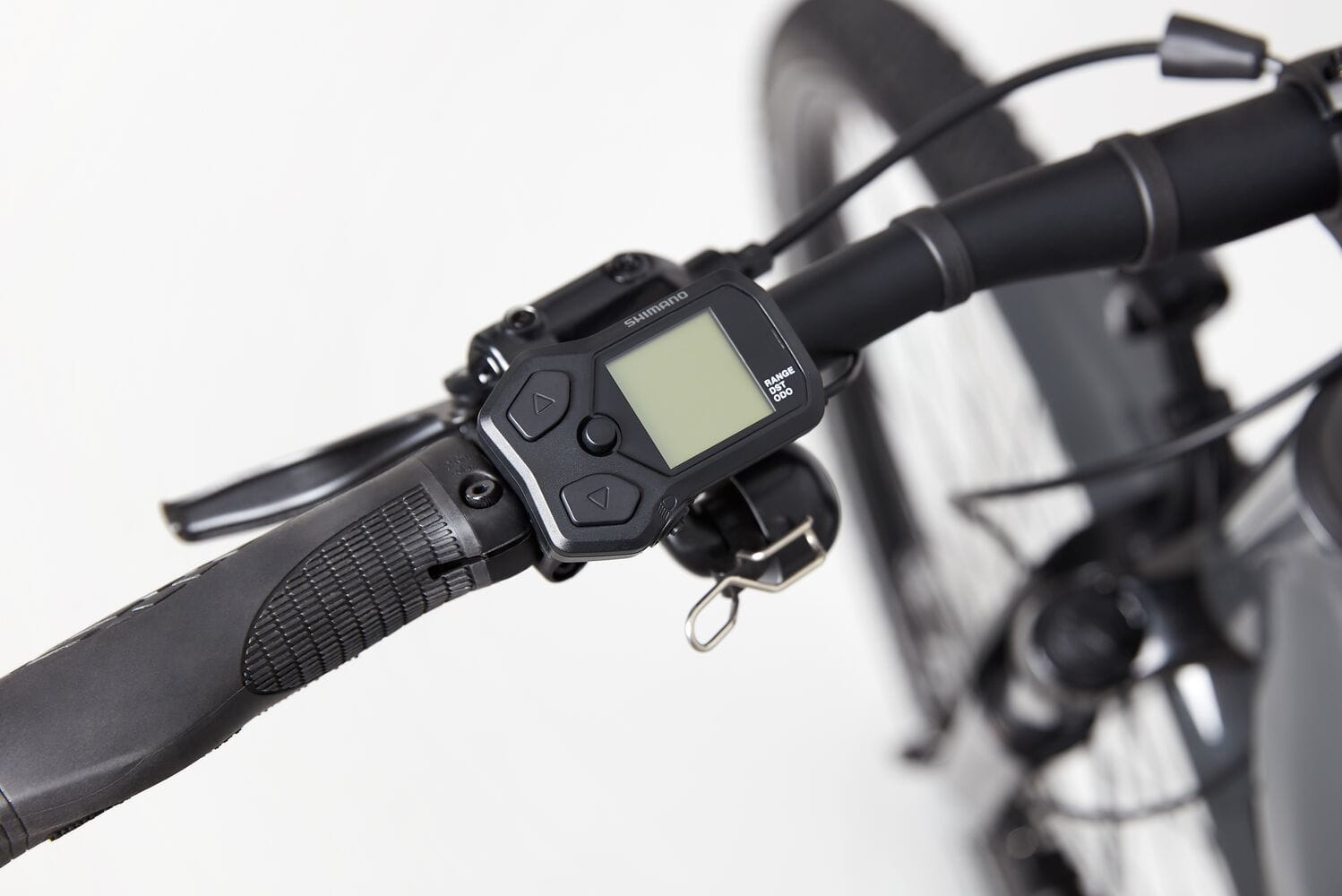

- Equipped with the Shimano STEPS E5000 pedal assist drive unit to make those hills disappear and the easy-to-use STEPS E5000 combined display and switch for simple and elegant control.
- A beautifully hidden yet powerful 504Wh battery will keep you going for up to 219km giving you the chance to really head out on your adventure.

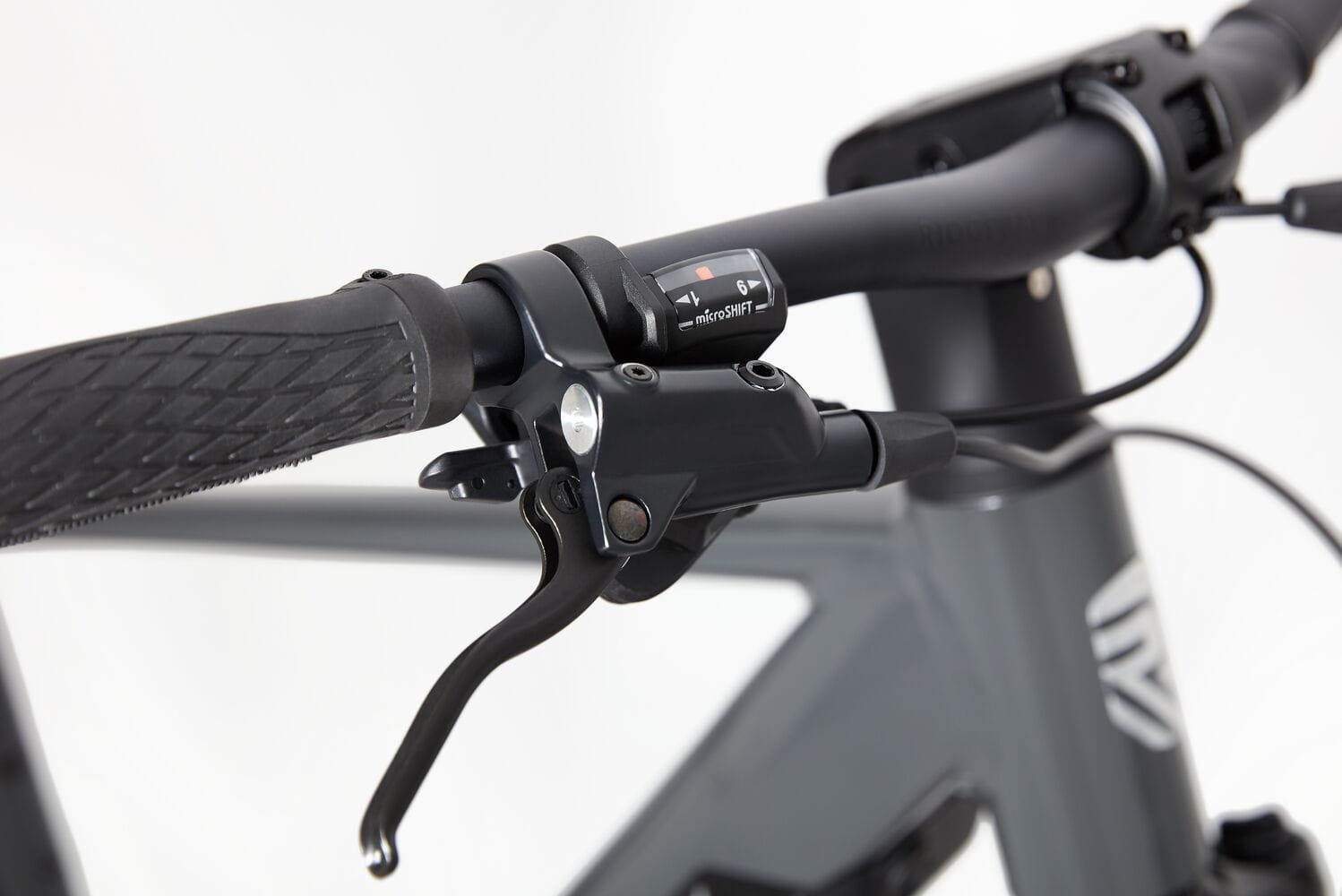

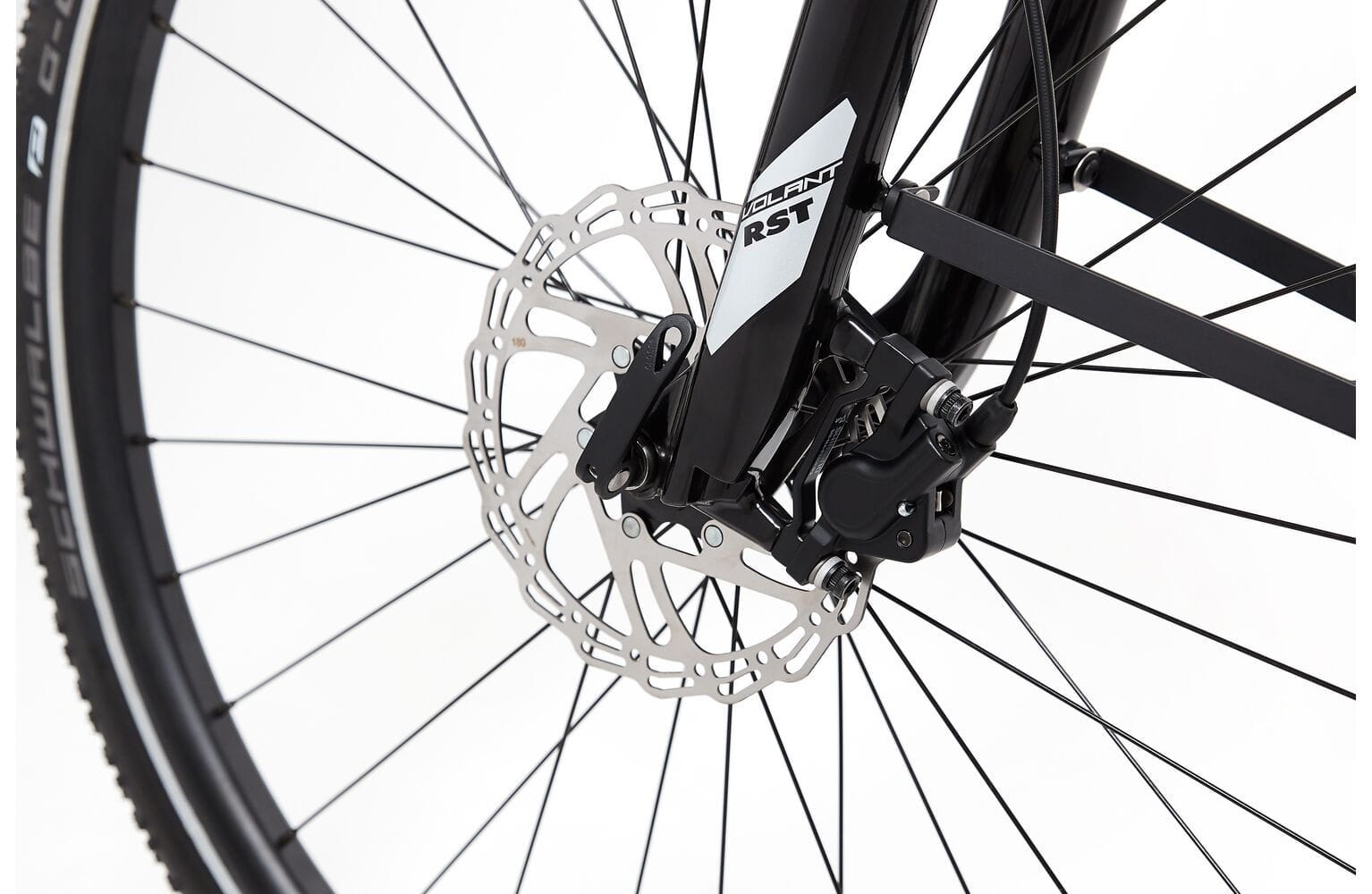

- microSHIFT 9 speed gearing provides the right gear for any situation, and powerful hydraulic disc brakes produce plenty of stopping power.

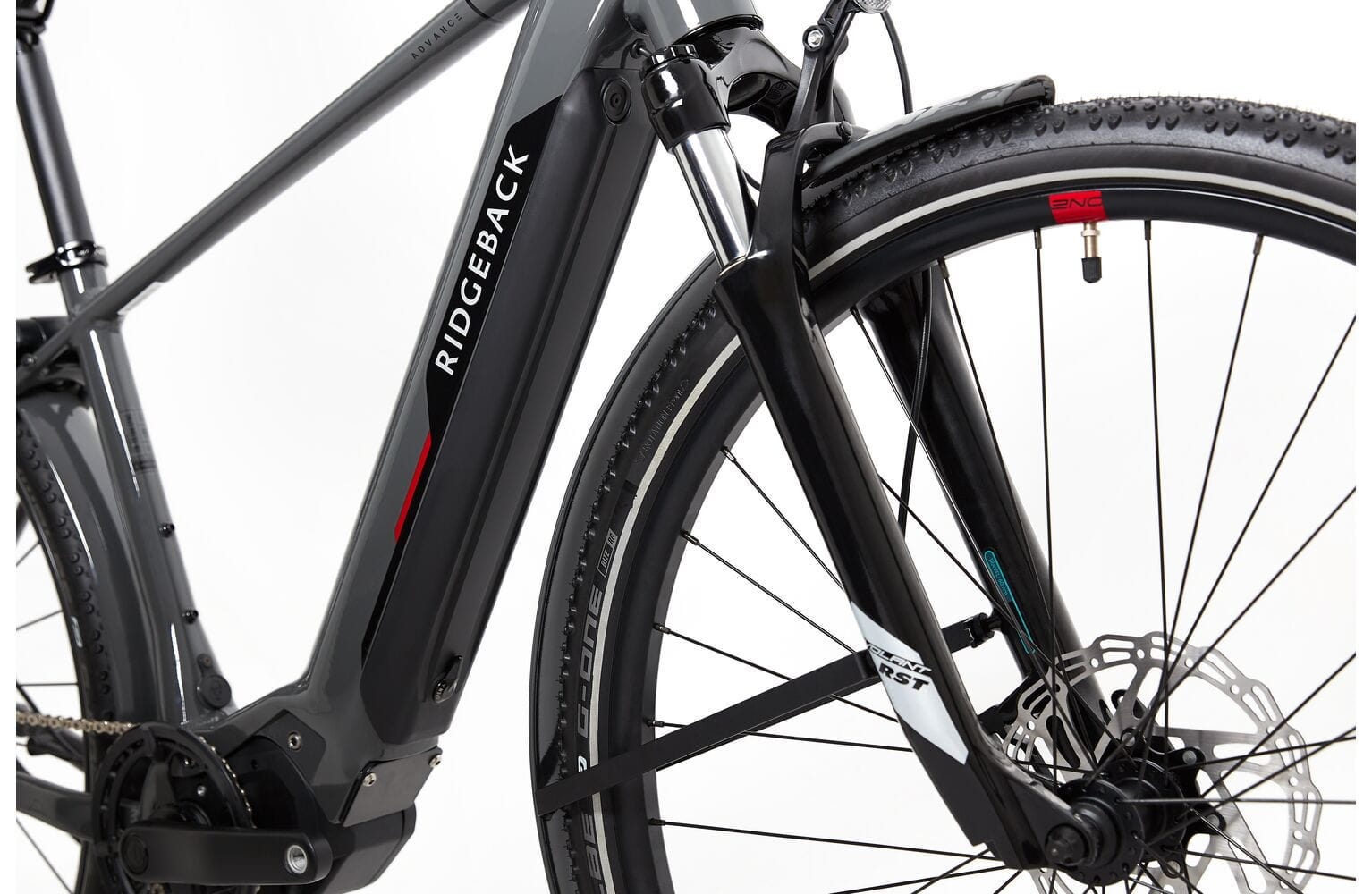

- Comfort is handled by the RST Volant suspension fork combined with 50mm wide Schwalbe G-One tyres, soaking up those bumps and providing extra grip when things get slippery.

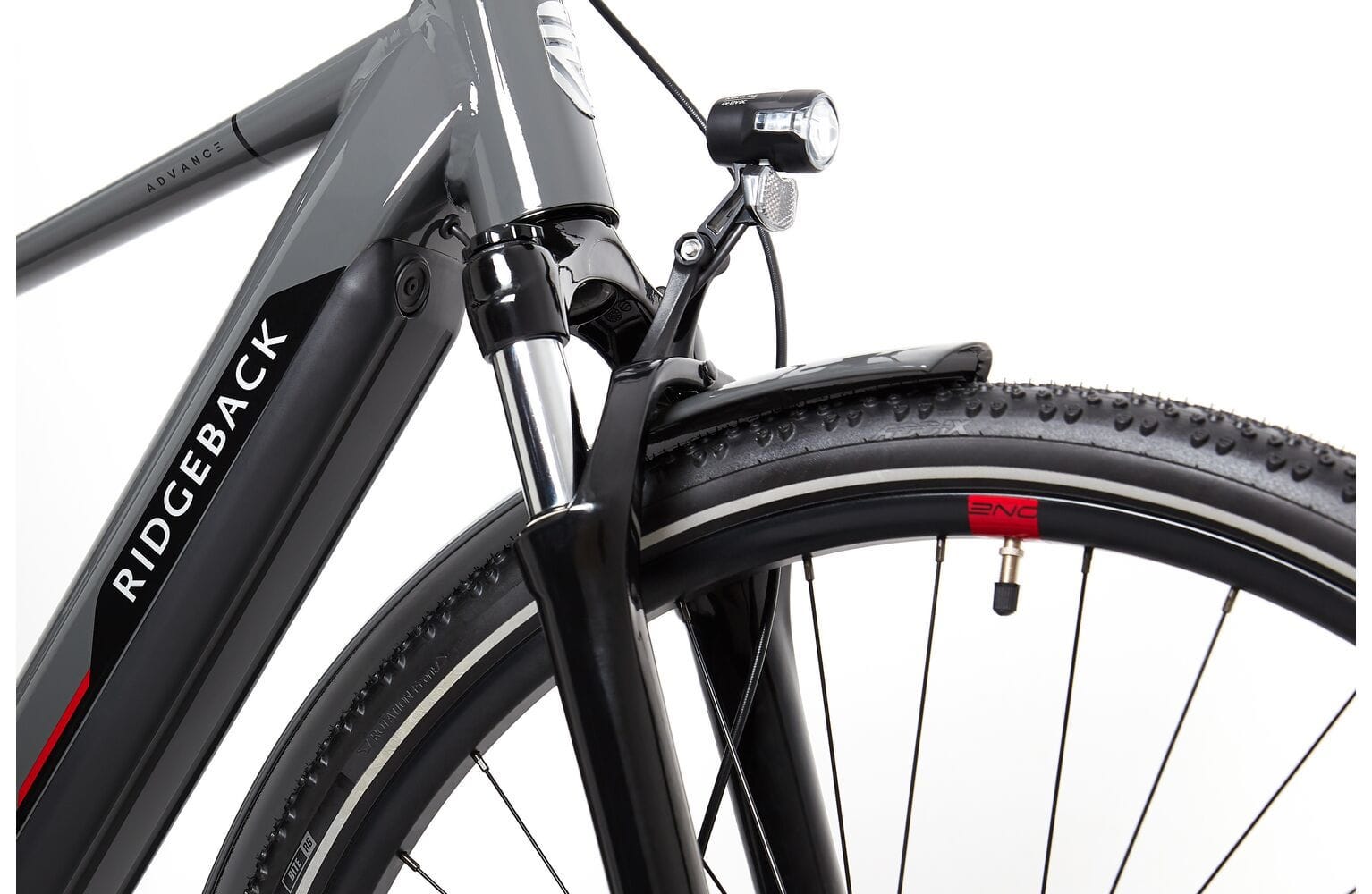

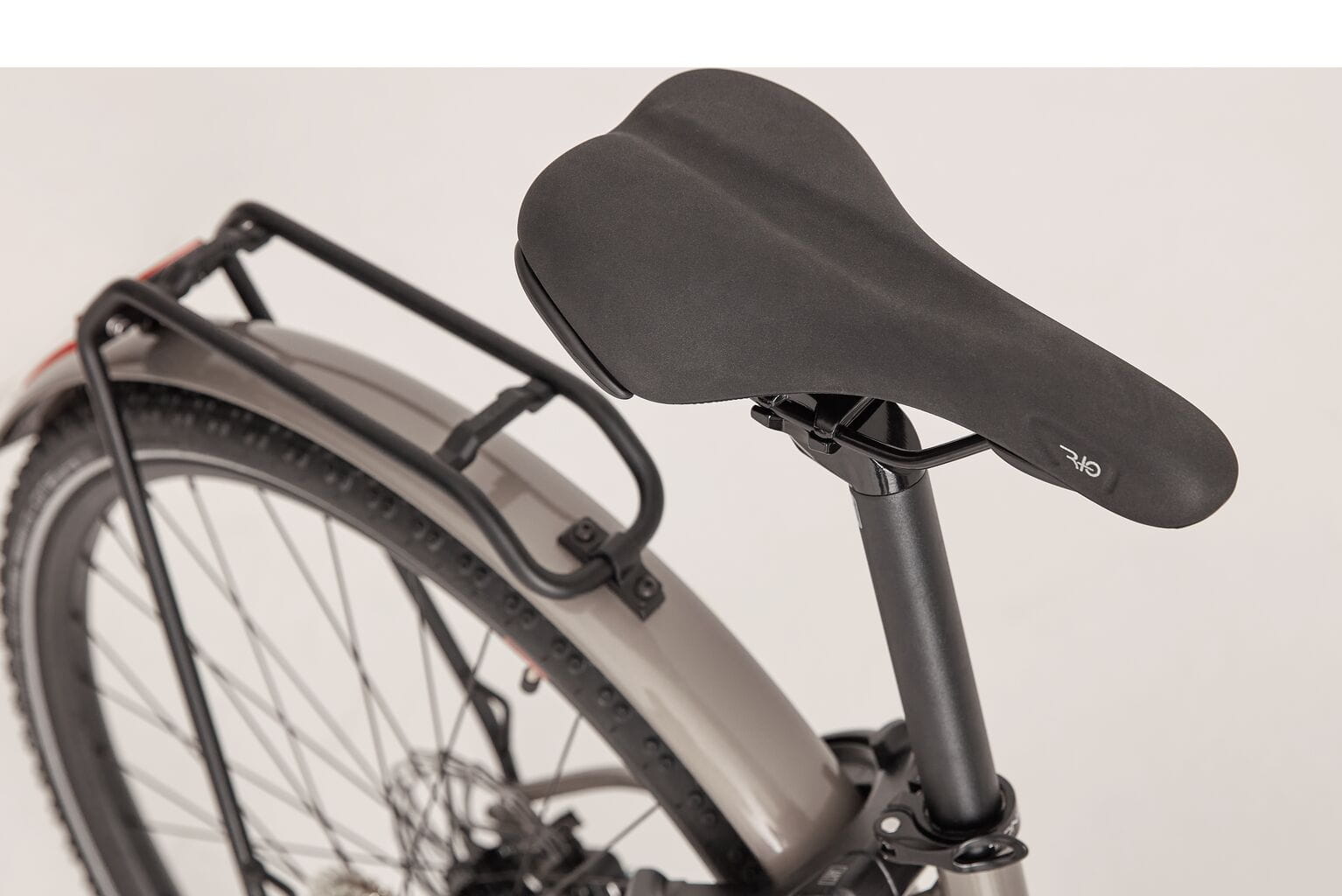

- The Advance 1 is ready for your adventure with fully integrated lights powered by the STEPS system, bespoke full metal mudguards and a pannier rack featuring the brilliant AtranVelo rack system.
Battery Type :
DARFON INTERNAL 504wh
Brake Levers :
Alhonga AHJ-OD5
Brakes :
Alhonga AHJ-OD5
Cassette Freewheel :
microSHIFT CS-H092 11-36 9-Speed
Chain :
KMC X9EPT
Chain Set :
Shimano CRE50 38T 170mm
Charger :
DARFON 2AH Smartcharger
Grip Tape :
Ridgeback
Handlebars :
Alloy 680 x 20mm 15 degree Backsweep
Headset :
ACROS AZX-585 ZS56/ZS56
Hubs :
KT TC7 32h
Motor :
Shimano STEPS DU-E5000 250w 40Nm
Mudguard :
Fitted
Pedals :
Resin Metro
Rear Derailleur :
microSHIFT Mezzo RD-M36L 9-Speed
Rims :
STARS J26S 32h
Seat Post :
Alloy 30.9x350mm
Shifters :
microSHIFT Mezzo TS39 9-Speed
Spokes :
Steel 14 g
Stem :
Integrated Adjustable Ahead
Tyres :
Schwalbe G-One Bite 700x50c
Wheel Size :
700c
Battery Integration :
Internal
Fork :
RST Volant PLS-TNL 60mm
Fork Material :
Alloy
Frame Material :
Alloy
Specification Disclaimer :
Ridgeback reserves the right to change product specifications without notice. Ridgeback will always ensure that these changes do not detract from the ride experience of the bike.
Brake Type :
Hydraulic Disc
0
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
62
64
66
68
70
72
74
76
78
80
82
84
86
88
90
92
94
96
98
100
102
104
106
108
110
112
114
116
118
120
122
124
126
128
130
132
134
136
138
140
142
144
146
148
150
152
154
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
194
196
198
200
MEDIUM - 0 to 0
LARGE - 180 to 190
X-LARGE - 190 to 200
| Frame Size | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|
| Stem Length plus Reach | 494 | 514 | |
| Frame Seat Tube | 431 | 482 | 533 |
| Frame Top Tube | 590 | 610 | 630 |
| Frame Reach | 409 | 429 | 449 |
| Frame Stack | 610 | 610 | 610 |
| Frame Head Tube | 130 | 130 | 130 |
| Frame Head Angle | 68° | 68° | 68° |
| Frame Seat Angle | 73.5° | 73.5° | 73.5° |
| Frame Chainstay | 450 | 450 | 450 |
| Frame BB Drop | 60 | 60 | 60 |
| Frame Wheel Base | 1127 | 1146 | 1167 |
| Fork Offset | 44 | 44 | 44 |
| Fork Travel | |||
| Standover | |||
| Stem Length | 65 | 65 | 65 |
| Handle Bar Width | 680 | 680 | 680 |
| Frame Size | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|
| Stem Length plus Reach | 494 | 514 | |
| Frame Seat Tube | 431 | 482 | 533 |
| Frame Top Tube | 590 | 610 | 630 |
| Frame Reach | 409 | 429 | 449 |
| Frame Stack | 610 | 610 | 610 |
| Frame Head Tube | 130 | 130 | 130 |
| Frame Head Angle | 68° | 68° | 68° |
| Frame Seat Angle | 73.5° | 73.5° | 73.5° |
| Frame Chainstay | 450 | 450 | 450 |
| Frame BB Drop | 60 | 60 | 60 |
| Frame Wheel Base | 1127 | 1146 | 1167 |
| Fork Offset | 44 | 44 | 44 |
| Fork Travel | |||
| Standover | |||
| Stem Length | 65 | 65 | 65 |
| Handle Bar Width | 680 | 680 | 680 |
