Genesis Smithfield
The Genesis Smithfield is a UK-designed E-Bike perfect for town and country with a powerful pedal-assist system.
Built from our Mjolnir double-butted chromoly tube set, the Smithfield is instantly recognisable thanks to its twin top tube and classic styling. Wide tyres make it ready to ride on road or across towpaths and gravel tracks.

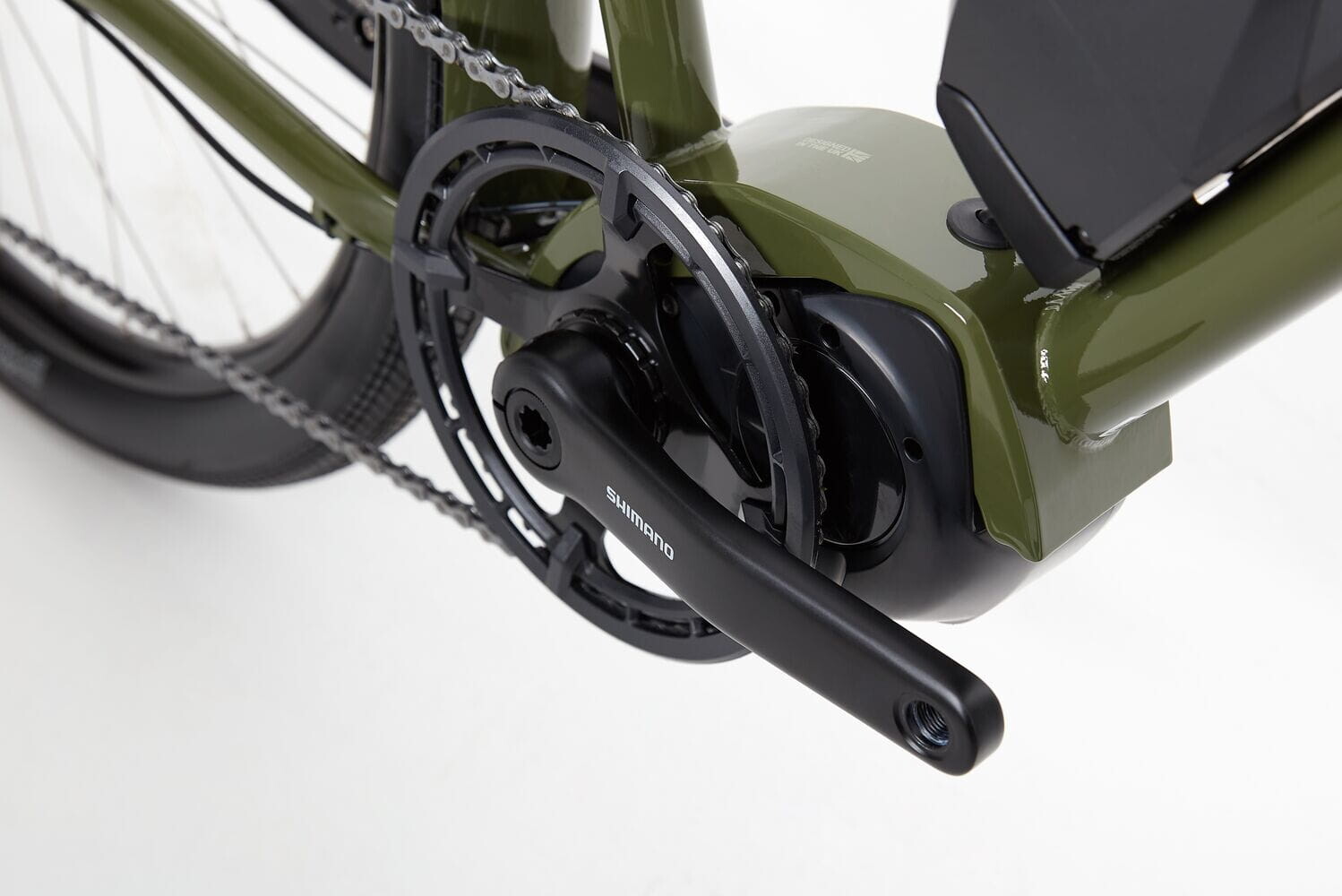

Wherever you take the Smithfield, Shimano's STEPS E6100 motor has the power to make hills disappear, keeping a smile on your face all ride long.

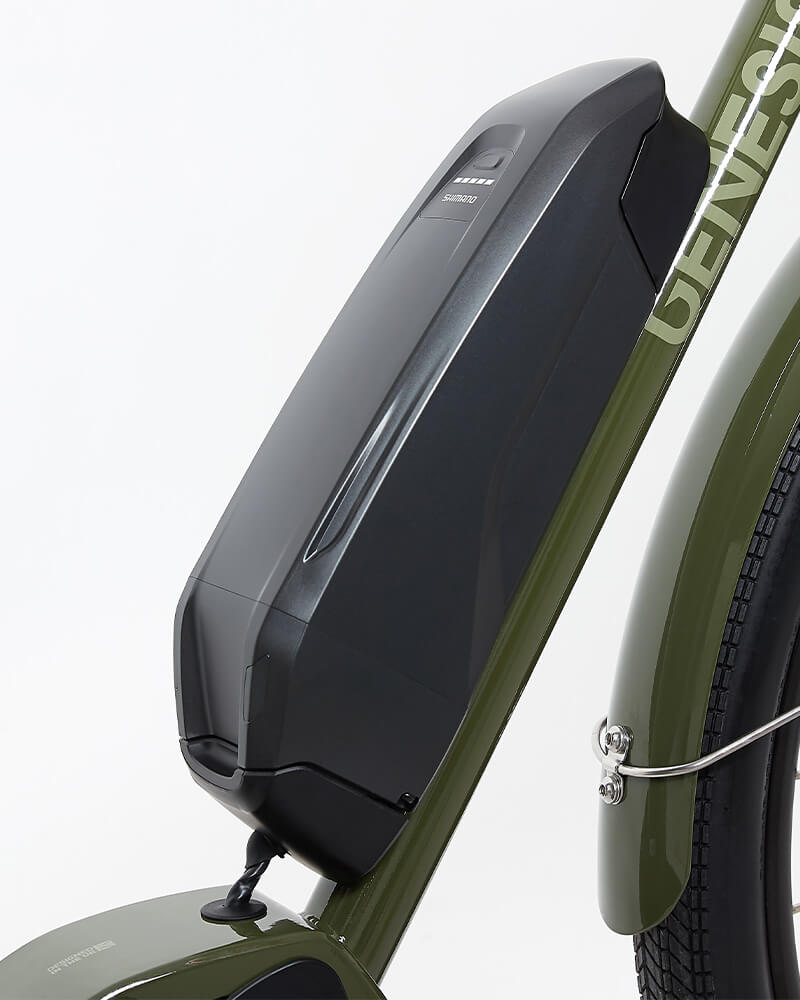

With an impressive range of up to 150km in Eco mode the Smithfield is perfect for local trips, with enough capacity for longer rides through the countryside.
Encounter a tough climb or just need an extra boost? Take advantage of the two higher-power modes and keep pedalling in comfort.
Once your ride is over, recharge time is just two hours to 80% capacity or four hours to 100%.

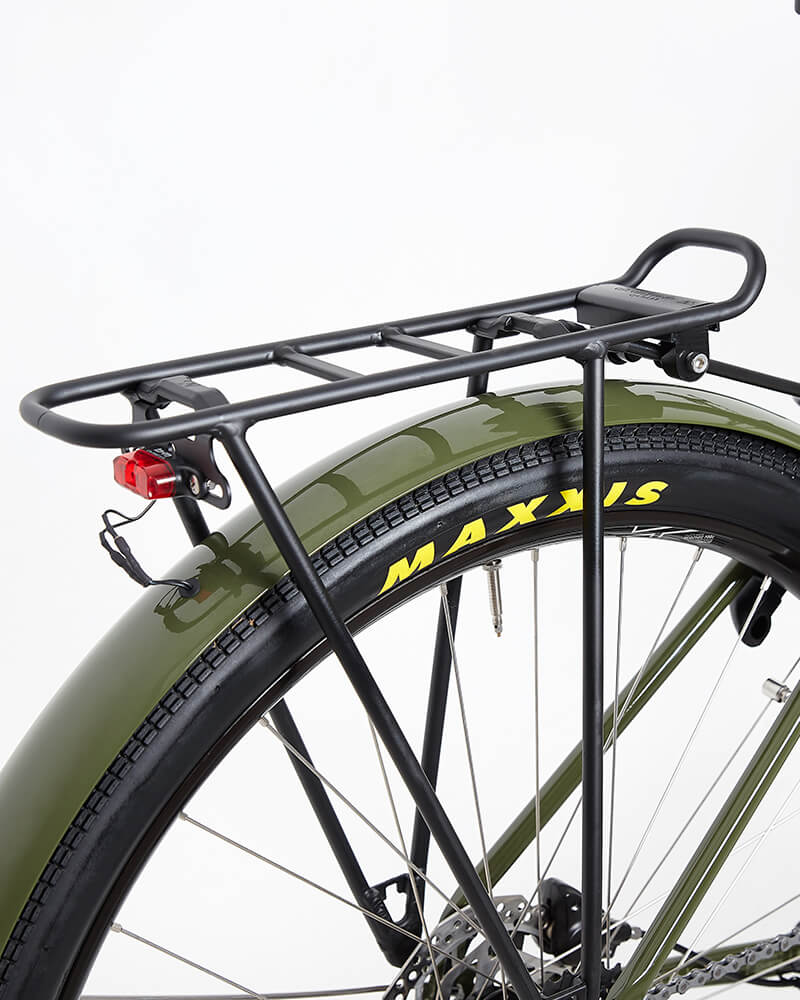

Built with practical touches the Smithfield features a pair of Atranvelo racks to which you can attach a range of bags, baskets and crates - perfect for small shopping trips and ride essentials alike.
Front and rear lights are also included with the bike and if you're leaving the Smithfield outside the shops, the attached Trelock ring lock system is the perfect solution. Just add your preferred cable for maximum security.
The Smithfield is finished with high quality and durable Shimano components.
Hydraulic disc brakes provide assured stopping power in all conditions, while a single-chainring, 9-speed drivetrain provides uncomplicated shifting across a wide range of gears.
For added piece of mind the Smithfield frame is supplied with a lifetime warranty.
Brake Type :
Hydraulic Disc
Fork Material :
Alloy
Frame Material :
Genesis Mjolnir Seamless Double-Butted Chromoly
Battery Type :
Shimano STEPS BT-E8014 418wh
Brake Levers :
Shimano BL-MT200 Hydraulic
Brakes :
Shimano MT200 Hydraulic Disc
Cassette Freewheel :
Shimano CS-HG200 9-speed 11-36T
Chain :
KMC X9E
Chain Set :
Shimano STEPS FC-E6100 170 mm 38T
Charger :
Shimano STEPS 2AH
Fork :
Alloy QR Disc
Handlebars :
Genesis Alloy 46deg backsweep 32 mm rise 680 mm
Hubs :
Front KT-K68F Rear KT-K68R
Motor :
Shimano STEPS DU-E6100 250W 60Nm
Mudguard :
Painted Alloy
Rear Derailleur :
Shimano Acera M3100 SGS 9 Speed
Rims :
Jalco XCD25OS 32H
Saddle :
Genesis Urban
Seat Post :
Genesis Alloy 27.2 x 350 mm
Shifters :
Shimano Acera SL-M3000
Spokes :
Stainless Steel 14g
Stem :
Genesis Alloy +6 deg 70 mm
Tyres :
Maxxis Grifter 29 x 2.0
Wheel Size :
29 inch
Battery Integration :
External
150
152
154
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
194
196
198
200
Please be advised that this bicycle size chart is only a rough guide to help you select the correct frame size. We would always recommend visiting your local dealer to get measured and sized correctly, as although height is used, there are other factors which help determine the best frame size for you.
Geometry
| Frame Seat Tube | 510 |
|---|---|
| Frame Top Tube | 633 |
| Frame Reach | 415 |
| Frame Stack | 669 |
| Frame Head Tube | 210 |
| Frame Head Angle | 71 |
| Frame Seat Angle | 72 |
| Frame Chainstay | 465 |
| Frame BB Drop | 65 |
| Frame Wheel Base | 1136 |
| Fork Offset | 55 |
| Standover | 815 |
| Stem Length | 70 |
| Handle Bar Width | 680 |
| Frame Seat Tube | 470 |
| Frame Top Tube | 590 |
| Frame Reach | 395 |
| Frame Stack | 646 |
| Frame Head Tube | 185 |
| Frame Head Angle | 71 |
| Frame Seat Angle | 72 |
| Frame Chainstay | 465 |
| Frame BB Drop | 65 |
| Frame Wheel Base | 1108 |
| Fork Offset | 55 |
| Standover | 790 |
| Stem Length | 70 |
| Handle Bar Width | 680 |
| Frame Seat Tube | 430 |
| Frame Top Tube | 579 |
| Frame Reach | 375 |
| Frame Stack | 627 |
| Frame Head Tube | 165 |
| Frame Head Angle | 71 |
| Frame Seat Angle | 72 |
| Frame Chainstay | 465 |
| Frame BB Drop | 65 |
| Frame Wheel Base | 1082 |
| Fork Offset | 55 |
| Standover | 764 |
| Stem Length | 70 |
| Handle Bar Width | 680 |
