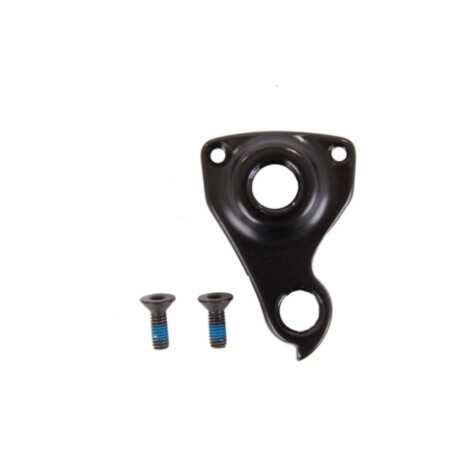

Genesis Hanger Ten
£19.99
Genesis Fugio 10
In stock
£1,699.99

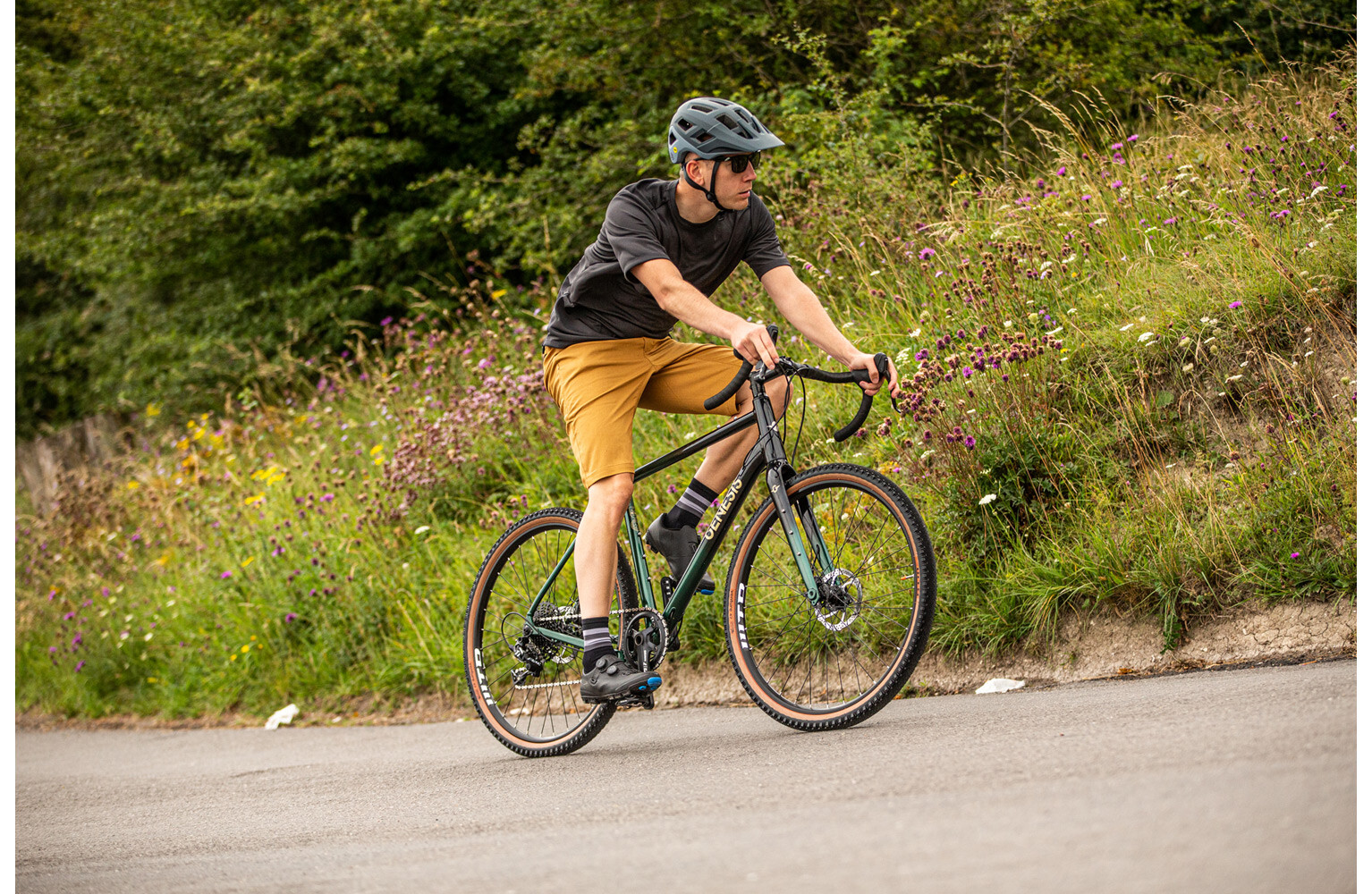

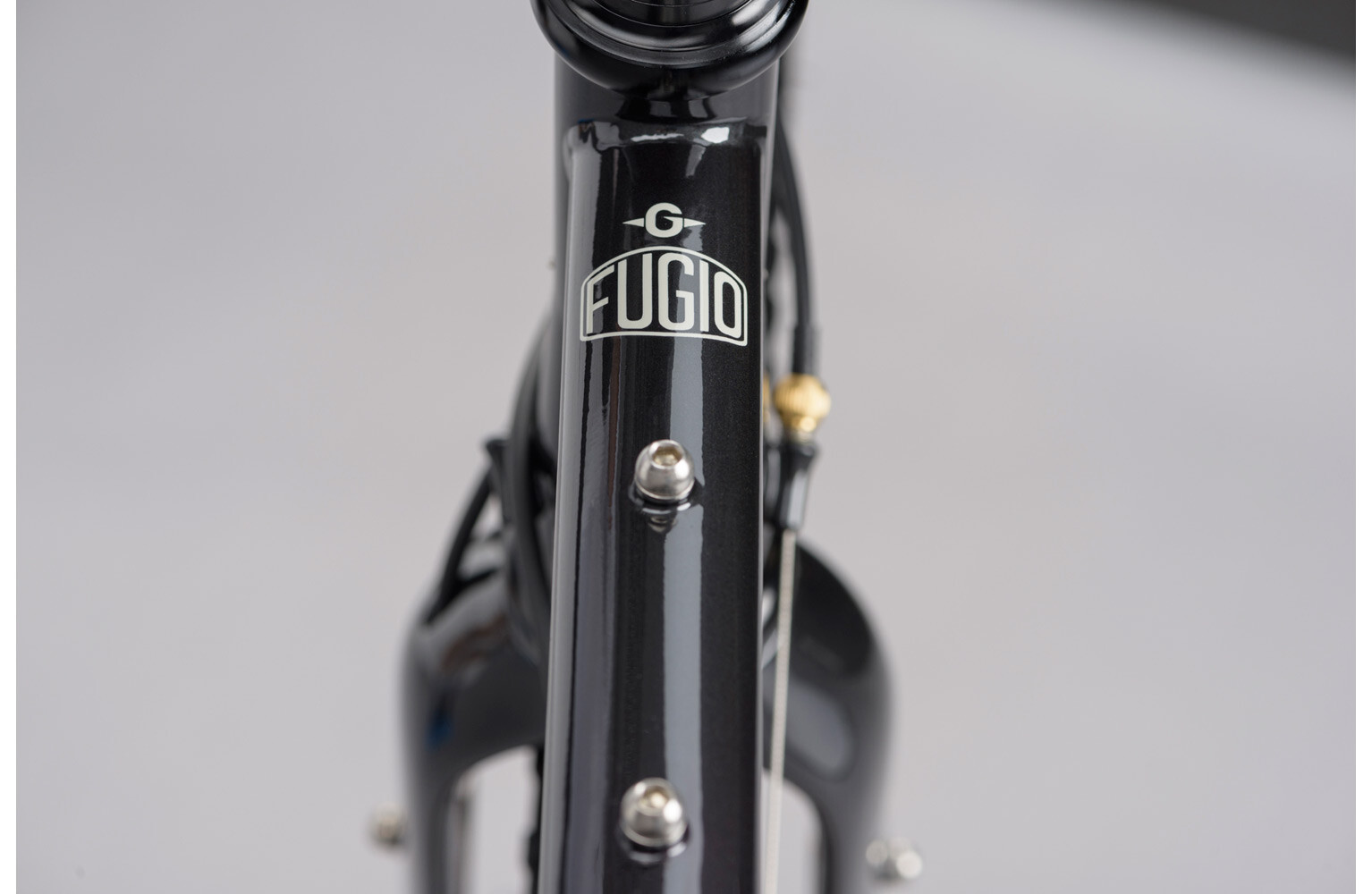

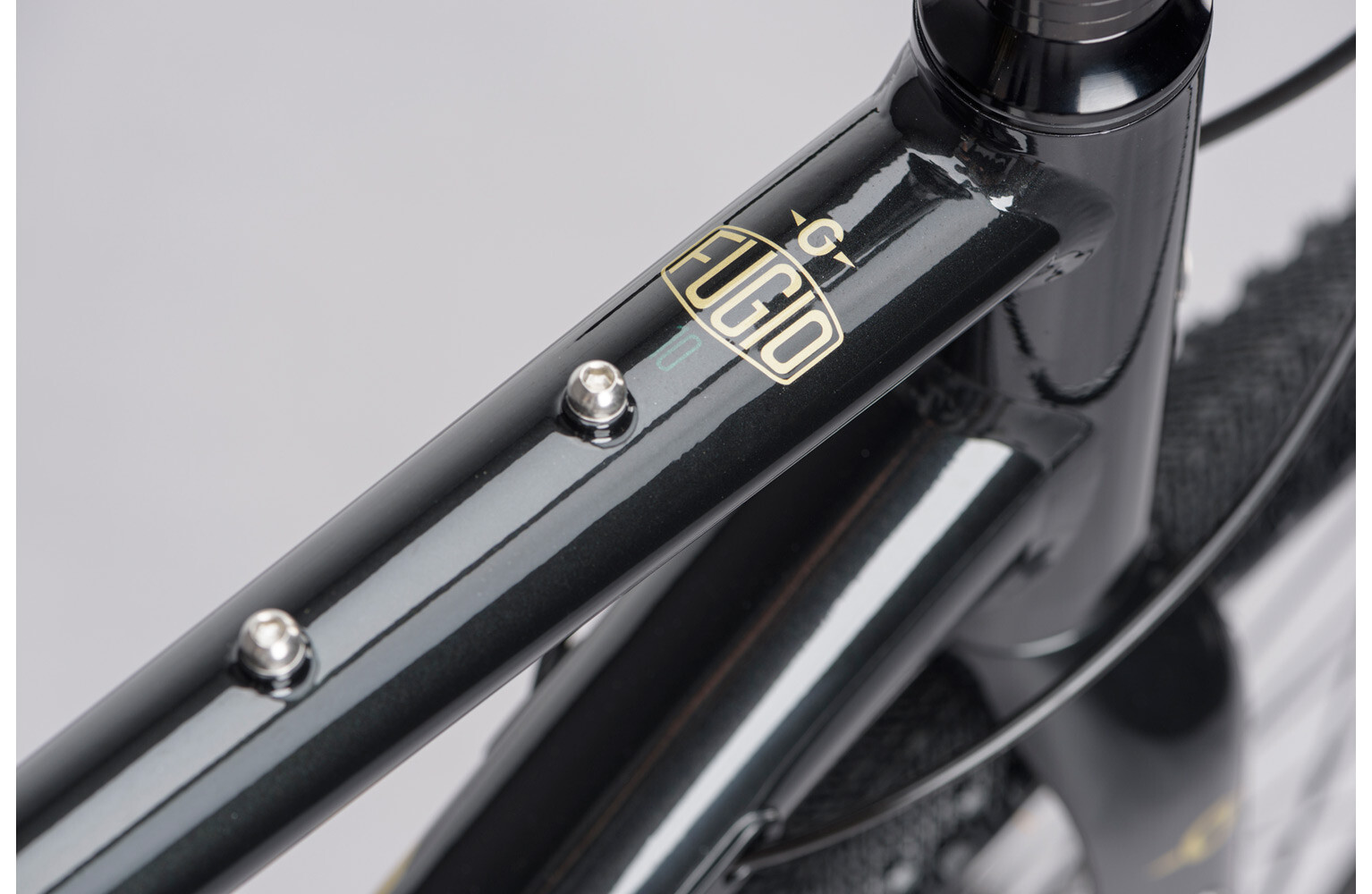

Genesis Fugio 10
- The Fugio 10 trades steel for an aluminium frameset, keeping the grin on your face and cash in your wallet.
Our entry-level gravel drift machine sacrifices none of the fun factor and still gets a full carbon fork, along with all the mounts you'll need for that after-hours adventure.
Clearance for 47mm tyres on the spec'd 650B wheelset, or the option to swap to 700c wheels and 40mm rubber make this a bike that's as adaptable as it is enthusiastic.
SRAM's Apex 1X drivetrain keeps things simple, with a wide-range 11-42 cassette matched to a 42-tooth chainring up front.
That should be enough to find some creative lines on your local trails and handle the hack back through the city.
Brake Type :
Mechanical Disc
Fork Material :
Carbon
Frame Material :
Alloy
Bottom Bracket :
SRAM BB GXP
Brake Levers :
SRAM Apex 11 Speed
Intended Use :
Adventure, Gravel
Brakes :
TRP Spyre-C FM Mechanical Disc
Cassette Freewheel :
SRAM CS PG-1130 11-42T
Chain :
KMC X11
Grip Tape :
Genesis
Headset :
F23A-2 Taper 1 1/8 inch - 1 1/5 inch
Hubs :
KT Front - QL-SL2F / Rear QL-X2DR
Rear Derailleur :
SRAM Apex 1 Long Cage 11 Speed
Rims :
WTB ST I25 TCS 2.0
Saddle :
Genesis
Seat Post :
Genesis Alloy 27.2 x 350 mm
Shifters :
SRAM Apex 11 Speed
Spokes :
Steel 14 g
Stem :
Genesis Alloy 31.8mm -6 deg 100 mm
Tyres :
WTB Venture 650 x 47c
Frame Shape :
Crossbar
Gender :
Mens, Womens
150
152
154
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
194
196
198
200
Please be advised that this bicycle size chart is only a rough guide to help you select the correct frame size. We would always recommend visiting your local dealer to get measured and sized correctly, as although height is used, there are other factors which help determine the best frame size for you.
Geometry
| Frame Seat Tube | 550 |
|---|---|
| Frame Top Tube | 583 |
| Frame Reach | 395 |
| Frame Stack | 613 |
| Frame Head Tube | 185 |
| Frame Head Angle | 70.5 |
| Frame Seat Angle | 73 |
| Frame Chainstay | 425 |
| Frame BB Drop | 65 |
| Frame Wheel Base | 1062 |
| Fork Offset | 50 |
| Standover | 820 |
| Stem Length | 100 |
| Handle Bar Width | 460 |
| Frame Seat Tube | 530 |
| Frame Top Tube | 567 |
| Frame Reach | 385 |
| Frame Stack | 594 |
| Frame Head Tube | 165 |
| Frame Head Angle | 70.5 |
| Frame Seat Angle | 73 |
| Frame Chainstay | 425 |
| Frame BB Drop | 65 |
| Frame Wheel Base | 1045 |
| Fork Offset | 50 |
| Standover | 801 |
| Stem Length | 100 |
| Handle Bar Width | 440 |
| Frame Seat Tube | 470 |
| Frame Top Tube | 535 |
| Frame Reach | 365 |
| Frame Stack | 556 |
| Frame Head Tube | 125 |
| Frame Head Angle | 70.5 |
| Frame Seat Angle | 73 |
| Frame Chainstay | 425 |
| Frame BB Drop | 65 |
| Frame Wheel Base | 1012 |
| Fork Offset | 50 |
| Standover | 756 |
| Stem Length | 100 |
| Handle Bar Width | 420 |
| Frame Seat Tube | 500 |
| Frame Top Tube | 551 |
| Frame Reach | 375 |
| Frame Stack | 575 |
| Frame Head Tube | 145 |
| Frame Head Angle | 70.5 |
| Frame Seat Angle | 73 |
| Frame Chainstay | 425 |
| Frame BB Drop | 65 |
| Frame Wheel Base | 1029 |
| Fork Offset | 50 |
| Standover | 779 |
| Stem Length | 100 |
| Handle Bar Width | 440 |
| Frame Seat Tube | 580 |
| Frame Top Tube | 598 |
| Frame Reach | 405 |
| Frame Stack | 631 |
| Frame Head Tube | 205 |
| Frame Head Angle | 70.5 |
| Frame Seat Angle | 73 |
| Frame Chainstay | 425 |
| Frame BB Drop | 65 |
| Frame Wheel Base | 1077 |
| Fork Offset | 50 |
| Standover | 843 |
| Stem Length | 100 |
| Handle Bar Width | 480 |
