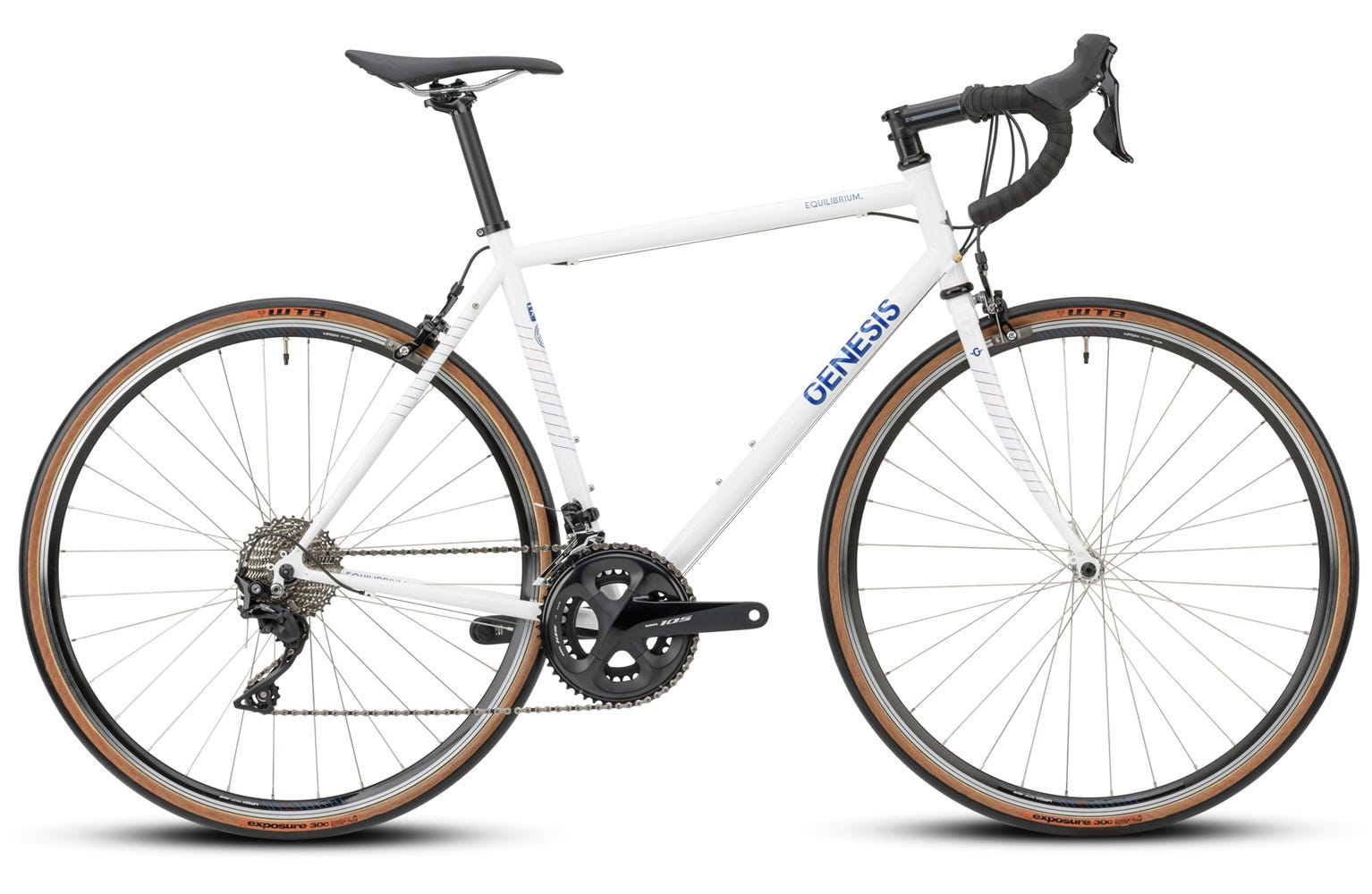

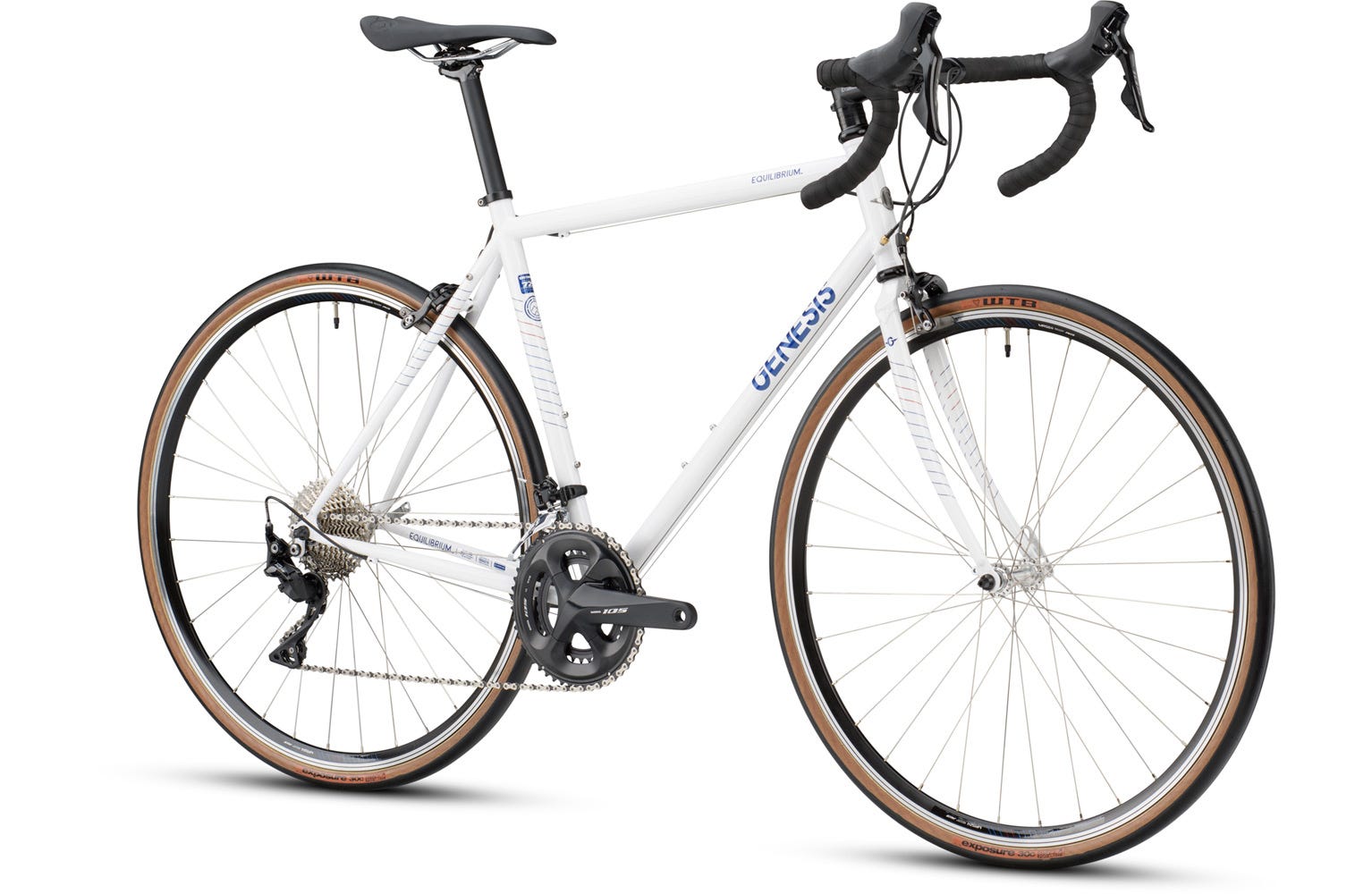

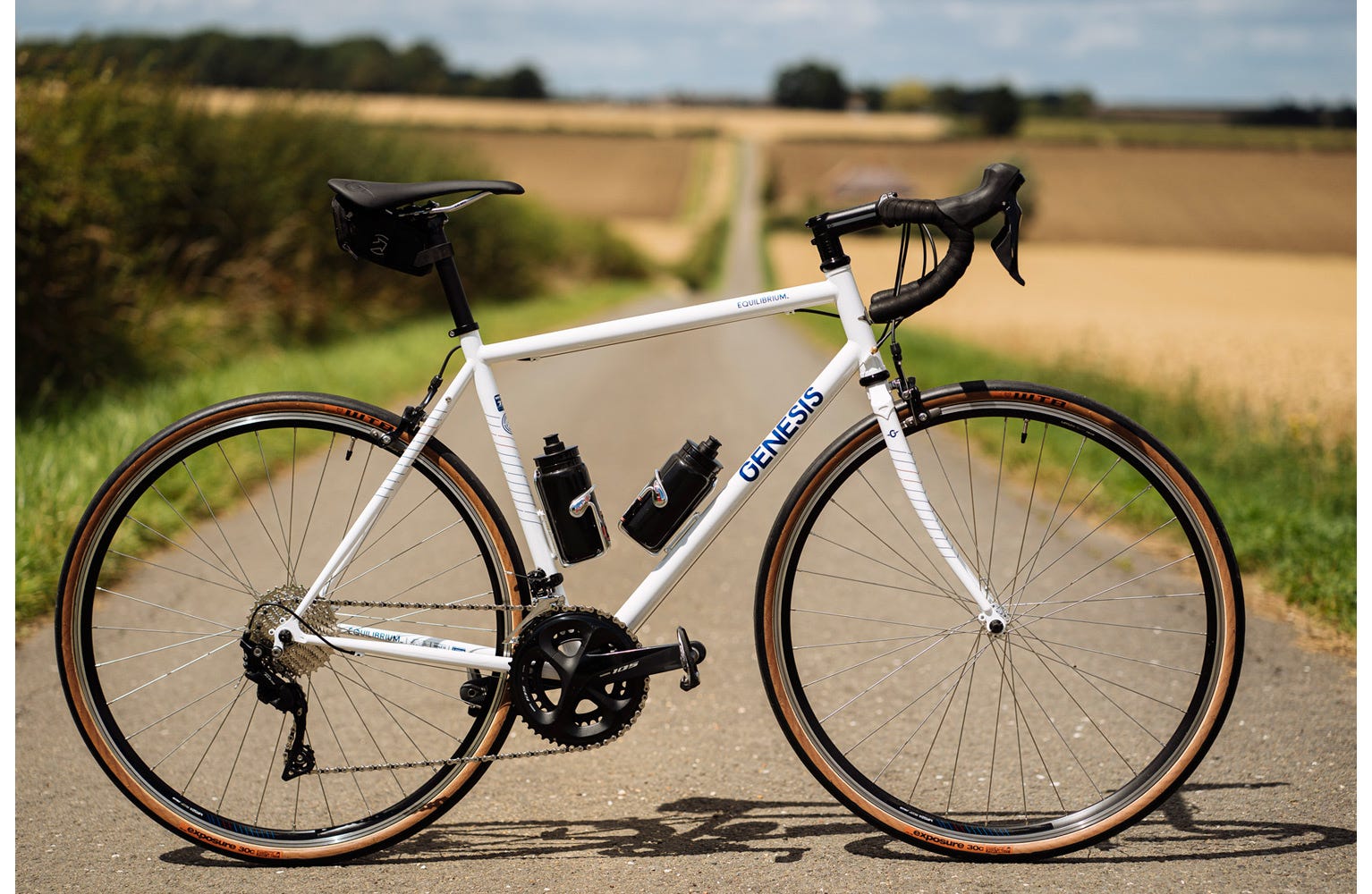

Genesis Equilibrium

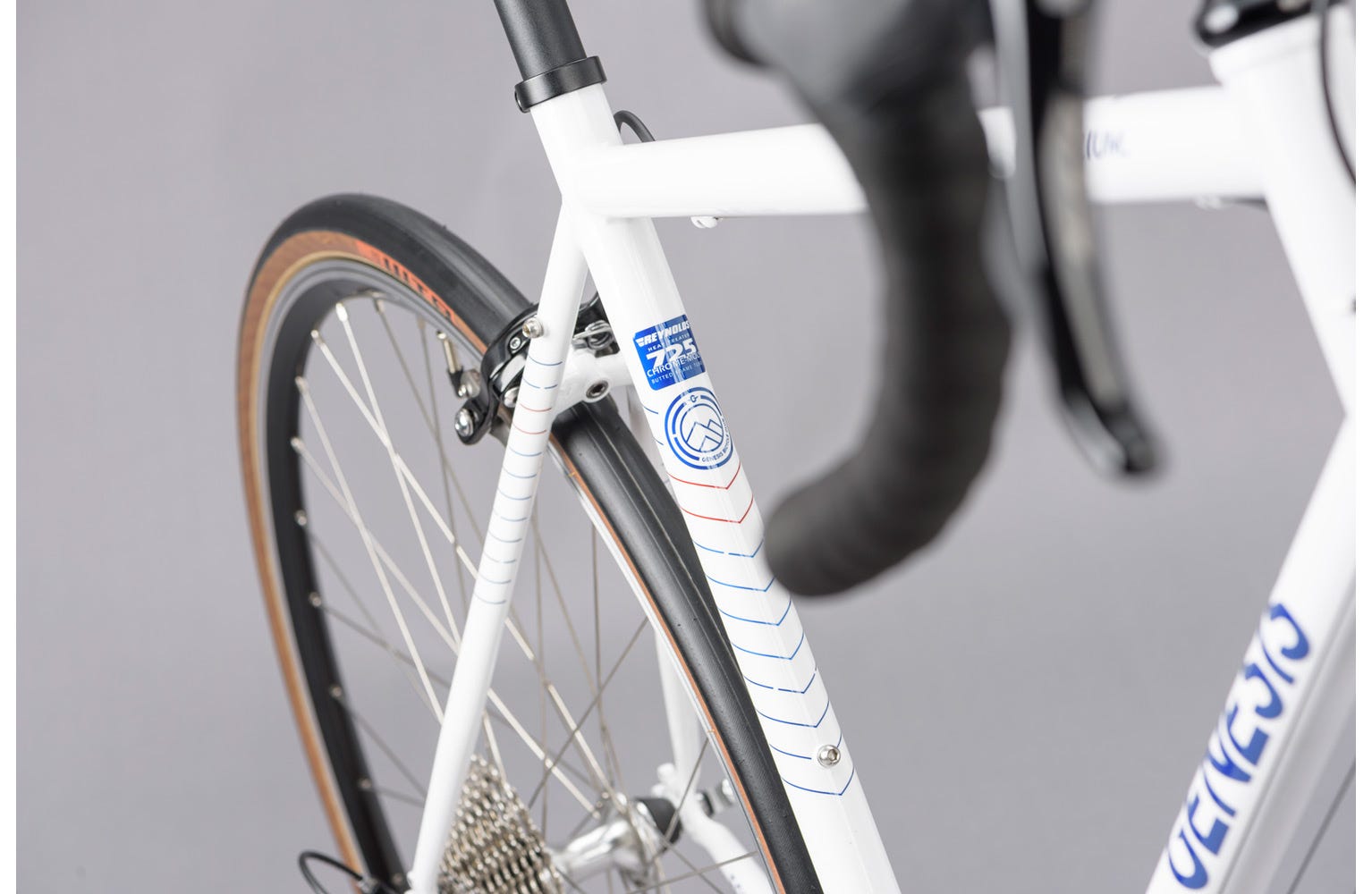

- There is good reason why the equilibrium has been a staple in our range for many a year now - the combination of a lightweight, durable Reynolds 725 frame, classic looks, full-length mudguard capabilities, sublime ride and handling qualities has made it a true riders' favourite; to many the quintessential four-season UK road bike.
With a little more relaxed geometry versus a conventional road race frame (longer wheelbase, slacker headtube angle & more fork offset), the Equilibrium is our lightweight steel all-rounder, ideally suited to big mile rides where comfort, stability and efficiency come before KOM leaderboards.
That said, it's no slouch, the surefooted geometry, spritely steel frame and fork work wonders to smooth out and tame the worst of the UK broken roads and will have you descending and cornering like you're on rails!
Brake Type:
Rim
Fork Material:
Steel
Frame Material:
Steel
Bottom Bracket:
Shimano SM-BBR60
Wheel Size:
700c
Brake Levers:
Shimano 105 ST-R7000 11 Speed

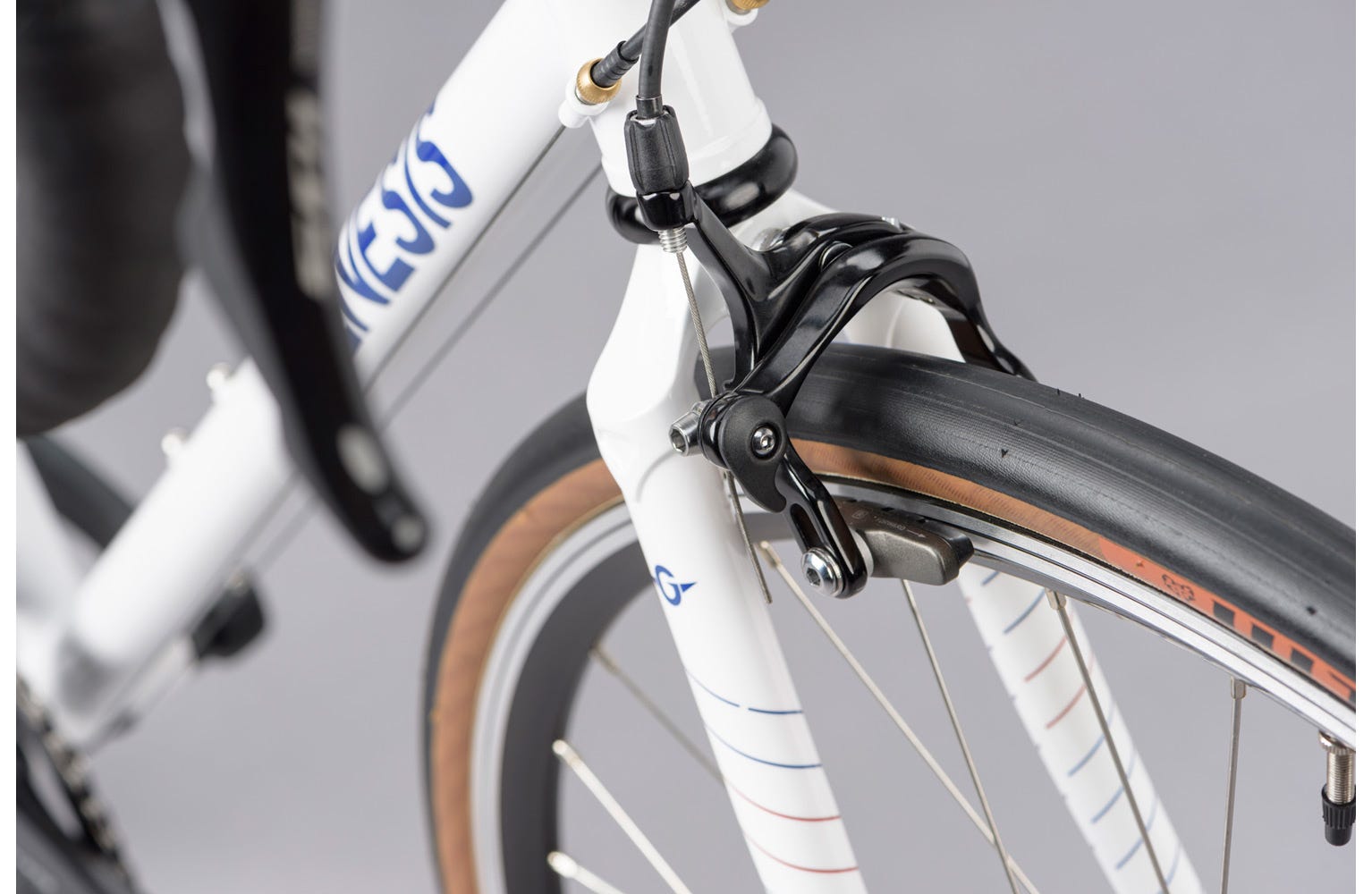

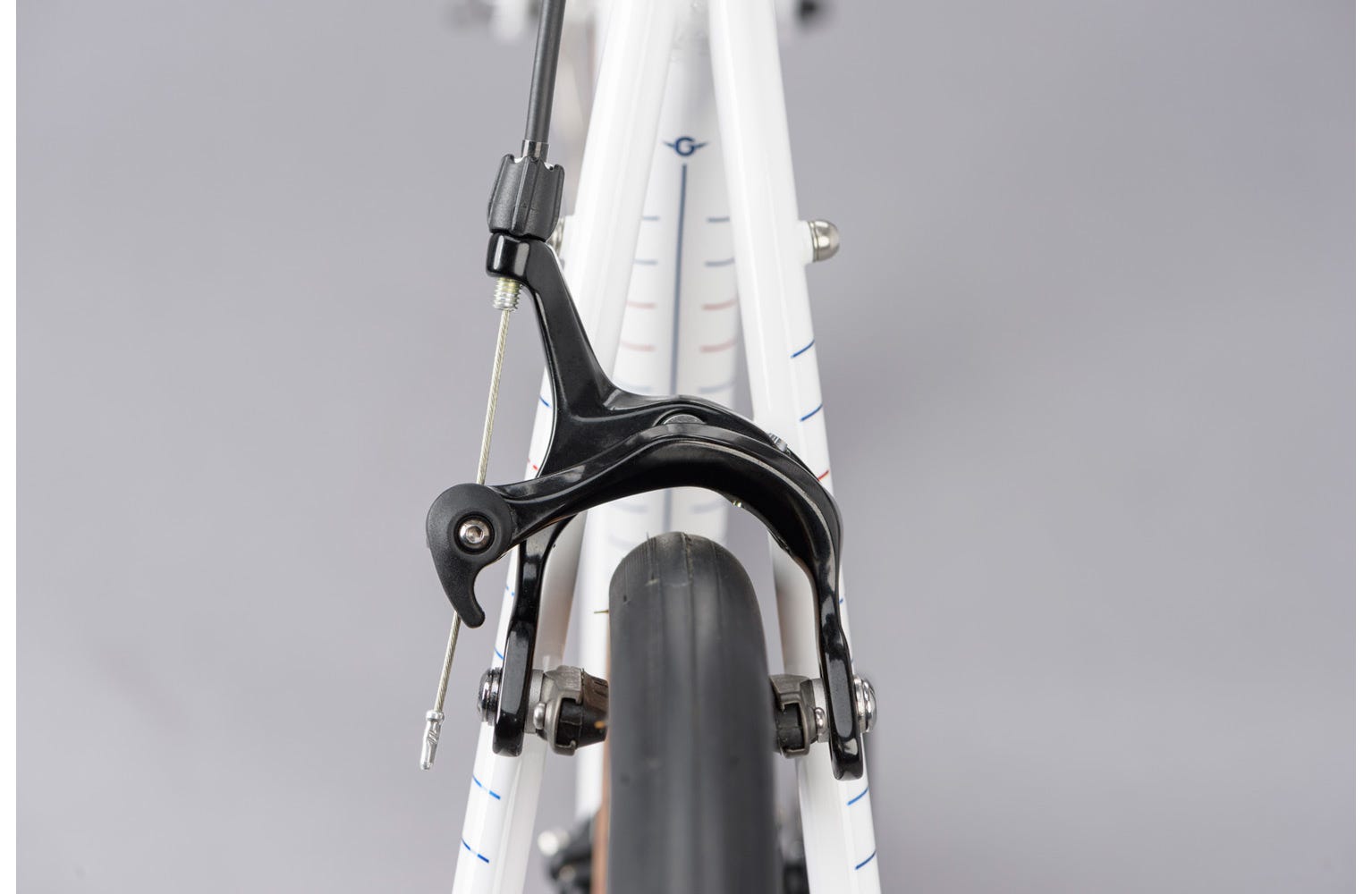

Brakes:
Promax RC-477
Cassette Freewheel:
Shimano CS-HG700-11 11-34T
Chain:
KMC X11
Fork:
Genesis Steel

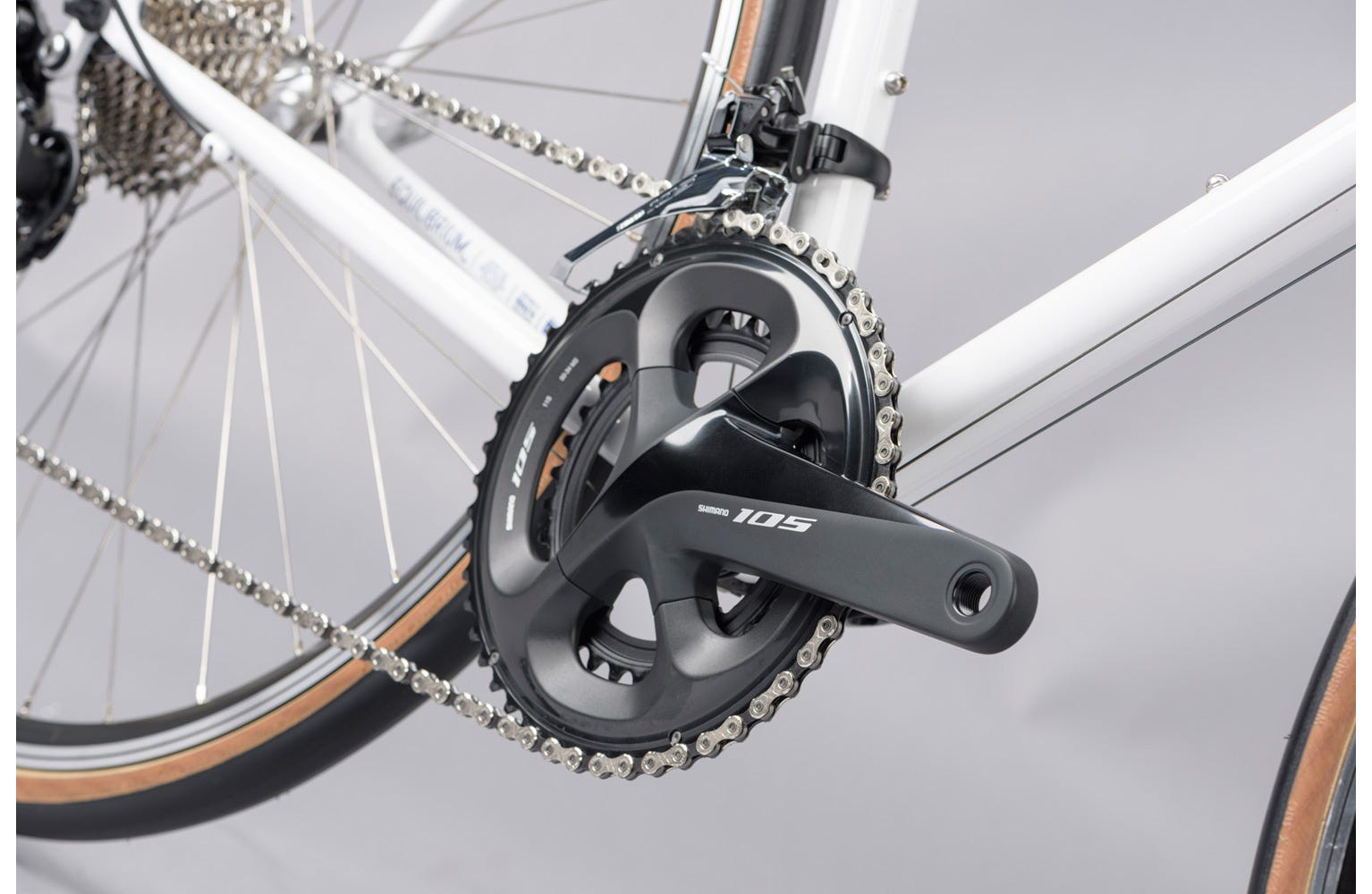

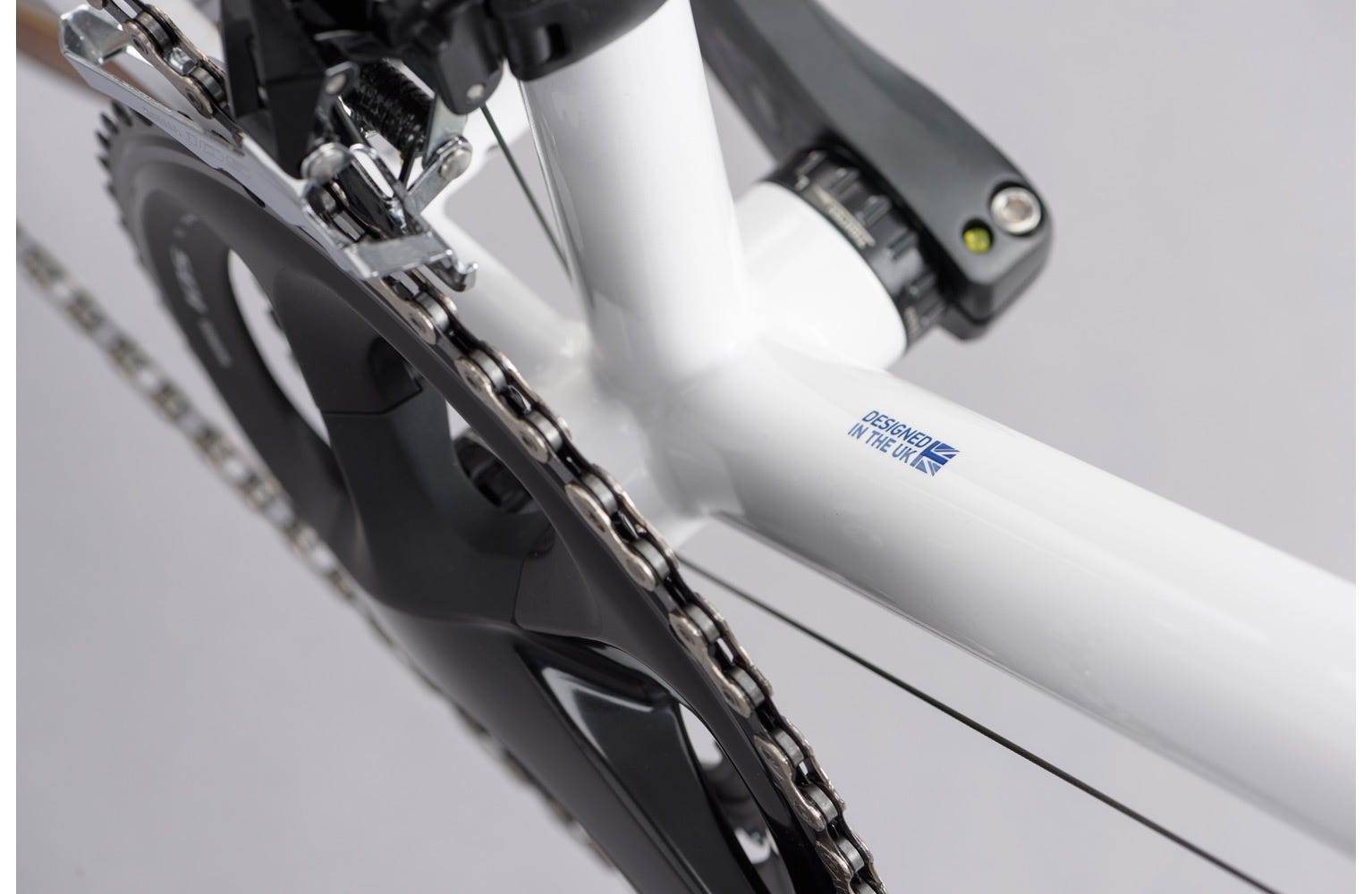

Front Derailleur:
Shimano 105 FD-R7000 L
Grip Tape:
Genesis
Headset:
PT-1767D EC34 Upper / EC34 Lower
Hubs:
KT Front - KT-G15F / Rear - KT-GTER

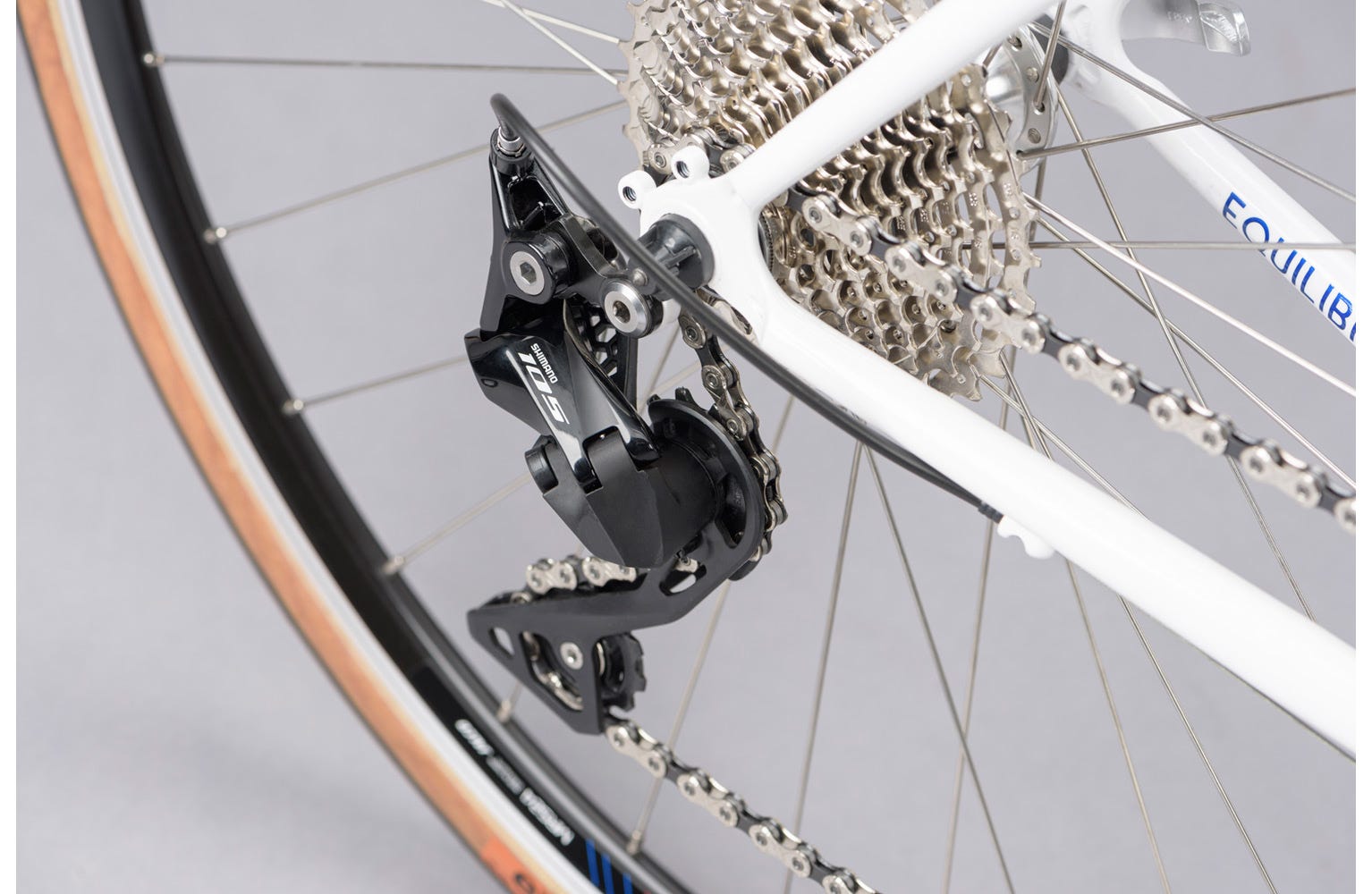

Rear Derailleur:
Shimano 105 RD-R7000-GS
Rims:
Jalco MRS24
Saddle:
Genesis
Seat Post:
Genesis Alloy 27.2 x 350 mm
Shifters:
Shimano 105 ST-R7000 11 Speed
Spokes:
Steel 14 g
Tyres:
WTB Exposure 700 x 30c
Frame Shape:
Crossbar
Full Specifications
Bike Purchases
Â
Home Delivery
Get your bicycle delivered to your door for FREE.
How it works:
-
Order your bike online.
-
An experienced and certified mechanic will build and complete a pre-delivery inspection.
-
Your bike will arrive at your delivery address between 5 – 9 working days via TNT.
-
You can track your bike order here.
-
Follow the instructions provided to adjust your handlebars and fit your pedals (if applicable).
-
Bicycles are shipped from a different warehouse to other items so may arrive seperatley to other items ordered.
Â
Click & Collect
Have your bicycle ready to collect in-store for FREE.
How it works:
-
Order your bike online and select your preferred shop for collection.
-
An experienced and certified mechanic will build and complete a pre-delivery inspection.
-
The selected store will contact you to confirm your bicycle is ready for collection.
-
Please bring a form of ID with you and your Freewheel order number.
-
To avoid disappointment, please wait until you have heard from your selected store prior to travelling.
Â
Returns
If you would like to return a bike that has not been used or ridden and the order was placed within the last 28 days, please contact us with the following details to arrange a collection:
-
Your full name and collection address
-
Your order number
-
Your preferred date of collection (Monday to Friday only)
-
A contact number for the courier driver
All bicycles must be returned in the condition they were received and packaged in the original box. If you no-longer have the original box, please let us know and we can provide one at a cost of £25.
Unfortunately, we are unable to accept bikes back that have already been ridden. If you find a fault with your new bike you should contact us and we will direct you to your local Freewheel store who will be able to assist you.
Sizing
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
Please be advised that this sizing chart is a rough guide to help you select the correct size frame you will require. We would always recommend visiting your local dealer to get measured and sized correctly for your bike. Although height is one key factor on choosing the correct size bike, there are others which can determine the frame size required. Your local dealer will be able to assist you with correct sizing for your bike.
Geometry
| Frame Seat Tube | 540 |
|---|---|
| Frame Top Tube | 579 |
| Frame Reach | 395 |
| Frame Stack | 598 |
| Frame Head Tube | 180 |
| Frame Head Angle | 72 |
| Frame Seat Angle | 73 |
| Frame BB Drop | 72 |
| Frame Wheel Base | 1032 |
| Fork Offset | 50 |
| Standover | 823 |
| Stem Length | 110 |
| Handle Bar Width | 440 |
| Frame Seat Tube | 520 |
| Frame Top Tube | 561 |
| Frame Reach | 385 |
| Frame Stack | 579 |
| Frame Head Tube | 160 |
| Frame Head Angle | 72 |
| Frame Seat Angle | 73.5 |
| Frame BB Drop | 72 |
| Frame Wheel Base | 1016 |
| Fork Offset | 50 |
| Standover | 797 |
| Stem Length | 100 |
| Handle Bar Width | 420 |
| Frame Seat Tube | 490 |
| Frame Top Tube | 542 |
| Frame Reach | 375 |
| Frame Stack | 556 |
| Frame Head Tube | 140 |
| Frame Head Angle | 72 |
| Frame Seat Angle | 73.5 |
| Frame BB Drop | 72 |
| Frame Wheel Base | 1009 |
| Fork Offset | 50 |
| Standover | 780 |
| Stem Length | 100 |
| Handle Bar Width | 420 |
| Frame Seat Tube | 570 |
| Frame Top Tube | 595 |
| Frame Reach | 405 |
| Frame Stack | 618 |
| Frame Head Tube | 200 |
| Frame Head Angle | 72 |
| Frame Seat Angle | 73 |
| Frame BB Drop | 72 |
| Frame Wheel Base | 1048 |
| Fork Offset | 50 |
| Standover | 846 |
| Stem Length | 110 |
| Handle Bar Width | 440 |
| Frame Seat Tube | 460 |
| Frame Top Tube | 526 |
| Frame Reach | 374 |
| Frame Stack | 533 |
| Frame Head Tube | 120 |
| Frame Head Angle | 72 |
| Frame Seat Angle | 73.5 |
| Frame BB Drop | 72 |
| Frame Wheel Base | 1009 |
| Fork Offset | 50 |
| Standover | 759 |
| Stem Length | 90 |
| Handle Bar Width | 400 |
