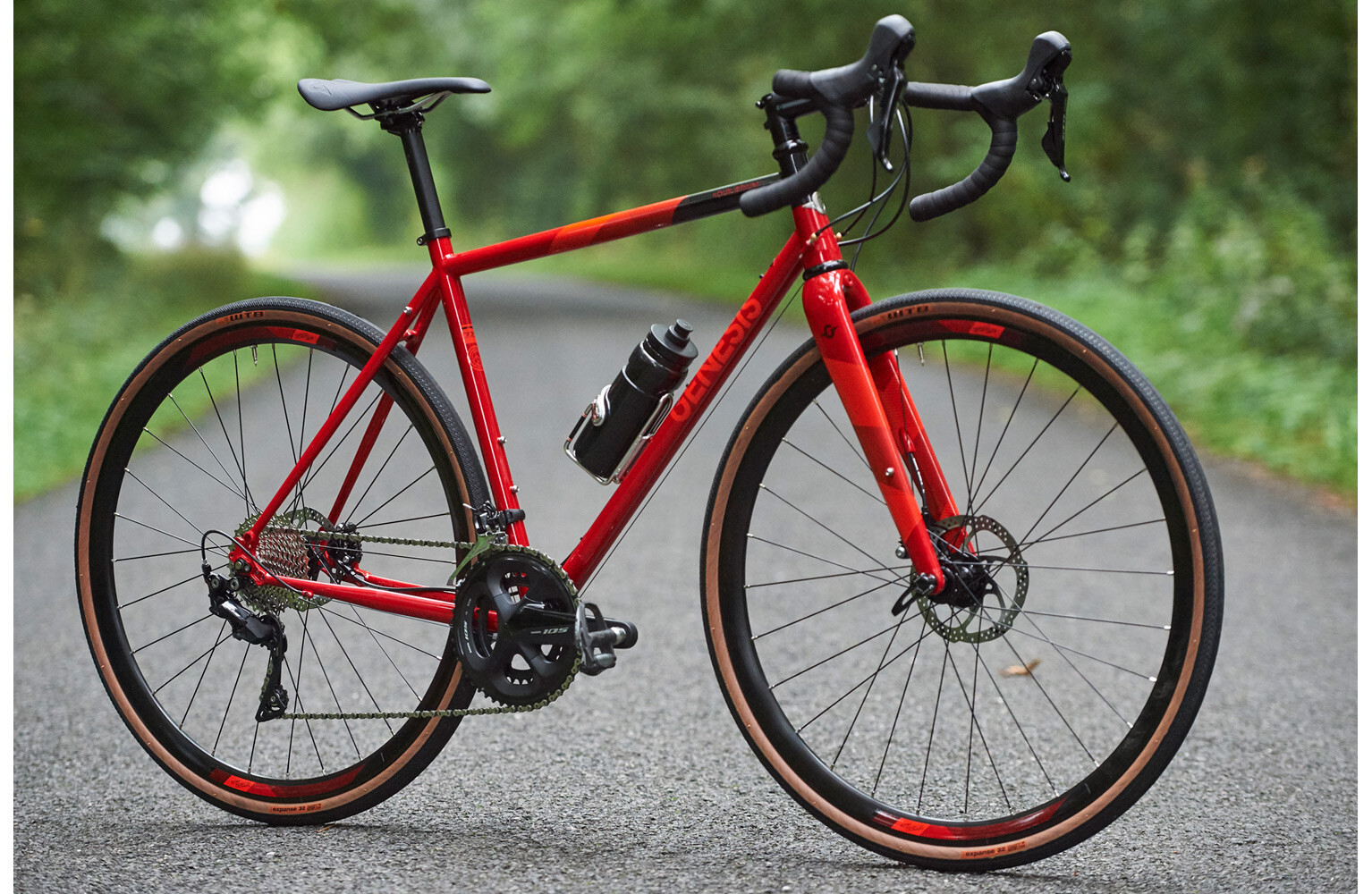

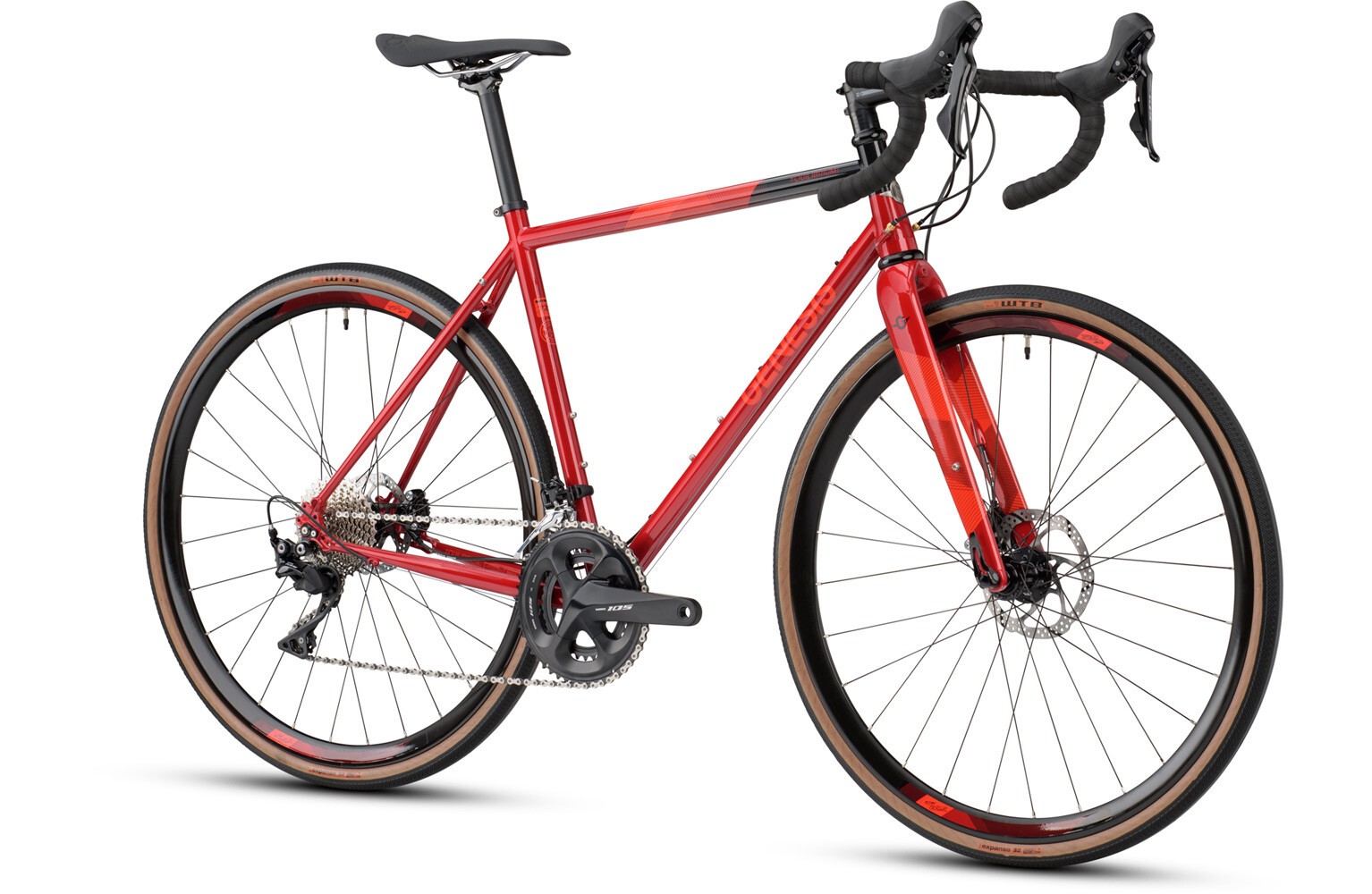

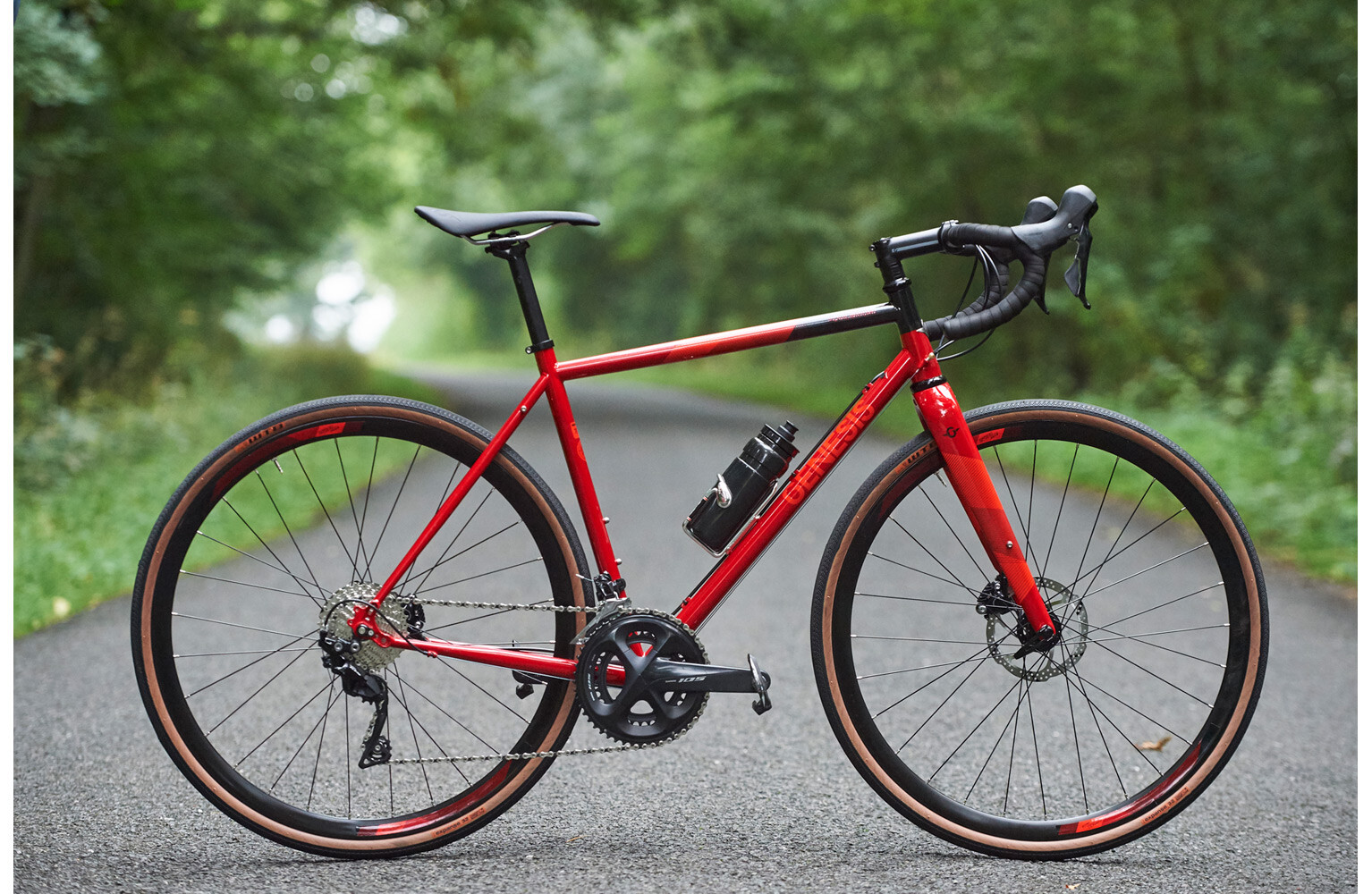

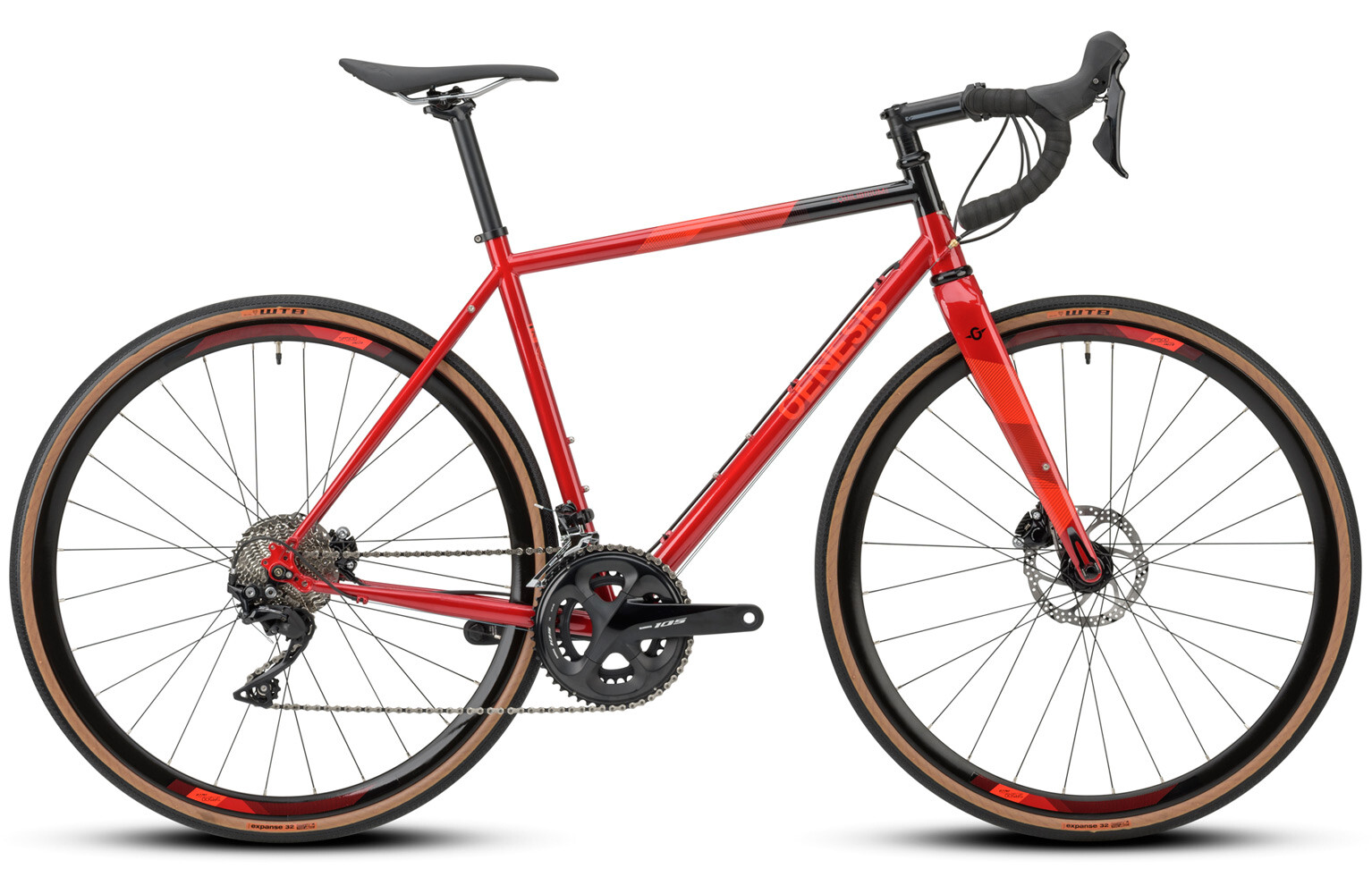

Genesis Equilibrium Disc
In stock
£2,699.99
Genesis Equilibrium Disc
- A cornerstone of our range since 2008, the beauty of the Equilibrium is in its versatility.

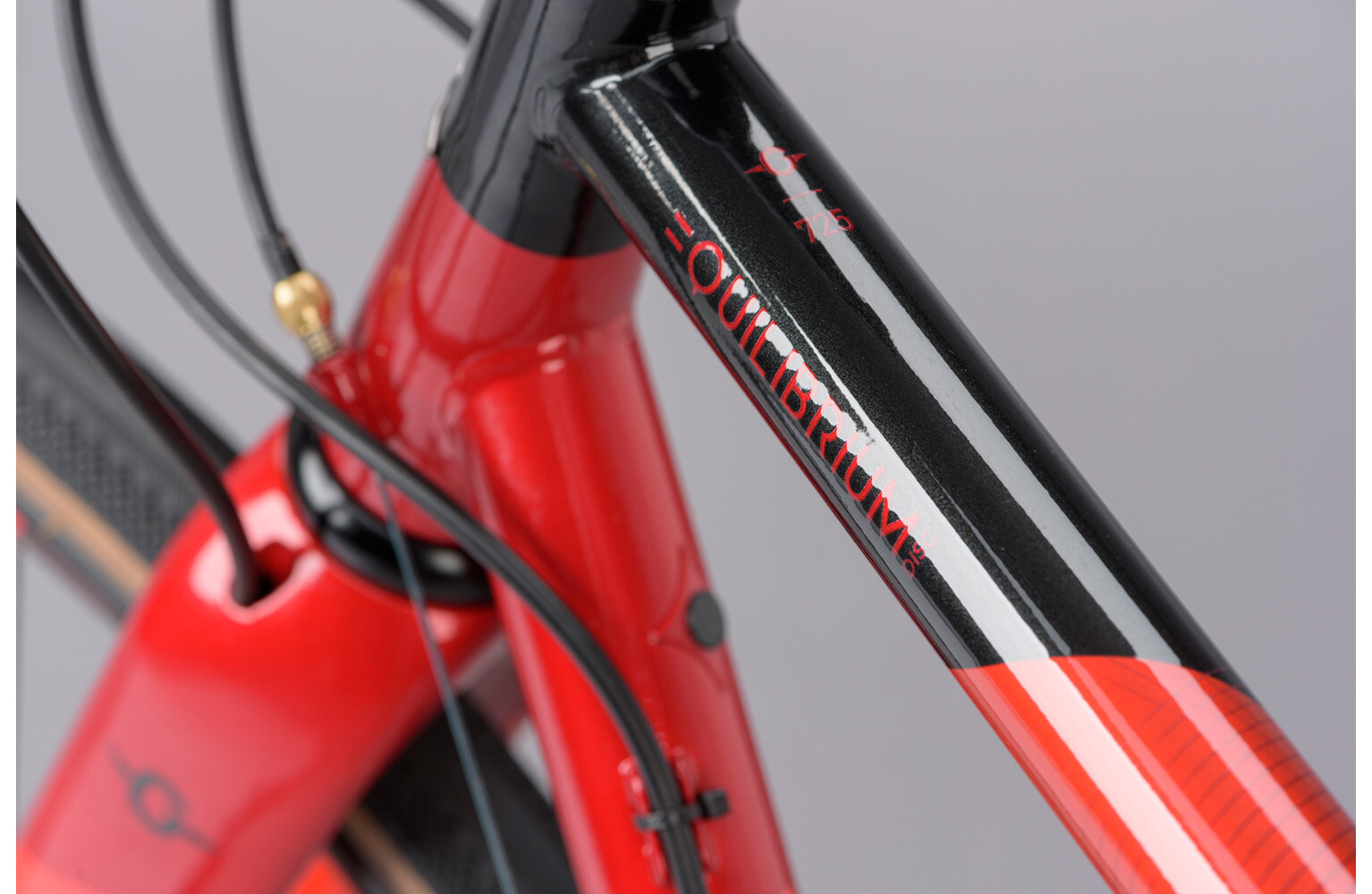

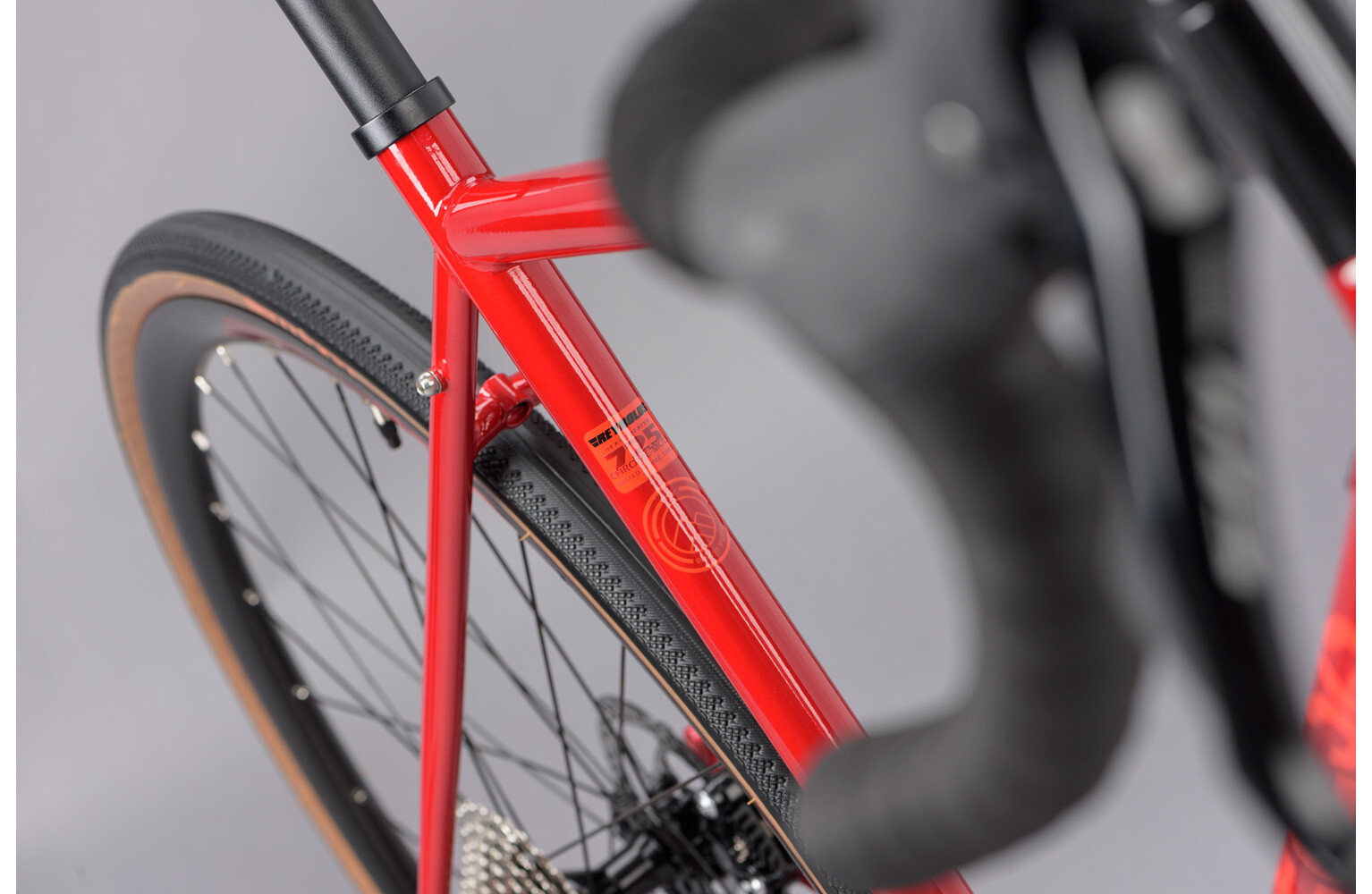

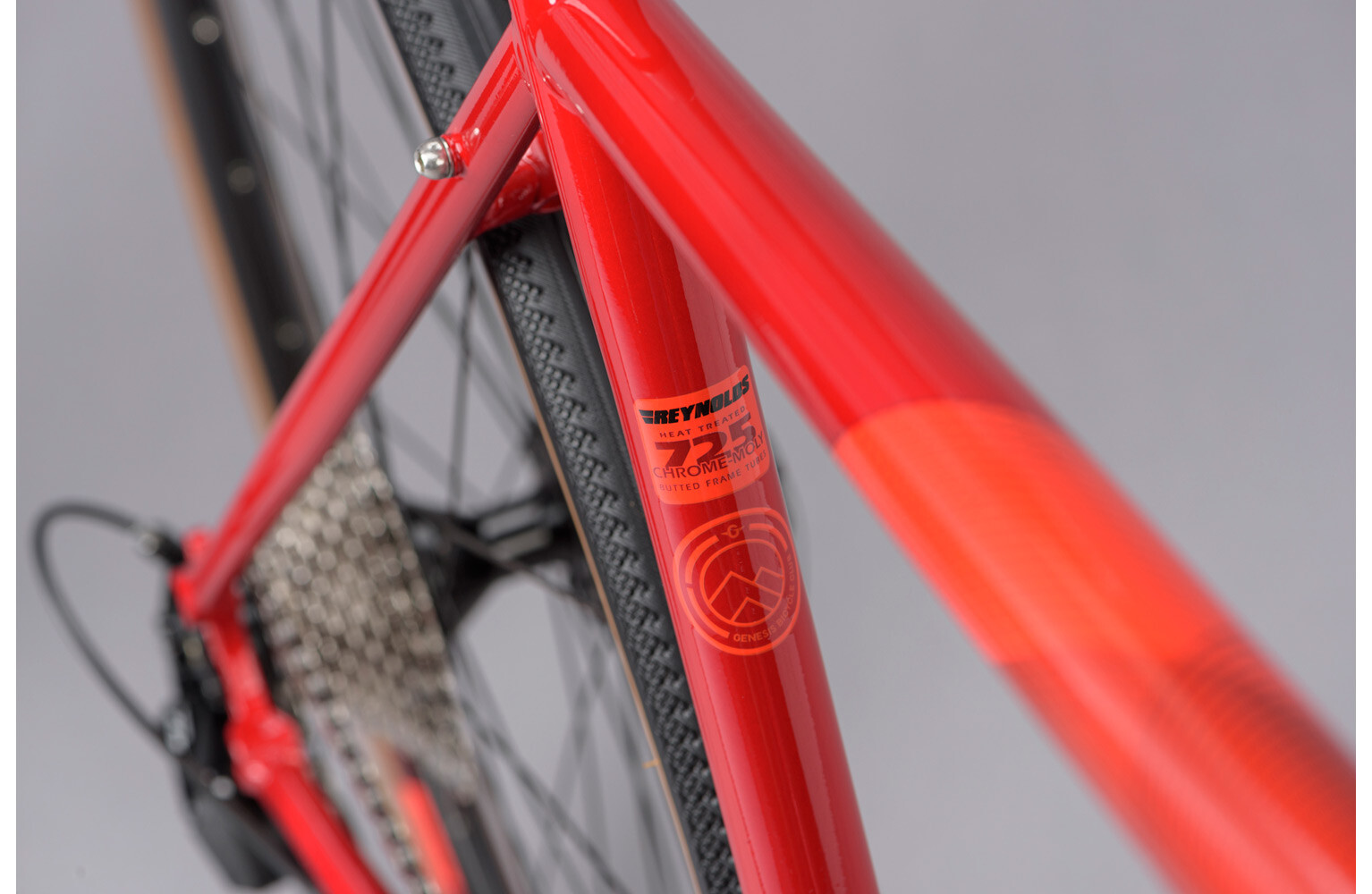

Reynolds 725 tubing isolates you from broken tarmac and unmade roads, while rack and guard mounts make the Equilibrium your timeless, year-round companion, wherever the road may take you.

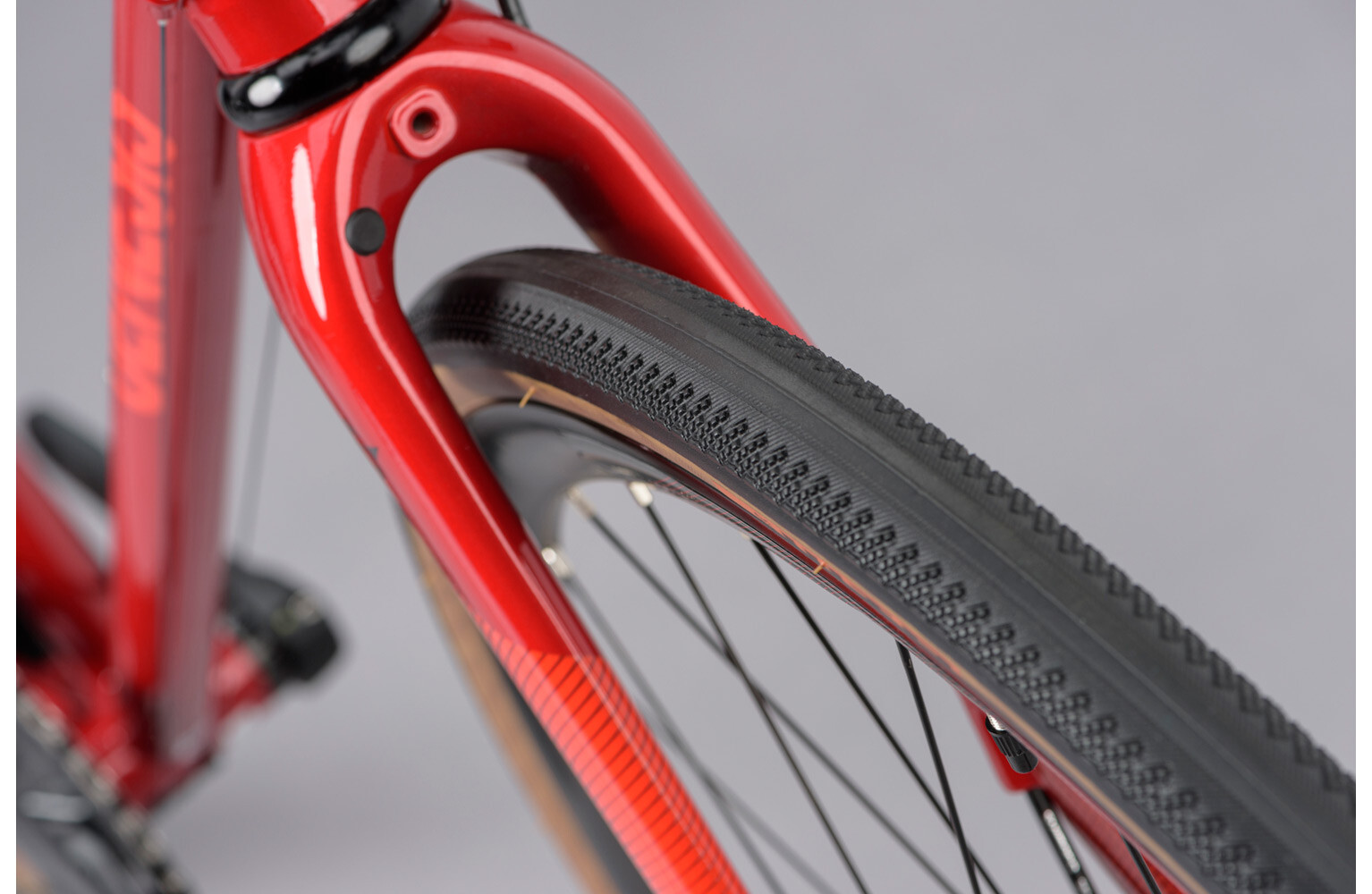

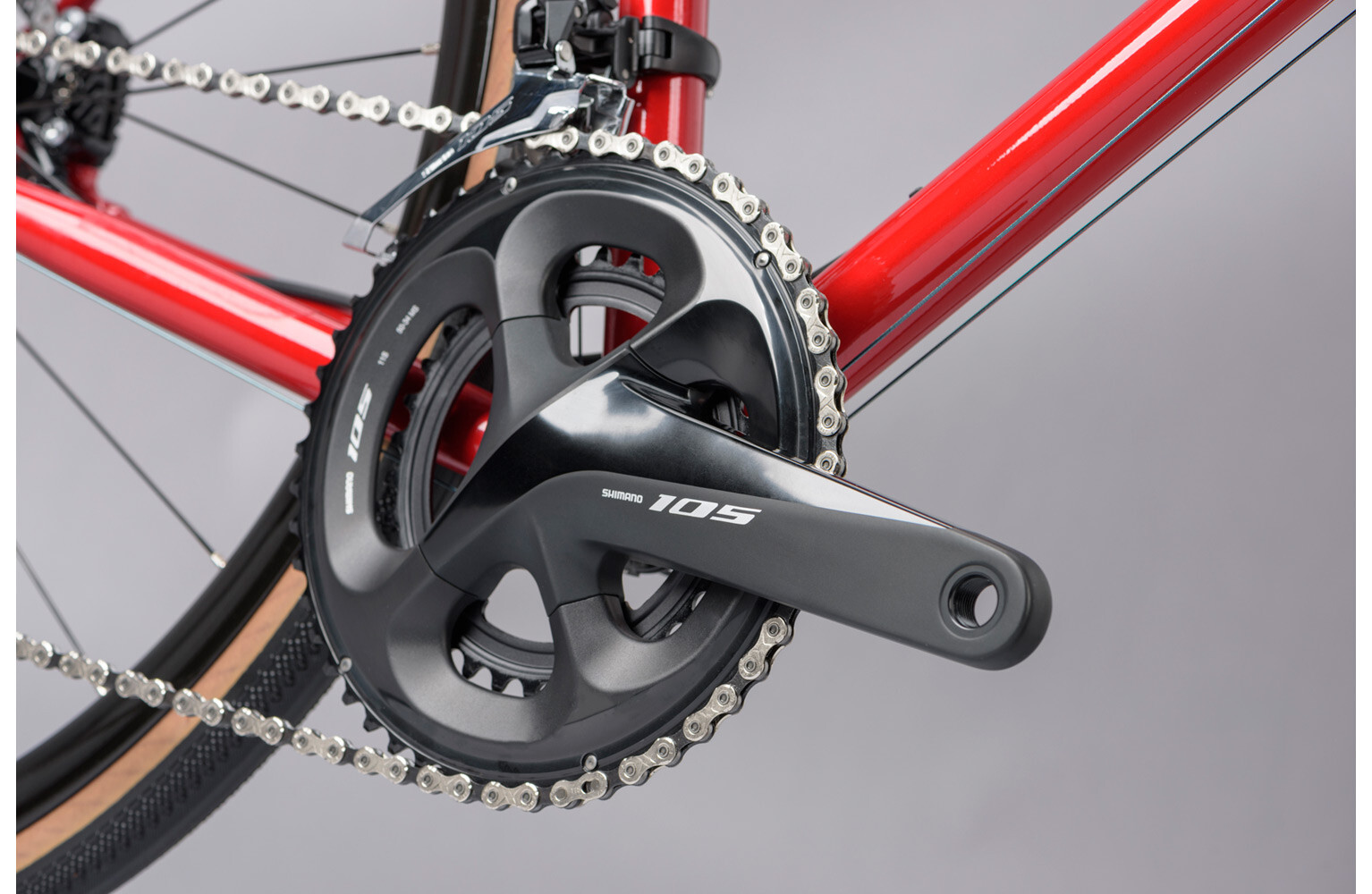

Equipped with Shimano's workhorse 105 groupset, the latest Equilibrium will accommodate a 32mm tyre to deliver more comfort than ever before - whether you're riding along green lanes, light gravel or cobbles.
Proven Equilibrium geometry and practicality combined with a traditional steel frame and confidence-inspiring disc brake performance makes what we believe to be the ideal UK road disc all-rounder
Brake Type :
Hydraulic Disc
Fork Material :
Carbon
Frame Material :
Steel
Bottom Bracket :
Shimano SM-BBR60

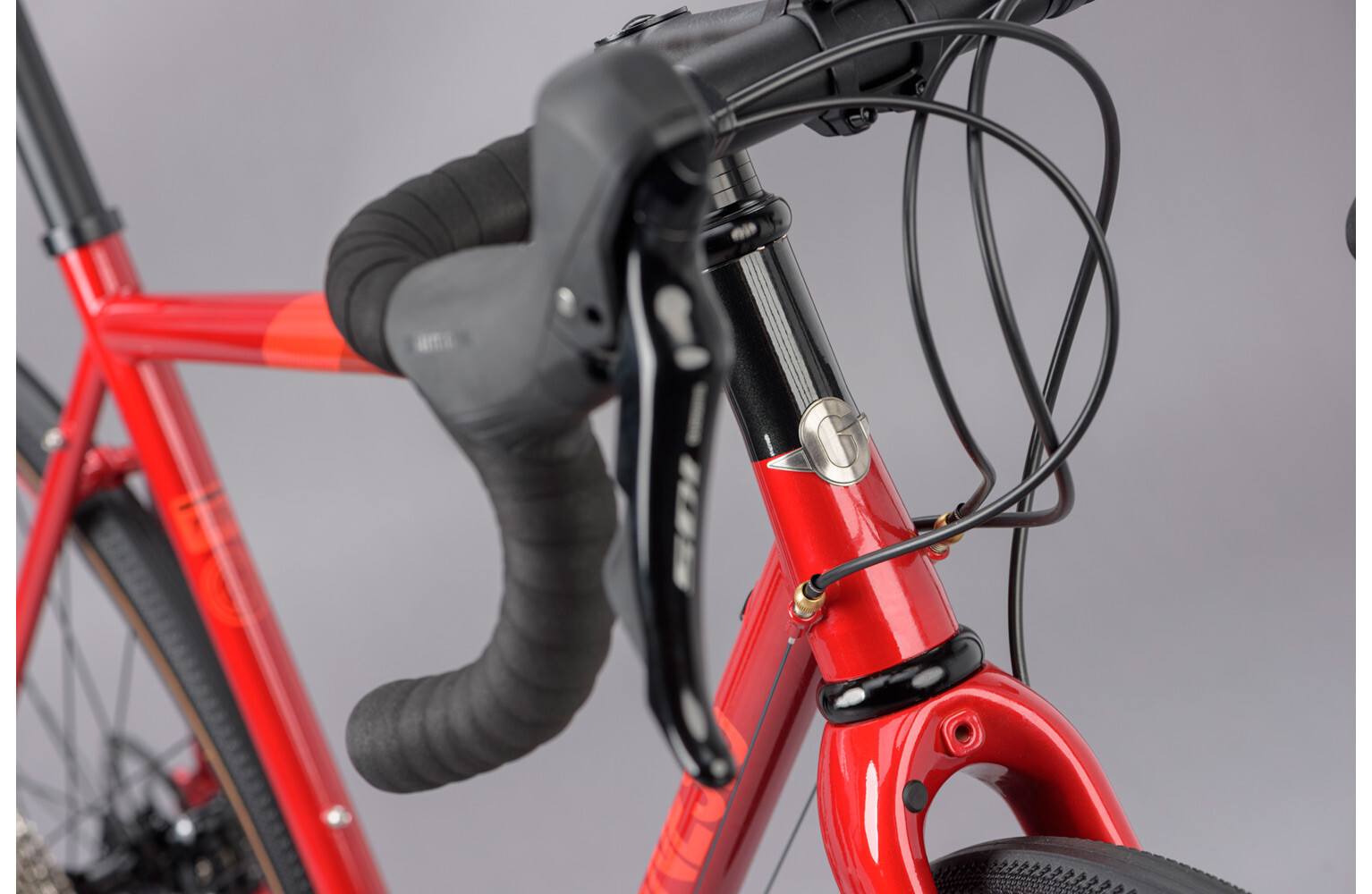

Brake Levers :
Shimano 105 ST-R7020 11 Speed
Intended Use :
Road
Brakes :

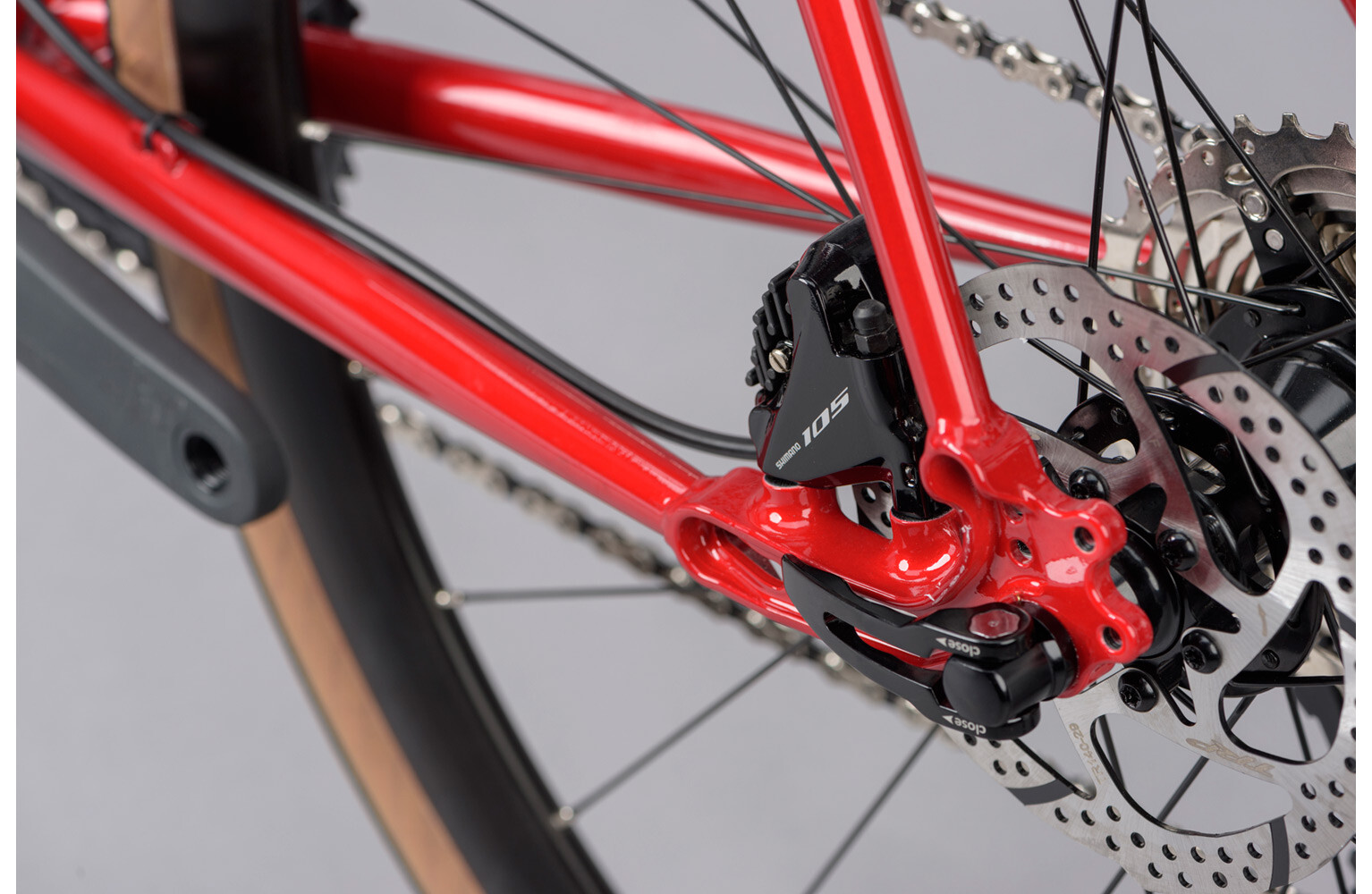

Shimano 105 BR-R7070 Hydraulic Disc
Cassette Freewheel :
Shimano CS-HG700-11 11-34T
Chain :
KMC X11

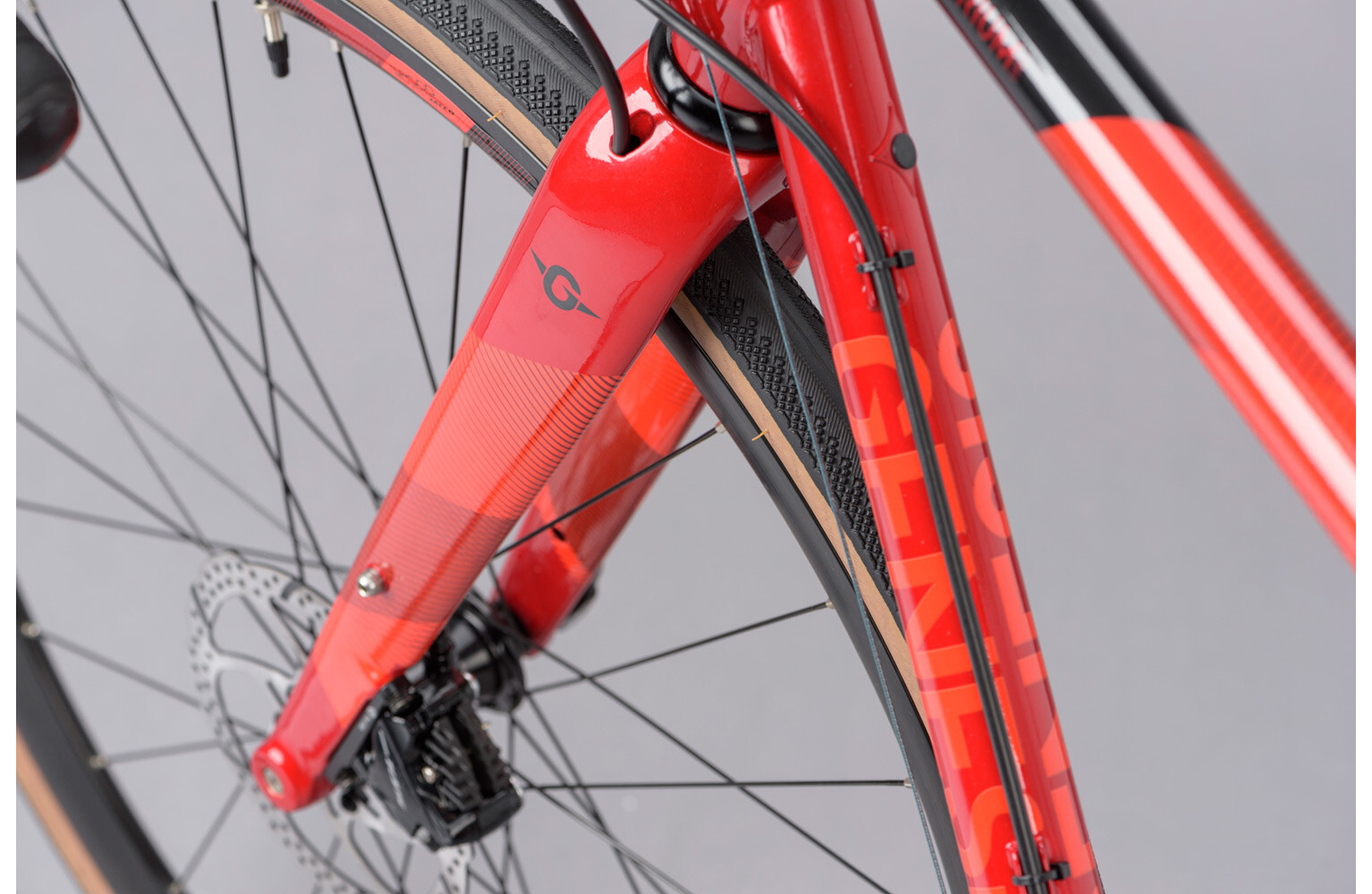

Fork :
Genesis Carbon Road Disc
Front Derailleur :
Shimano 105 FD-R7000 L
Grip Tape :
Genesis
Headset :
F17A Tapered 1 1/8 inch - 1 1/5 inch
Hubs :
Formula Front - RX812 / Rear - RX300

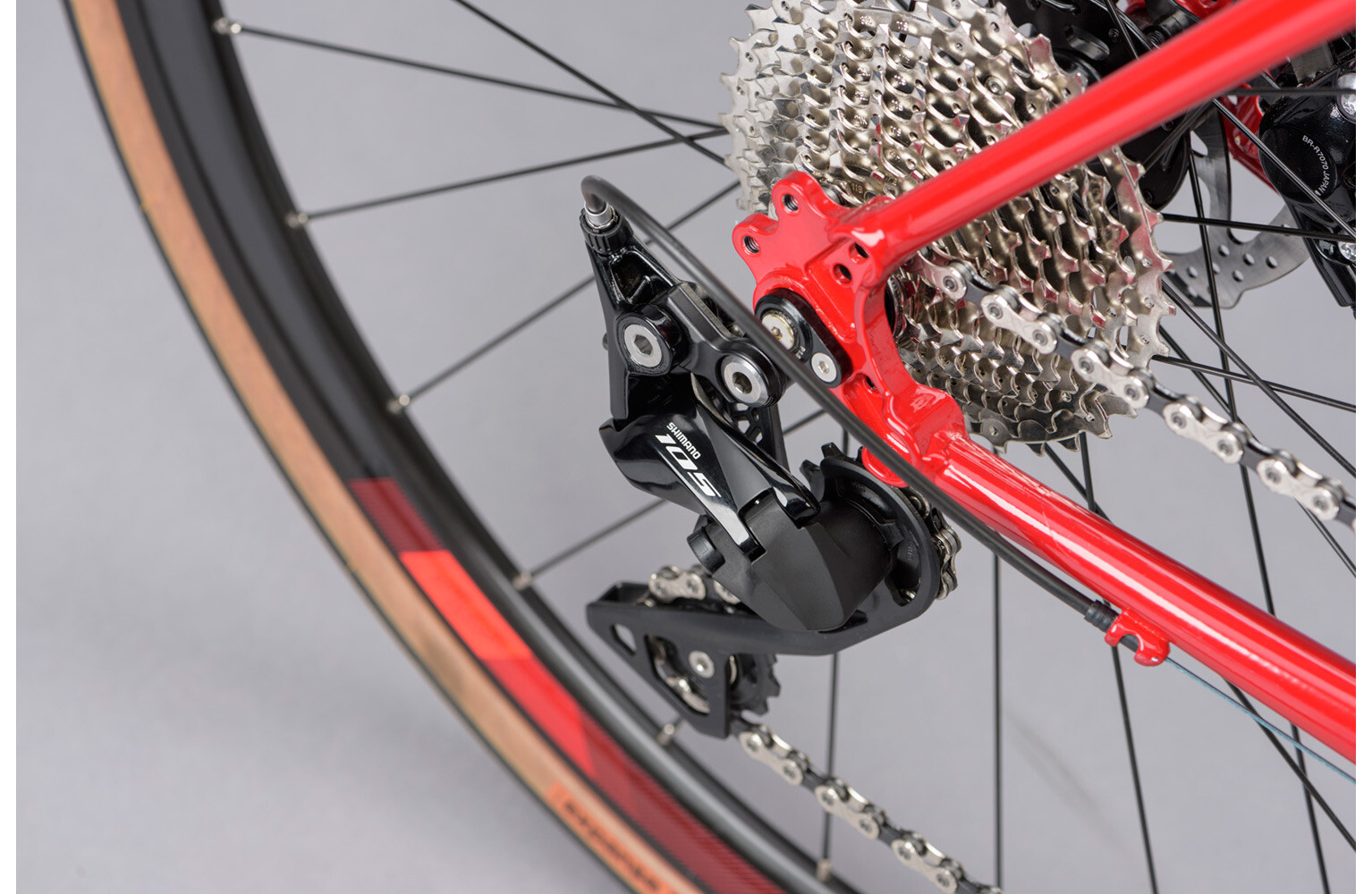

Rear Derailleur :
Shimano 105 RD-R7000 11 Speed
Rims :
Jalco SR500
Saddle :
Genesis
Seat Post :
Genesis Alloy 27.2 x 350 mm
Shifters :
Shimano 105 ST-R7020 11 Speed
Spokes :
Steel 14 g
Tyres :
WTB Exposure 700 x 30c
Frame Shape :
Crossbar
Gender :
Mens, Womens
150
152
154
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
194
196
198
200
Please be advised that this bicycle size chart is only a rough guide to help you select the correct frame size. We would always recommend visiting your local dealer to get measured and sized correctly, as although height is used, there are other factors which help determine the best frame size for you.
Geometry
| Frame Seat Tube | 530 |
|---|---|
| Frame Top Tube | 559 |
| Frame Reach | 386 |
| Frame Stack | 584 |
| Frame Head Tube | 140 |
| Frame Head Angle | 73 |
| Frame Seat Angle | 73.5 |
| Frame Chainstay | 420 |
| Frame BB Drop | 72 |
| Frame Wheel Base | 1003 |
| Fork Offset | 50 |
| Standover | 815 |
| Stem Length | 100 |
| Handle Bar Width | 420 |
| Frame Seat Tube | 490 |
| Frame Top Tube | 540 |
| Frame Reach | 375 |
| Frame Stack | 559 |
| Frame Head Tube | 120 |
| Frame Head Angle | 71.5 |
| Frame Seat Angle | 73.5 |
| Frame Chainstay | 420 |
| Frame BB Drop | 72 |
| Frame Wheel Base | 1000 |
| Fork Offset | 50 |
| Standover | 773 |
| Stem Length | 100 |
| Handle Bar Width | 420 |
| Frame Seat Tube | 550 |
| Frame Top Tube | 578 |
| Frame Reach | 395 |
| Frame Stack | 599 |
| Frame Head Tube | 160 |
| Frame Head Angle | 72 |
| Frame Seat Angle | 73 |
| Frame Chainstay | 420 |
| Frame BB Drop | 72 |
| Frame Wheel Base | 1019 |
| Fork Offset | 50 |
| Standover | 826 |
| Stem Length | 110 |
| Handle Bar Width | 440 |
| Frame Seat Tube | 580 |
| Frame Top Tube | 600 |
| Frame Reach | 405 |
| Frame Stack | 618 |
| Frame Head Tube | 180 |
| Frame Head Angle | 72 |
| Frame Seat Angle | 72.5 |
| Frame Chainstay | 420 |
| Frame BB Drop | 72 |
| Frame Wheel Base | 1035 |
| Fork Offset | 50 |
| Standover | 899 |
| Stem Length | 110 |
| Handle Bar Width | 440 |
| Frame Seat Tube | 460 |
| Frame Top Tube | 522 |
| Frame Reach | 365 |
| Frame Stack | 545 |
| Frame Head Tube | 105 |
| Frame Head Angle | 71 |
| Frame Seat Angle | 74 |
| Frame Chainstay | 420 |
| Frame BB Drop | 72 |
| Frame Wheel Base | 990 |
| Fork Offset | 50 |
| Standover | 749 |
| Stem Length | 90 |
| Handle Bar Width | 400 |
CLICK & COLLECT: Free
Have your new bicycle or frame ready to collect in-store for free. Please wait until you have heard from your selected store prior to travelling as an experienced and certified mechanic will build and complete a pre-delivery inspection in-store.
BIKE BUILD & DELIVERY: £50
Get your new bicycle or frame delivered straight to your door. Includes professional bike build, safety checks and pre delivery inspection, packing and shipment. We aim to get bikes despatched within 7 working days however this may vary during very busy periods. We use a premium two man delivery service to deliver all of our bikes and frames to ensure they arrive in the best possible condition. The courier will message you directly with updates on your order. Please note, a signature is required to confirm proof of delivery. Please note that free delivery on promotional items may be available. To confirm eligibility, please check the basket during the checkout process or call us on 0208 385 3400
RETURNS: We hope you’re happy with your purchase. If you’re not perfectly satisfied and the order was placed in the last 30 days, you can contact us to arrange a returns collection. We can only accept bikes or frames that have not been used or ridden. The original box and packaging should be used. Please read our full returns policy here.
Often bought with
-
-

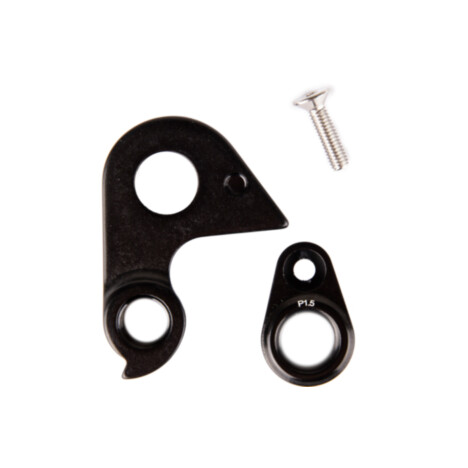

Genesis Hanger Two
