Ridgeback Arcus 3W
In stock
£2,999.99

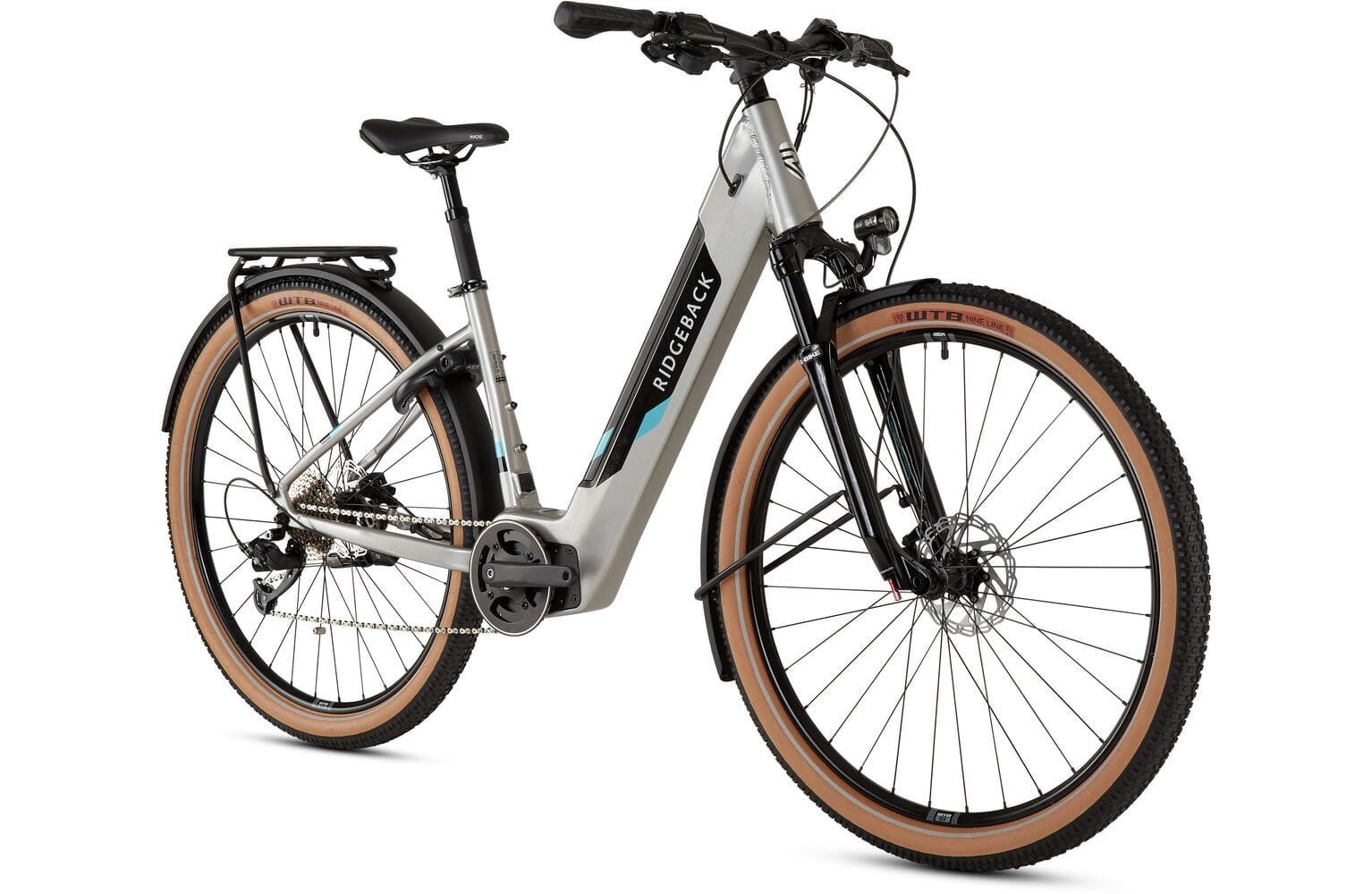

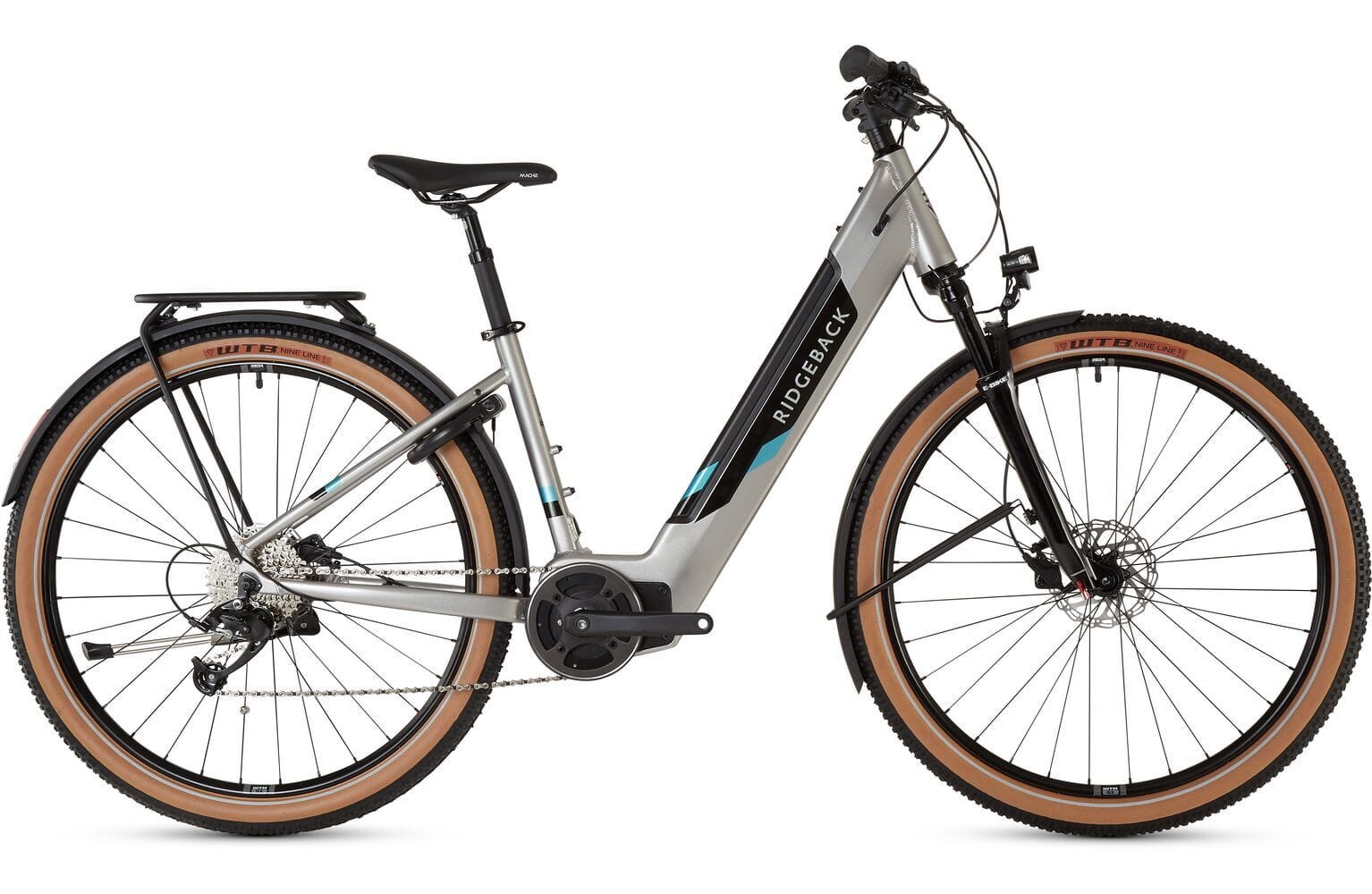

Ridgeback Arcus 3W
- Meet the Arcus 3, our premium SportDrive equipped E-bike.
- A true do it all bike that's at home on woodland trails as well as on the morning commute.

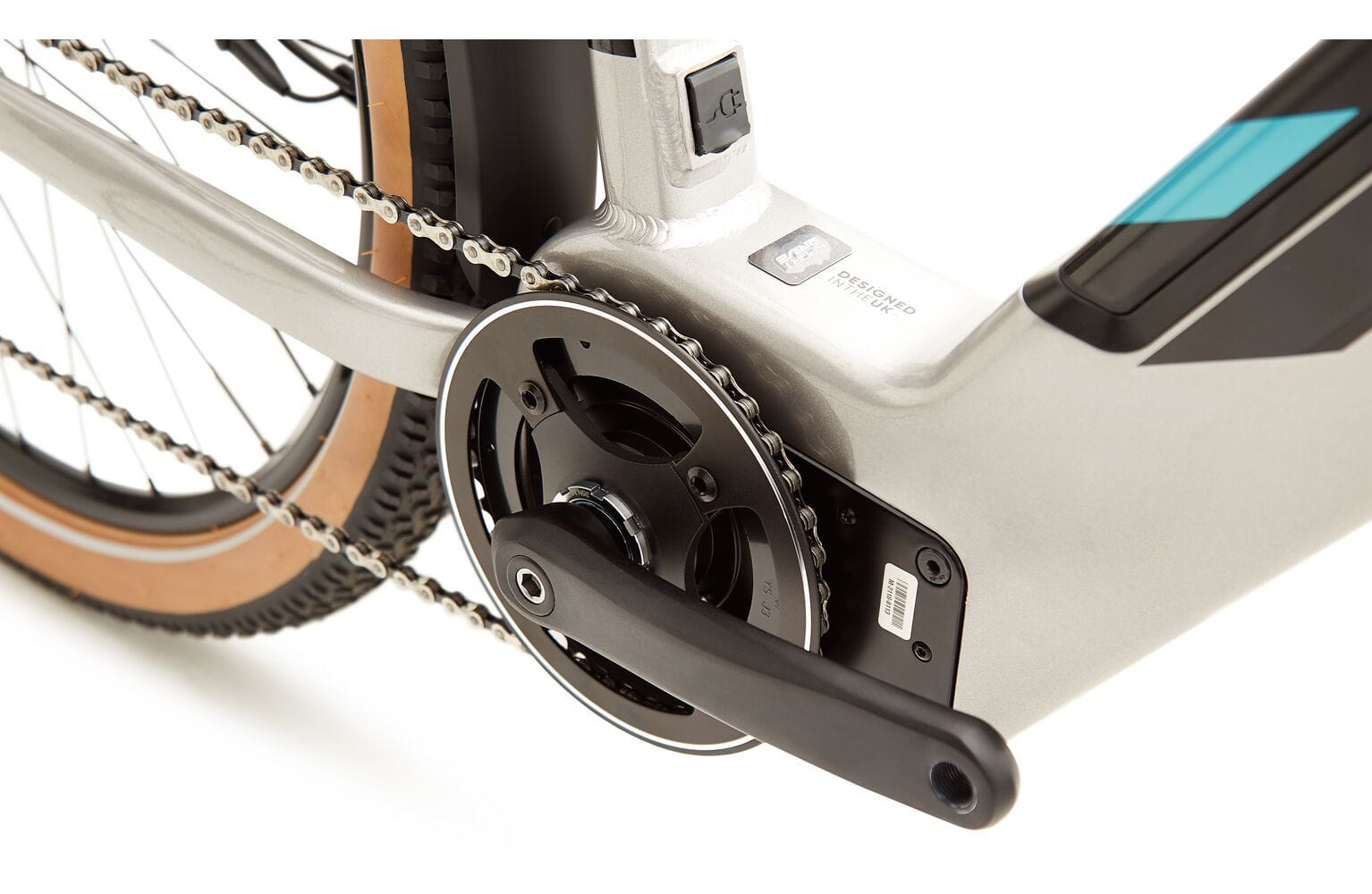

- Hills? What hills? With the SportDrive MDS250S drive unit boasting 95Nm of torque you will never have to worry about another climb again.
- The Arcus 3 can be tuned to exactly how you want to ride it whether that be increased torque for pulling away from traffic lights or a gentler start for a more leisurely ride with increased range.
- With a 500Wh internally mounted battery you can enjoy up to 60 miles of assisted pedalling, plenty of range for a weekend of exploring.

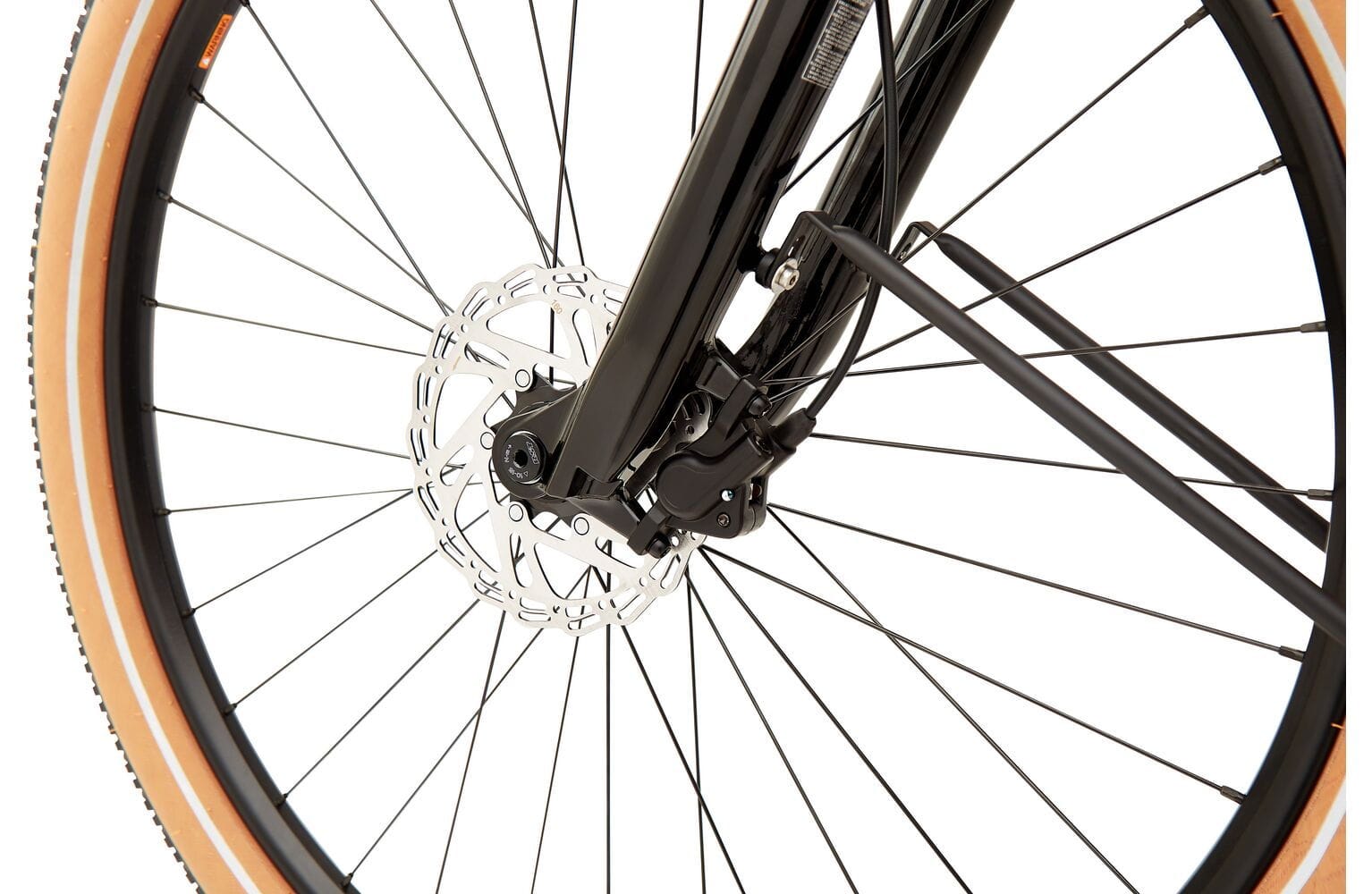

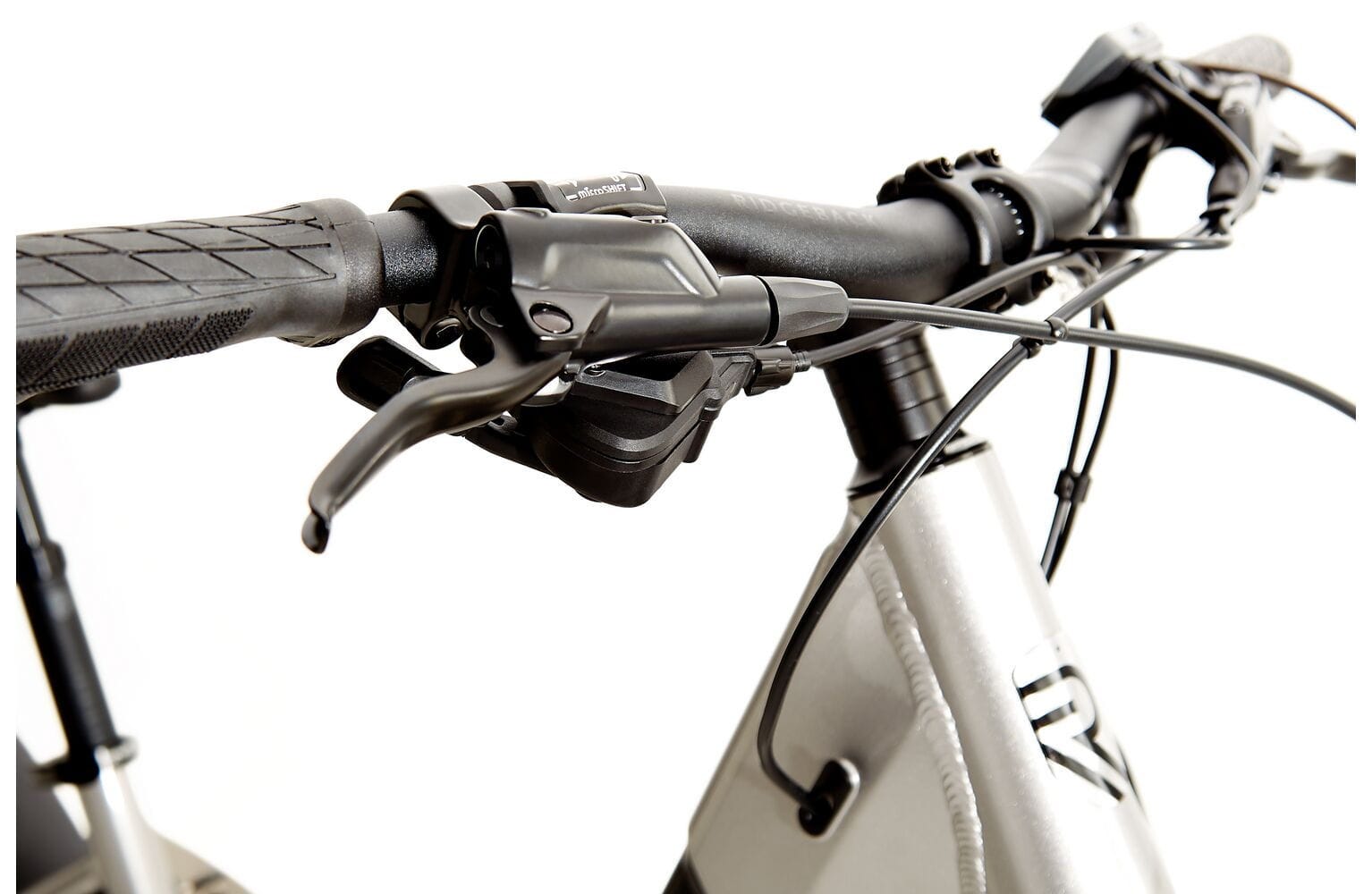

- The Arcus 3 comes fully equipped with a microSHIFT Mezzo 9–speed drivetrain and powerful hydraulic disc brakes.

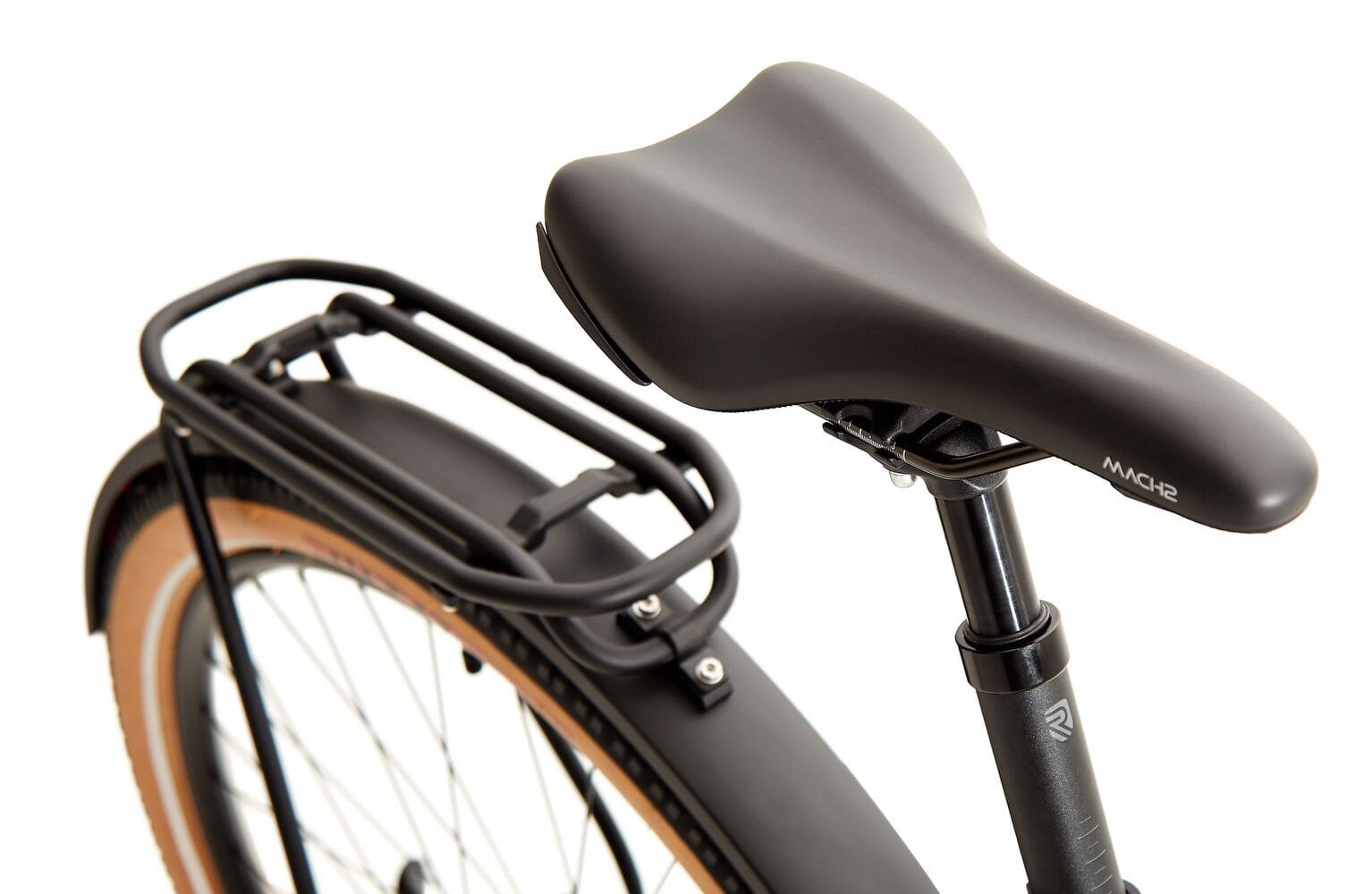

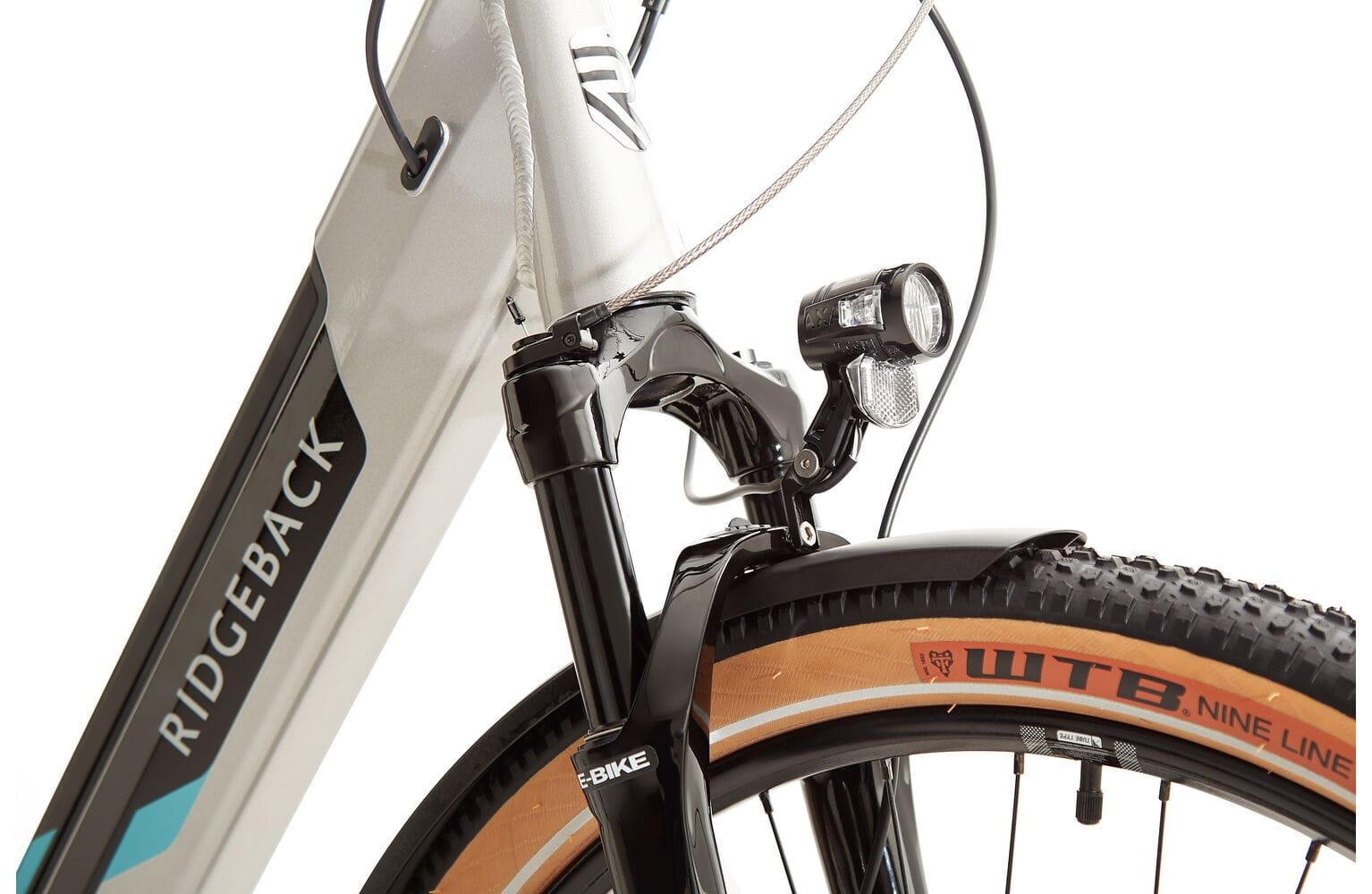

- The RST Air sprung suspension forks with remote lock out give you the adaptability to handle any terrain in comfort whilst bespoke alloy mudguards, AXA Blue line lights and the excellent AtranVelo rear rack system complete the build making a truly versatile package.
Brake Type :
Hydraulic Disc
Fork Material :
Alloy
Frame Material :
Alloy
Battery Type :
SportDrive Internal 500Wh
Brake Levers :
ALHONGA AHJ-OD07 Hydraulic Disc Brake
Intended Use :
E-Bike
Brakes :
ALHONGA AHJ-OD07 Hydraulic Disc Brake
Cassette Freewheel :
Microshift CS-H092 11-36t 9-speed
Chain :
KMC X9EPT
Chain Set :
SportDrive 170mm 38t
Charger :
SportDrive 2Ah
Fork :
RST Air Sprung with lockout 80mm
Grip Tape :
Ridgeback Lock On
Headset :
FSA Orbit 1.5E No.57B Zero Stack
Hubs :
Front: Shimano HB-M6010 32h 15mm / Rear: Shiamno FH-M4050 32h QR
Motor :
SportDrive MD250S 36v 95Nm 250W
Mudguard :
Fitted
Pedals :
Resin Metro
Rear Derailleur :
microSHIFT Mezzo RD-M36L 9-speed
Rims :
WTB SX19 32h
Seat Post :
ONE1 Alloy SPS 405 Suspension 30.9mm x 350mm
Shifters :
microSHIFT Mezzo TS39 9-speed
Spokes :
Steel 14g
Stem :
Ridgeback Alloy 45mm x 3 degrees
Tyres :
WTB Nineline 29x2.25"
Frame Shape :
Open Frame
Gender :
Womens
Wheel Size :
29 inch
Battery Integration :
Internal
Specification Disclaimer :
Ridgeback reserves the right to change product specifications without notice. Ridgeback will always ensure that these changes do not detract from the ride experience of the bike.
150
152
154
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
194
196
198
200
Please be advised that this bicycle size chart is only a rough guide to help you select the correct frame size. We would always recommend visiting your local dealer to get measured and sized correctly, as although height is used, there are other factors which help determine the best frame size for you.
Geometry
| Frame Seat Tube | 473 |
|---|---|
| Frame Top Tube | 645 |
| Frame Reach | 466 |
| Frame Stack | 625 |
| Frame Head Tube | 175 |
| Frame Head Angle | 67 |
| Frame Seat Angle | 74.5 |
| Frame Chainstay | 480 |
| Frame BB Drop | 60 |
| Frame Wheel Base | 1245 |
| Fork Travel | 80 |
| Stem Length | 45 |
| Handle Bar Width | 680 |
| Frame Seat Tube | 4320 |
| Frame Top Tube | 615 |
| Frame Reach | 436 |
| Frame Stack | 625 |
| Frame Head Tube | 175 |
| Frame Head Angle | 67 |
| Frame Seat Angle | 74.5 |
| Frame Chainstay | 480 |
| Frame BB Drop | 60 |
| Frame Wheel Base | 1215 |
| Fork Travel | 80 |
| Stem Length | 45 |
| Handle Bar Width | 680 |
