Genesis Fugio 20
Out of stock
£1,499.99

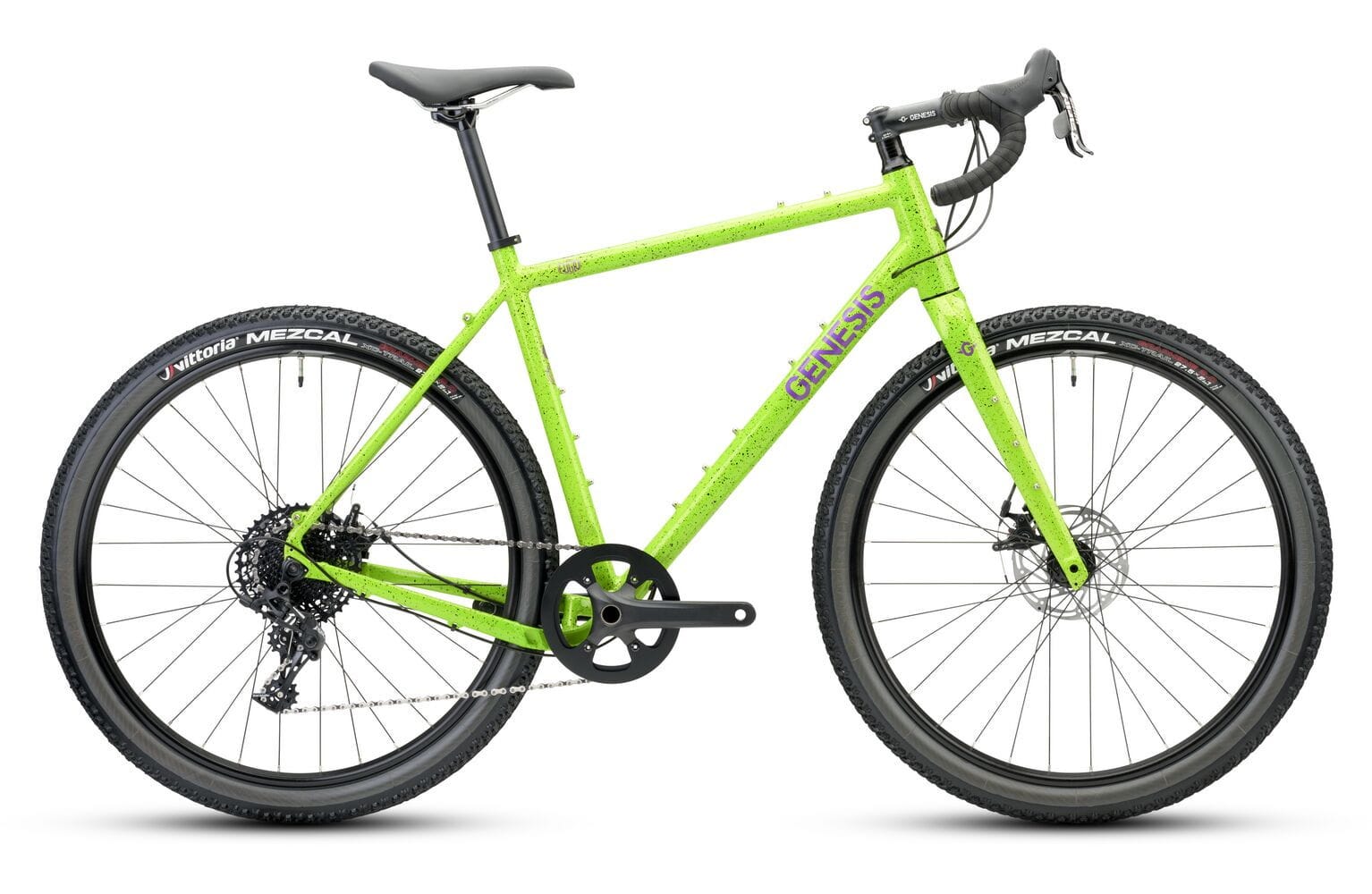

Genesis Fugio 20
- Wild looks wild ride

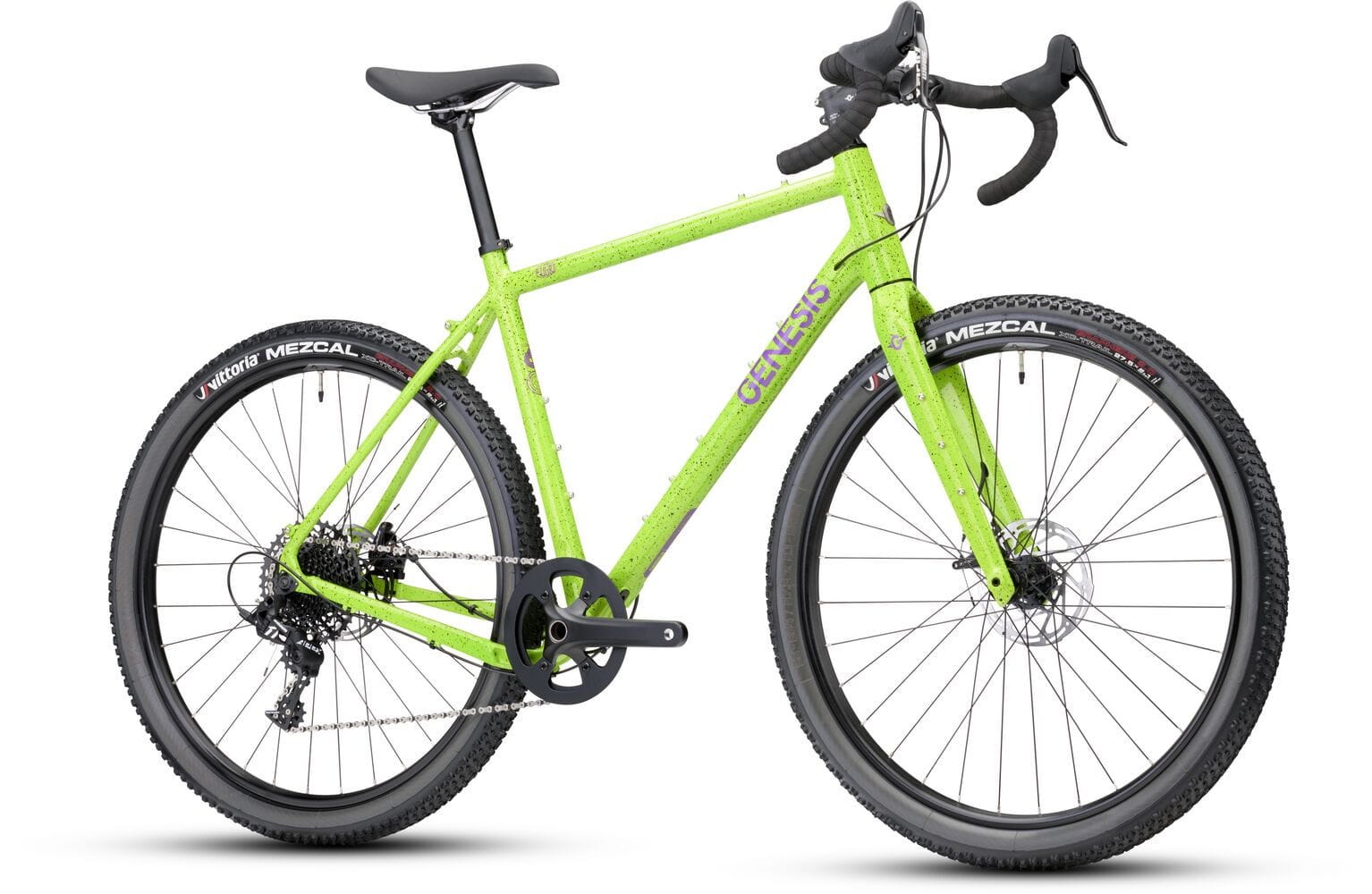

The Fugio 20 is here with a bold paint job and a specification to match. Built around our 6061 heat-treated aluminium Fugio frame and full carbon fork,

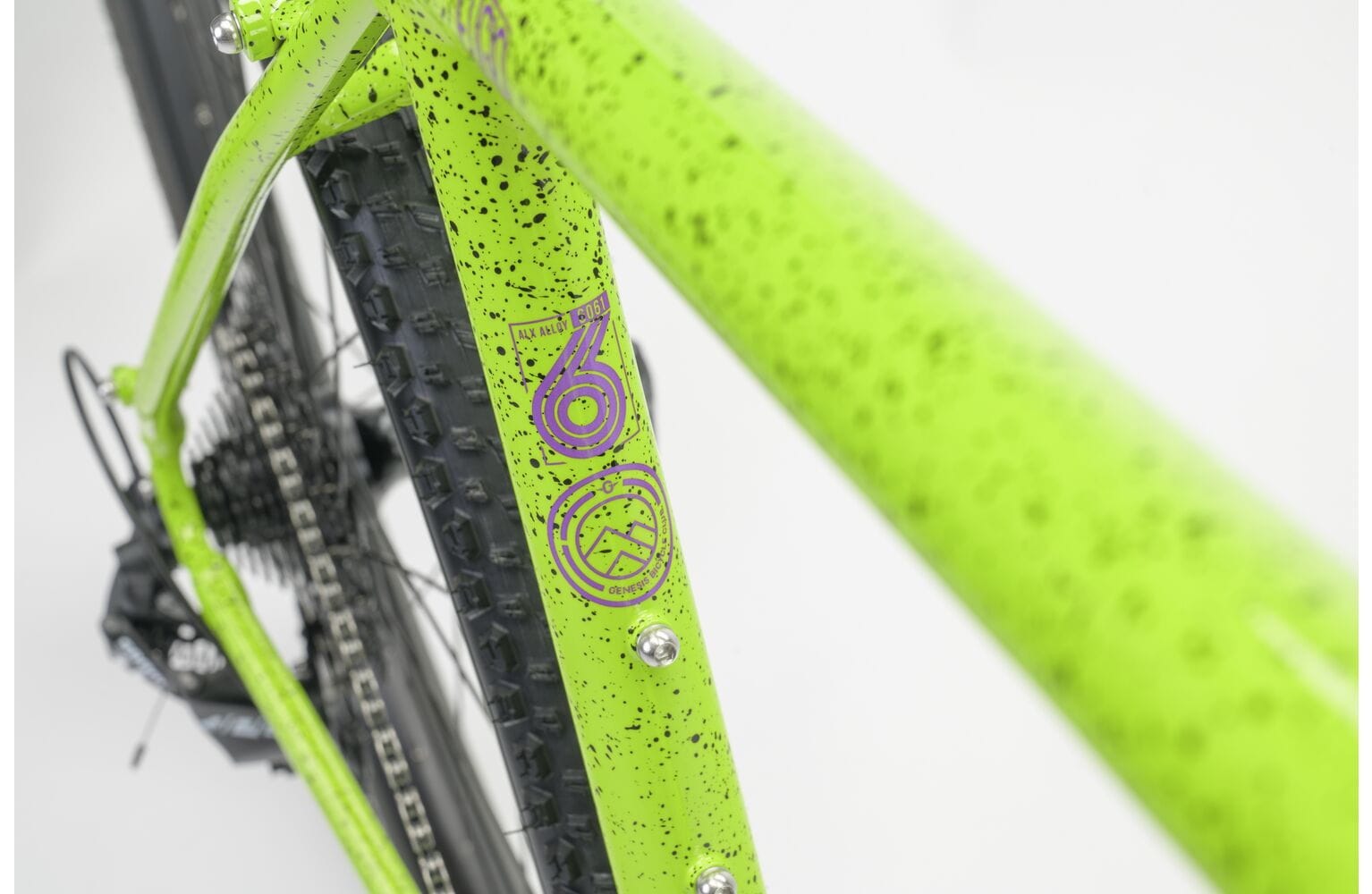

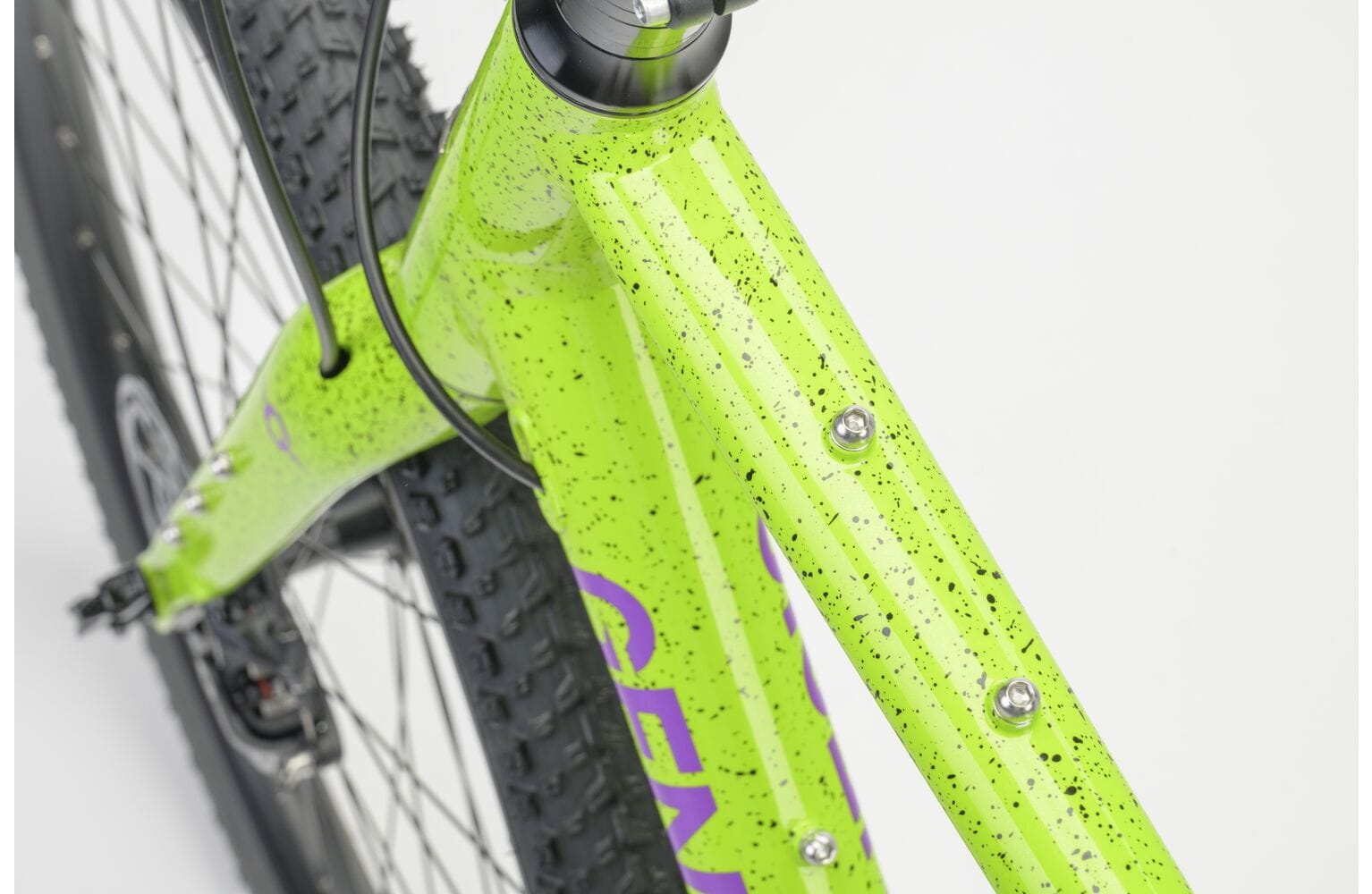

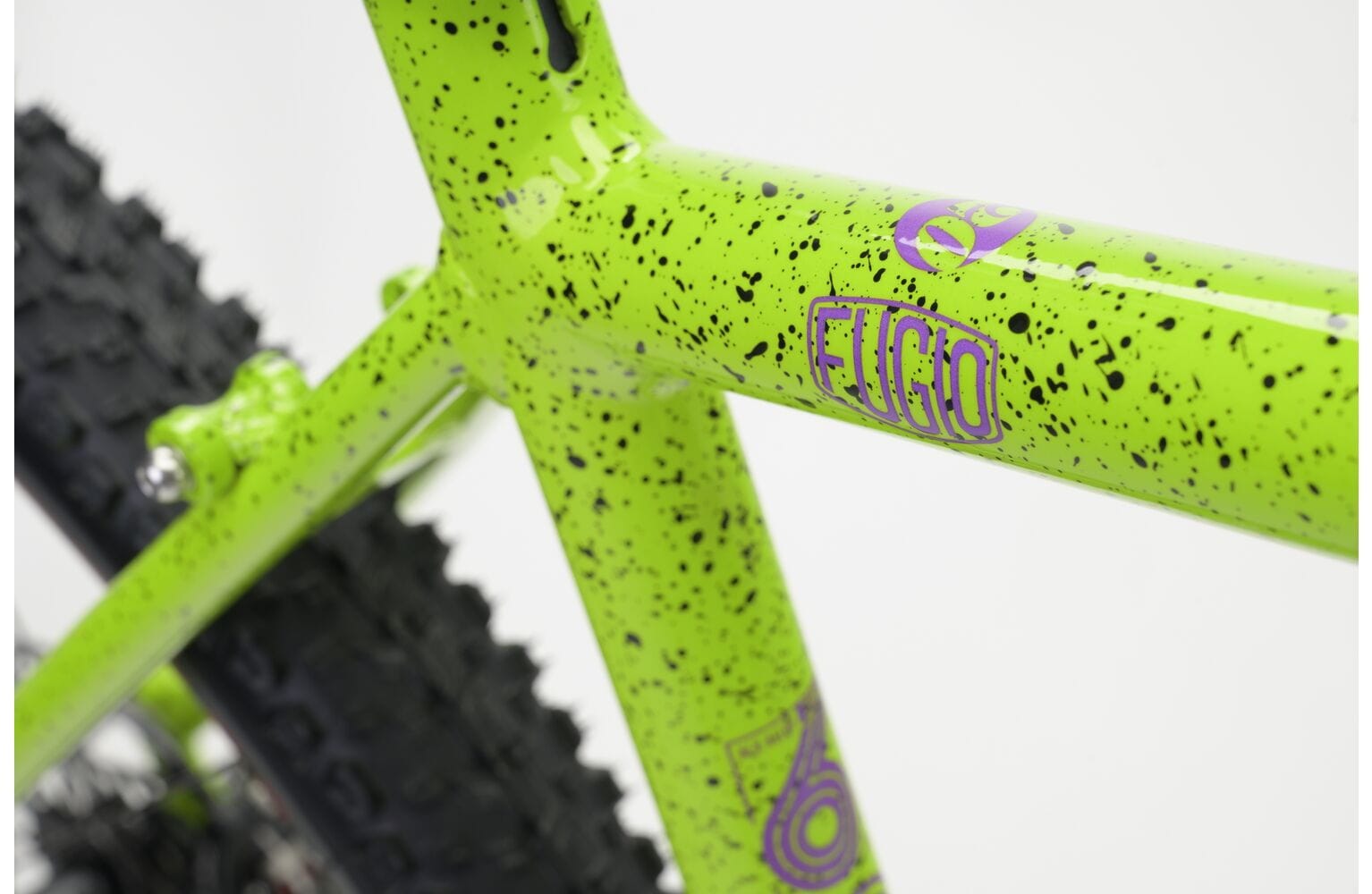

Talking of the paint job each bike is Paint speckled by hand and as such each one is individual in its pattern.
This model is running on the well-established Sram Apex 1x 11 drivetrain that is the perfect partner for reliable 1x gravel riding.
Don?t let the ?gravel? description deceive you though, this bike is capable of much more. For 2023 we?ve moved to a wider tyre from Vittoria that makes the bike even more capable.
Tubeless ready rims and tyres and ability to run up to 52c tyres on 650b or 40c on 700c.
Dirt, roots, rocks, you name it, the Fugio 20 is ready.
Max Tyre Size :
700 x 40mm / 650b x 52mm

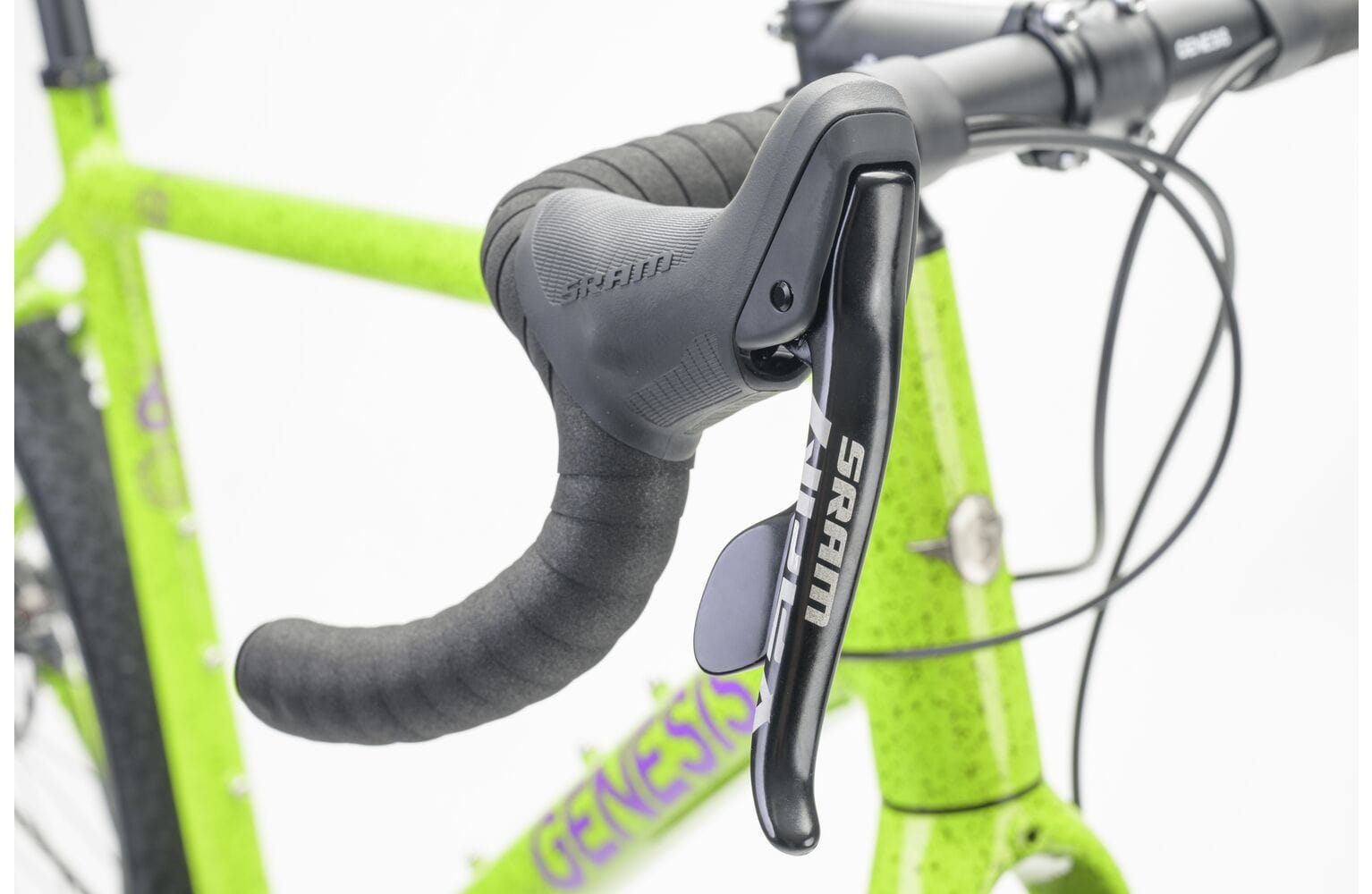

Brake Levers :
SRAM Apex 11-Speed

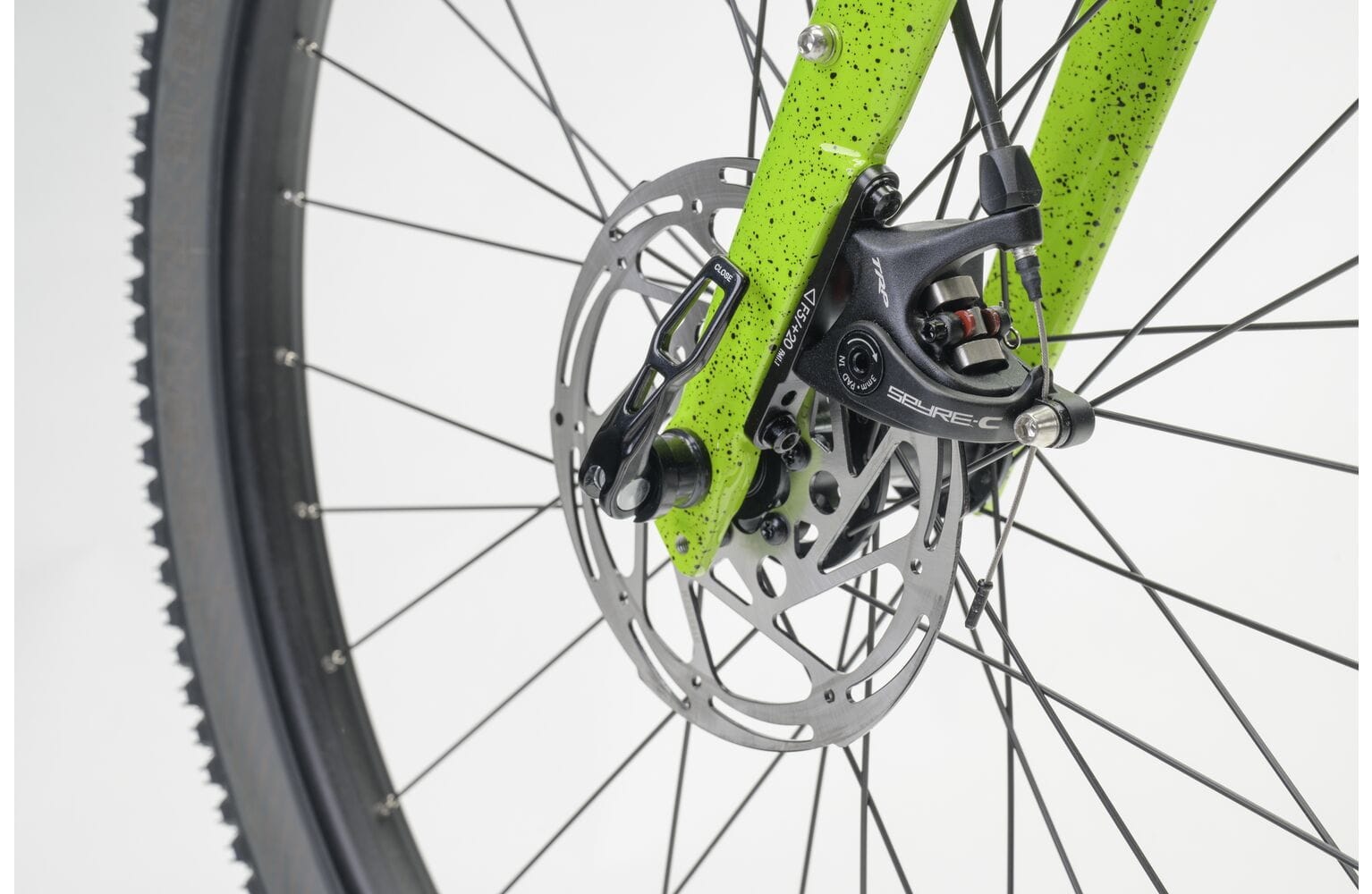

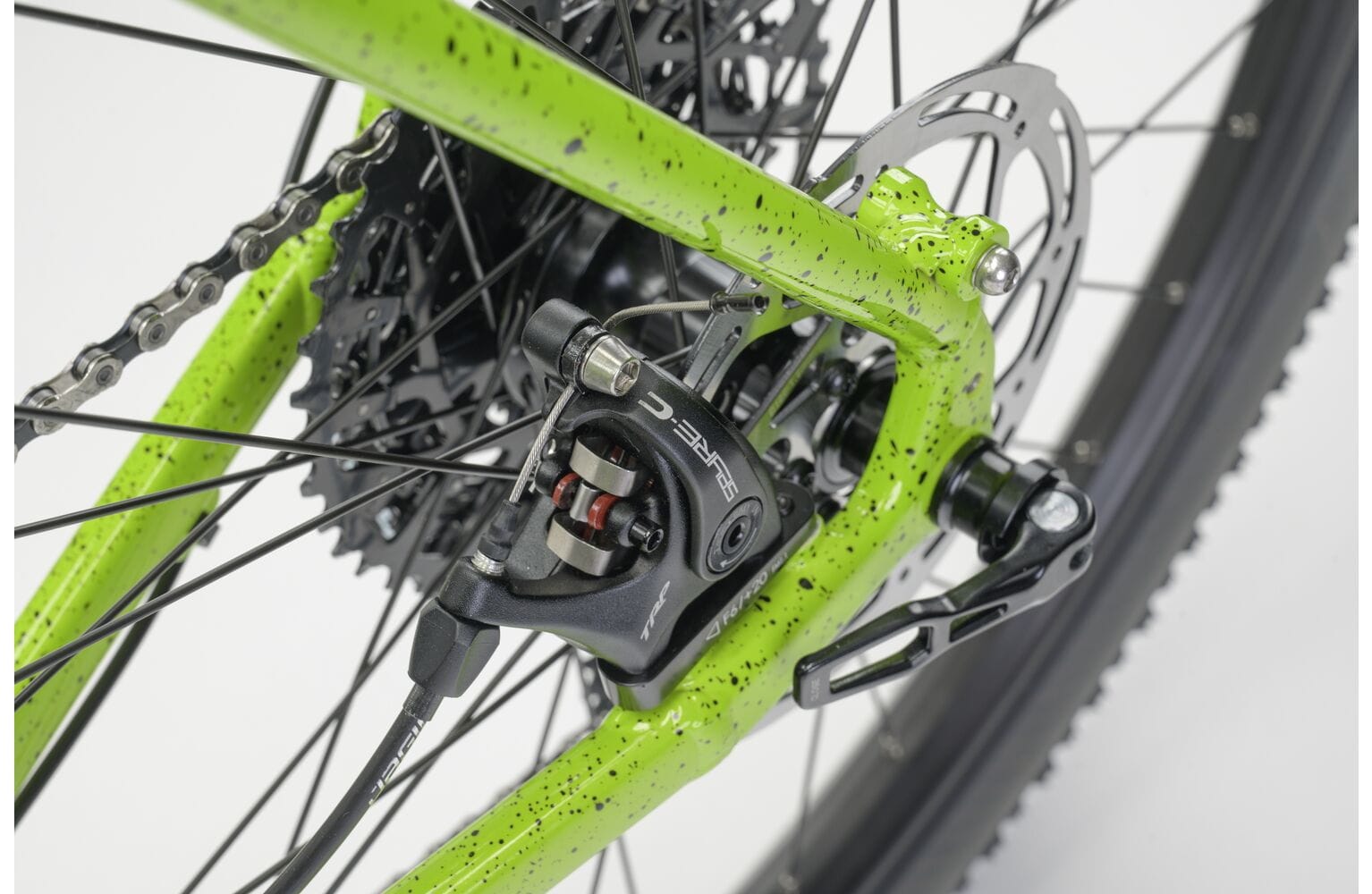

Brakes :
TRP Spyre-C
Cassette Freewheel :
SRAM PG-1130 11-42T 11-Speed
Chain :
KMC X11
Chain Set :
Prowheel RPL-FD16AG 42T XS/SM = 170mm MD/LG = 172.5mm XL = 175mm
Handlebars :
Genesis 31.8mm AL6061 T6 20 Deg Flare XS = 420mm SM/MD = 440mm LG = 460mm XL = 480mm
Headset :
Prestine F23A-2
Hubs :
KT QL-SL2F/KT QL-XD2R

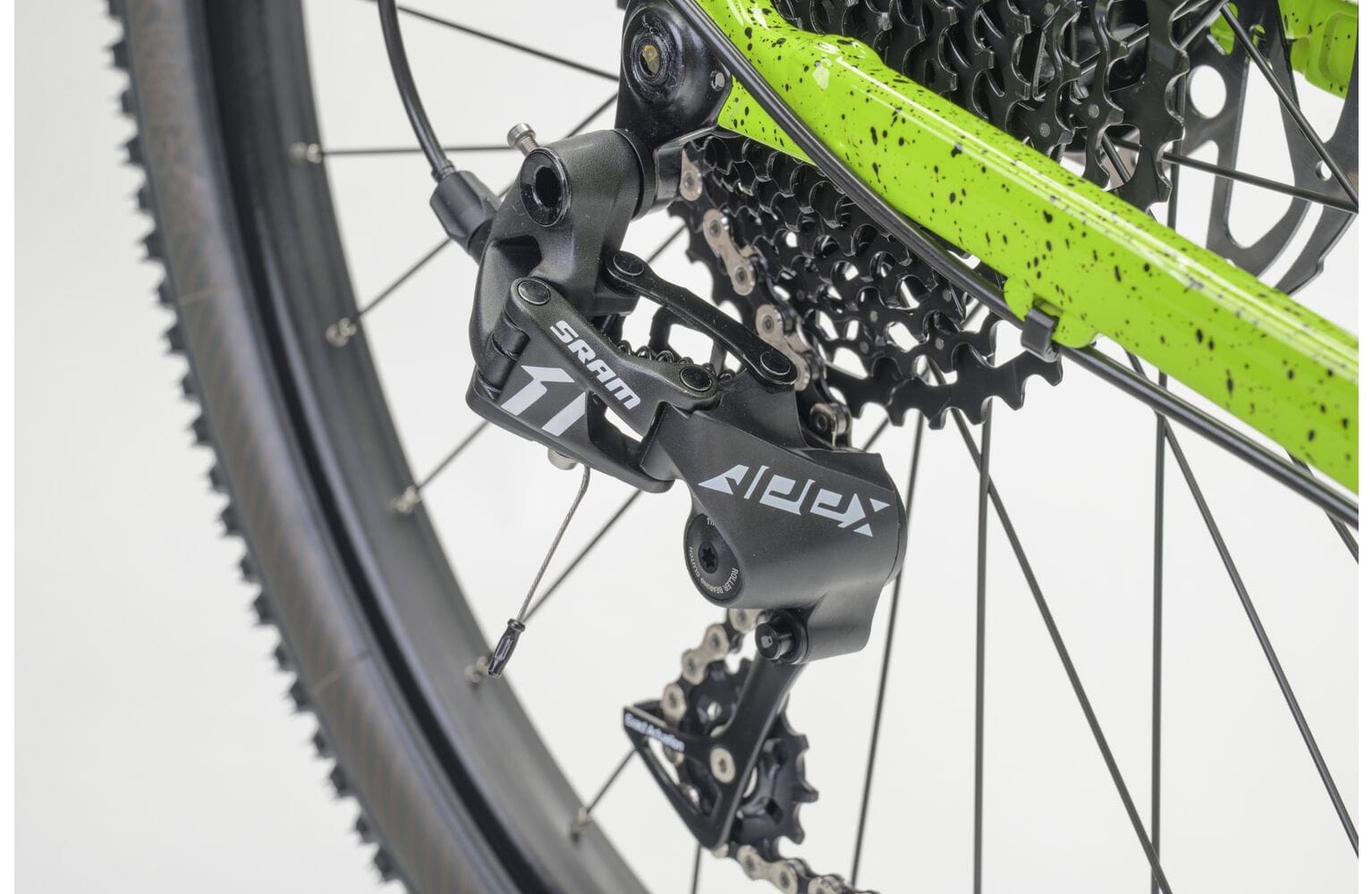

Rear Derailleur :
SRAM Apex 1 Long Cage 11-Speed
Rims :
Shining DB-X25
Saddle :
Genesis Adventure
Seat Post :
Genesis Alloy 27.2 X 350mm
Shifters :
SRAM Apex 11-Speed
Stem :
Genesis Alloy 100 x 31.8mm -7 Deg

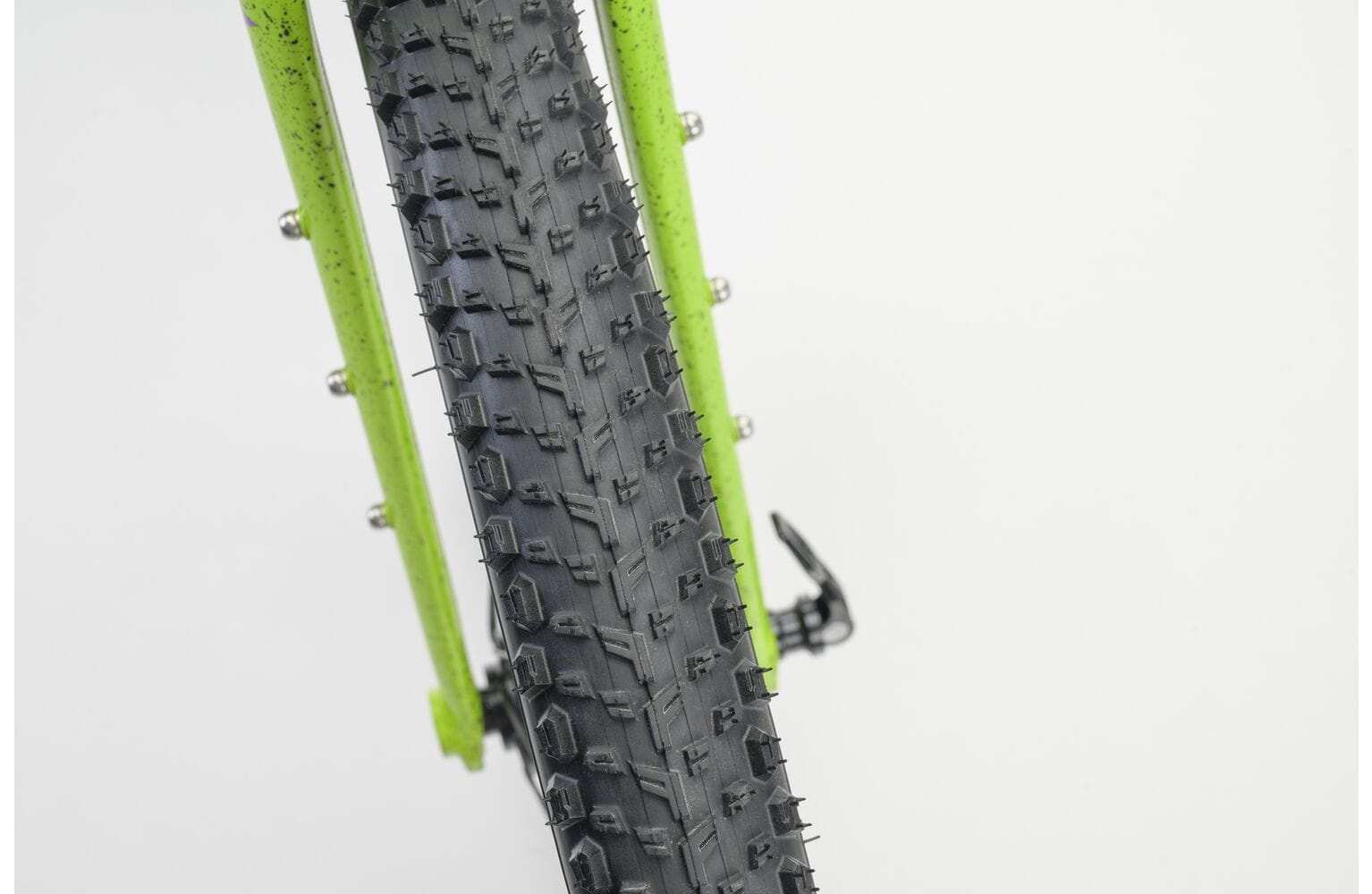

Tyres :
Vittoria Mezcal 27.5 x 2.1
Wheel Size :
650b

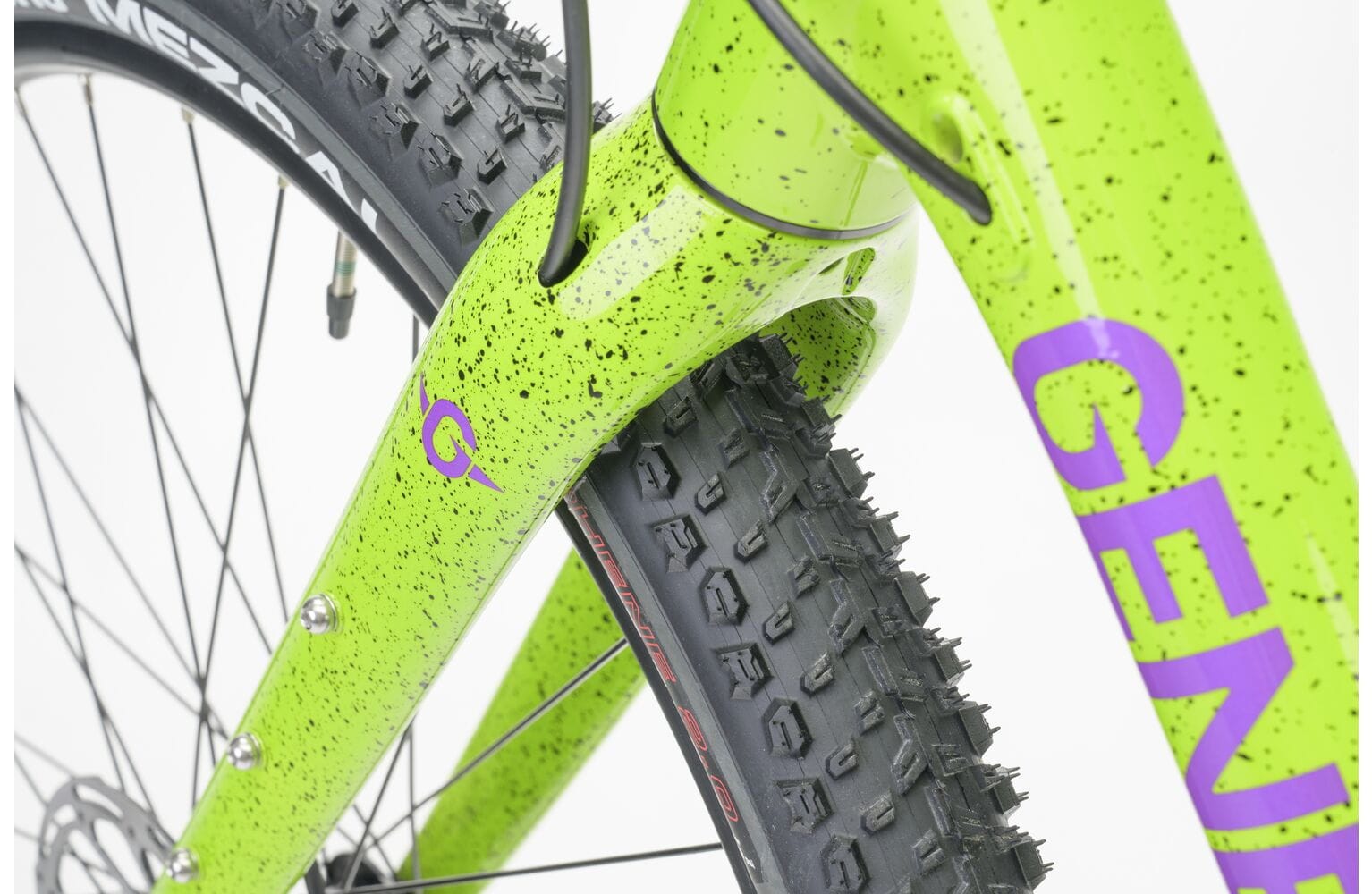

Fork :
1-1/8 - 1-1/2" Tapered", Genesis Carbon Gravel Disc
Fork Material :
Carbon
Frame Material :
Alloy
Brake Type :
Mechanical Disc
164
166
168
170
172
174
176
178
180
182
184
186
SMALL - 164 to 172
MEDIUM - 171 to 179
LARGE - 178 to 186
| Frame Size | SMALL | MEDIUM | LARGE |
|---|---|---|---|
| Stem Length plus Reach | 475 | 485 | 495 |
| Frame Seat Tube | 500 | 530 | 550 |
| Frame Top Tube | 551 | 567 | 583 |
| Frame Reach | 375 | 385 | 395 |
| Frame Stack | 575 | 594 | 613 |
| Frame Head Tube | 145 | 165 | 185 |
| Frame Head Angle | 70.5° | 70.5° | 70.5° |
| Frame Seat Angle | 73° | 73° | 73° |
| Frame Chainstay | 425 | 425 | 425 |
| Frame BB Drop | 65 | 65 | 65 |
| Frame Wheel Base | 1029 | 1045 | 1062 |
| Fork Offset | 50 | 50 | 50 |
| Fork Travel | |||
| Standover | 779 | 801 | 820 |
| Stem Length | 100 | 100 | 100 |
| Handle Bar Width | 440 | 440 | 460 |
| Frame Size | SMALL | MEDIUM | LARGE |
|---|---|---|---|
| Stem Length plus Reach | 475 | 485 | 495 |
| Frame Seat Tube | 500 | 530 | 550 |
| Frame Top Tube | 551 | 567 | 583 |
| Frame Reach | 375 | 385 | 395 |
| Frame Stack | 575 | 594 | 613 |
| Frame Head Tube | 145 | 165 | 185 |
| Frame Head Angle | 70.5° | 70.5° | 70.5° |
| Frame Seat Angle | 73° | 73° | 73° |
| Frame Chainstay | 425 | 425 | 425 |
| Frame BB Drop | 65 | 65 | 65 |
| Frame Wheel Base | 1029 | 1045 | 1062 |
| Fork Offset | 50 | 50 | 50 |
| Fork Travel | |||
| Standover | 779 | 801 | 820 |
| Stem Length | 100 | 100 | 100 |
| Handle Bar Width | 440 | 440 | 460 |
