Genesis Fugio 20

In stock
£2,599.99
  • Home Delivery despatched in 7 working days

  • Click and Collect

Genesis Fugio 20
    Limitless fun - where you point, the Fugio follows.

    Our ultimate go-anywhere drop-bar bike puts the zing back into your local trails - and won't back down when you've bitten off more than you can chew!

    Featuring our Mjolnir frame and carbon fork, high volume 47c tyres on 650B rims keeps the Fugio playful and plowable which we think is the perfect combination for UK riding. The Fugio can now also take 700c wheels with tyres up to 40mm wide.

    Some call it gravel but this bike can go much further. Trail centres, rocky bridleways and rooty forest singletrack are all challenges waiting to be tamed, just as long as you can hold on.

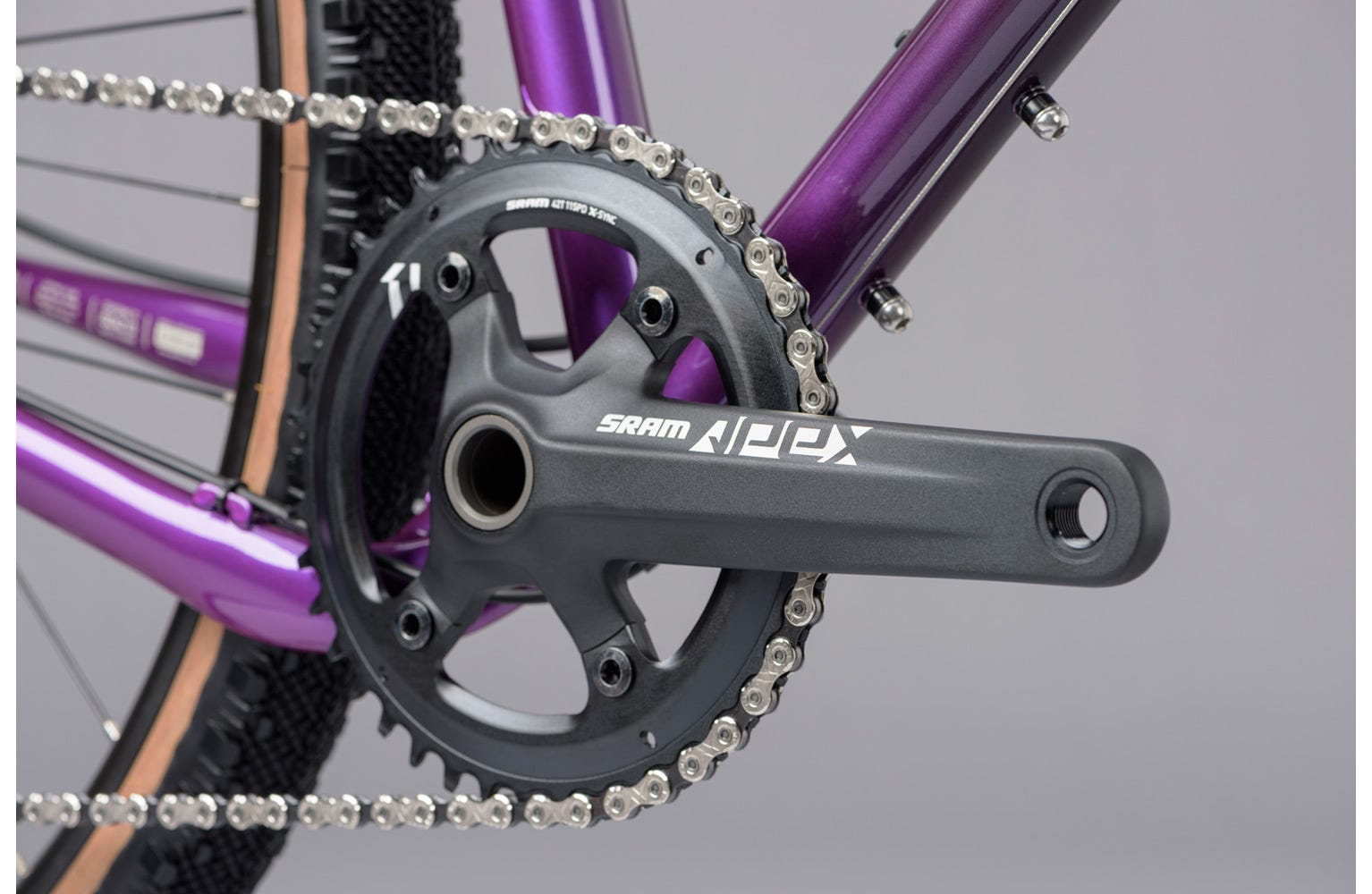

    Taking its cues from modern mountain bikes, our build uses a wide-range 1X SRAM Apex groupset which can be winched up steep climbs or wound up to speed on the tarmac between the trails.

    Load it up with frame bags for an all-day adventure, or keep it minimalist for some after work playtime - just make sure you take the long way round, it's probably more fun.
Genesis Fugio 20
SKU
VARGN22310
You’re suporting a local bike shop with every purchase

Find out more

Hydraulic Disc
Carbon
Steel
SRAM BB GXP
650b

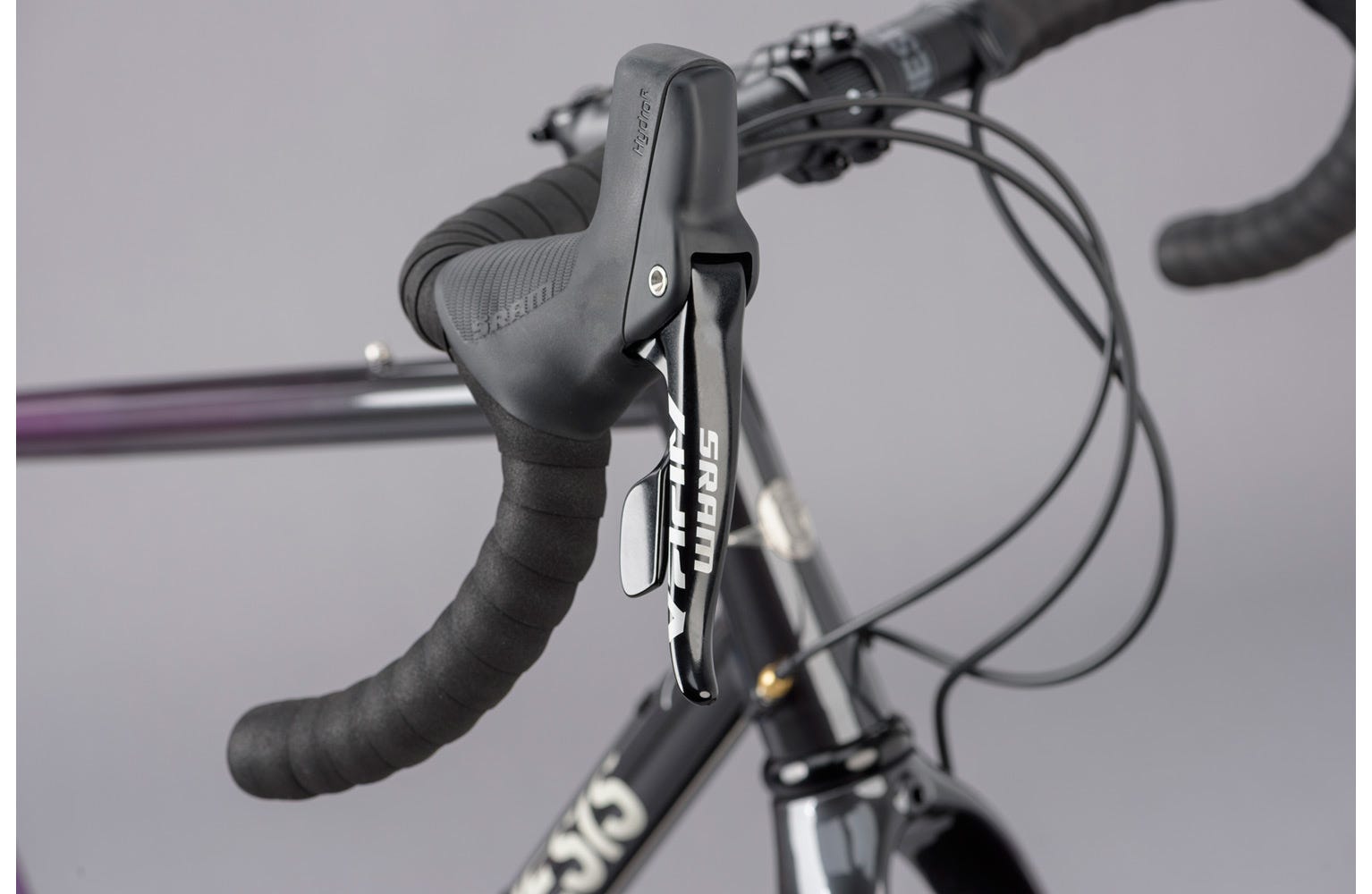

SRAM Apex Hydraulic 11 Speed
Adventure, Gravel
SRAM Apex Hydraulic Disc
SRAM CS PG-1130 11-42T
KMC X11
Genesis
F17A Taper 1 1/8 inch - 1 1/5 inch
Formula Front - RX812 / Rear - RX300
SRAM Apex 1 Long Cage 11 Speed
WTB ST I25 TCS 2.0
Genesis
Genesis Alloy 27.2 x 350 mm
SRAM Apex Hydraulic 11 Speed
Steel 14 g
Genesis Alloy 31.8mm -6 deg 100 mm
WTB Venture 650 x 47c
Crossbar
Mens, Womens

150

152

154

156

158

160

162

164

166

168

170

172

174

176

178

180

182

184

186

188

190

192

194

196

198

200

Please be advised that this bicycle size chart is only a rough guide to help you select the correct frame size. We would always recommend visiting your local dealer to get measured and sized correctly, as although height is used, there are other factors which help determine the best frame size for you.

Geometry

Frame Seat Tube 550
Frame Top Tube 583
Frame Reach 395
Frame Stack 613
Frame Head Tube 185
Frame Head Angle 70.5
Frame Seat Angle 73
Frame BB Drop 65
Frame Wheel Base 1062
Fork Offset 50
Standover 820
Stem Length 100
Handle Bar Width 460
Frame Seat Tube 530
Frame Top Tube 567
Frame Reach 385
Frame Stack 594
Frame Head Tube 165
Frame Head Angle 70.5
Frame Seat Angle 73
Frame BB Drop 65
Frame Wheel Base 1045
Fork Offset 50
Standover 801
Stem Length 100
Handle Bar Width 440
Frame Seat Tube 500
Frame Top Tube 551
Frame Reach 375
Frame Stack 575
Frame Head Tube 145
Frame Head Angle 70.5
Frame Seat Angle 73
Frame BB Drop 65
Frame Wheel Base 1029
Fork Offset 50
Standover 779
Stem Length 100
Handle Bar Width 440
Frame Seat Tube 580
Frame Top Tube 598
Frame Reach 405
Frame Stack 631
Frame Head Tube 205
Frame Head Angle 70.5
Frame Seat Angle 73
Frame BB Drop 65
Frame Wheel Base 1077
Fork Offset 50
Standover 843
Stem Length 100
Handle Bar Width 480
Frame Seat Tube 470
Frame Top Tube 535
Frame Reach 365
Frame Stack 556
Frame Head Tube 125
Frame Head Angle 70.5
Frame Seat Angle 73
Frame BB Drop 65
Frame Wheel Base 1012
Fork Offset 50
Standover 756
Stem Length 100
Handle Bar Width 420
