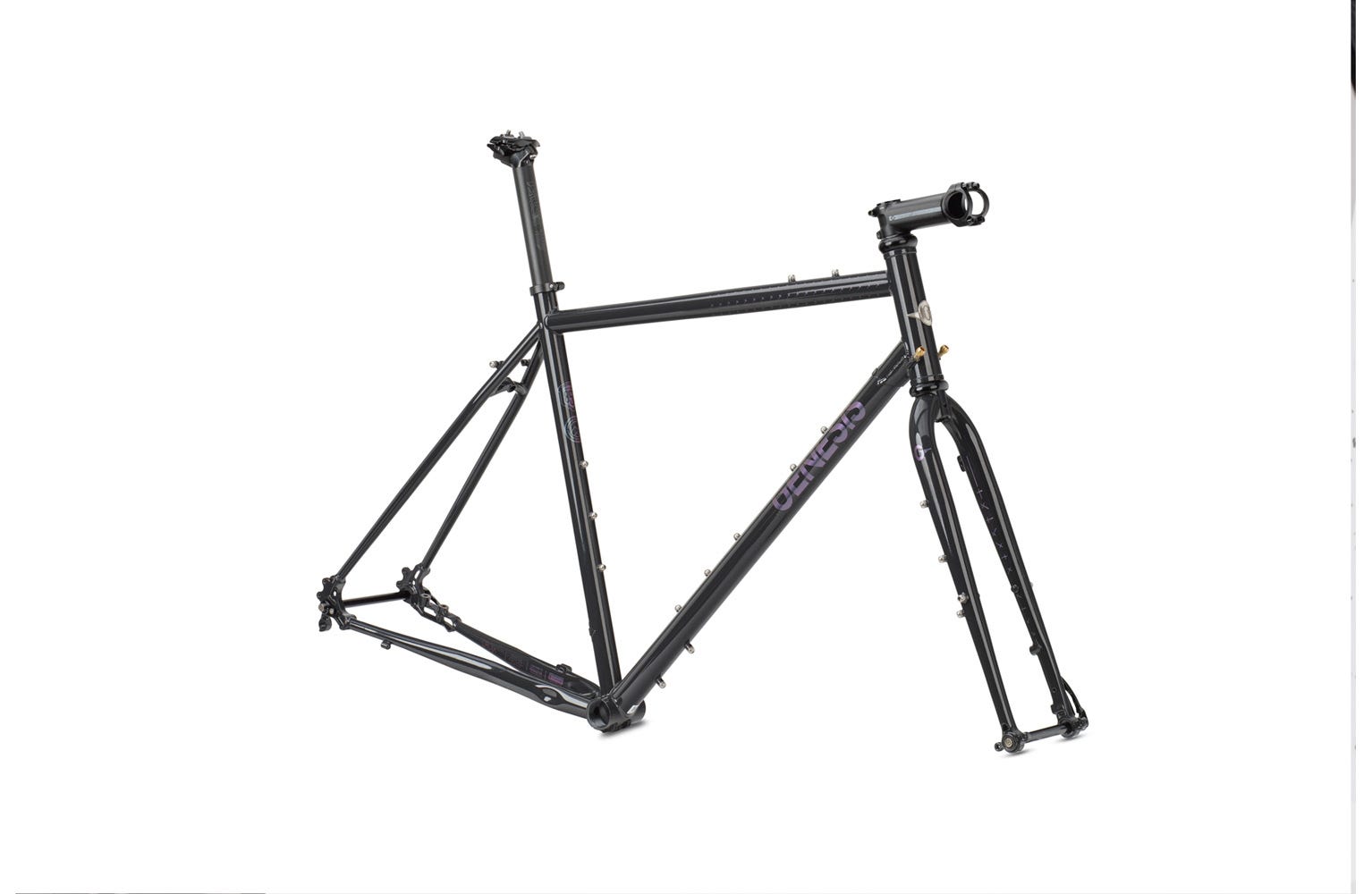

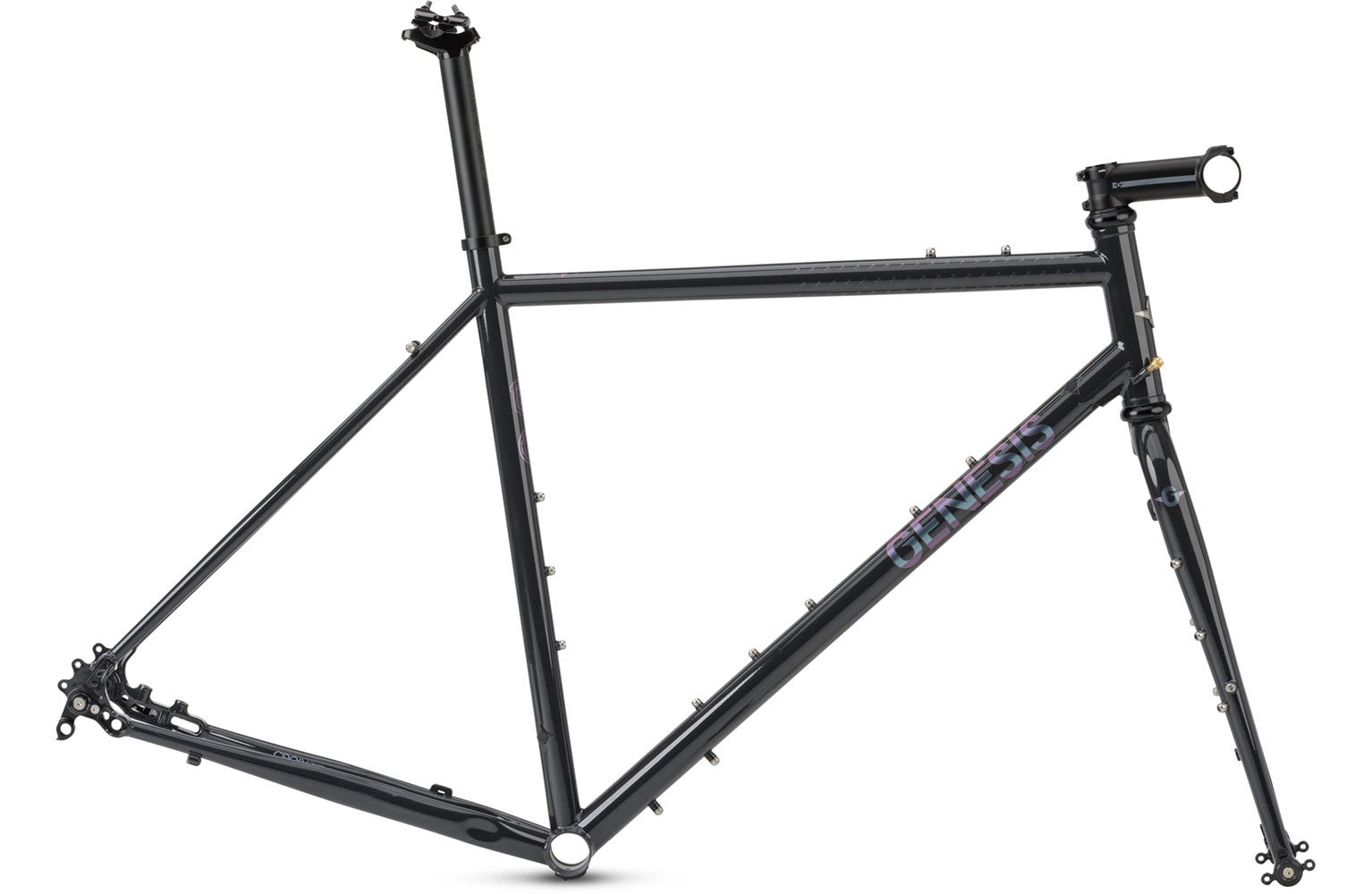

Genesis Croix De Fer 853 Frameset

Genesis Croix De Fer 853 Frameset

In stock
£1,099.99
SKU
VARGN21110
Size Guide
  • Available for Home Delivery

  • Available for FREE Click and Collect

    The latest Croix de Fer 853 is a reimagined masterpiece - how will you interpret it?

    Our new, updated Croix de Fer 853 frameset gives you a little more to think about, and we believe that's a good thing.

    You can now officially run our original adventure bike with up to a 45mm rear tyre and a 50mm front tyre on 700c rims - and it doesn't end there. If you want to experiment with 650B wheels, you could run up to a 44mm rear tyre and a 50mm front tyre.

    To some it might be the perfect canvas for a traditional tourer - while others will go off the beaten track and dabble with messier brush strokes.

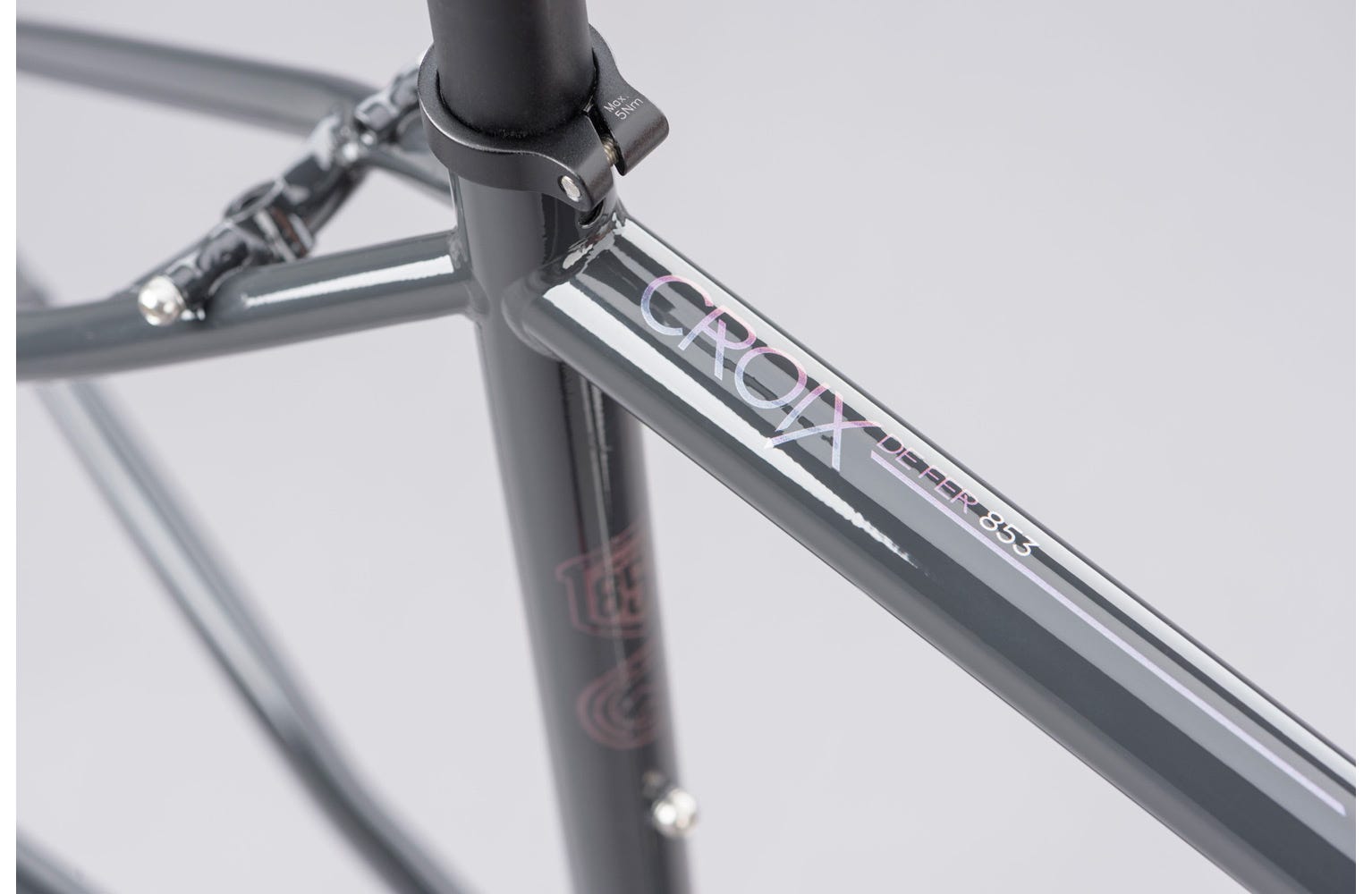

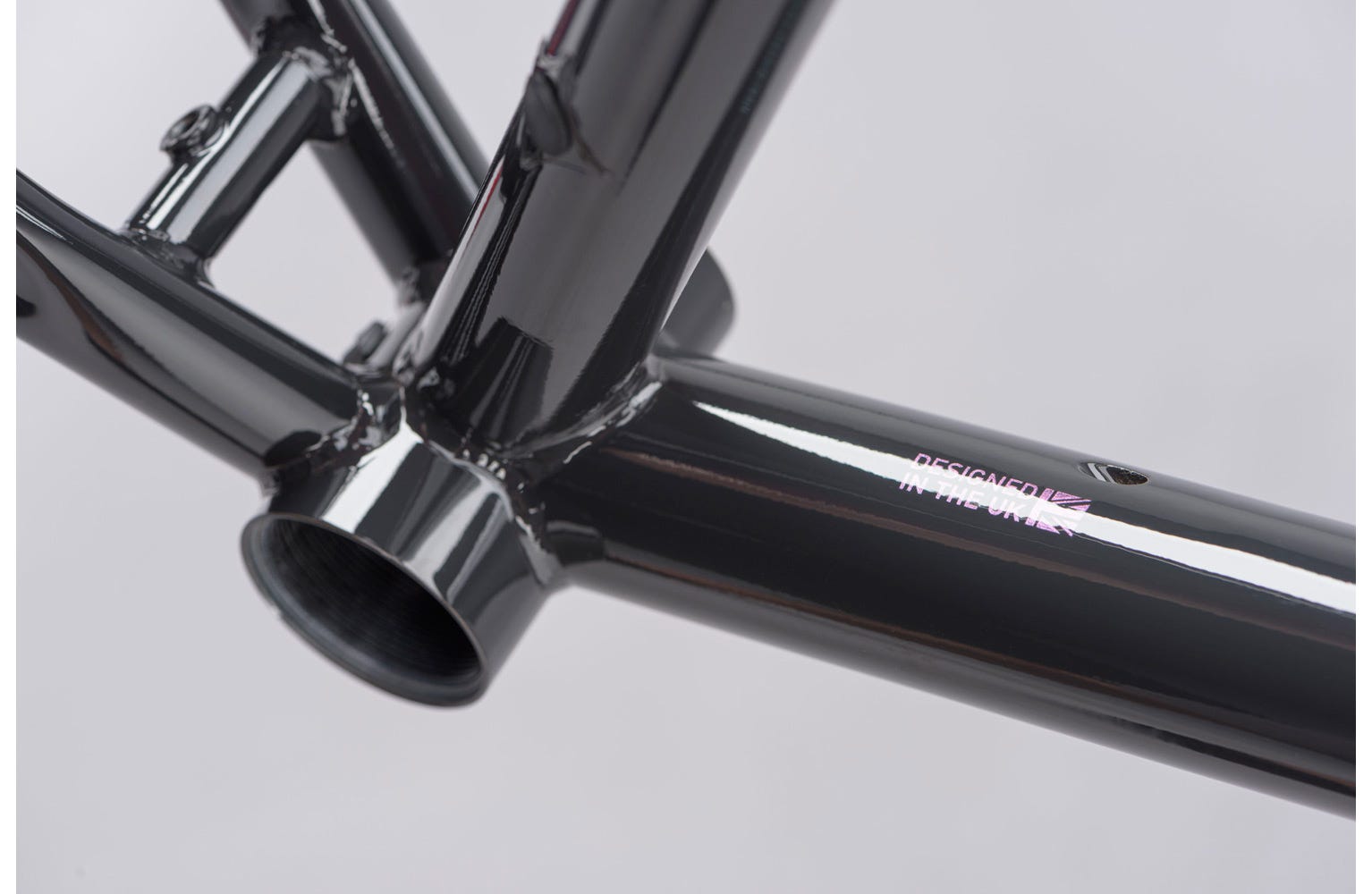

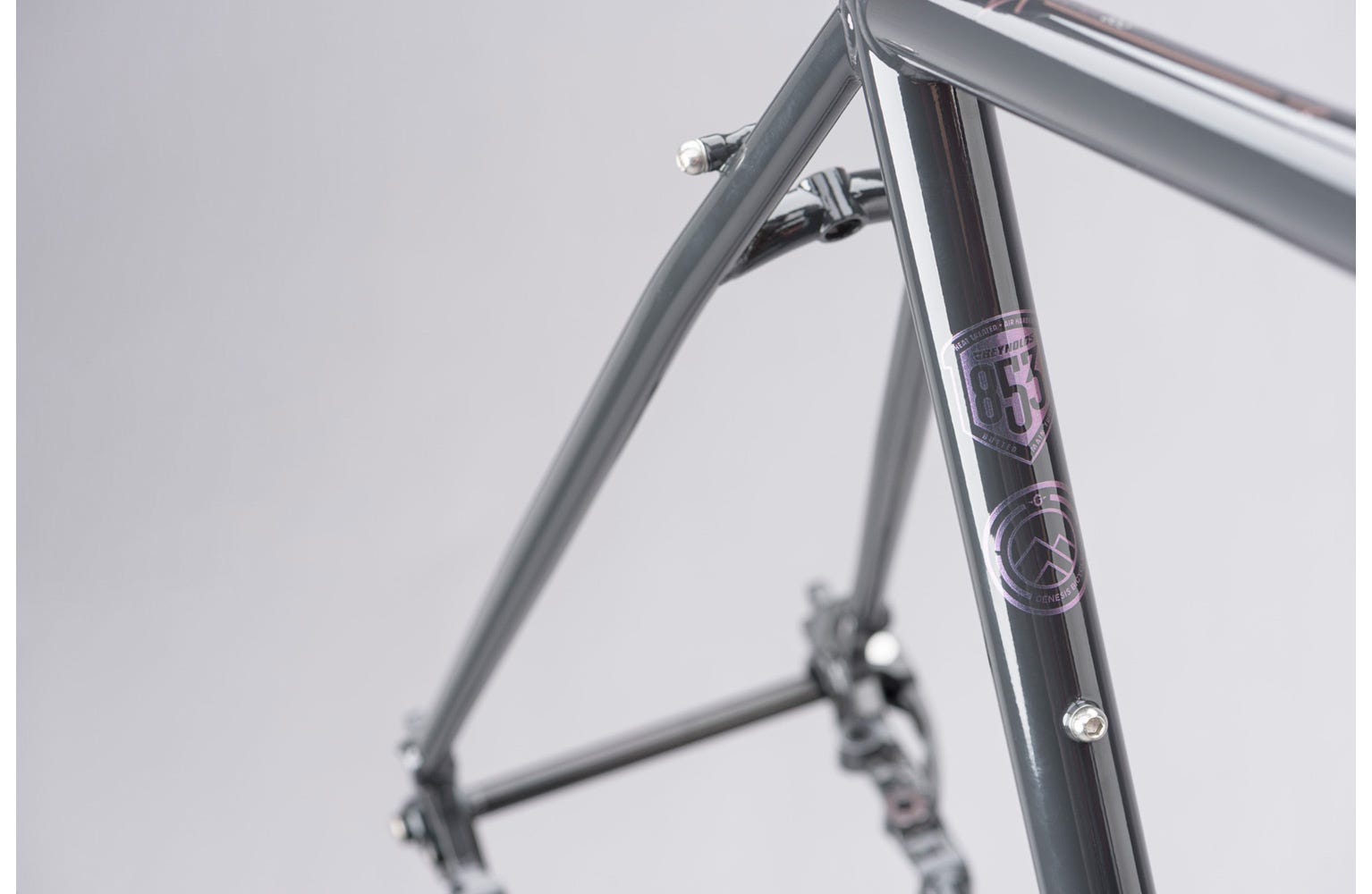

    What remains the same is the heart of the bike. Constructed from Reynolds 853 tubing throughout, this is air hardened. The benefits of the process are particularly noticeable in the weld area where, unlike conventional steel alloys, strength can actually increase after cooling in air immediately after welding.

    The material is also heat-treated to give high strength and damage resistance, and the steel properties allow thin walls to be used, so that lower weight but fatigue-resistant structures can be made.

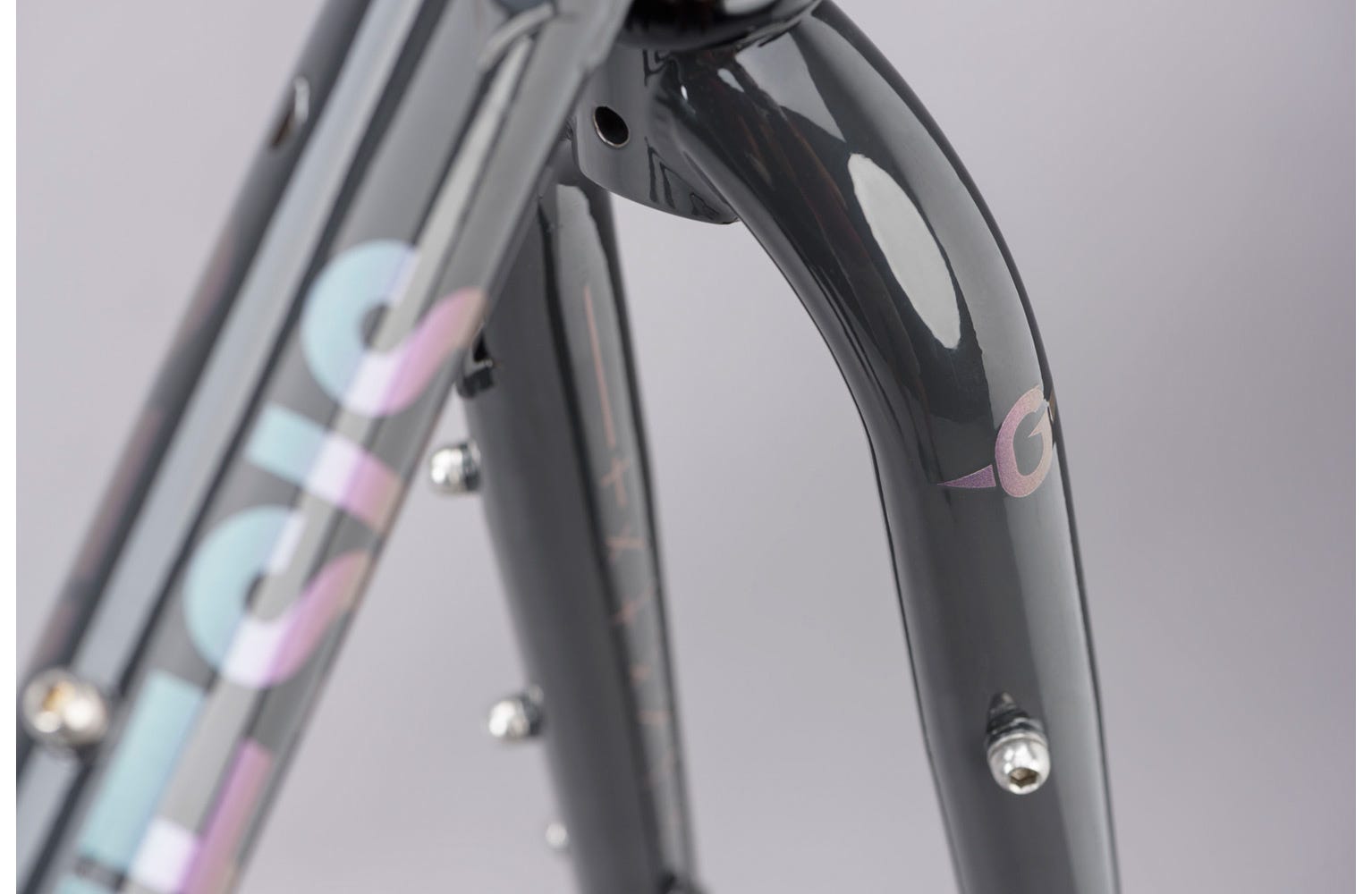

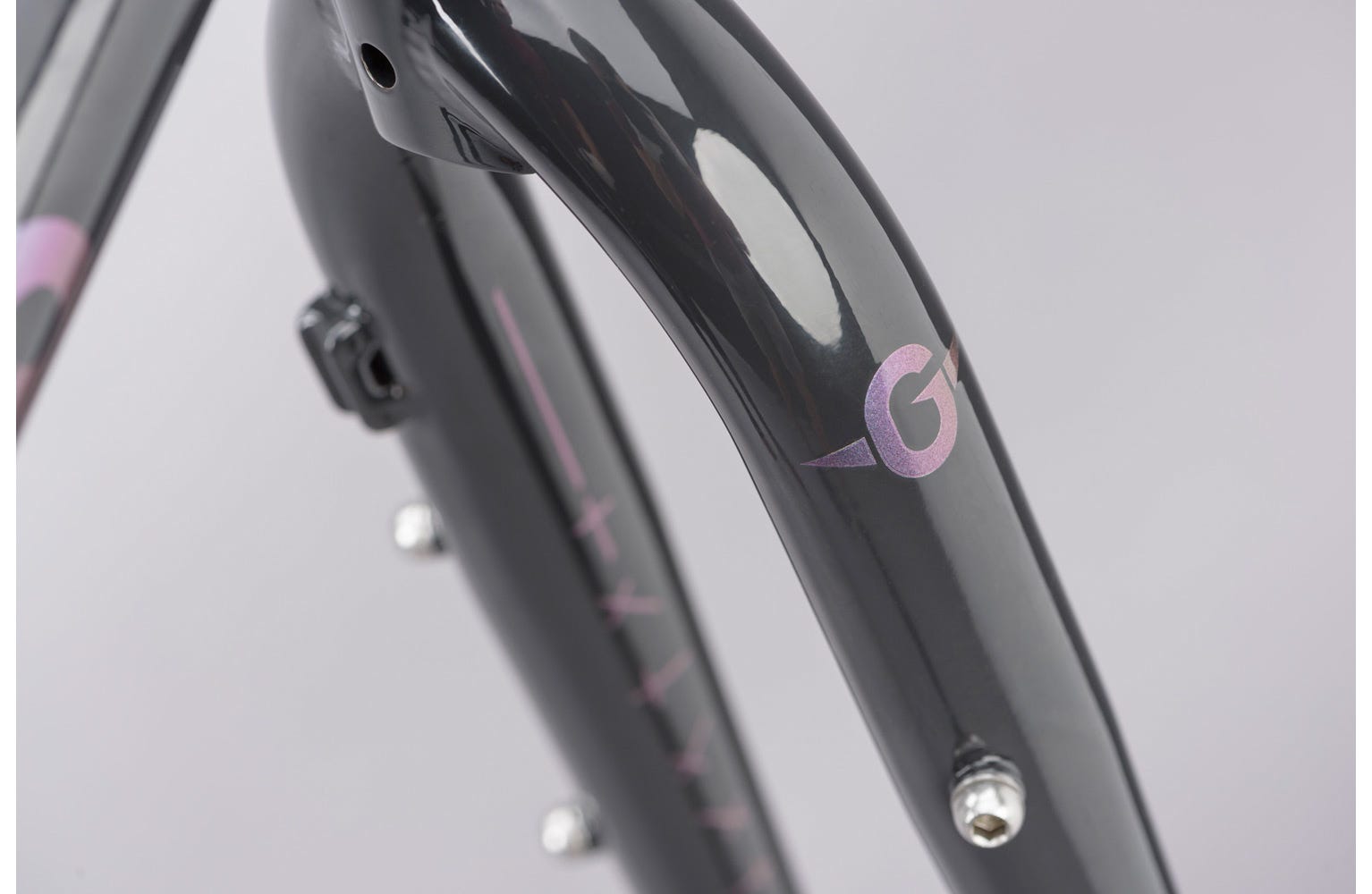

    Stick with the stock steel fork for a utilitarian build, or upgrade to the carbon CGR1 fork and add finish it with a 1X drivetrain for something a bit more daring.

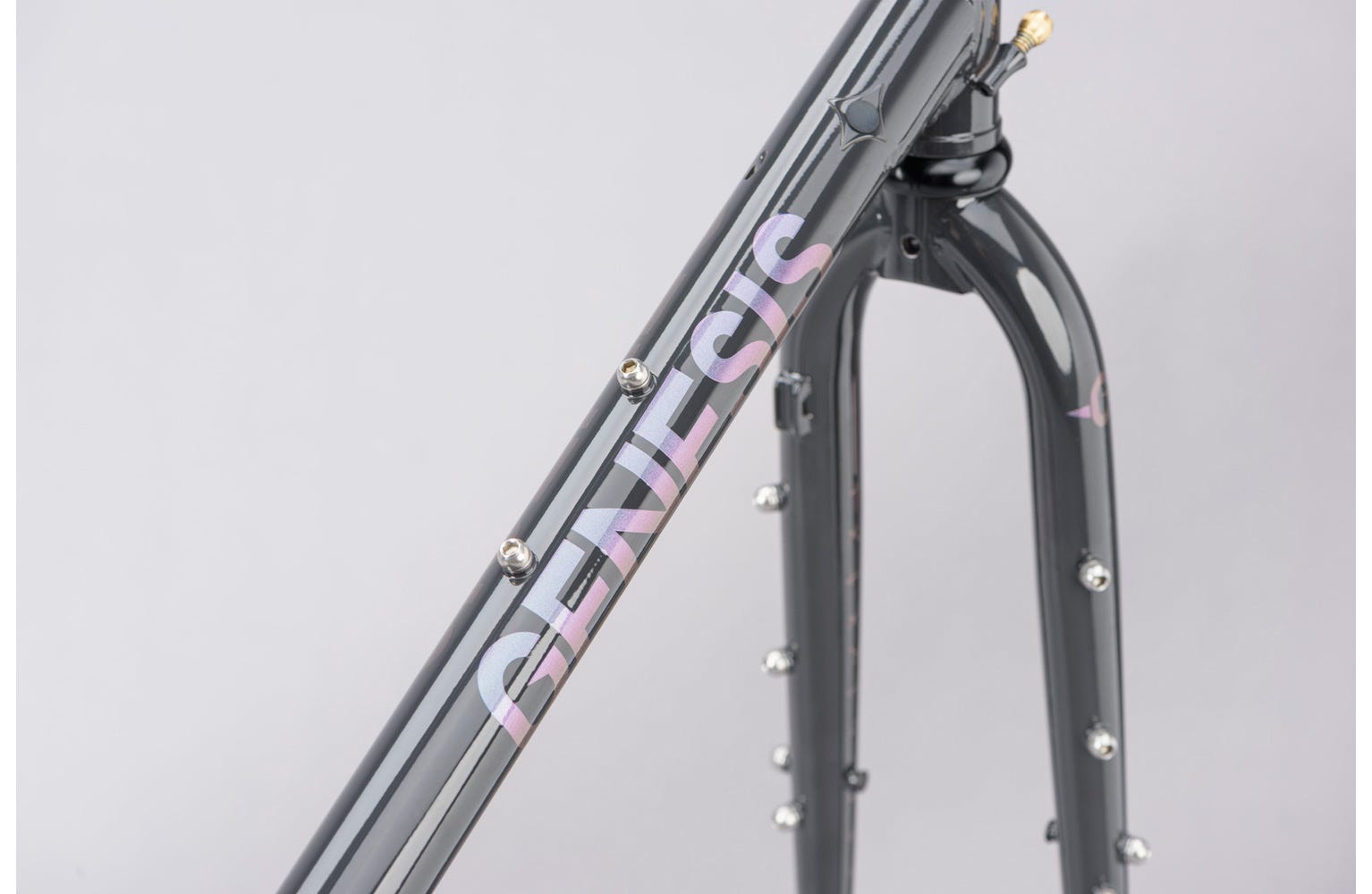

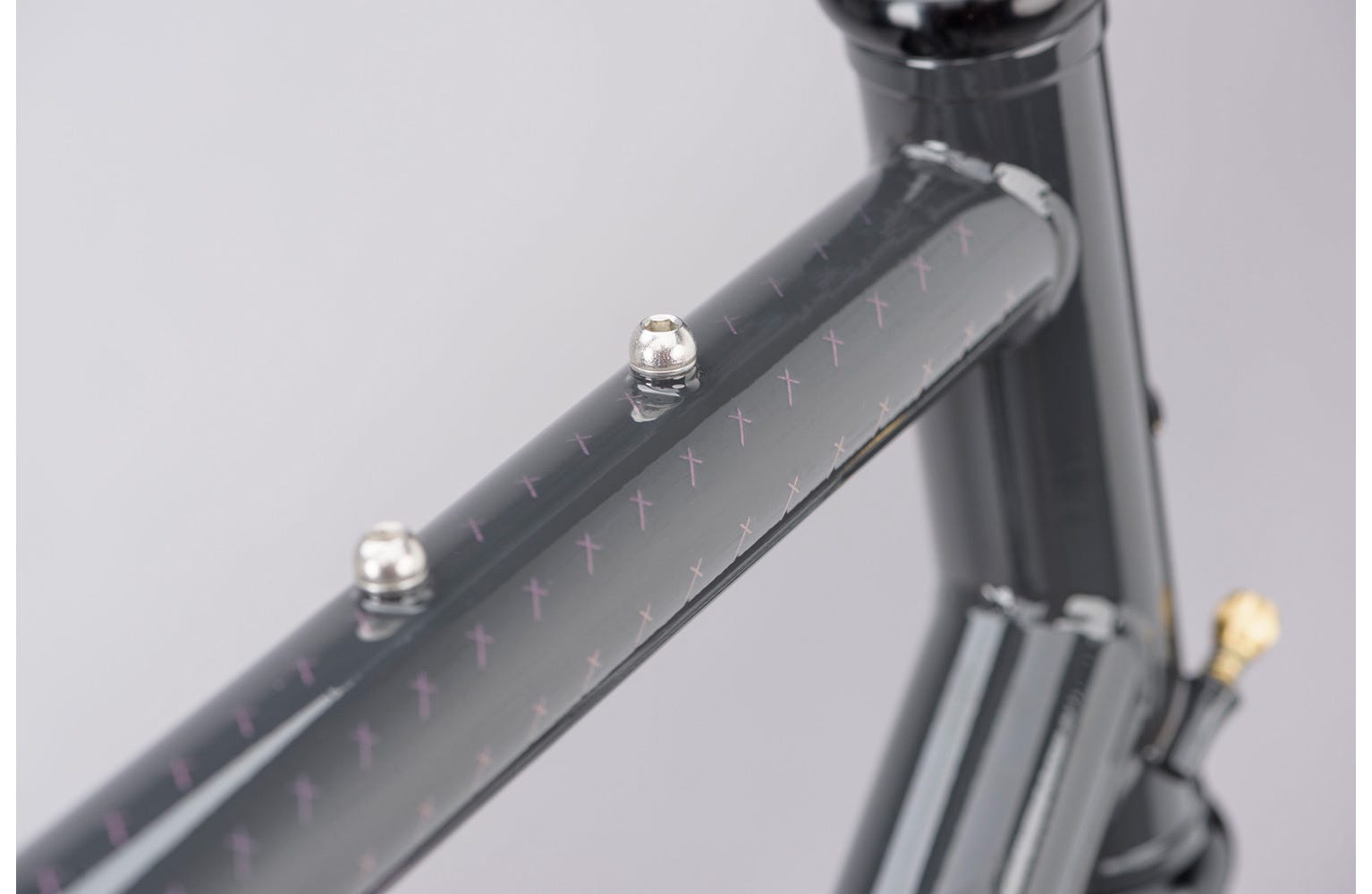

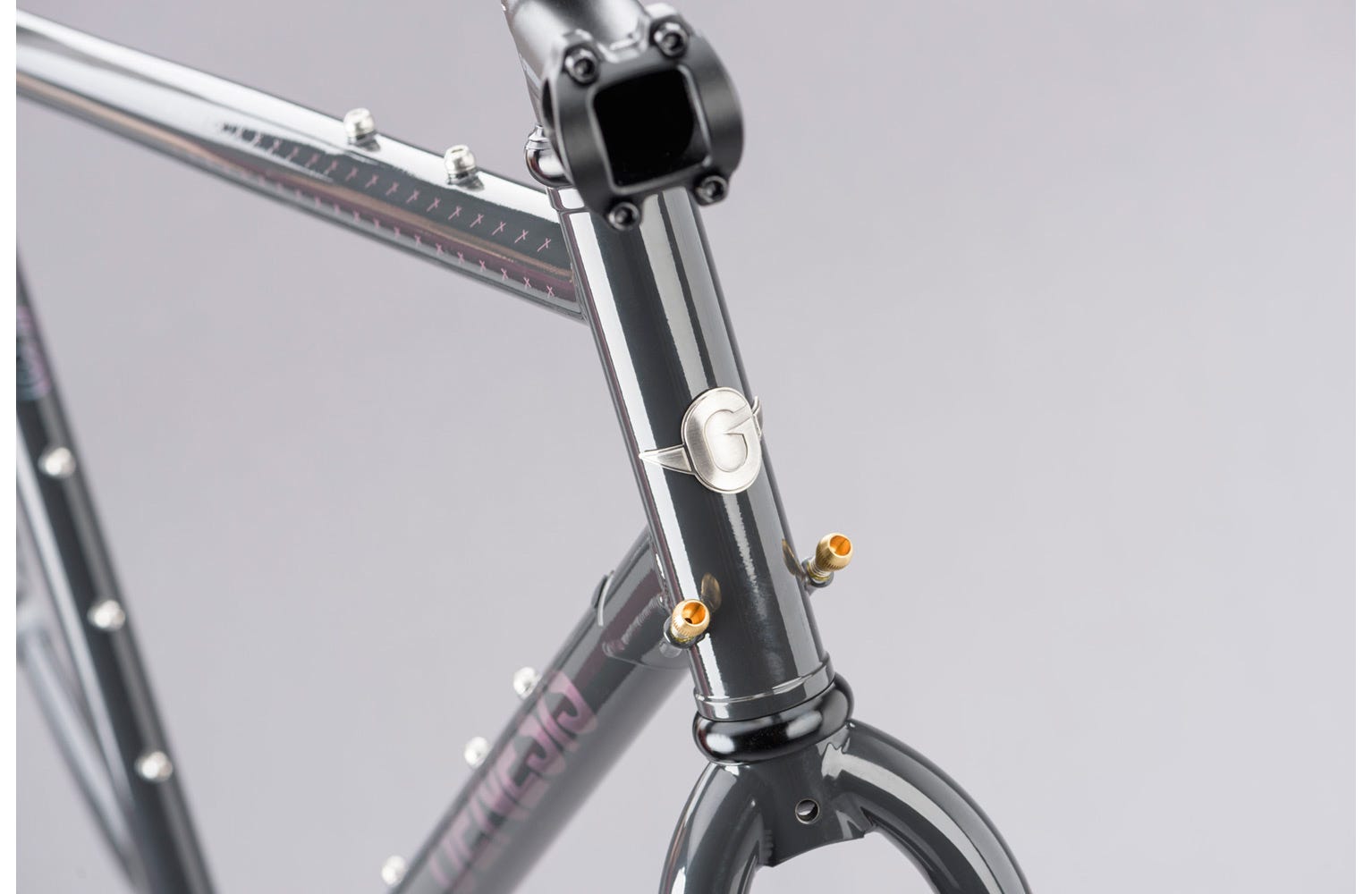

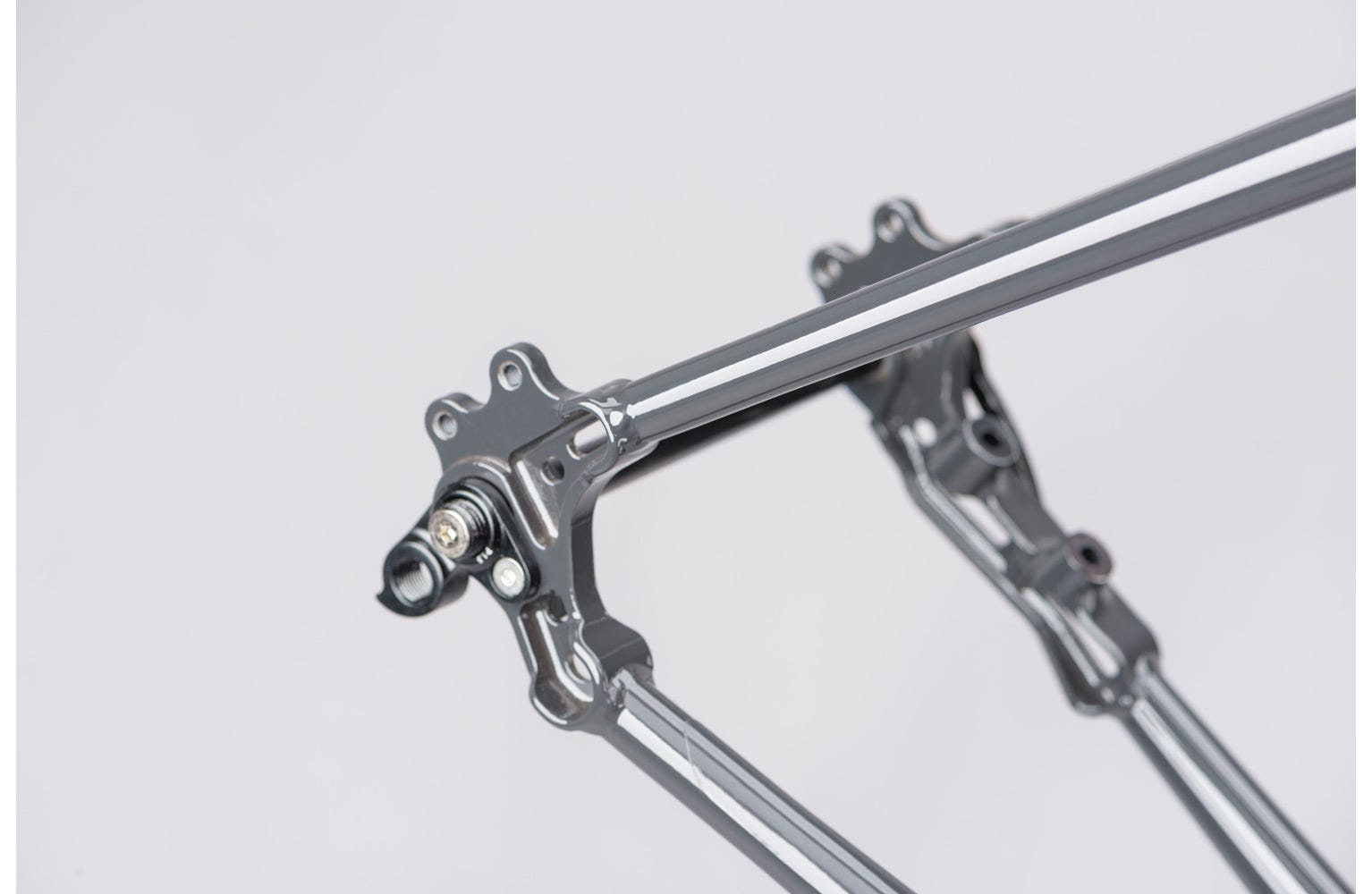

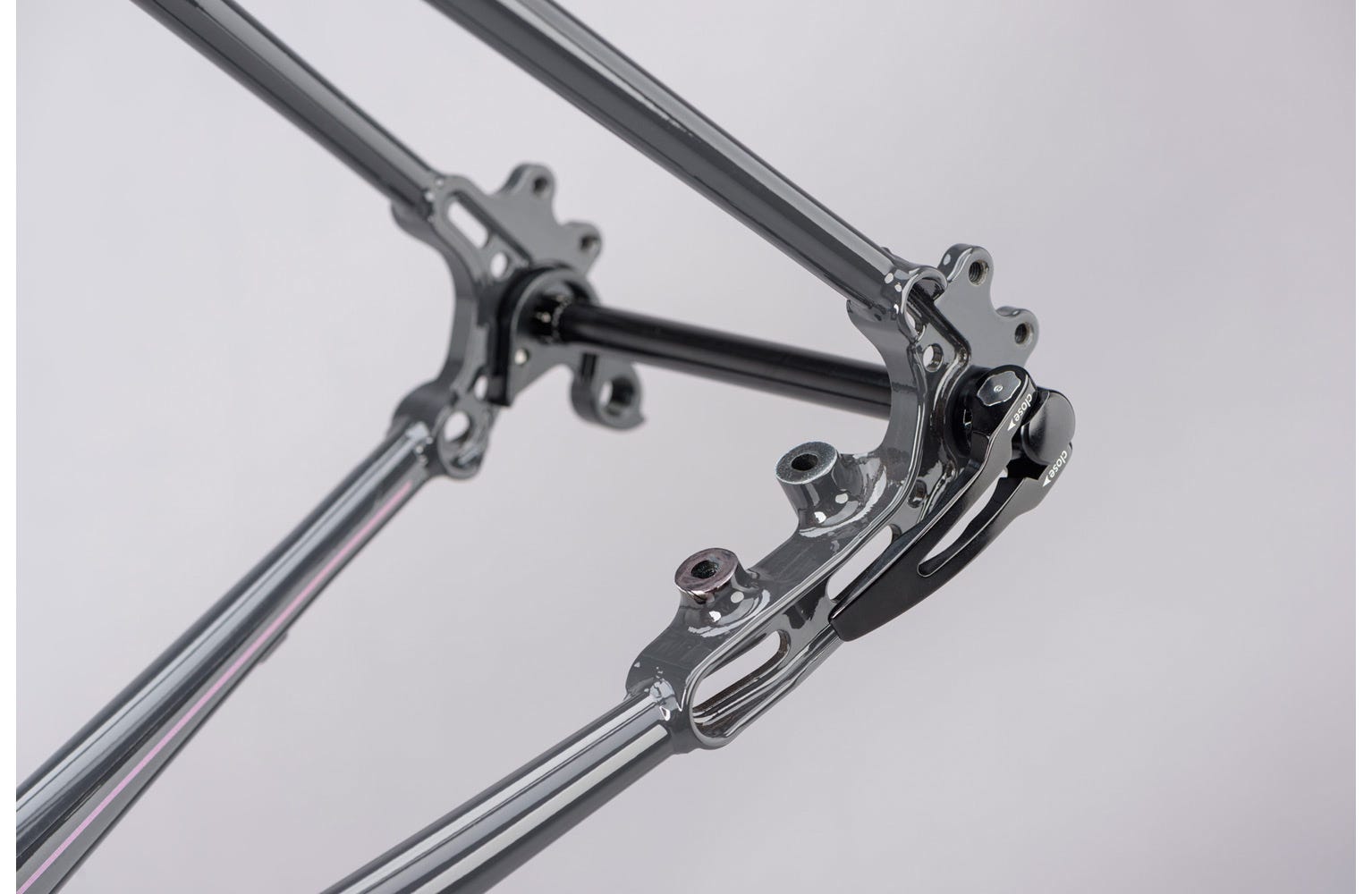

    Whatever your style, the Croix de Fer 853 features thru-axles front and rear, flat mounts for disc brakes, internal rear brake hose routing, a third bottle mount, rack and guard mounts and fixings for Anything Cages on the forks.
Chromoly
Steel
Adventure, Gravel
Mens, Womens
Yes
PT-1767D EC34 Upper / EC34 Lower
27.2 mm Not Included
700c
Crossbar

Full Specifications

Whilst we're trying to deliver our usual great service, due to the current situation with COVID-19 you may notice some delays of up to a few days on your order.



Home Delivery (UK and Ireland)

  • UK Standard Delivery: 2-3 working days, FREE over £50, or £5.95

  • UK Next Working Day Delivery: Order before 1pm, deliveries made Monday to Friday, £9.95

Some exclusions apply. See full T&Cs here.



FREE Returns

Item(s) must be returned unused and in its original condition and packaging within 28-days from the date of purchase. Please read our full returns policy here.



Click & Collect - FREE

Our Click and Collect service offers all the benefits of shopping online with the expertise of our network of independent bike stores. What better, a percentage of your sale goes straight to your selected store!
Have your item ready to collect in-store for FREE. Most items can be collected from 2pm the following day. To avoid disappointment, please wait until you have heard from your selected store prior to travelling.

Sizing

150

152

154

156

158

160

162

164

166

168

170

172

174

176

178

180

182

184

186

188

190

192

194

xs
sm
md
lg
xl

Please be advised that this sizing chart is a rough guide to help you select the correct size frame you will require. We would always recommend visiting your local dealer to get measured and sized correctly for your bike. Although height is one key factor on choosing the correct size bike, there are others which can determine the frame size required. Your local dealer will be able to assist you with correct sizing for your bike.

Geometry

Frame Seat Tube 550
Frame Top Tube 582
Frame Reach 395
Frame Stack 612
Frame Head Tube 175
Frame Head Angle 71.5
Frame Seat Angle 73
Frame BB Drop 73
Frame Wheel Base 1052
Fork Offset 50
Standover 826
Frame Seat Tube 530
Frame Top Tube 561
Frame Reach 385
Frame Stack 593
Frame Head Tube 155
Frame Head Angle 71.5
Frame Seat Angle 73.5
Frame BB Drop 73
Frame Wheel Base 1035
Fork Offset 50
Standover 808
Frame Seat Tube 500
Frame Top Tube 544
Frame Reach 375
Frame Stack 572
Frame Head Tube 135
Frame Head Angle 71
Frame Seat Angle 73.5
Frame BB Drop 73
Frame Wheel Base 1023
Fork Offset 50
Standover 784
Frame Seat Tube 580
Frame Top Tube 605
Frame Reach 405
Frame Stack 633
Frame Head Tube 195
Frame Head Angle 72
Frame Seat Angle 72.5
Frame BB Drop 73
Frame Wheel Base 1063
Fork Offset 50
Standover 850
Frame Seat Tube 470
Frame Top Tube 524
Frame Reach 365
Frame Stack 553
Frame Head Tube 115
Frame Head Angle 71
Frame Seat Angle 74
Frame BB Drop 73
Frame Wheel Base 1007
Fork Offset 50
Standover 761
