Ridgeback Panorama
In stock
£1,599.99
Ridgeback Panorama

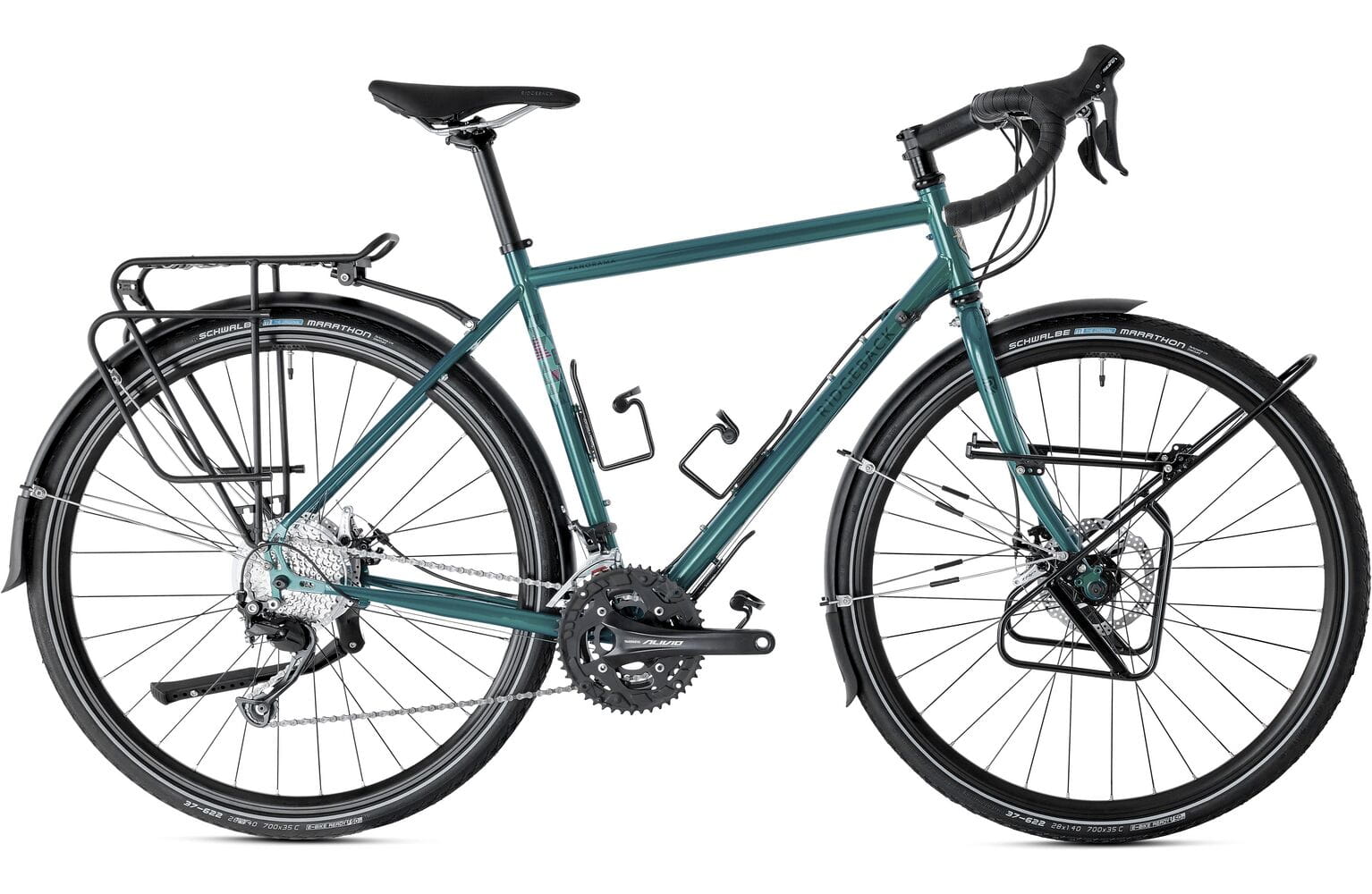

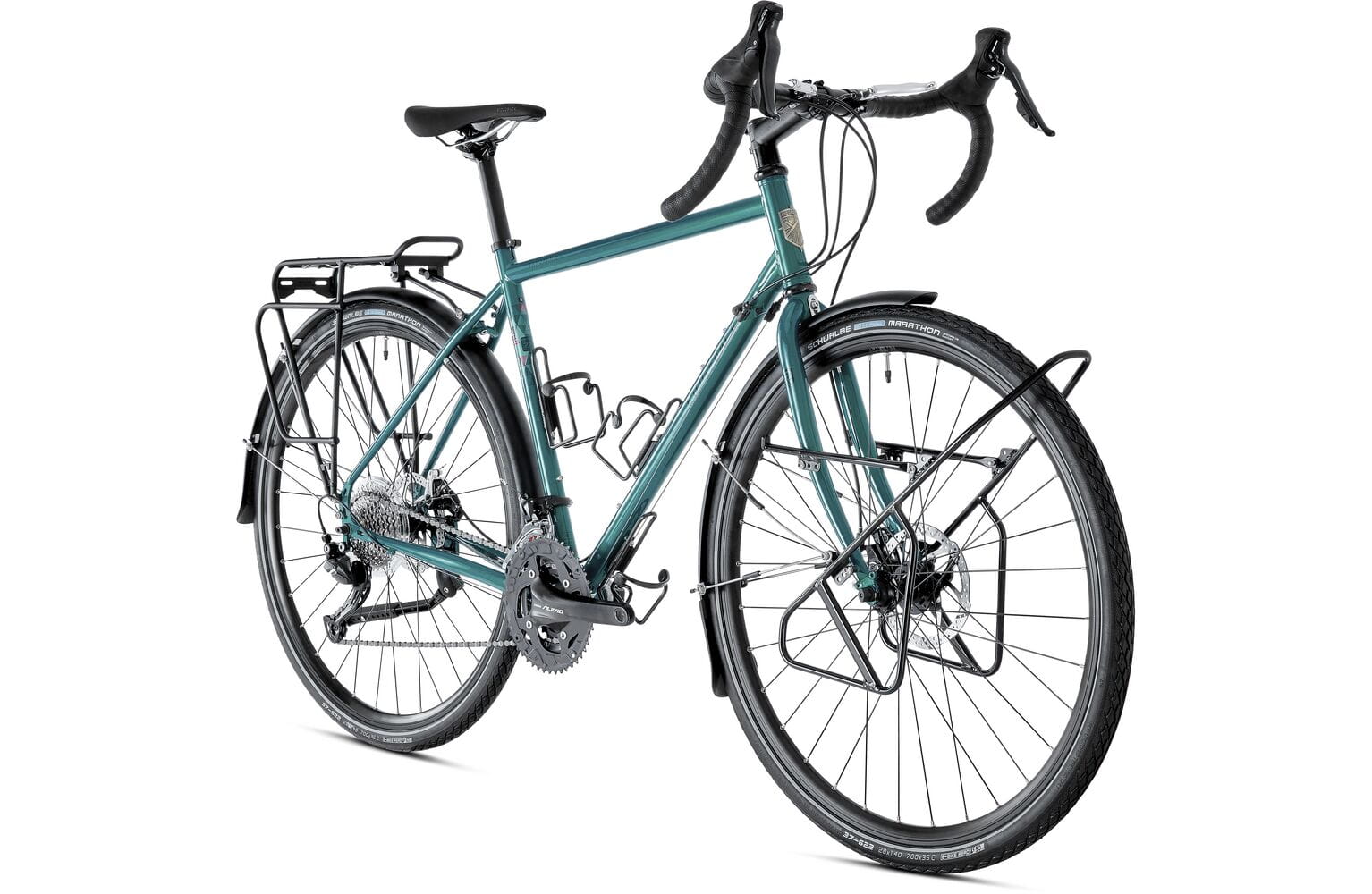

- The complete cycle touring package, the Ridgeback Panorama is built to be loaded with luggage and cover vast distances.

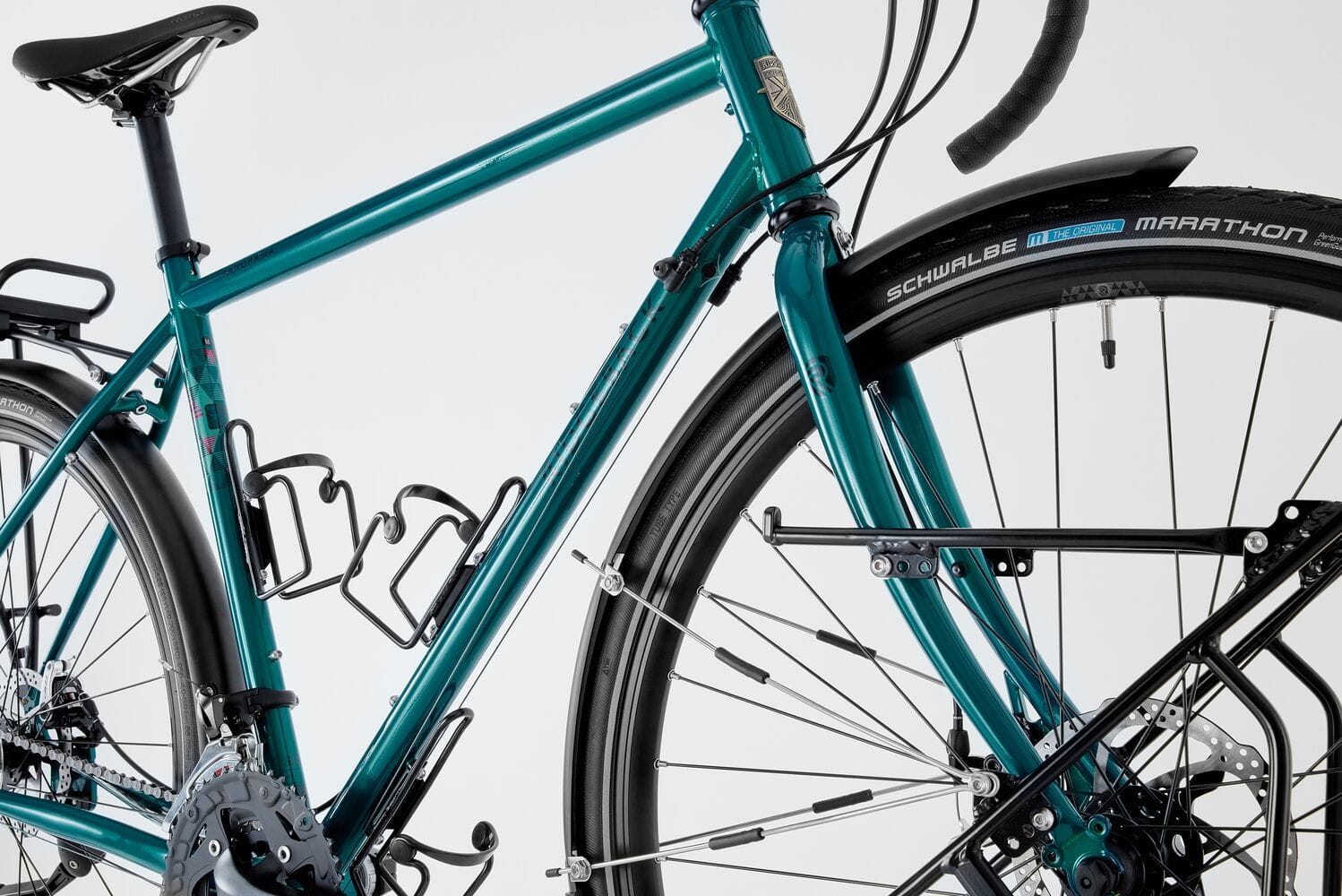

The Reynolds 725 frame and chromoly fork provide superb ride quality - essential when travelling long periods over rough roads.
The attention to detail continues with the specification with gearing provided by a mix of Shimano's smooth and reliable Alivio and Sora components.

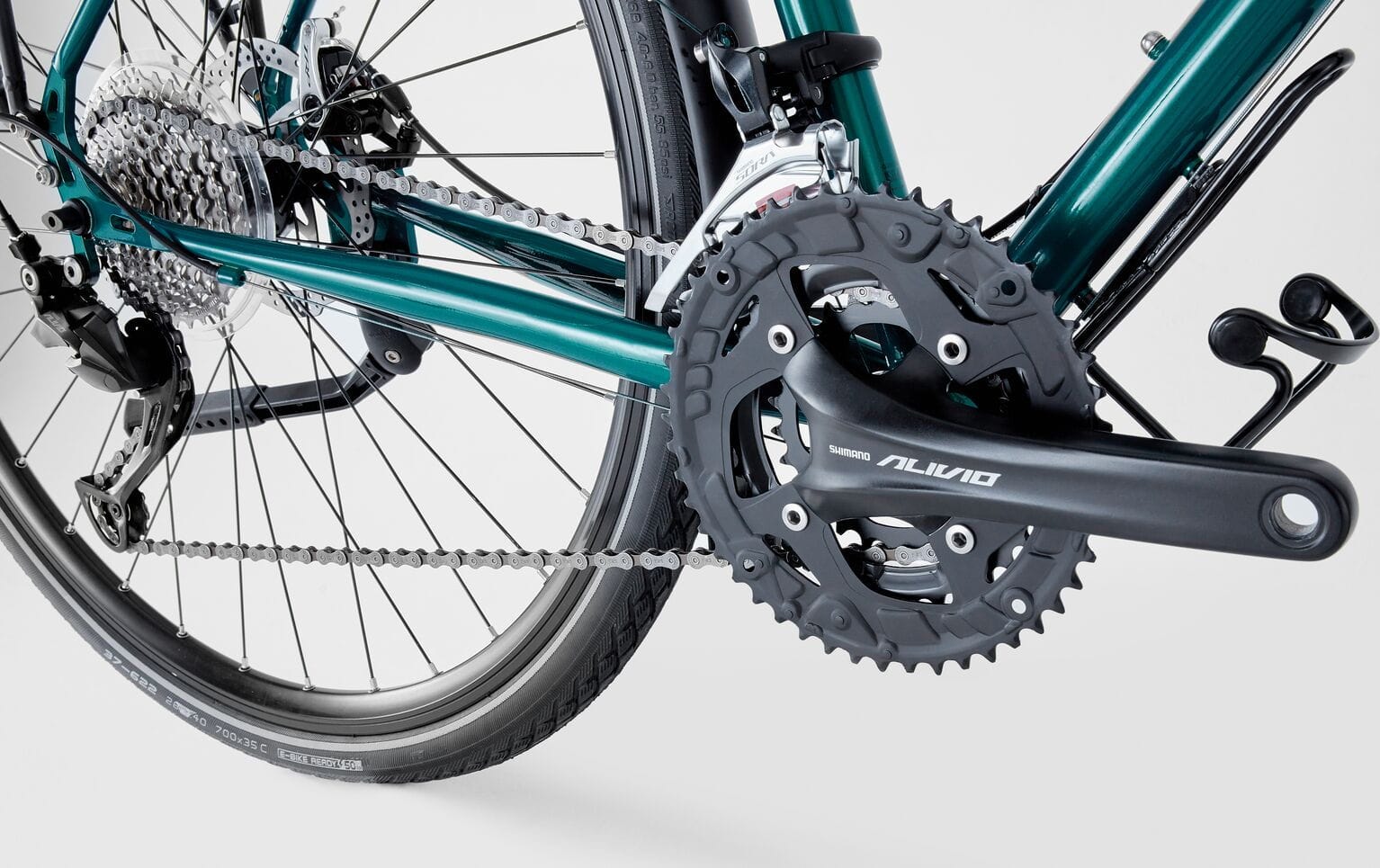

A triple chainset and wide 11-34 cassette provide ample gearing when climbing fully laden and Schwable's Marathon tyres are a stalwart for their durability and puncture protection.

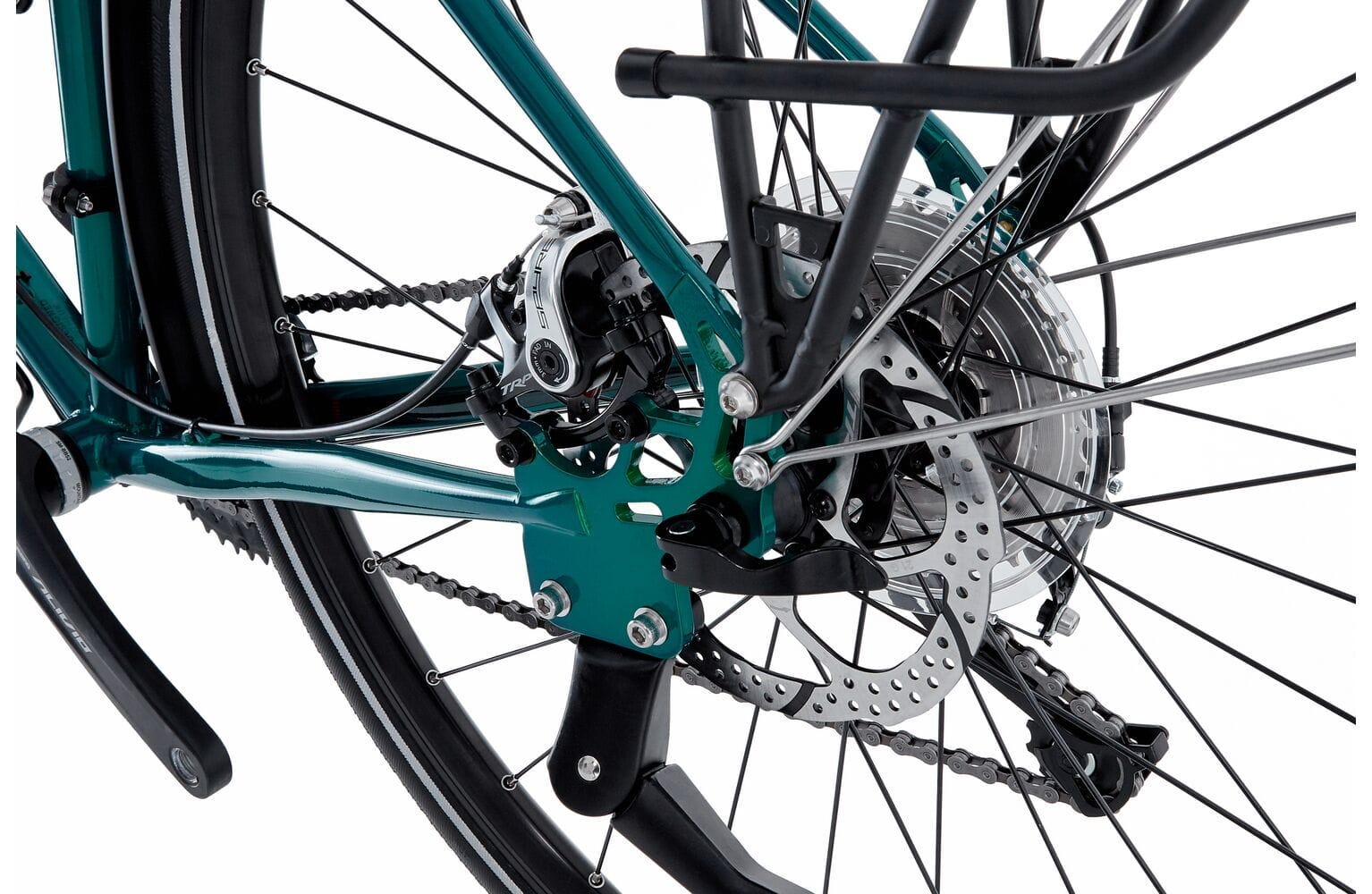

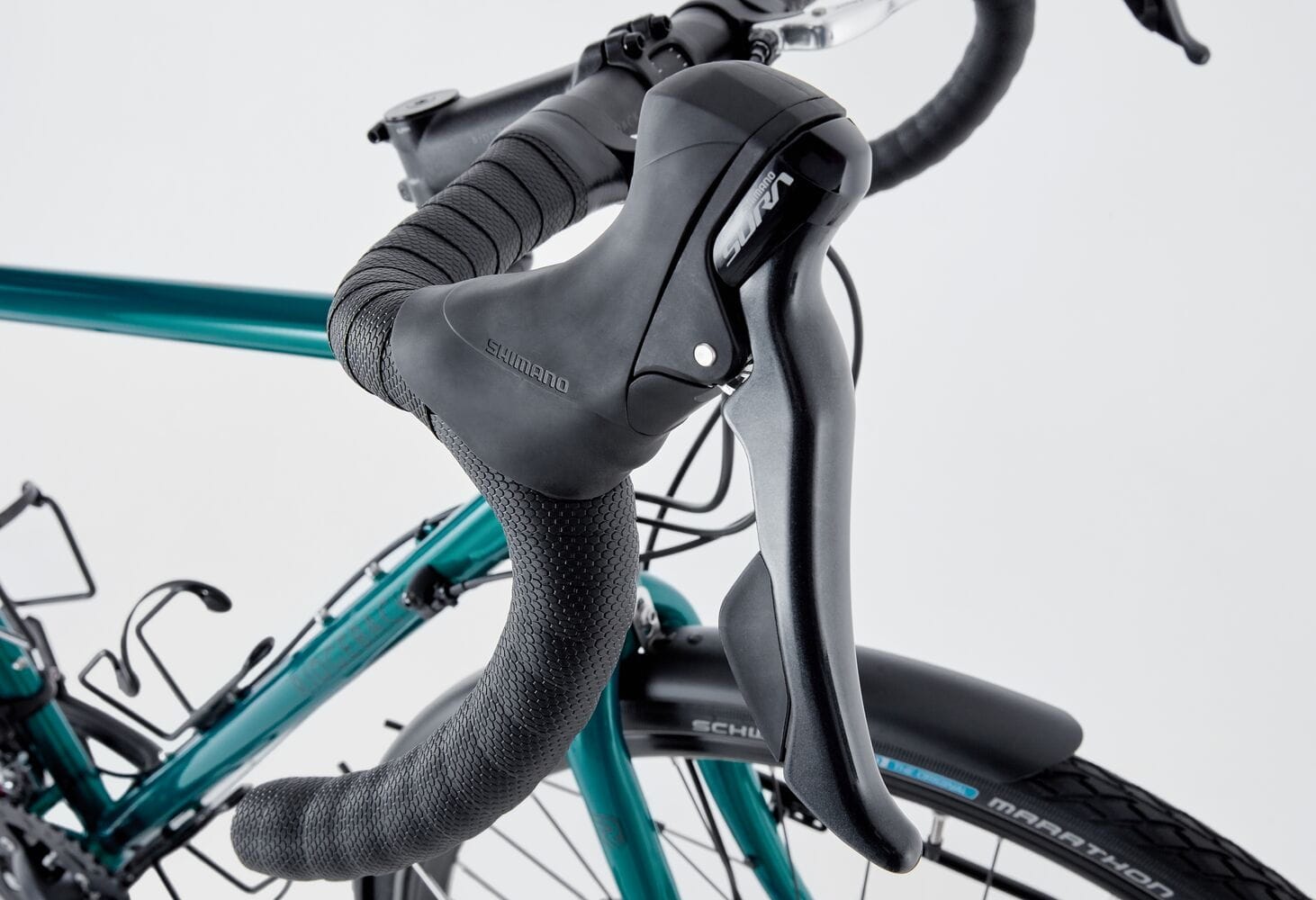

We have paired the TRP Spyre cable disc brakes with bar-top levers, allowing another hand position with the convenience of the brakes at your fingertips.

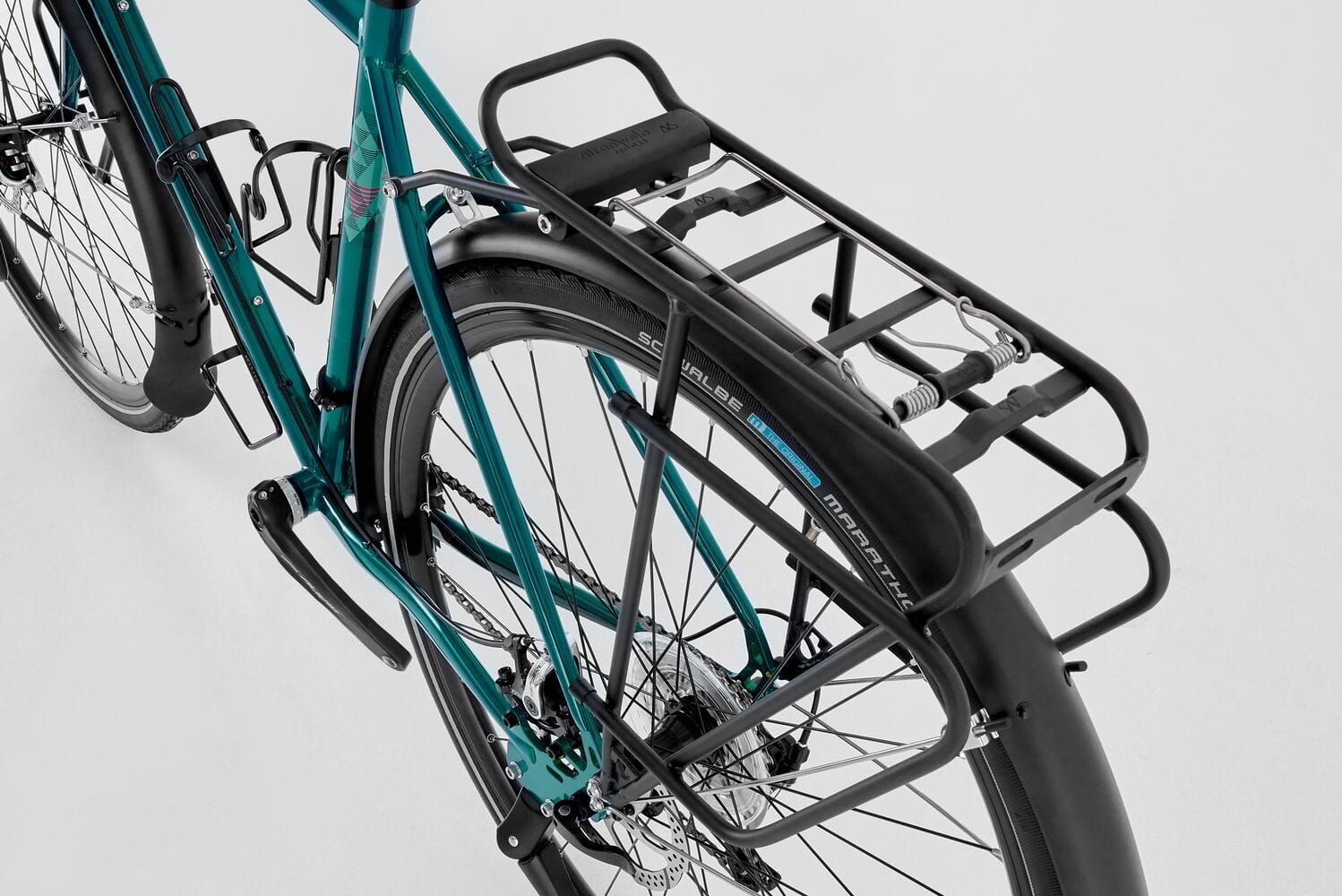

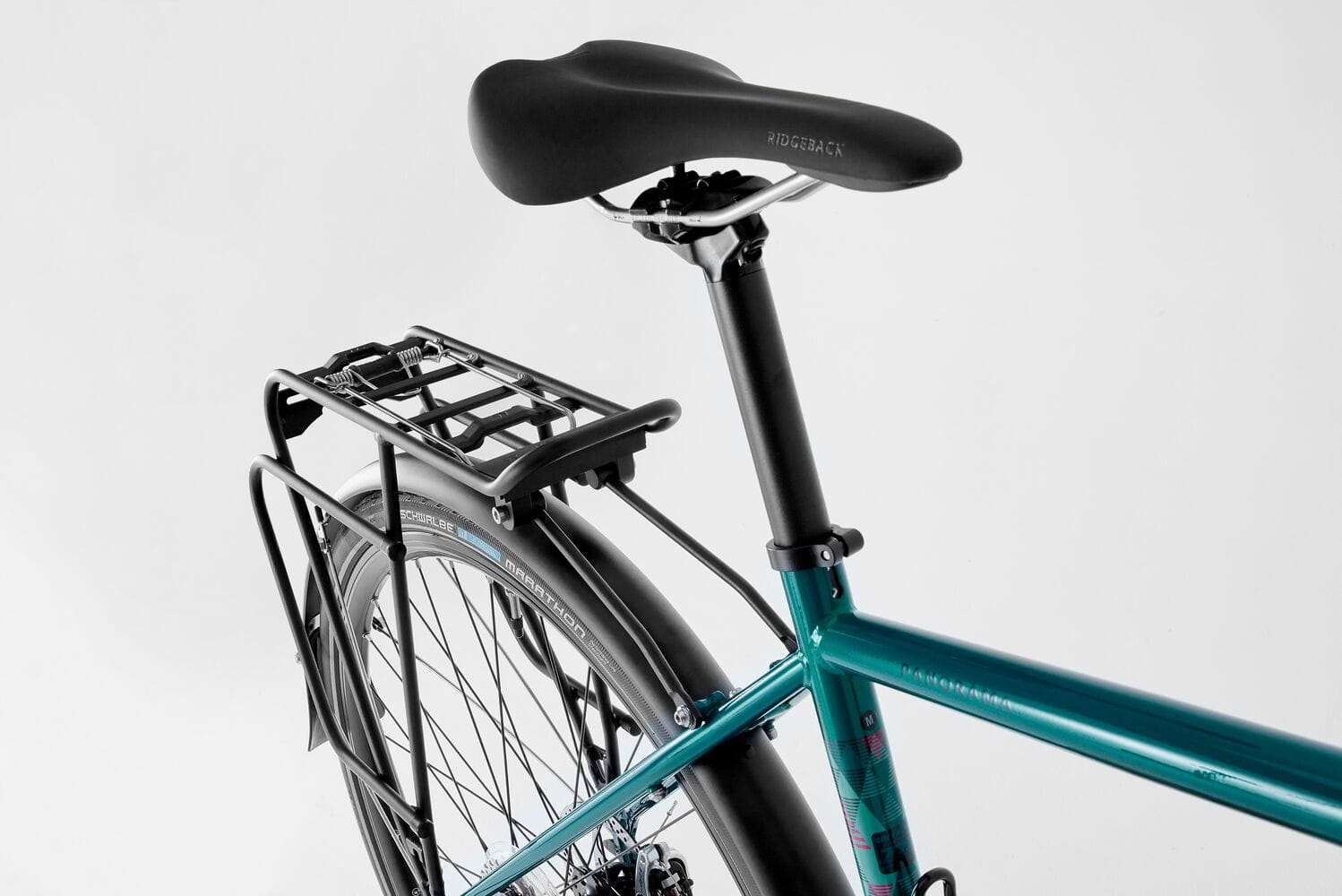

Touring essentials are taken care of with the included rear rack, mudguards and three bottle cages.
Weight - 14.59kg
Brake Type :
Mechanical Disc
Frame Material :
Steel
Bottom Bracket :
Shimano BB-ES300
Max Tyre Size :
700 x 42c
Brake Levers :
Shimano Sora ST-T3030
Brakes :
TRP Spyre Mechanical Disc Brake
Cassette Freewheel :
Shimano CS-HG400 11-34T
Chain :
KMC X9
Chain Set :
Shimano FC-T4660 48-36-26T
Front Derailleur :
Shimano Sora FD-R3030
Grip Tape :
Ridgeback
Handlebars :
Ridgeback Alloy - XS 400mm / S-M 420mm / L-XL 440mm
Headset :
Prestine PT-1767D
Hubs :
Jalco DC20/DC22 36h
Mudguard :
Fitted
Pedals :
FPD Road / Toe Clips
Rear Derailleur :
Shimano Alivio RD-M3100
Rims :
Jalco DM25 36h
Saddle :
Ridgeback Custom
Seat Post :
Alloy 27.2 x 350 mm
Shifters :
Shimano Sora ST-T3030
Spokes :
Steel 14 g
Stem :
Ridgeback AS-007 - XS-S 90mm / M 100mm / L 110mm / XL 120mm
Tyres :
Schwalbe Marathon GG 700 x 35c
Wheel Size :
700c
Fork :
Chromoly Steel
Fork Material :
Chromoly
Specification Disclaimer :
Ridgeback reserves the right to change product specifications without notice. Ridgeback will always ensure that these changes do not detract from the ride experience of the bike.
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
194
X-SMALL - 156 to 165
SMALL - 164 to 172
MEDIUM - 171 to 179
LARGE - 178 to 186
X-LARGE - 185 to 193
| Frame Size | X-SMALL | SMALL | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|---|---|
| Stem Length plus Reach | 465 | 486 | 506 | 526 | |
| Frame Seat Tube | 480 | 500 | 530 | 550 | 580 |
| Frame Top Tube | 522 | 544 | 564 | 580 | 601 |
| Frame Reach | 366 | 375 | 386 | 396 | 406 |
| Frame Stack | 543 | 586 | 583 | 601 | 618 |
| Frame Head Tube | 105 | 130 | 145 | 165 | 180 |
| Frame Head Angle | 71° | 71.5° | 71.5° | 71.5° | 72° |
| Frame Seat Angle | 74° | 73.5° | 73° | 73° | 72.5° |
| Frame Chainstay | 450 | 450 | 450 | 450 | 450 |
| Frame BB Drop | 73 | 73 | 73 | 73 | 73 |
| Frame Wheel Base | 1025 | 1023 | 1055 | 1071 | 1081 |
| Fork Offset | 50 | 50 | 50 | 50 | 50 |
| Fork Travel | |||||
| Standover | |||||
| Stem Length | 90 | 90 | 100 | 110 | 120 |
| Handle Bar Width | 400 | 420 | 420 | 440 | 440 |
| Frame Size | X-SMALL | SMALL | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|---|---|
| Stem Length plus Reach | 465 | 486 | 506 | 526 | |
| Frame Seat Tube | 480 | 500 | 530 | 550 | 580 |
| Frame Top Tube | 522 | 544 | 564 | 580 | 601 |
| Frame Reach | 366 | 375 | 386 | 396 | 406 |
| Frame Stack | 543 | 586 | 583 | 601 | 618 |
| Frame Head Tube | 105 | 130 | 145 | 165 | 180 |
| Frame Head Angle | 71° | 71.5° | 71.5° | 71.5° | 72° |
| Frame Seat Angle | 74° | 73.5° | 73° | 73° | 72.5° |
| Frame Chainstay | 450 | 450 | 450 | 450 | 450 |
| Frame BB Drop | 73 | 73 | 73 | 73 | 73 |
| Frame Wheel Base | 1025 | 1023 | 1055 | 1071 | 1081 |
| Fork Offset | 50 | 50 | 50 | 50 | 50 |
| Fork Travel | |||||
| Standover | |||||
| Stem Length | 90 | 90 | 100 | 110 | 120 |
| Handle Bar Width | 400 | 420 | 420 | 440 | 440 |
