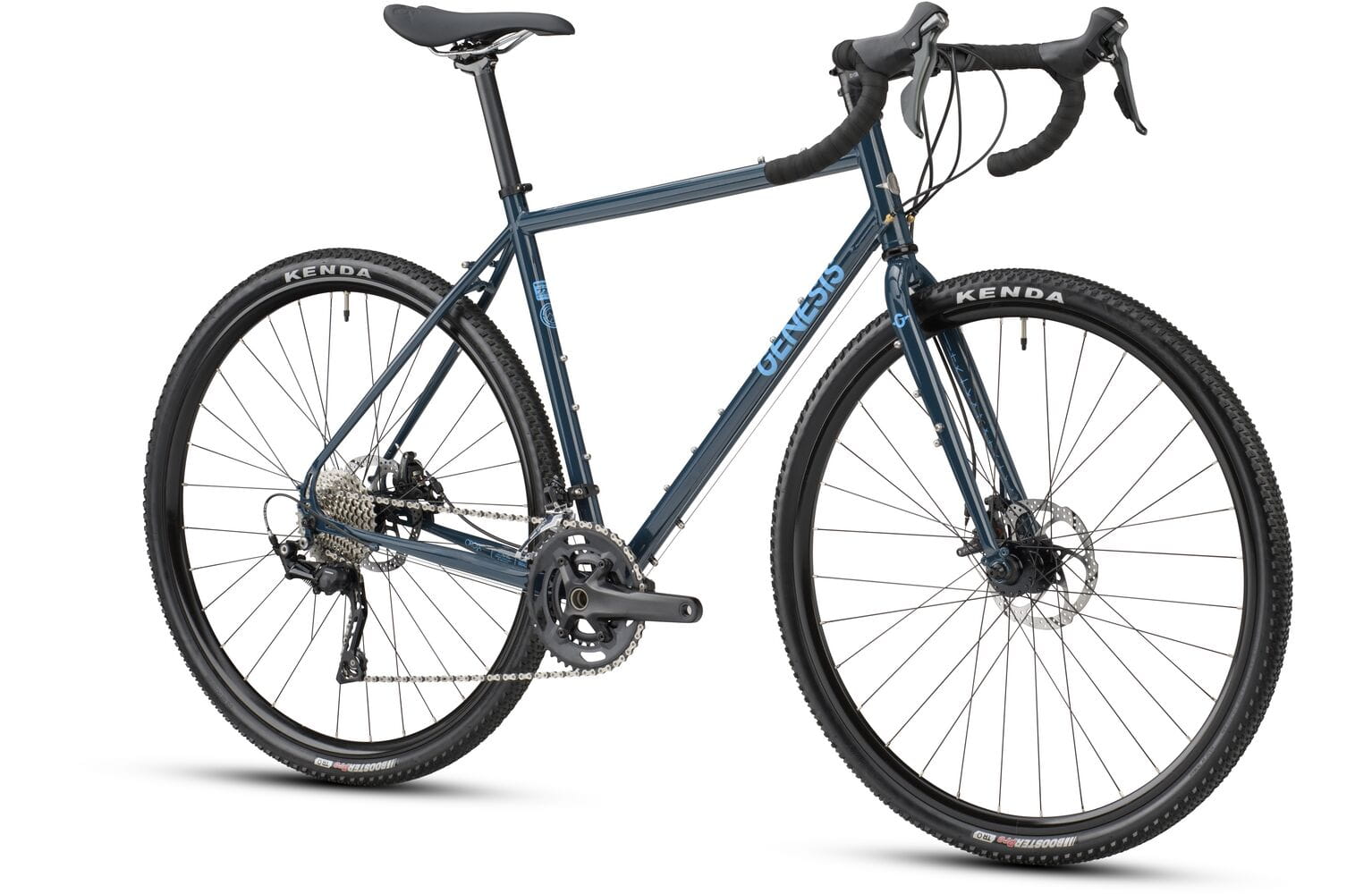

Genesis Croix De Fer 20
From £1,499.99

Genesis Croix De Fer 20

From £1,499.99
SKU
VARGN21041
Size Guide
  • Available for Home Delivery

  • Unavailable for click and collect

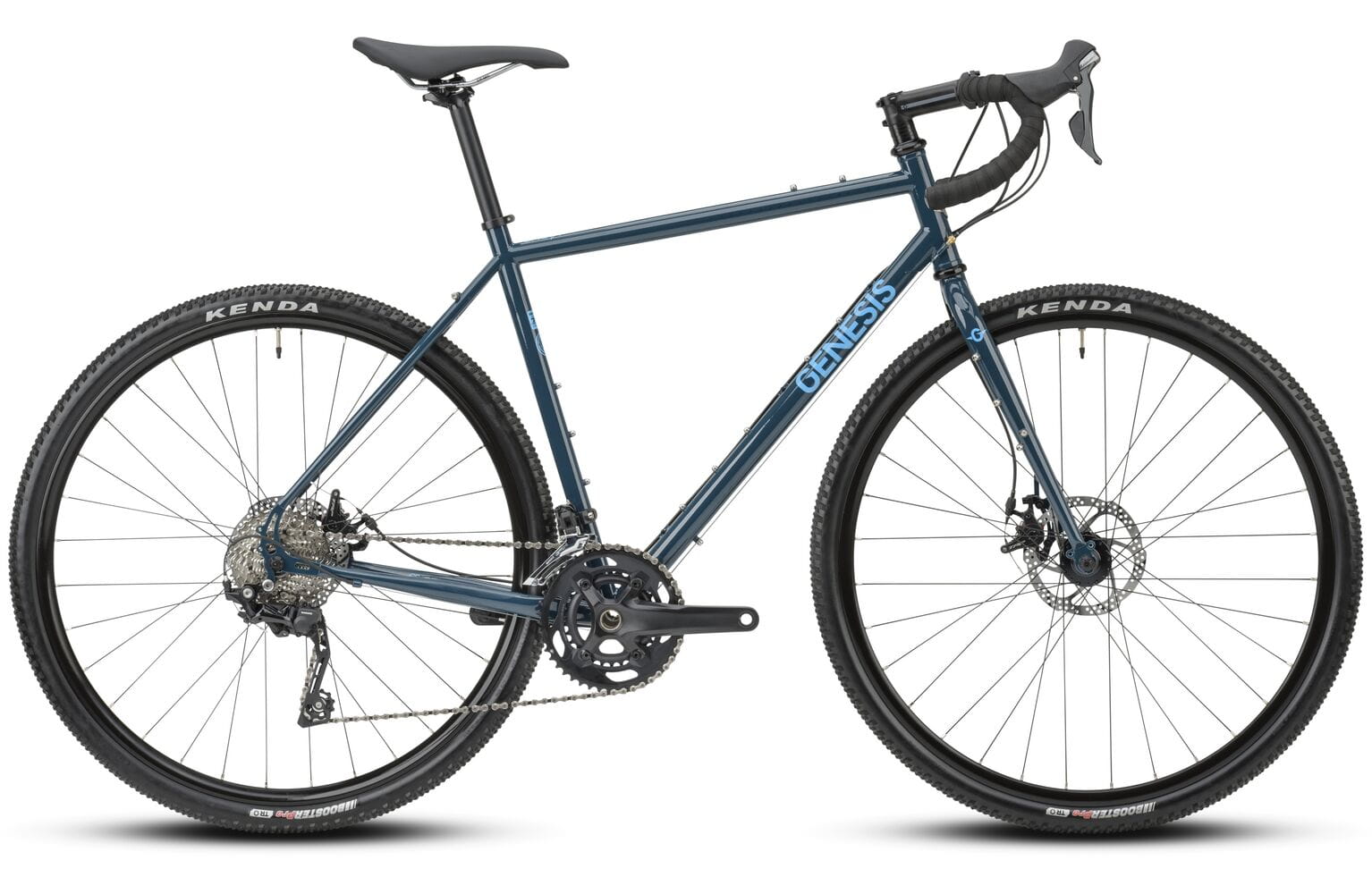

    ONE BIKE TO RULE THEM ALL



    Our original do it all go anywhere bike is back and more capable than ever before!



    Commuting duties during the week then epic, multi-terrain adventures at the weekend, the Croix De Fer 20 is a capable and adaptable beast that rarely gets fazed whichever way you point it.

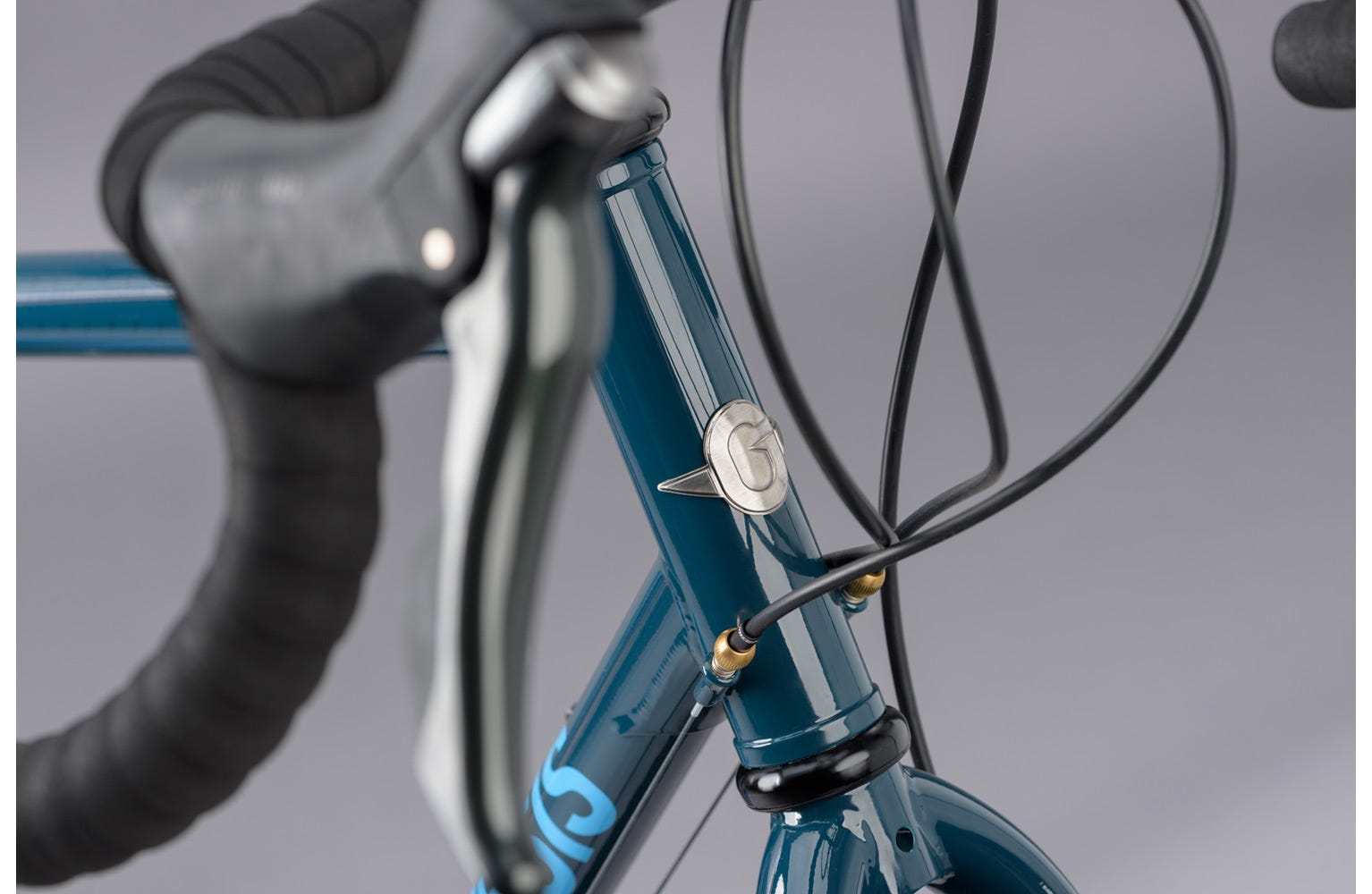

    The heart of the bike remains a complete Reynolds 725 frameset, defined by its reliability wherever you ride.



    We have however made a few updates to add to the Croix de Fer’s versatility.



    Major updates to the cornerstone of our range include the ability to run 42mm tyres on the provided 700c rims, or 47mm tyres on a 650B wheelset.



    Standard QR dropouts mean your 9mm wheelsets can keep turning for another few years – and the practicalities don’t end there.



    The drivetrain has been upgraded to Shimano’s excellent GRX, featuring a 46/30T double chainset, an 11-34T cassette and RX400 derailleurs for reliable, smooth shifting.

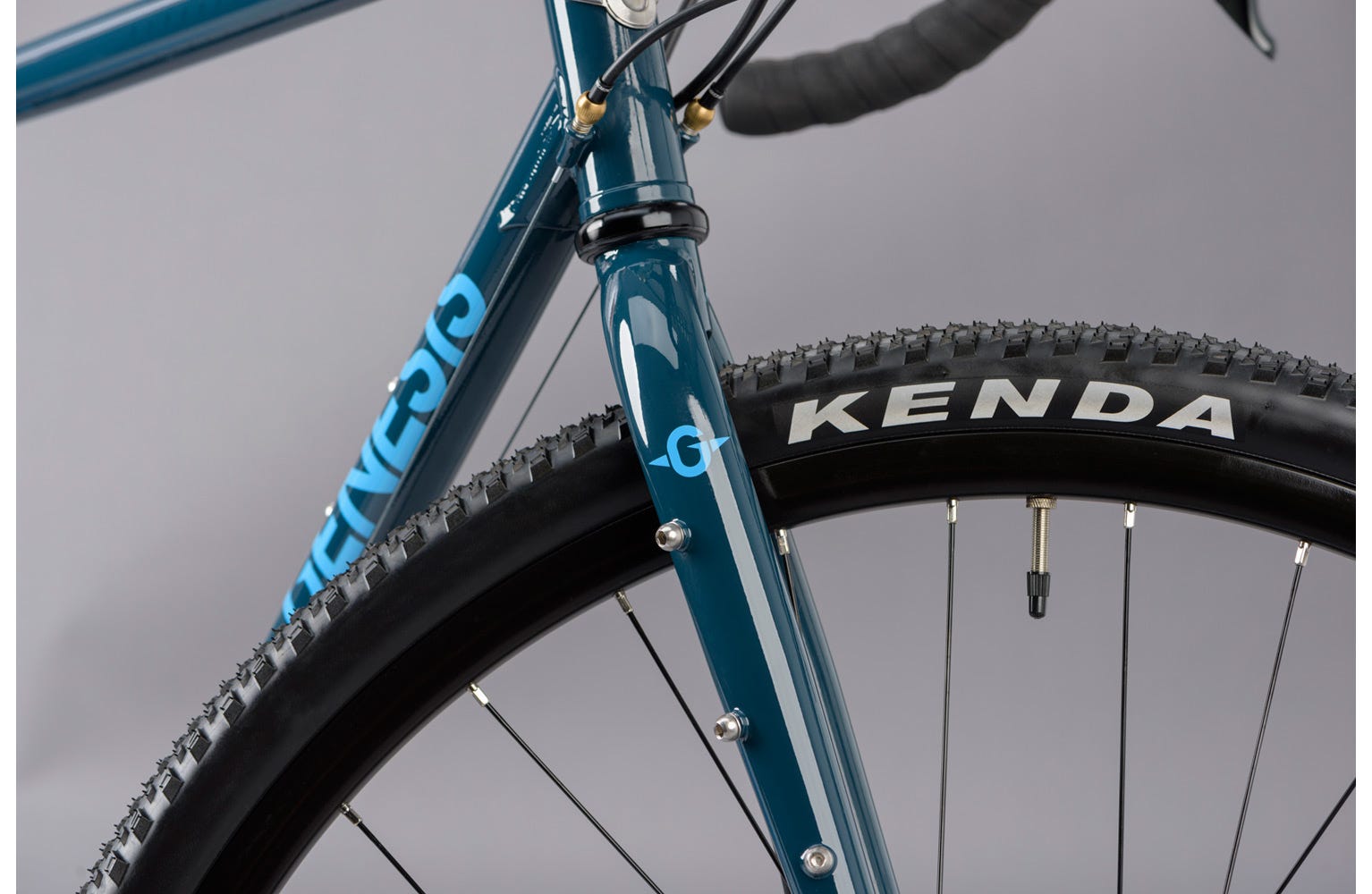

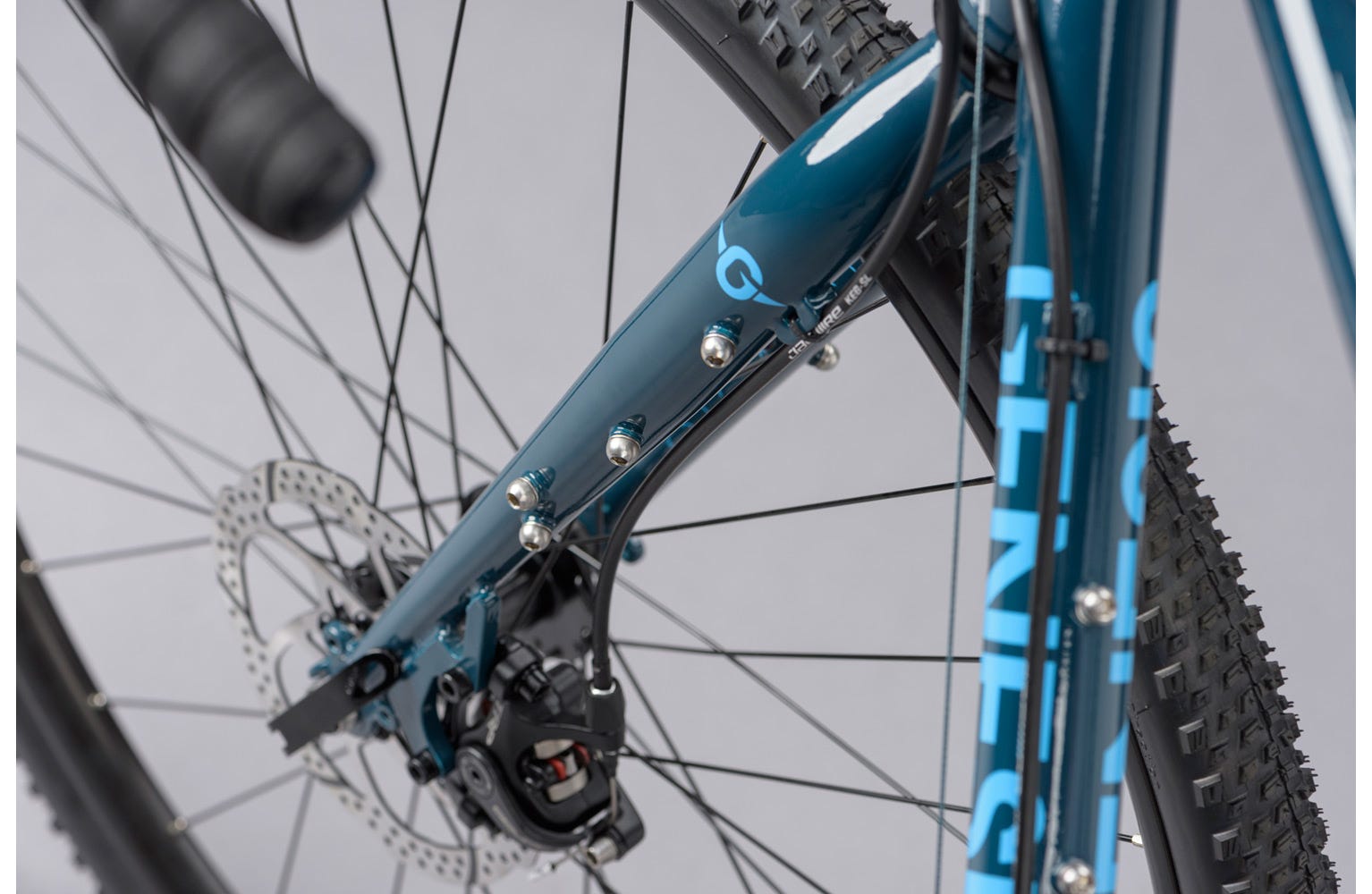

    Tubeless ready rims and tyres, flat mount disc brakes, a third bottle mount, rack and guard mounts and fixings for Anything Cages on the forks complete the package.

Specification

"

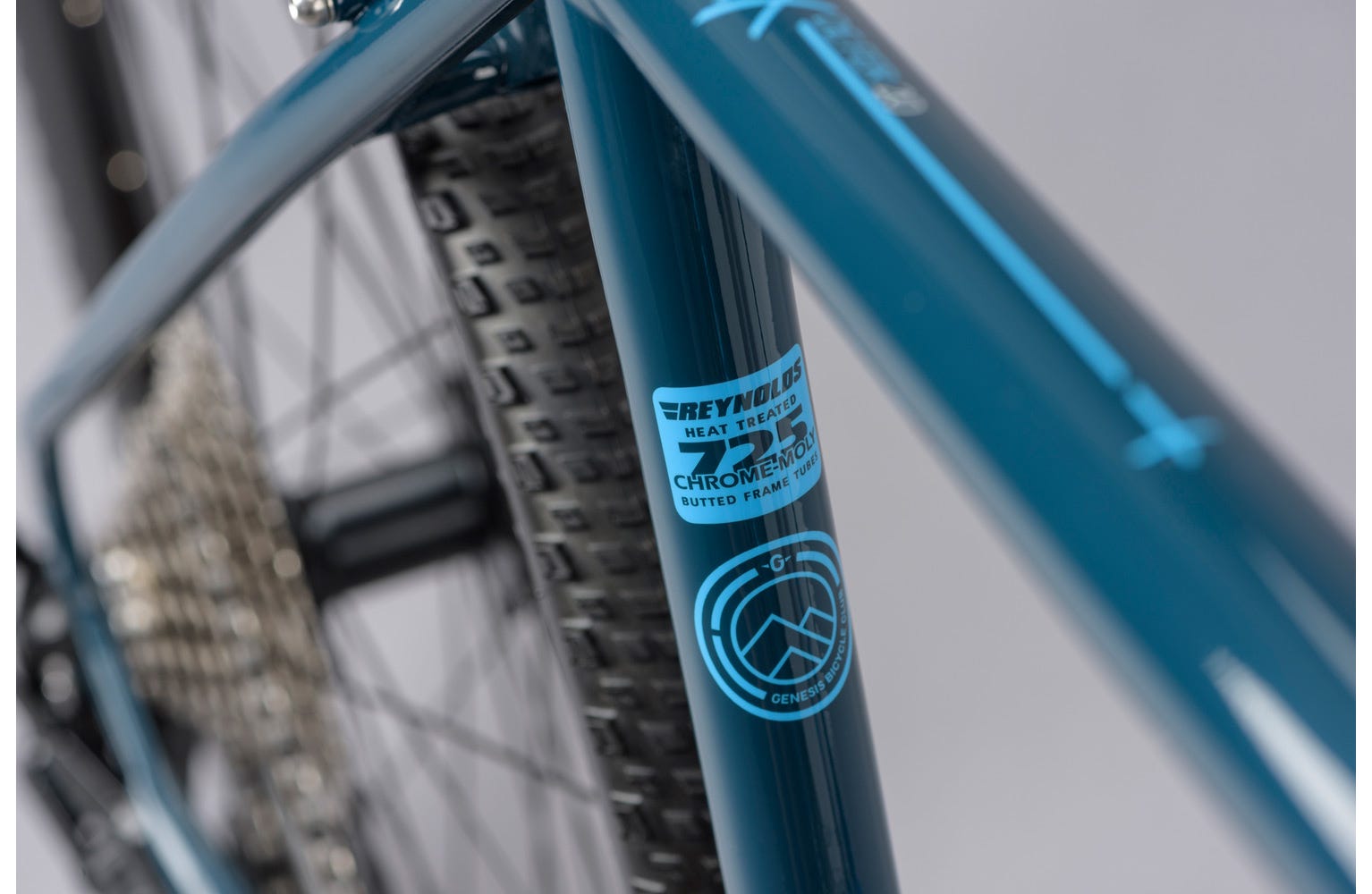

Frame Reynolds 725 Heat-Treated chromoly
Rear Shock N/A

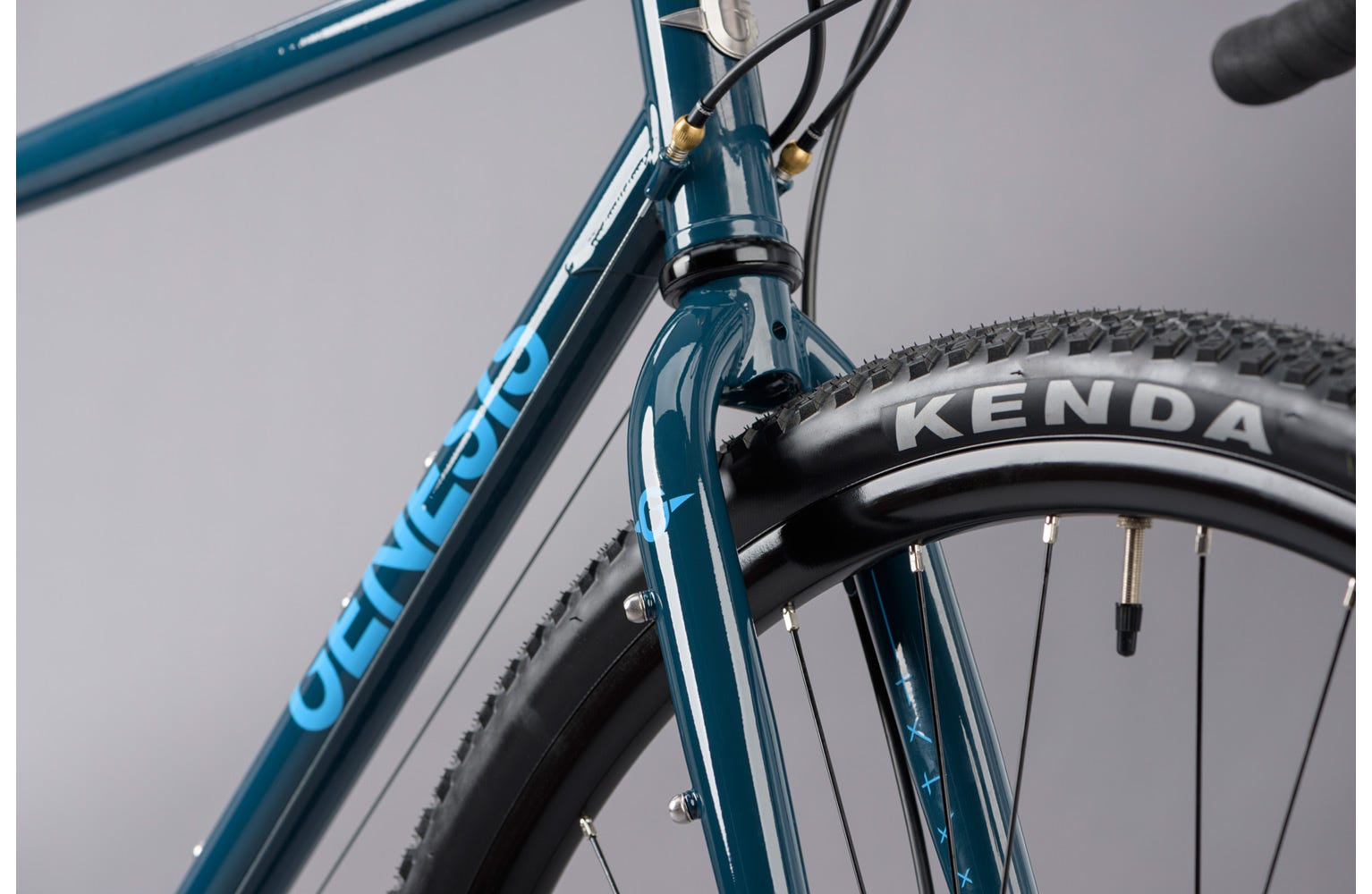

Fork Chromoly disc fork with anything cage mounts
Headset PT-1770 EC34 Upper/ EC34 Lower

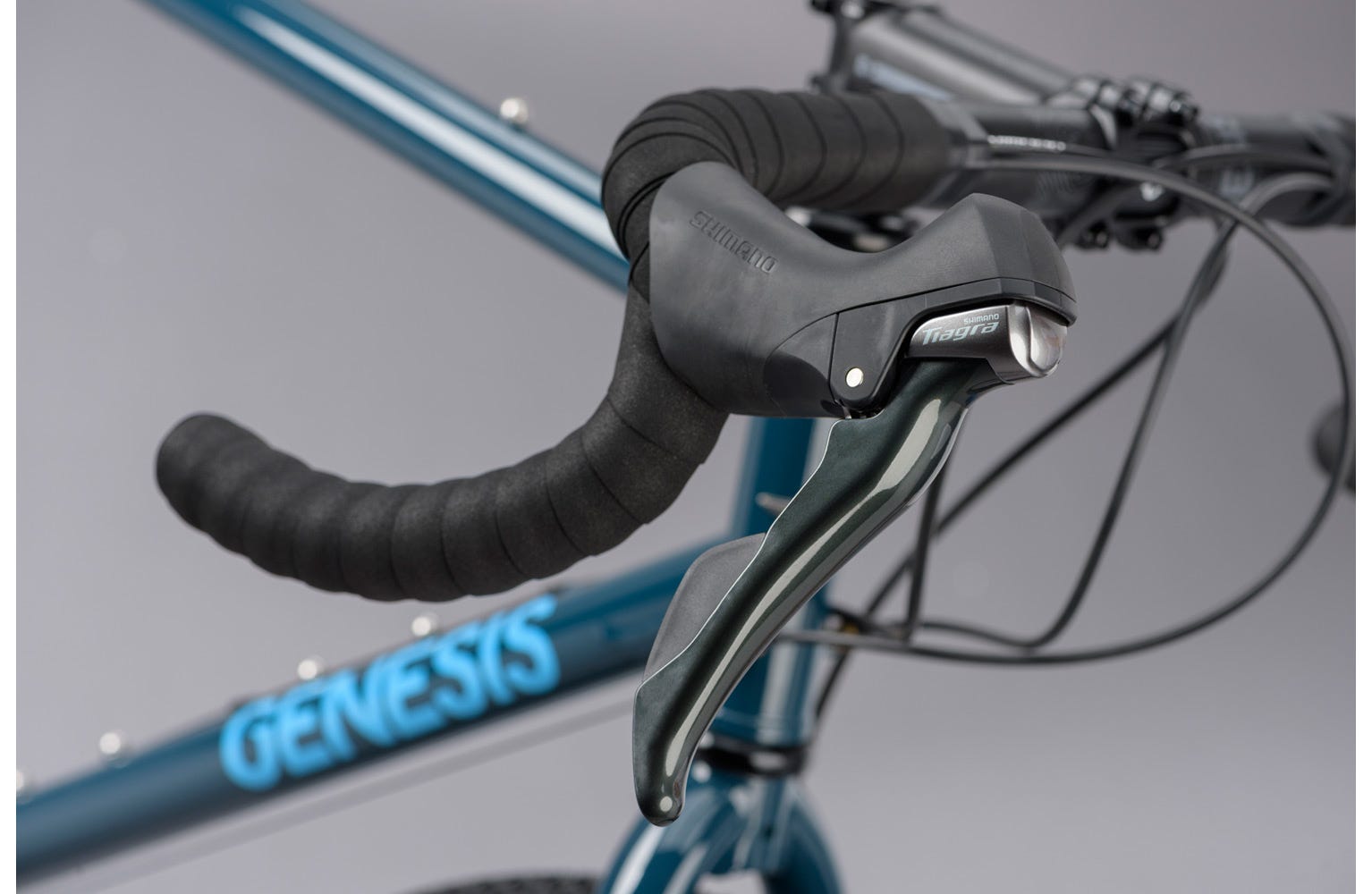

Shifters Shimano Tiagra ST-4700 10spd

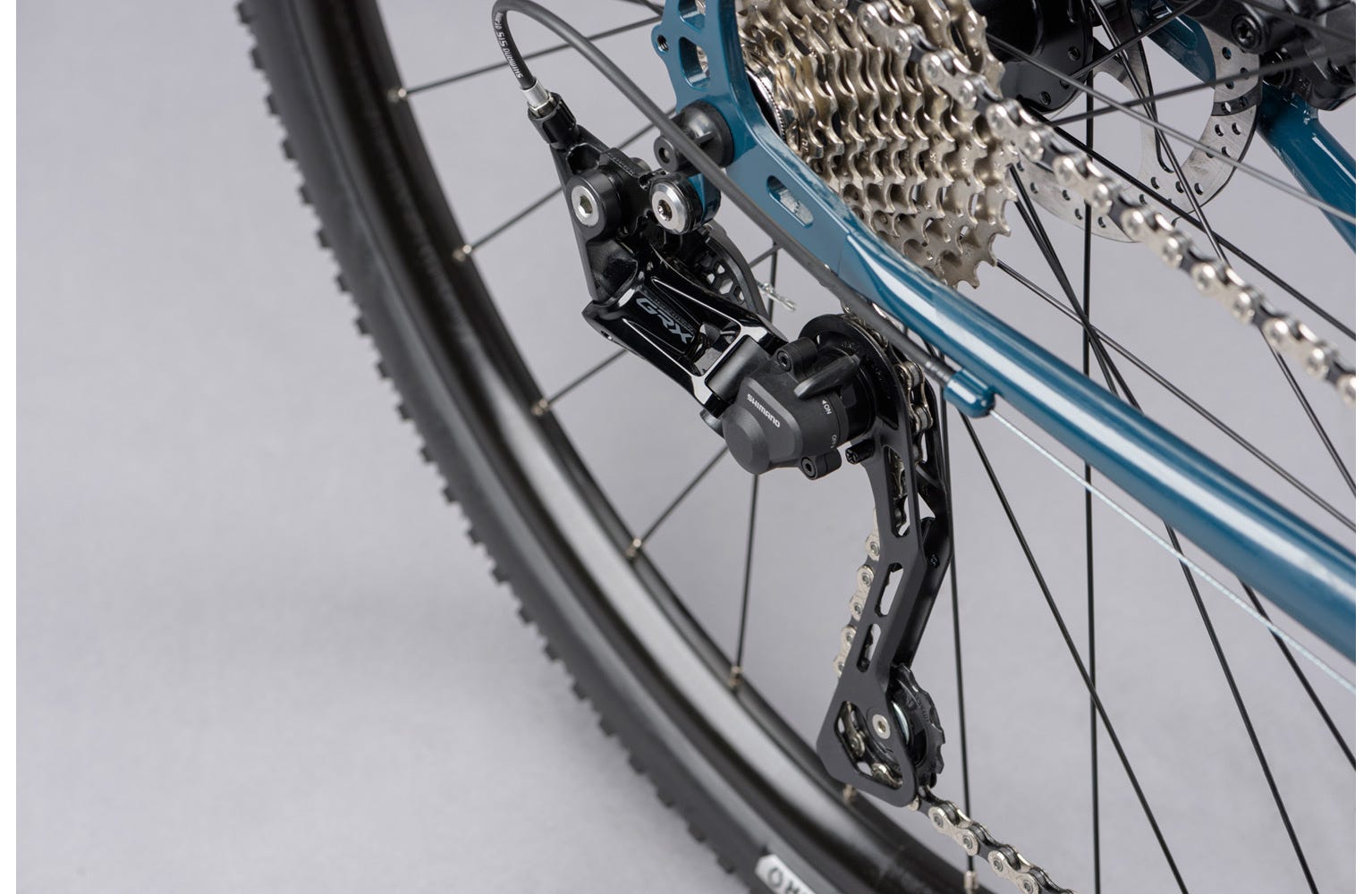

Rear Derailleur Shimano GRX RD-RX400 10spd
Front Derailleur Shimano GRX FD-RX400
Chainset Shimano GRX FC-RX600 46/30T XS = 165mm, S/M = 170mm, L/XL = 175mm
Bottom Bracket
Chain KMC X10
Cassette / Freewheel Shimano CS-HG500-10 11/34T 10spd
Rims Jalco XCD21
Hubs KT-K08, 6 bolt, 32h
Spokes steel 14g
Tyres
Brakes TRP SPYRE-C mechanical disc
Brake levers Shimano Tiagra ST-4700 10spd
Handlebars Genesis Alloy, 16 deg flare, XS = 400MM, SM/MED = 420MM, L-XL = 440MM
Stem Genesis Alloy, 31.8mm, -6 deg, 100mm
Saddle Genesis
Seatpost Genesis Alloy 27.2 x 350mm
Pedals NW-91K with cage
Drive Unit N/A
Battery N/A
charger N/A
"

Delivery Options

Whilst we're trying to deliver our usual great service, due to the current situation with COVID-19 you may notice some delays of up to a few days on your order.



Bikes

Home Delivery

How it works

  1. Complete your order online with a complete payment up-front.

  2. A qualified mechanic will complete a pre-delivery inspection.

  3. Your bike will arrive with you in 5 – 7 working days via TNT.

  4. Follow the instructions provided to assemble your bike. Click here for full details.

Click & Collect

How it works

  1. Select your preferred collection shop and pay for your order

  2. A qualified mechanic will build and complete a pre-delivery inspection.

  3. Your bike will be delivered to your chosen store ready for you to collect.


 What if I'm not happy with my bike?





Acessories

Click & Collect FREE

from your local bike shop tomorrow from 2pm

Find out more

UK and Ireland Delivery

UK Standard 2-3 working days £4.95, FREE on orders over £30

UK Next Day (Only available Mon-Thurs before 1pm) £6.95

Find out more

Full Specifications

Sizing

164

166

168

170

172

174

176

178

180

182

184

186

188

190

192

sm
md
lg
xl

Please be advised that this sizing chart is a rough guide to help you select the correct size frame you will require. We would always recommend visiting your local dealer to get measured and sized correctly for your bike. Although height is one key factor on choosing the correct size bike, there are others which can determine the frame size required. Your local dealer will be able to assist you with correct sizing for your bike.

Geometry

Frame Seat Tube 550
Frame Top Tube 582
Frame Reach 395
Frame Stack 612
Frame Head Tube 175
Frame Head Angle 71.500000
Frame Seat Angle 73.000000
Frame BB Drop 73
Frame Wheel Base 1052
Fork Offset 50
Standover 826
Stem Length 100
Handle Bar Width 440
Frame Seat Tube 530
Frame Top Tube 561
Frame Reach 385
Frame Stack 593
Frame Head Tube 155
Frame Head Angle 71.500000
Frame Seat Angle 73.500000
Frame BB Drop 73
Frame Wheel Base 1035
Fork Offset 50
Standover 808
Stem Length 100
Handle Bar Width 420
Frame Seat Tube 500
Frame Top Tube 544
Frame Reach 375
Frame Stack 572
Frame Head Tube 135
Frame Head Angle 71.000000
Frame Seat Angle 73.500000
Frame BB Drop 73
Frame Wheel Base 1023
Fork Offset 50
Standover 784
Stem Length 100
Handle Bar Width 420
Frame Seat Tube 580
Frame Top Tube 605
Frame Reach 405
Frame Stack 633
Frame Head Tube 195
Frame Head Angle 72.000000
Frame Seat Angle 72.500000
Frame BB Drop 73
Frame Wheel Base 1063
Fork Offset 50
Standover 850
Stem Length 100
Handle Bar Width 440
Frame Seat Tube 470
Frame Top Tube 524
Frame Reach 365
Frame Stack 553
Frame Head Tube 115
Frame Head Angle 71.000000
Frame Seat Angle 74.000000
Frame BB Drop 73
Frame Wheel Base 1007
Fork Offset 50
Standover 761
Stem Length 100
Handle Bar Width 400
