Genesis Croix De Fer 20

Out of stock
£1,699.99

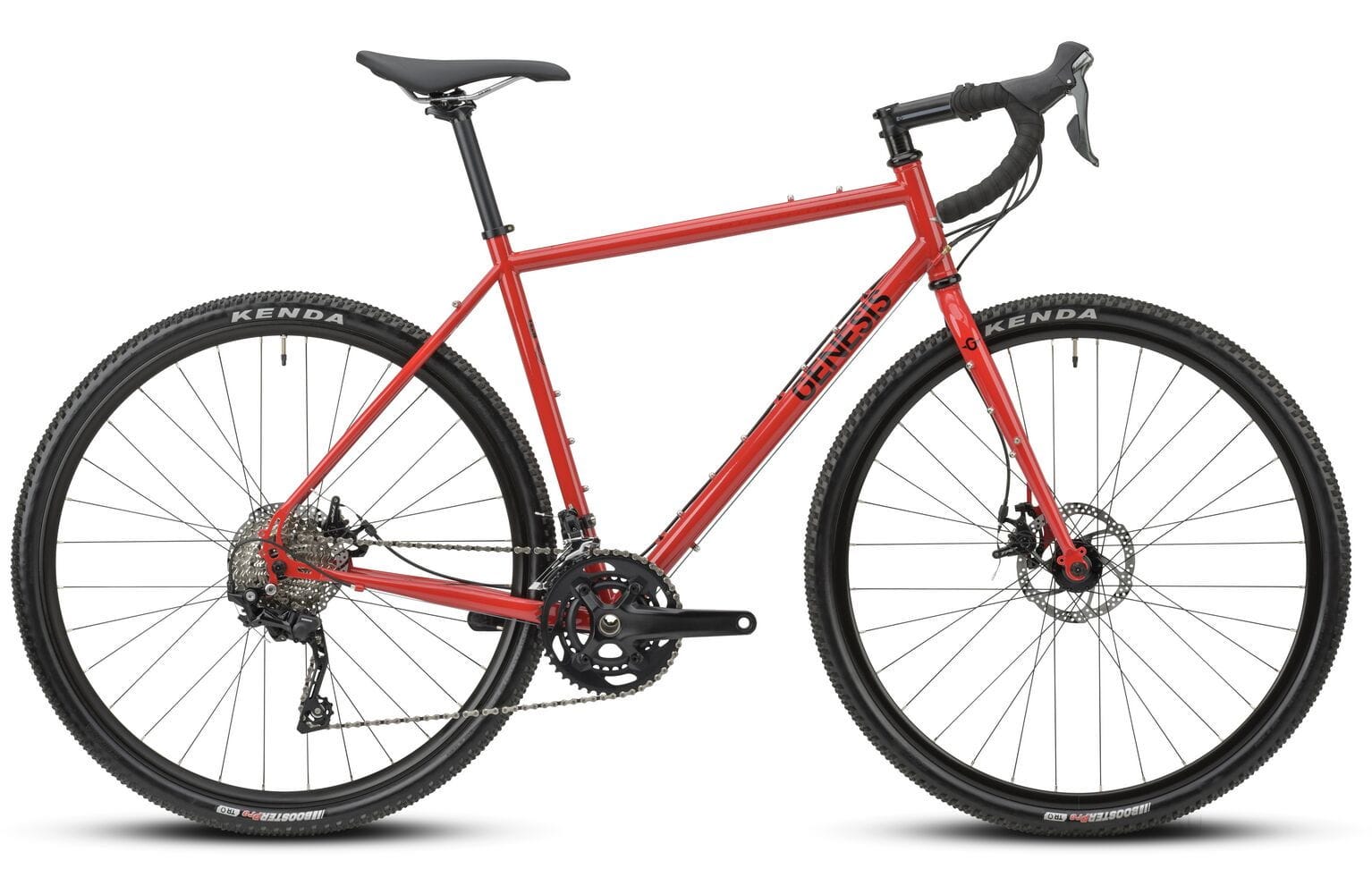

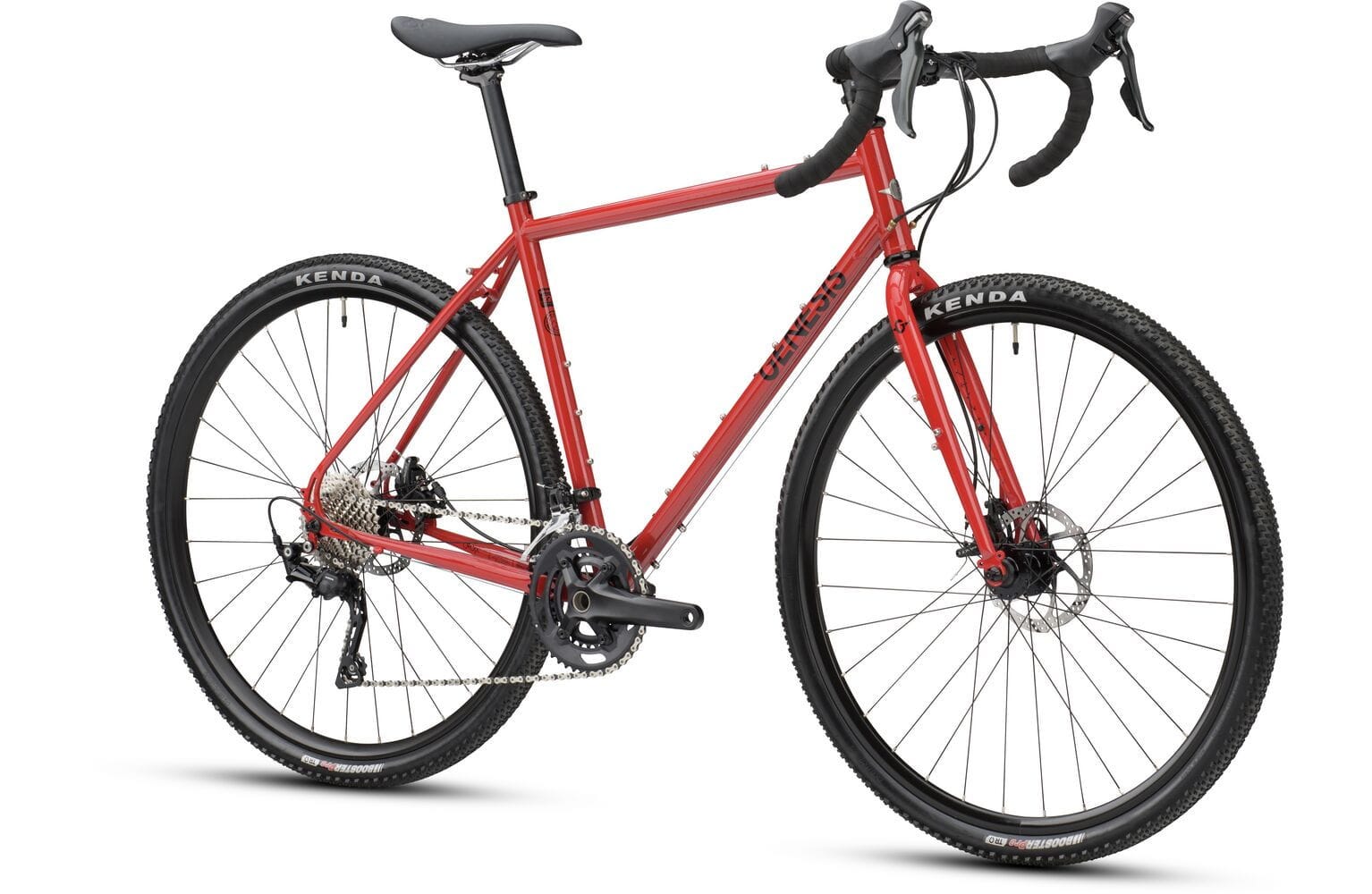

Genesis Croix De Fer 20
    One bike to rule them all.

    Our original do it all go anywhere bike is back and more capable than ever before!

    Commuting duties during the week then epic, multi-terrain adventures at the weekend, the Croix de Fer 20 is a capable and adaptable beast that rarely gets fazed whichever way you point it.

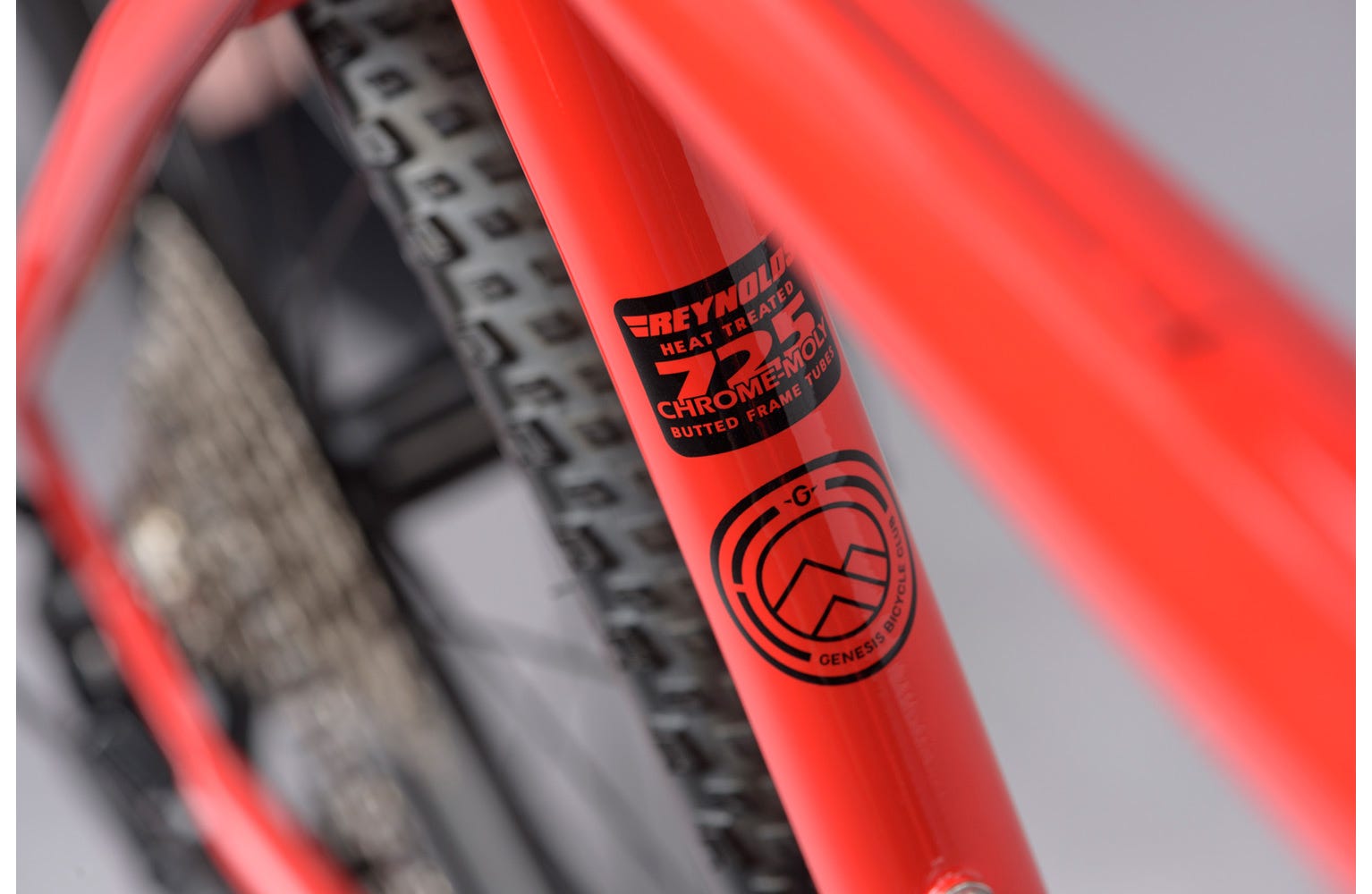

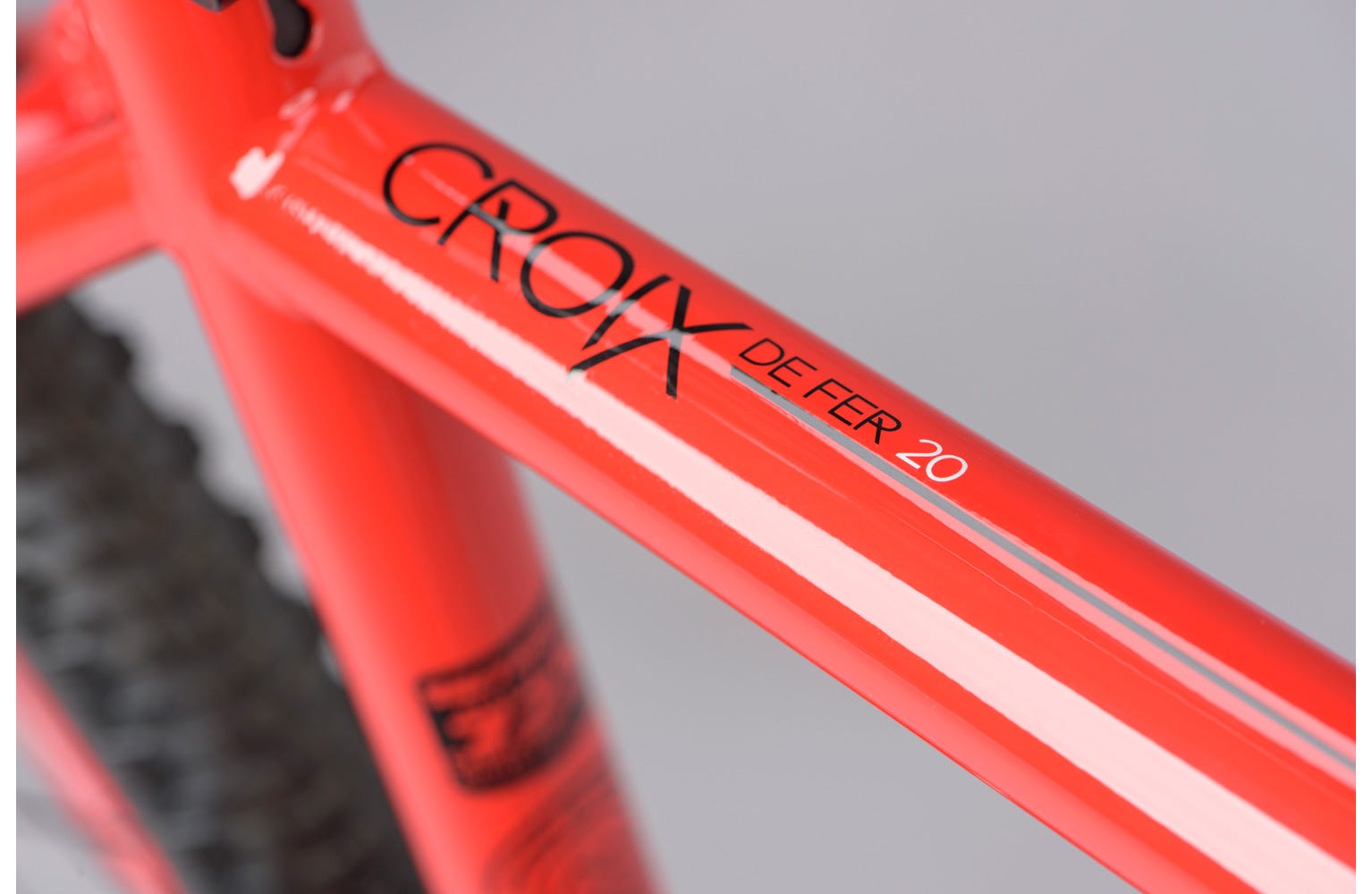

    The heart of the bike remains a complete Reynolds 725 frameset, defined by its reliability wherever you ride.

    We have however made a few updates to add to the Croix de Fer's versatility.

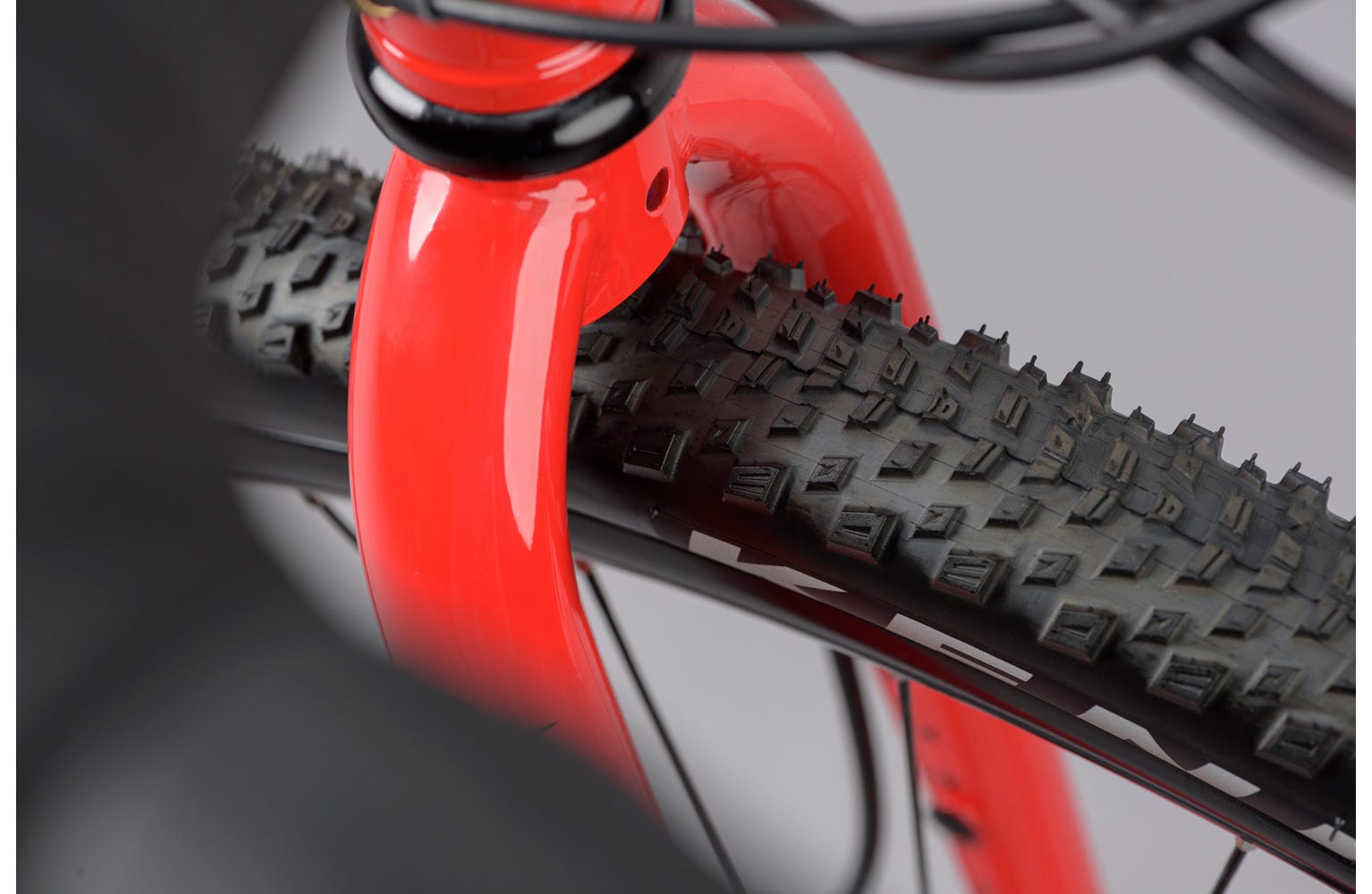

    The ability to run up to a 45mm rear tyre and a 50mm front tyre on the provided 700c rims increase the all-terrain ability of the Croix. If you want to experiment with 650B wheels, you could run up to a 44mm rear tyre and a 50mm front tyre.

    Standard QR dropouts mean your 9mm wheelsets can keep turning for another few years - and the practicalities don't end there.

    The drivetrain has been upgraded to Shimano's excellent GRX, featuring a 46/30T double chainset, an 11-34T cassette and RX400 derailleurs for reliable, smooth shifting.

    Tubeless ready rims and tyres, a third bottle mount, rack and guard mounts and fixings for Anything Cages on the forks complete the package.
Genesis Croix De Fer 20
SKU
VARGN21040
You’re suporting a local bike shop with every purchase

Find out more

Mechanical Disc
Chromoly
Steel
Shimano BB-RS500
700c

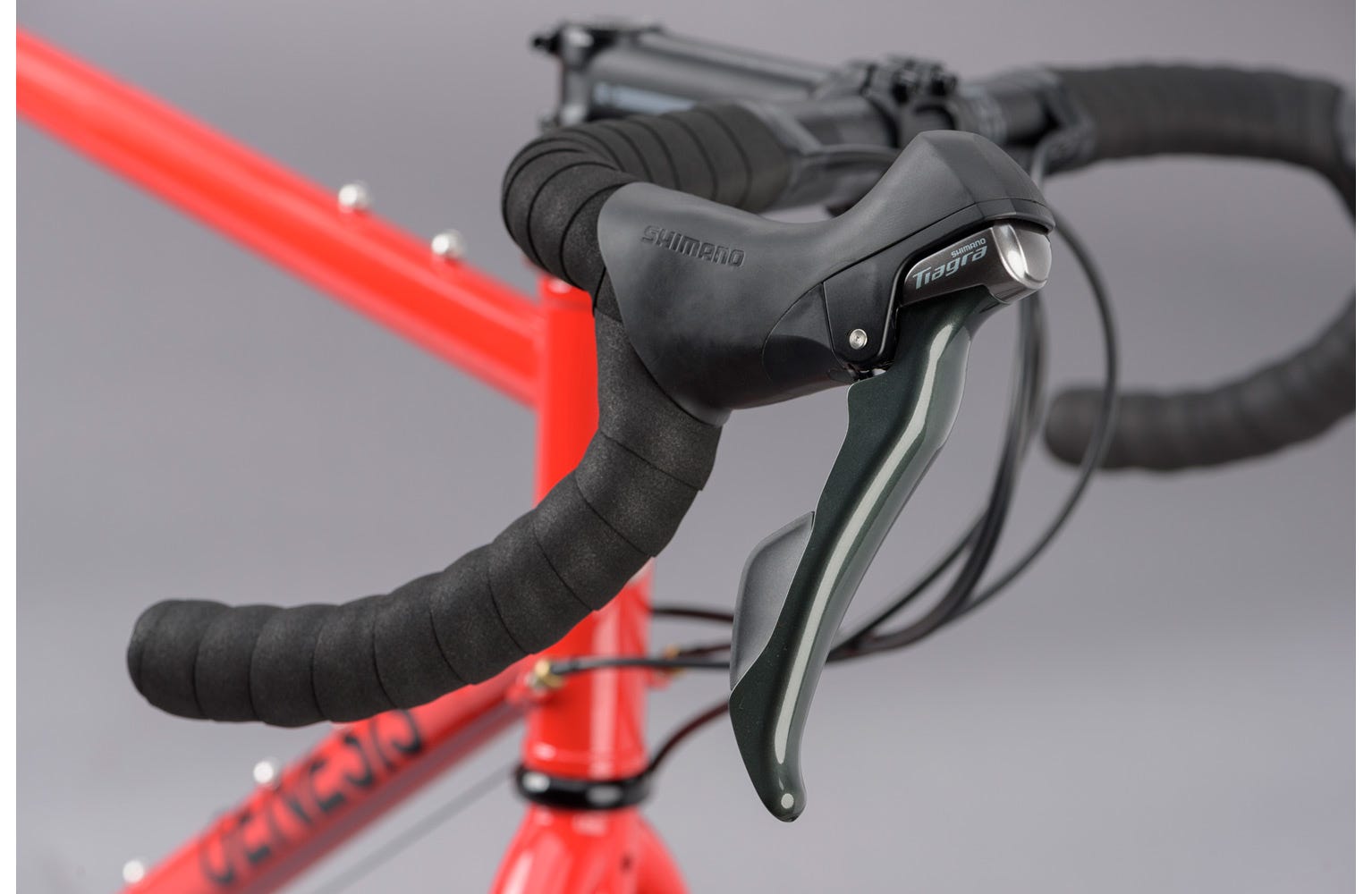

Shimano Tiagra ST-4700 10 Speed
Adventure, Gravel

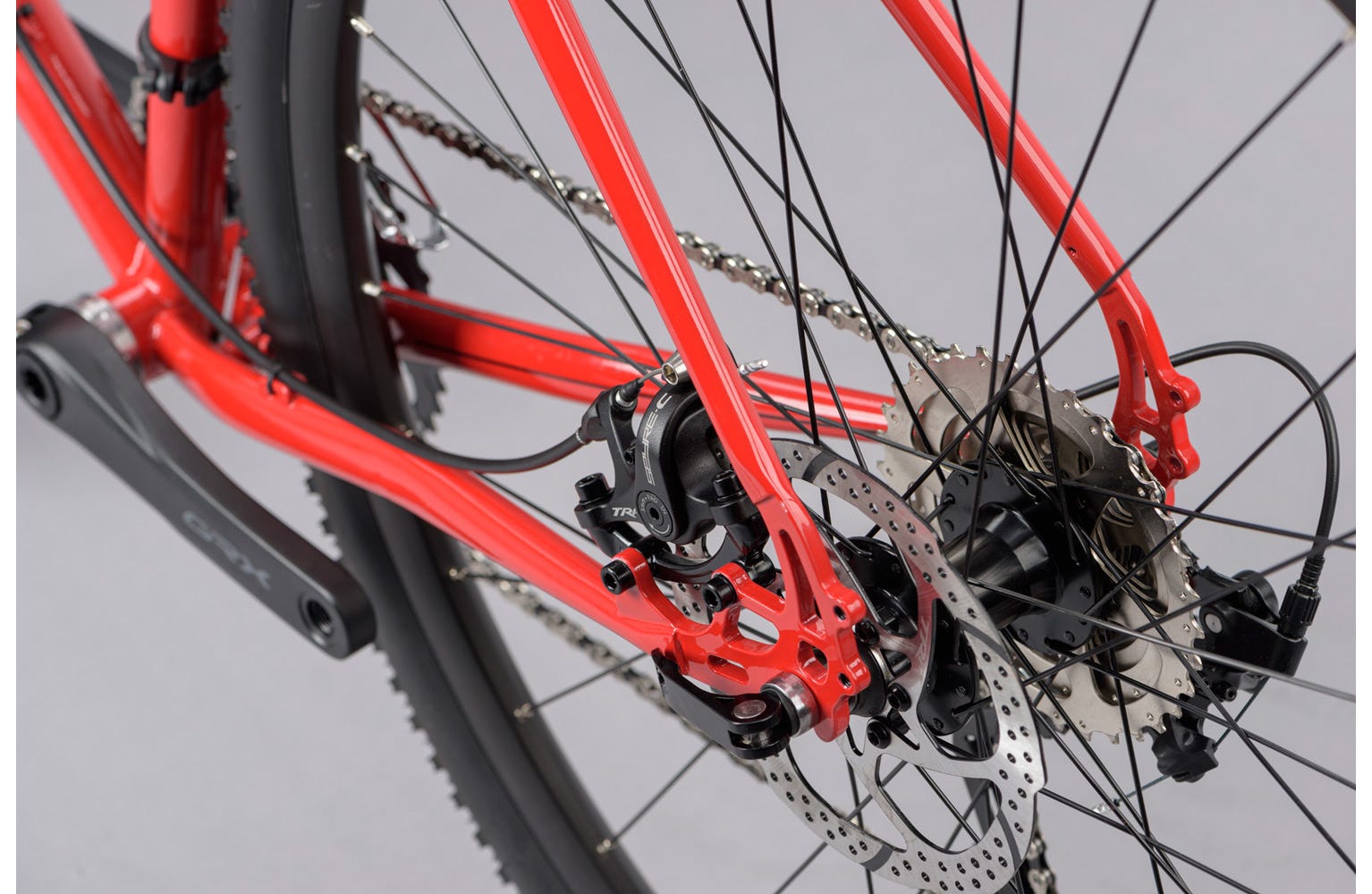

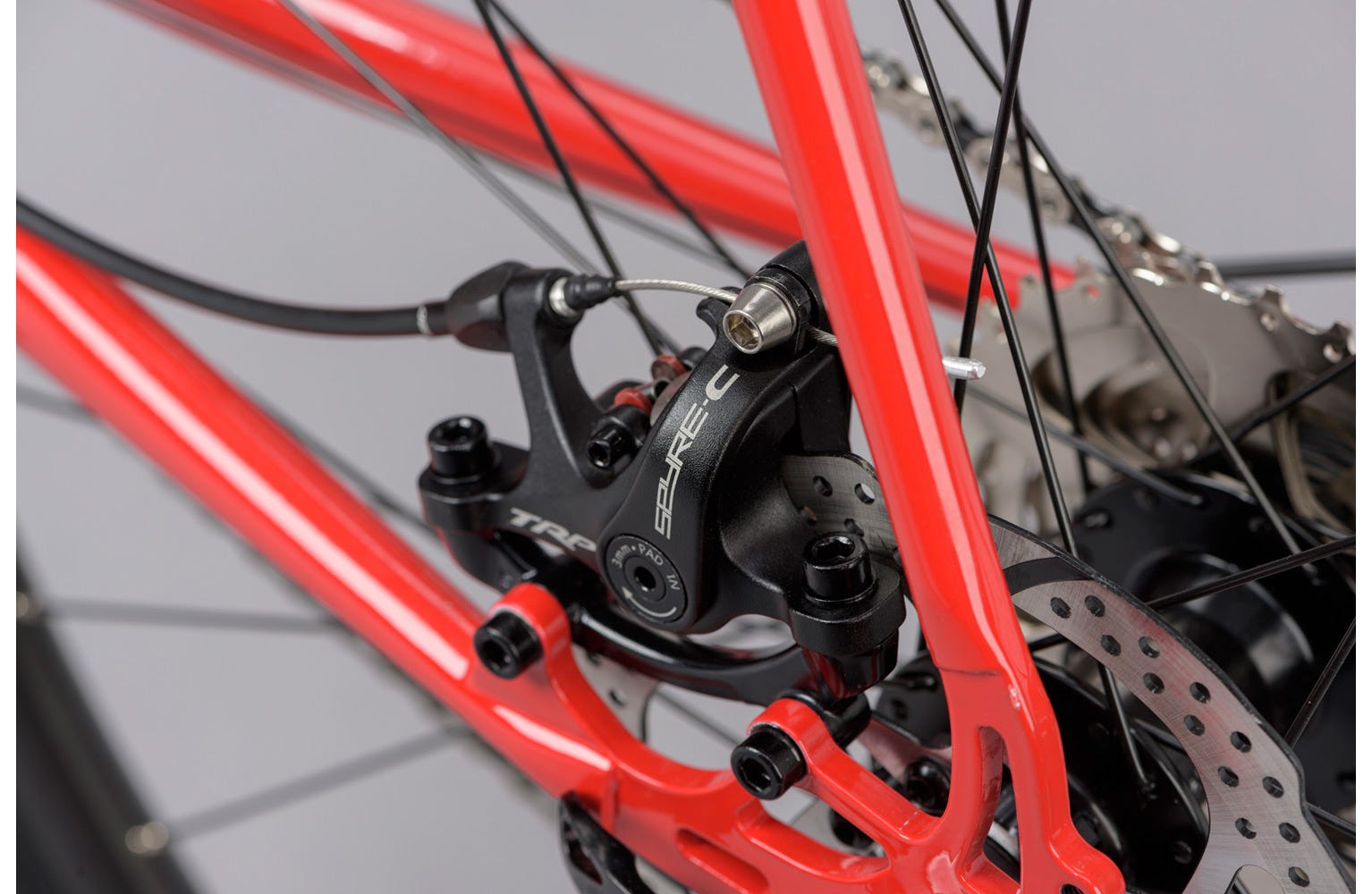

TRP Spyre-C Mechanical Disc
Shimano CS-HG500-10 11-34T
KMC X10
Chromoly Disc Fork With Anything Cage Mounts
Shimano GRX FD-RX400
Genesis

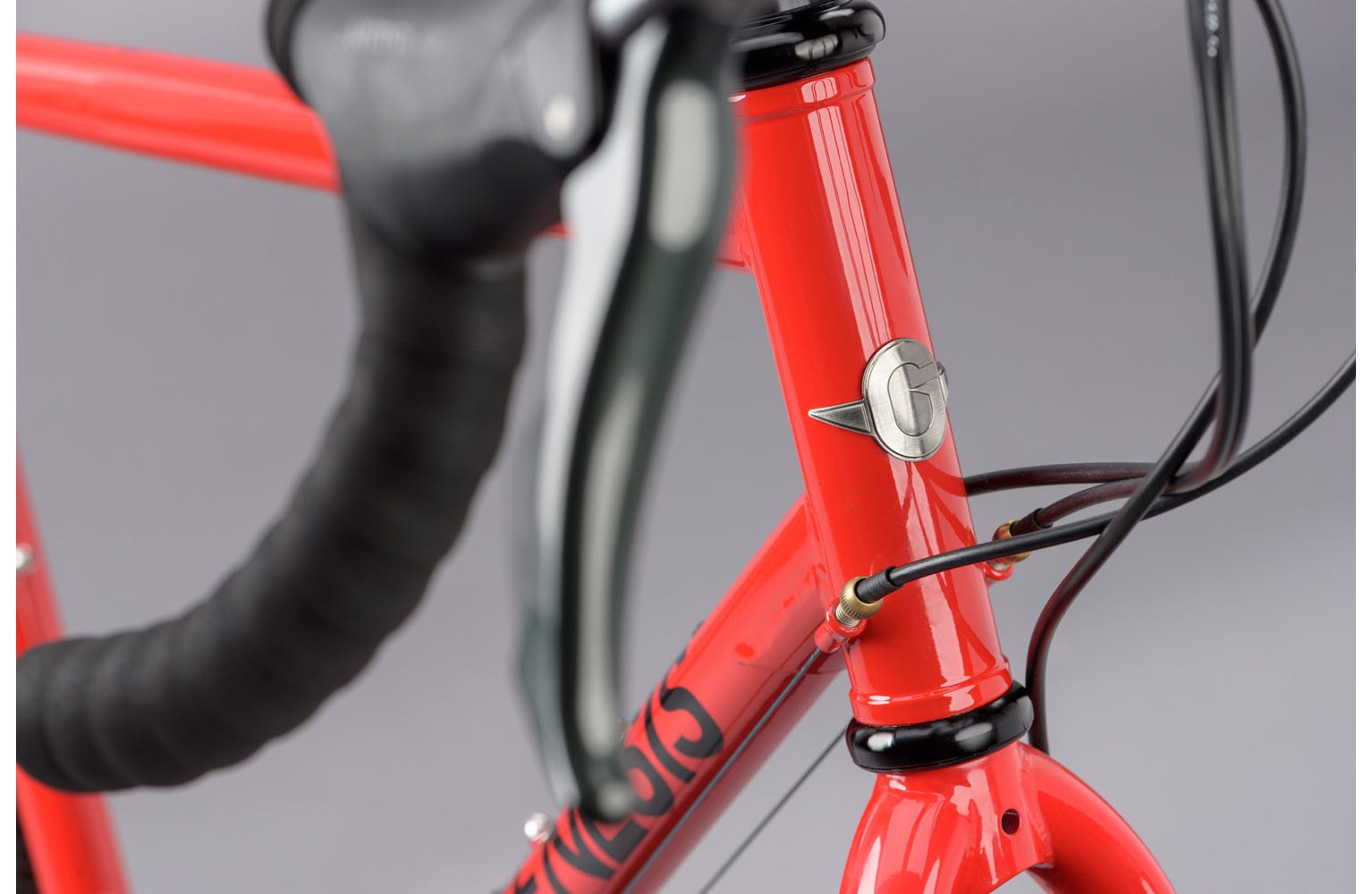

PT-1770 EC34 Upper / EC34 Lower
KT-K08 / 6 Bolt
NW-91K With Cage
Shimano GRX RD-RX400 10 Speed

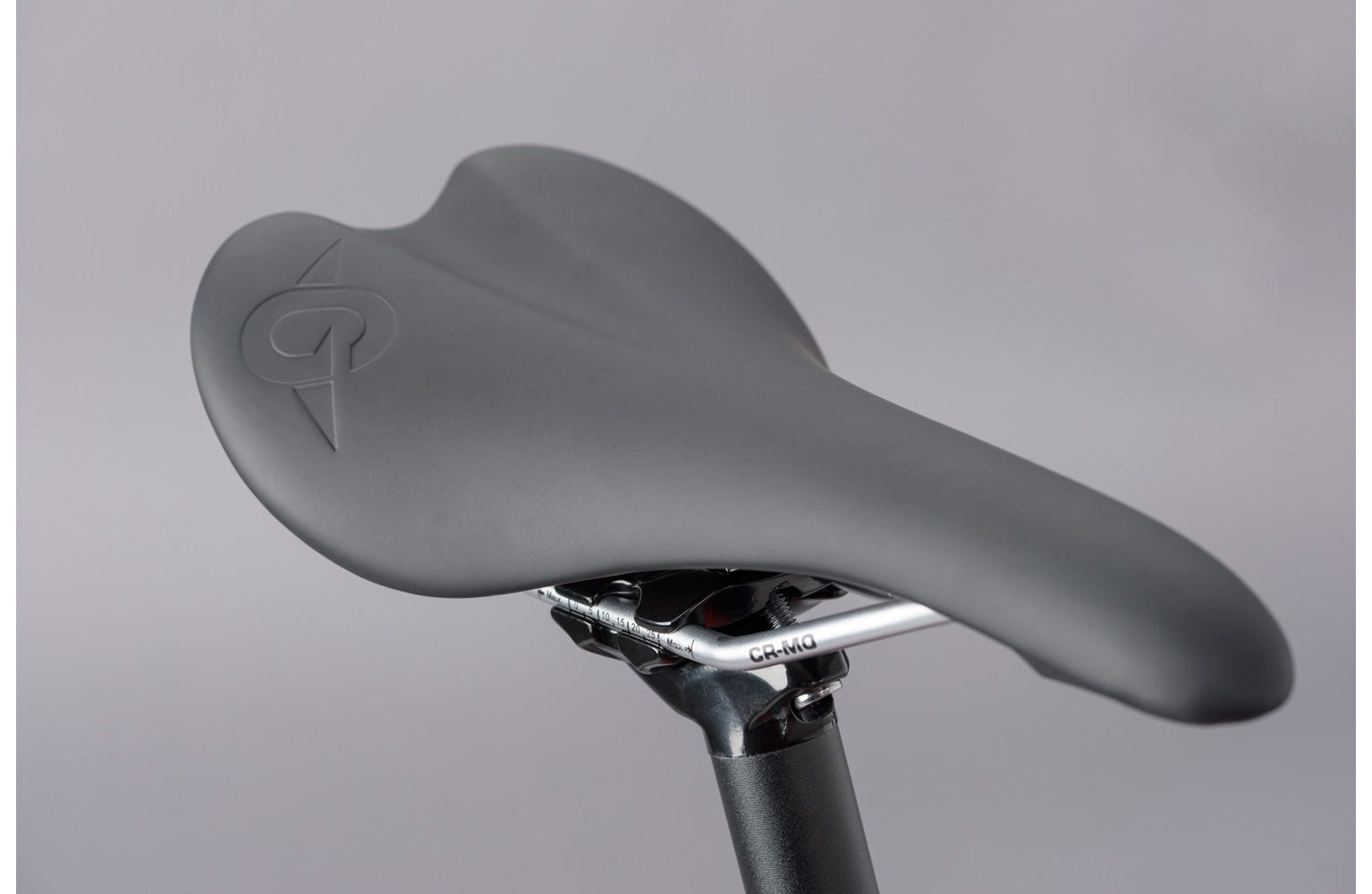

Jalco XCD21
Genesis
Genesis Alloy 27.2 x 350 mm
Shimano Tiagra ST-4700 10 Speed
Steel 14 g
Genesis Alloy 31.8mm -6 deg 100 mm
Kenda Booster 700 x 40c Tubeless Ready
Crossbar
Mens, Womens

150

152

154

156

158

160

162

164

166

168

170

172

174

176

178

180

182

184

186

188

190

192

194

196

198

200

X-Small - 156 to 164
Small - 164 to 172
Medium - 171 to 179
Large - 178 to 186
X-Large - 185 to 193

Please be advised that this bicycle size chart is only a rough guide to help you select the correct frame size. We would always recommend visiting your local dealer to get measured and sized correctly, as although height is used, there are other factors which help determine the best frame size for you.

Geometry

Frame Seat Tube 470
Frame Top Tube 524
Frame Reach 365
Frame Stack 553
Frame Head Tube 115
Frame Head Angle 71
Frame Seat Angle 74
Frame BB Drop 73
Frame Wheel Base 1007
Fork Offset 50
Standover 761
Stem Length 100
Handle Bar Width 400
Frame Seat Tube 500
Frame Top Tube 544
Frame Reach 375
Frame Stack 572
Frame Head Tube 135
Frame Head Angle 71
Frame Seat Angle 73.5
Frame BB Drop 73
Frame Wheel Base 1023
Fork Offset 50
Standover 784
Stem Length 100
Handle Bar Width 420
Frame Seat Tube 530
Frame Top Tube 561
Frame Reach 385
Frame Stack 593
Frame Head Tube 155
Frame Head Angle 71.5
Frame Seat Angle 73.5
Frame BB Drop 73
Frame Wheel Base 1035
Fork Offset 50
Standover 808
Stem Length 100
Handle Bar Width 420
Frame Seat Tube 550
Frame Top Tube 582
Frame Reach 395
Frame Stack 612
Frame Head Tube 175
Frame Head Angle 71.5
Frame Seat Angle 73
Frame BB Drop 73
Frame Wheel Base 1052
Fork Offset 50
Standover 826
Stem Length 100
Handle Bar Width 440
Frame Seat Tube 580
Frame Top Tube 605
Frame Reach 405
Frame Stack 633
Frame Head Tube 195
Frame Head Angle 72
Frame Seat Angle 72.5
Frame BB Drop 73
Frame Wheel Base 1063
Fork Offset 50
Standover 850
Stem Length 100
Handle Bar Width 440
